Memory Seat Module (MSM) Connector End View C3 (AM3)

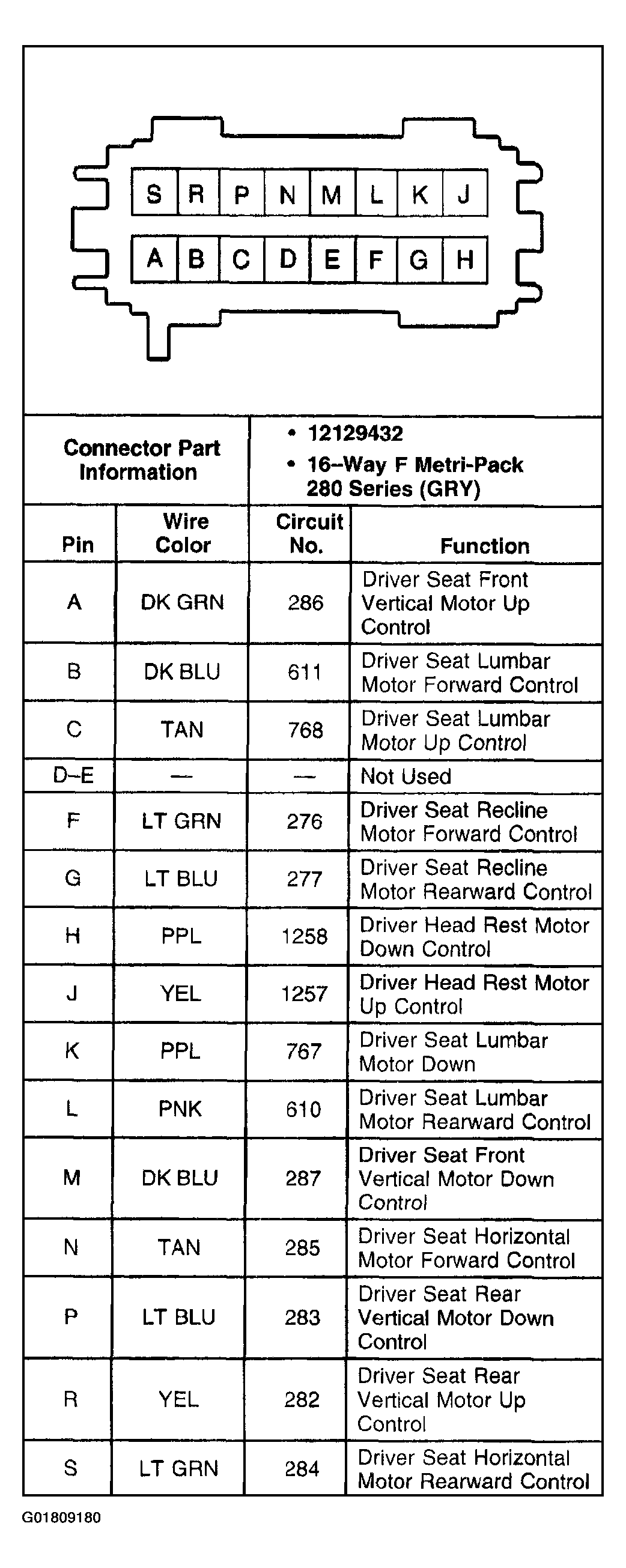

Fig 1: Memory Seat Module (MSM) C3 (AM3)
Courtesy of GENERAL MOTORS CORP.
