Removal Procedure

  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT - LEFT (WITHOUT UV2) or KNEE BOLSTER REPLACEMENT - LEFT (UV2) .
  2. Disconnect the electrical connectors to the steering column module (1).
  3. Loosen the steering column control module retaining screw and slide the steering column control module out of retaining bracket.

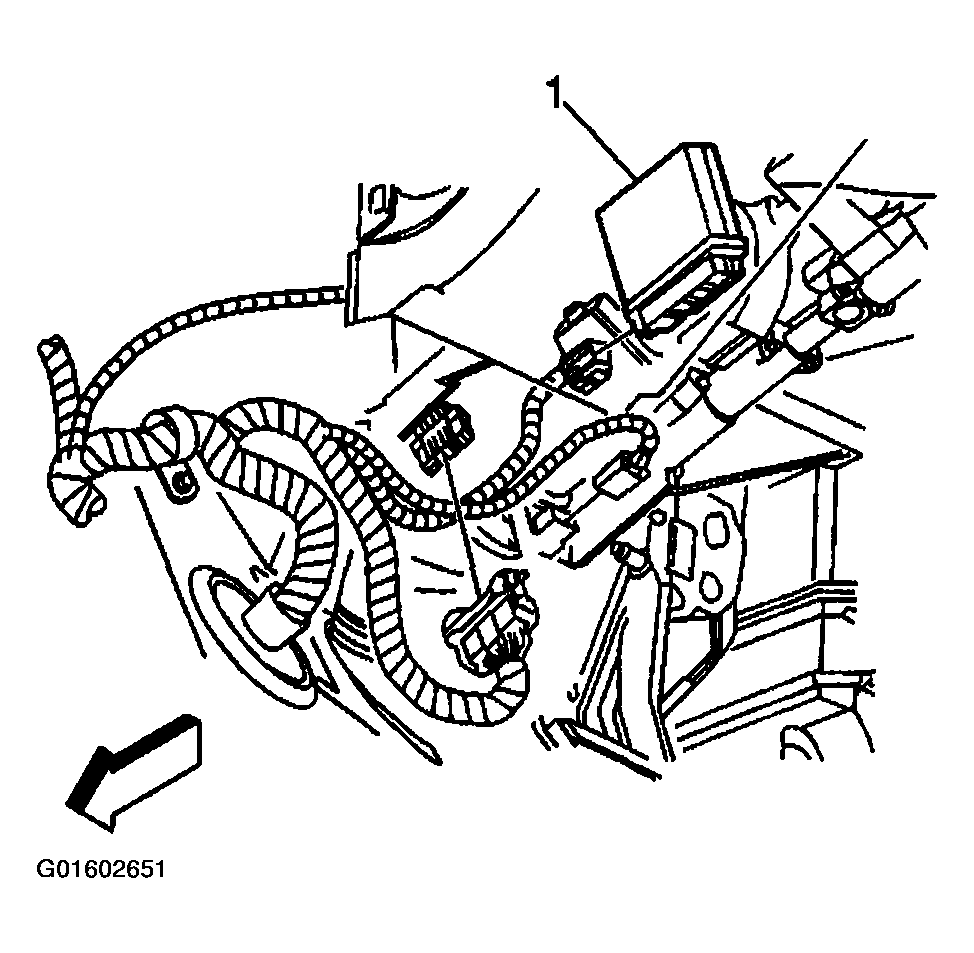

    Fig 1: Disconnecting Electrical Connectors From Steering Column Module
    G01602651Courtesy of GENERAL MOTORS CORP.
