Removal Procedure

  1. Remove the rear seat back. Refer to Seat Back Replacement - Rear .
  2. Disconnect the electrical connectors to the heated seat control module.
  3. Remove the fasteners from the heated seat control module.
  4. Remove the rear heated seat control module from the seat back.

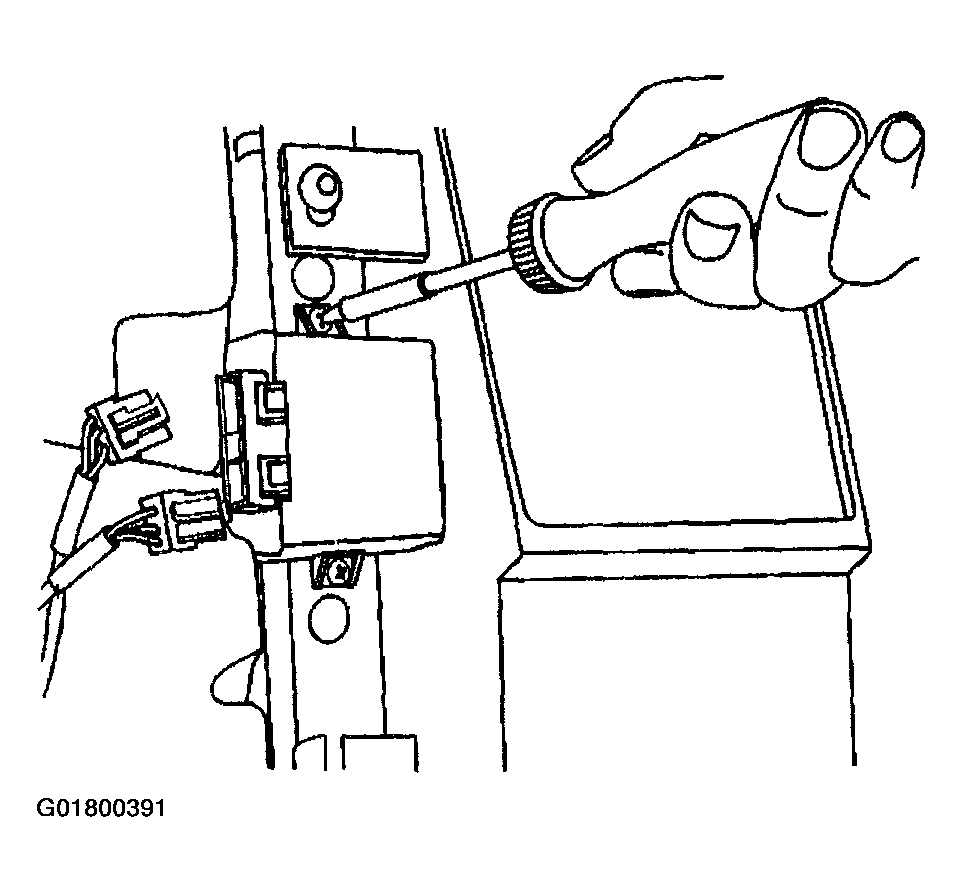

    Fig 1: Removing Fasteners From Heated Seat Control Module
    G01800391Courtesy of GENERAL MOTORS CORP.
