Stationary Windows Component Views

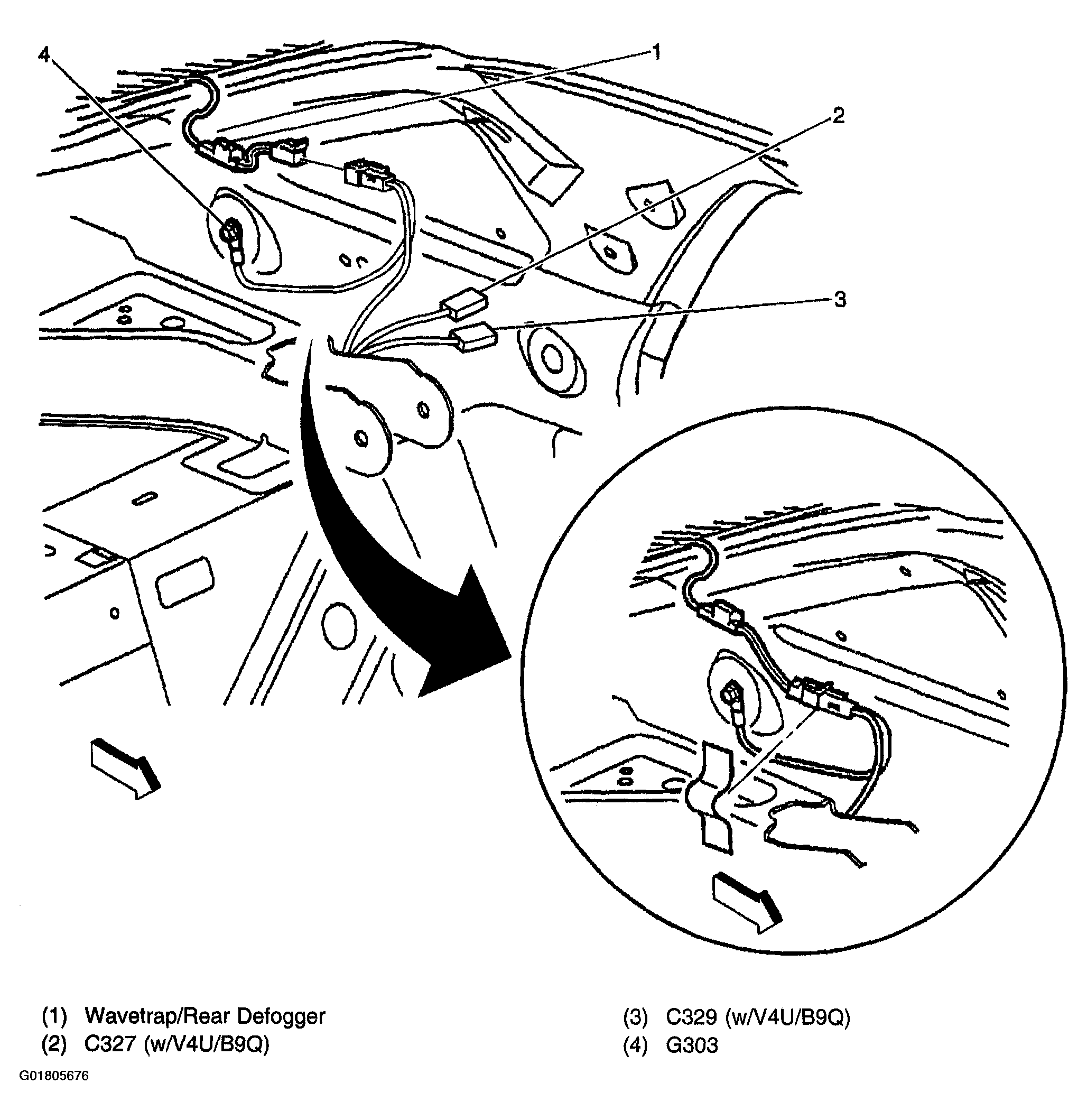

Fig 1: Left Rear of the Passenger Compartment, Above the Rear Shelf Panel
G01805676Courtesy of GENERAL MOTORS CORP.

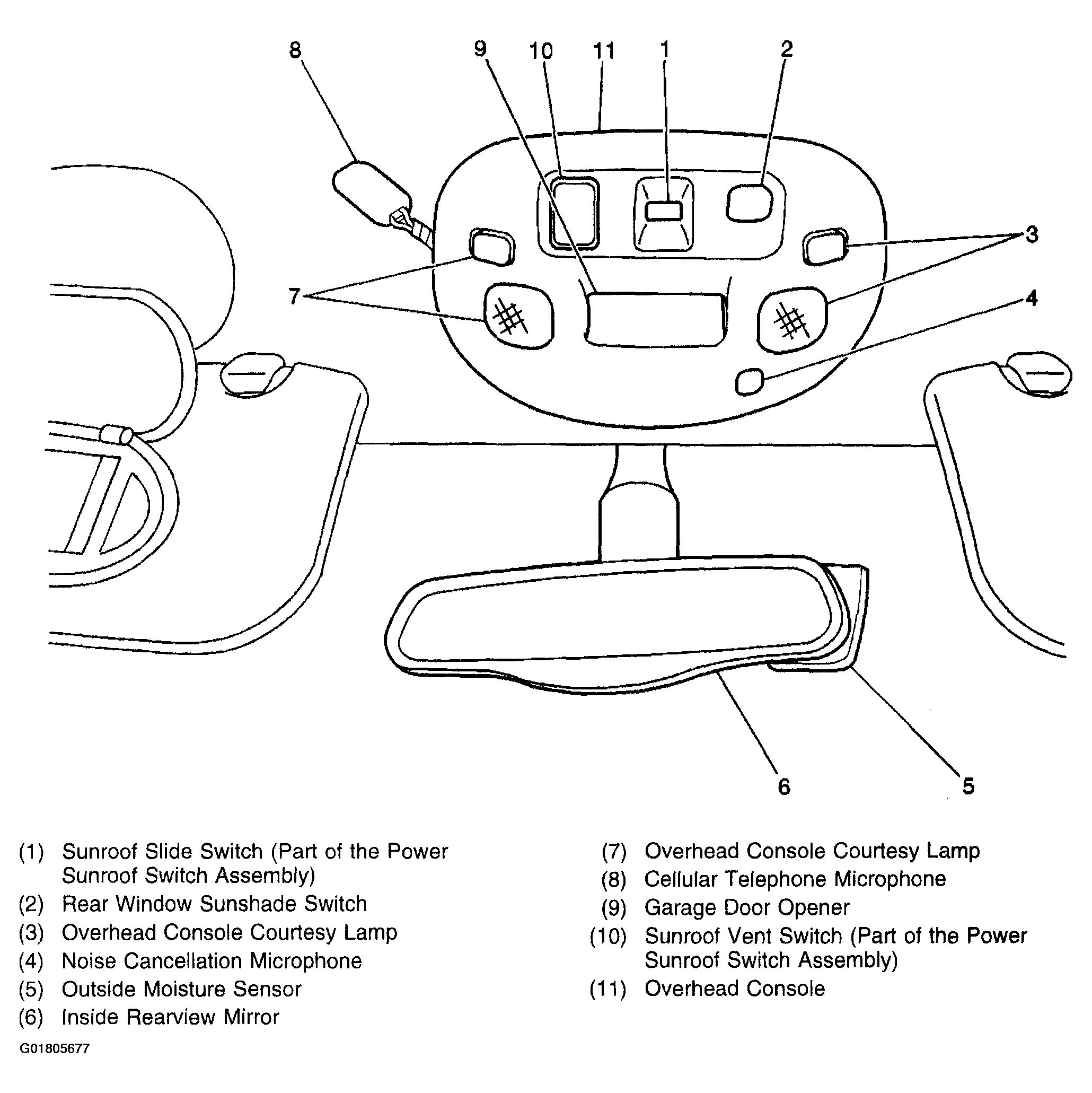

Fig 2: Passenger Compartment, Center Front of the Headliner
G01805677Courtesy of GENERAL MOTORS CORP.
