Electronic Brake Control Module (EBCM)

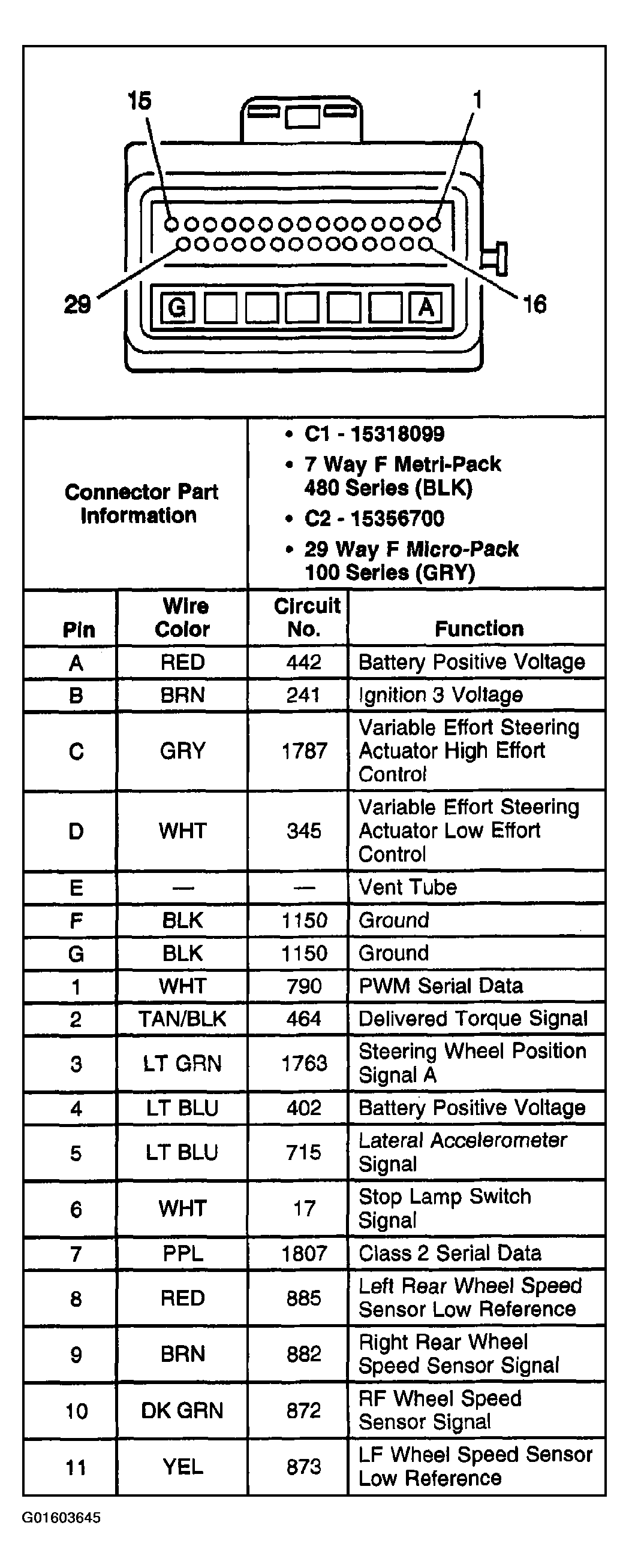

Fig 1: Electronic Brake Control Module (EBCM) Connector End View (1 Of 2)
G01603645Courtesy of GENERAL MOTORS CORP.

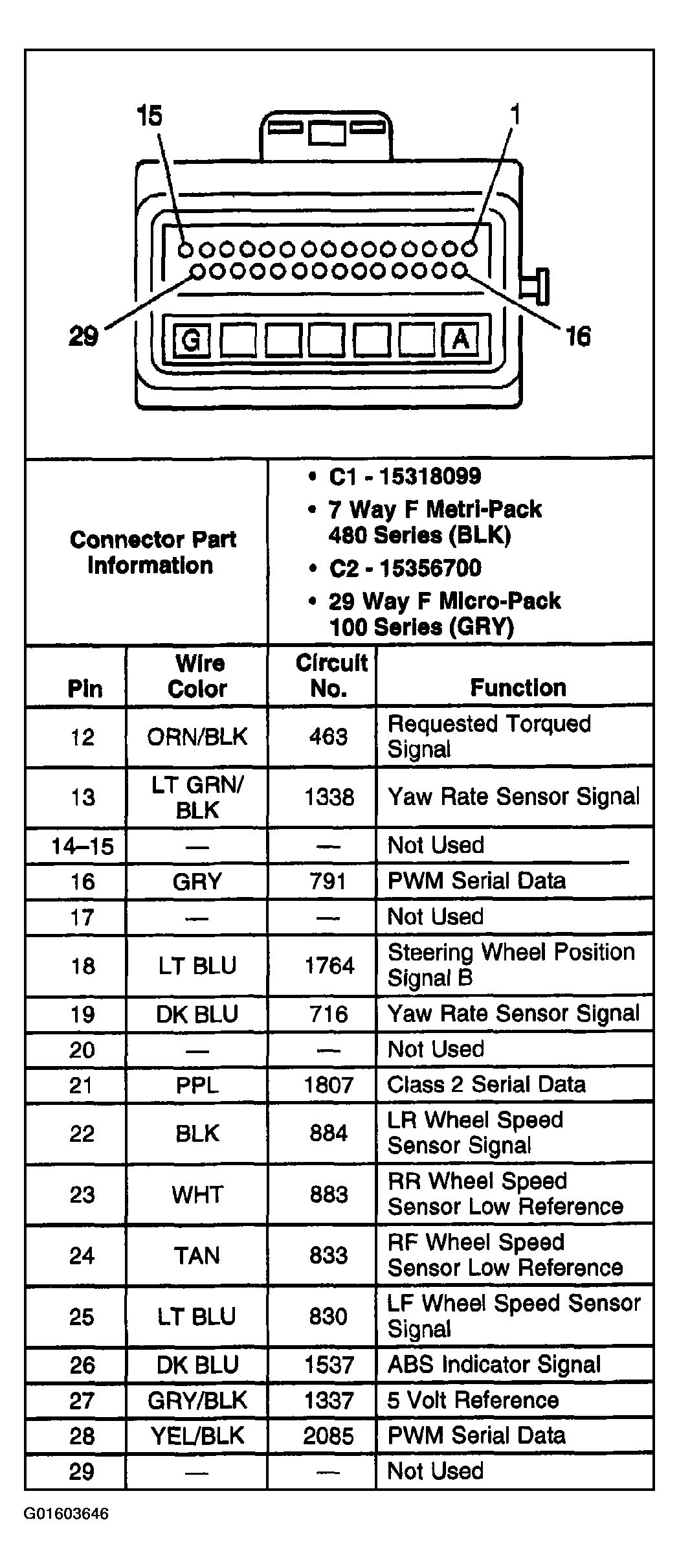

Fig 2: Electronic Brake Control Module (EBCM) Connector End View (2 Of 2)
G01603646Courtesy of GENERAL MOTORS CORP.
