Traction Control Switch (w/o F45)

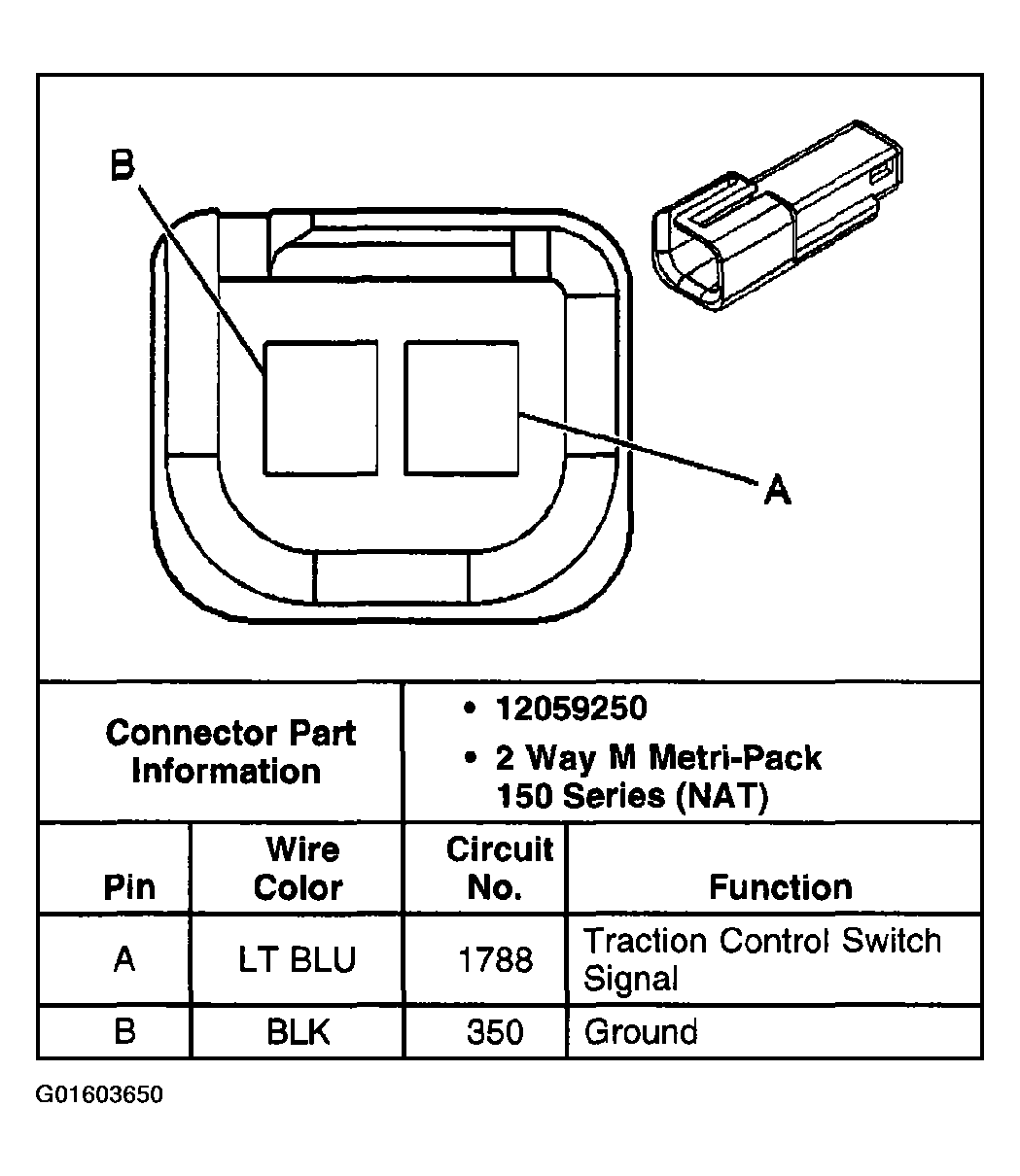

Fig 1: Traction Control Switch (w/o F45) Connector End View
G01603650Courtesy of GENERAL MOTORS CORP.
