Removal Procedure

Turn OFF the ignition.
Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .

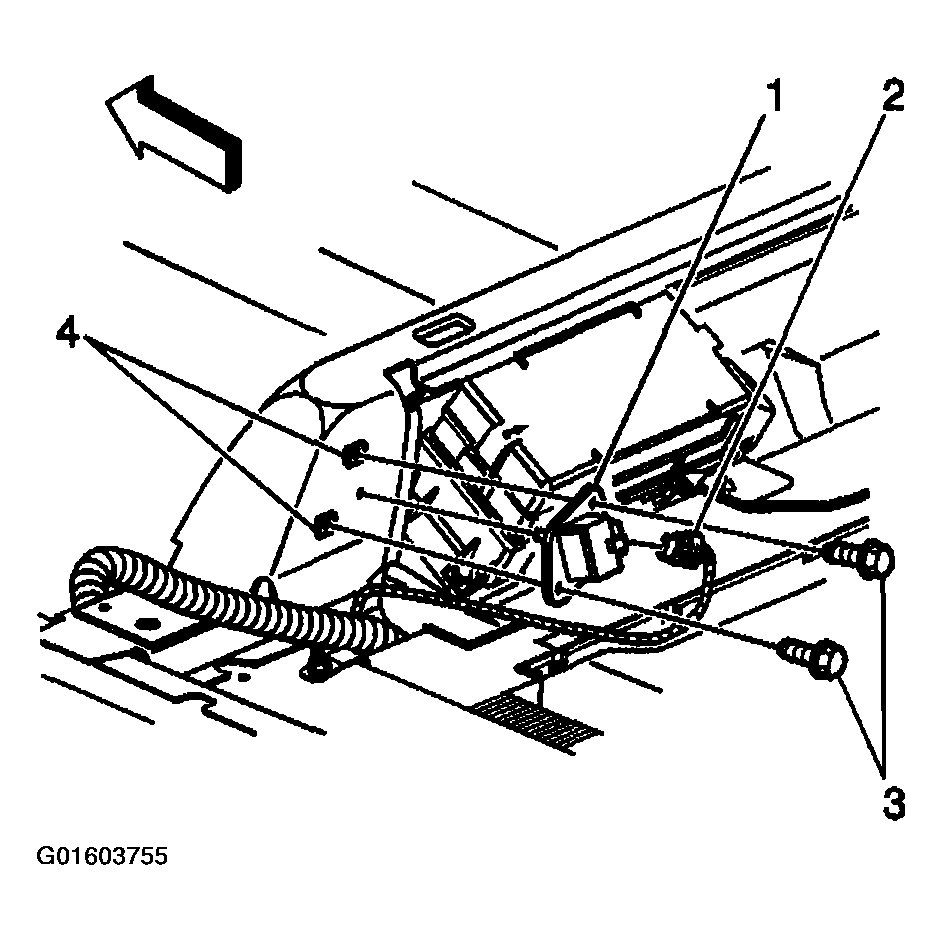

Fig 1: View of Lateral Accelerometer Sensor

Courtesy of GENERAL MOTORS CORP.

Disconnect the lateral accelerometer sensor electrical connector (2).
Remove the 2 lateral accelerometer sensor screws (3).
Remove the lateral accelerometer sensor (1).
