Removal Procedure

  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery positive cable (1) from the battery.

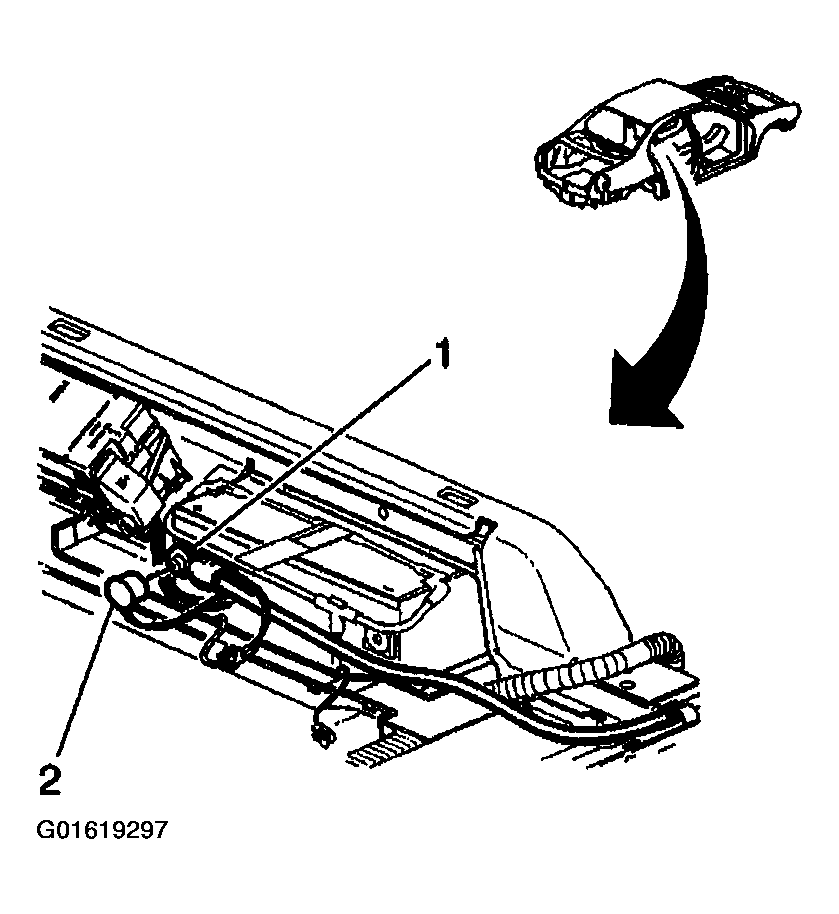

    Fig 1: Battery Positive Cable
    G01619297Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.
    Fig 2: Battery Vent Tube
    G01619298Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.
  5. Remove the battery.

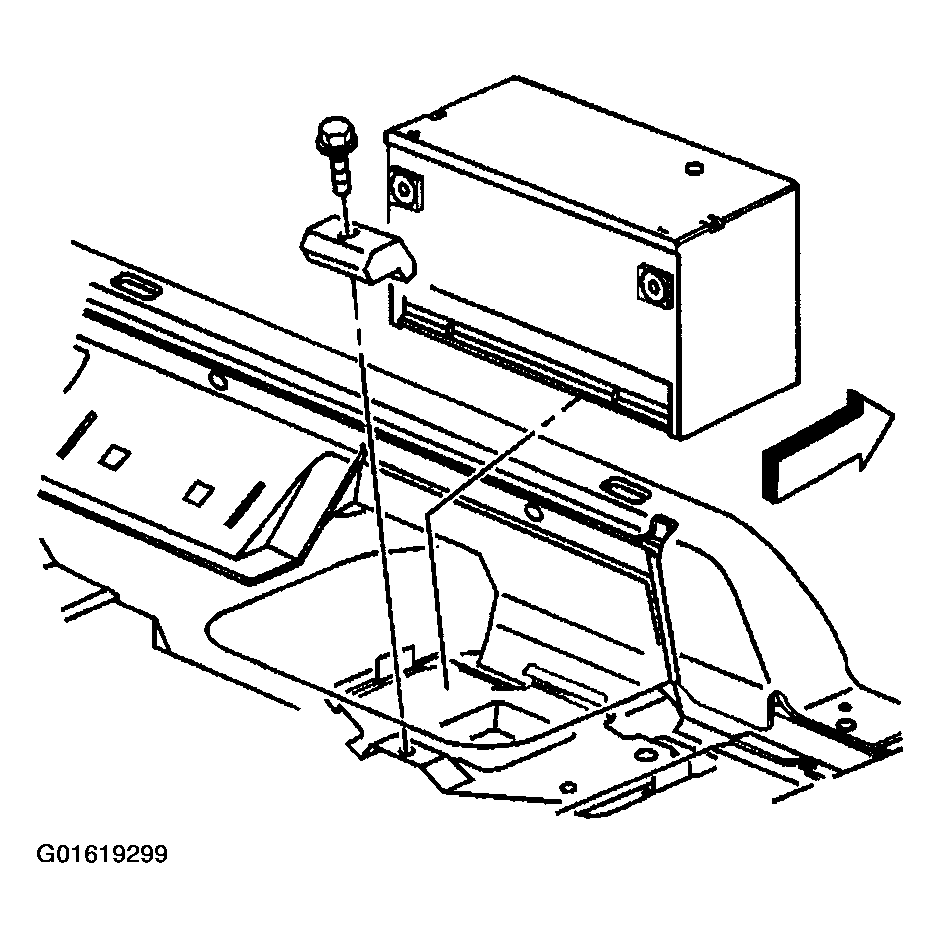

    Fig 3: Battery Retainer & Bolt
    G01619299Courtesy of GENERAL MOTORS CORP.
