Horns Connector End Views

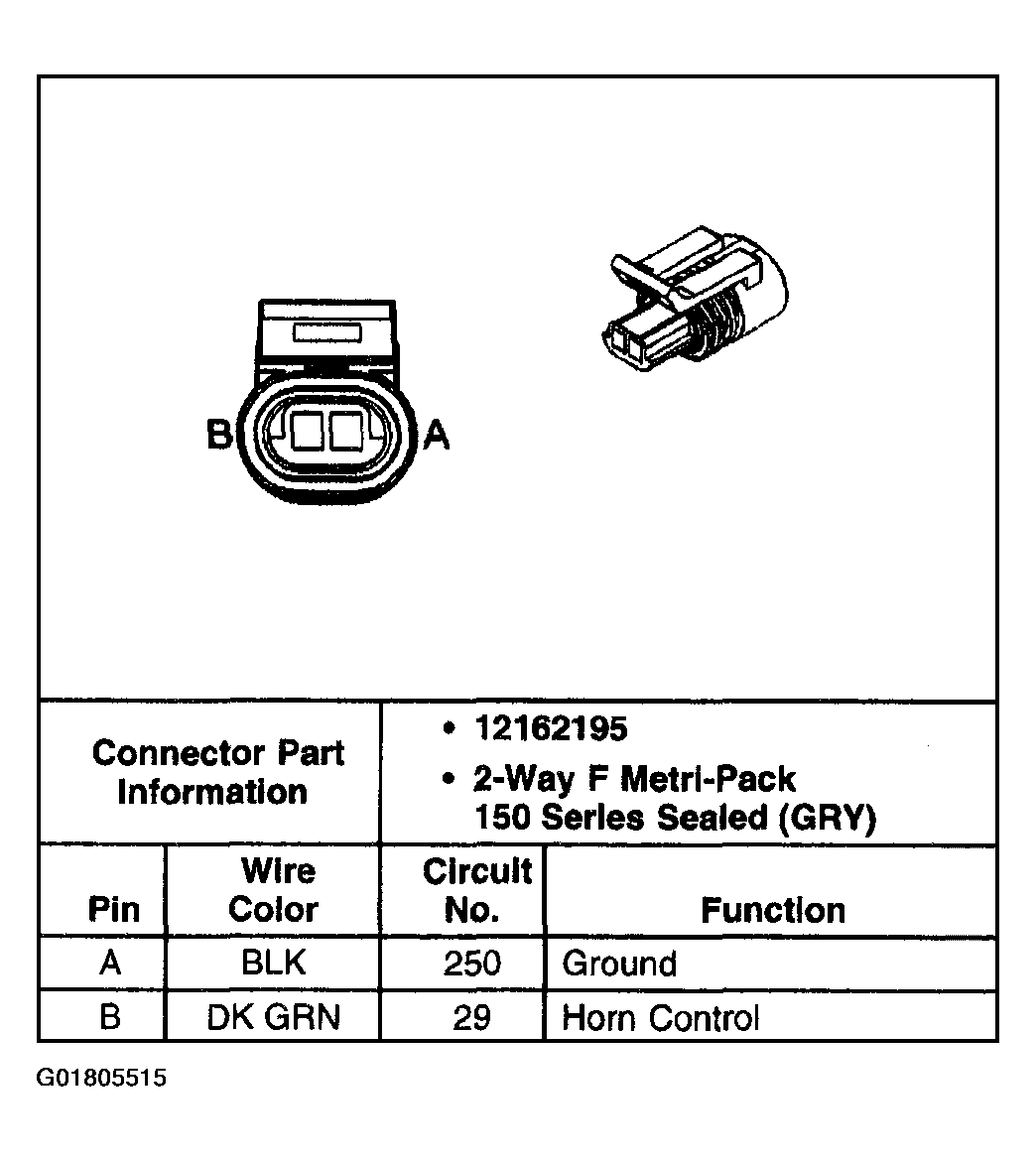

Fig 1: Horn - High Note
G01805515Courtesy of GENERAL MOTORS CORP.
Fig 2: Horn - Low Note
G01805516Courtesy of GENERAL MOTORS CORP.
