Body Control Module Component Views

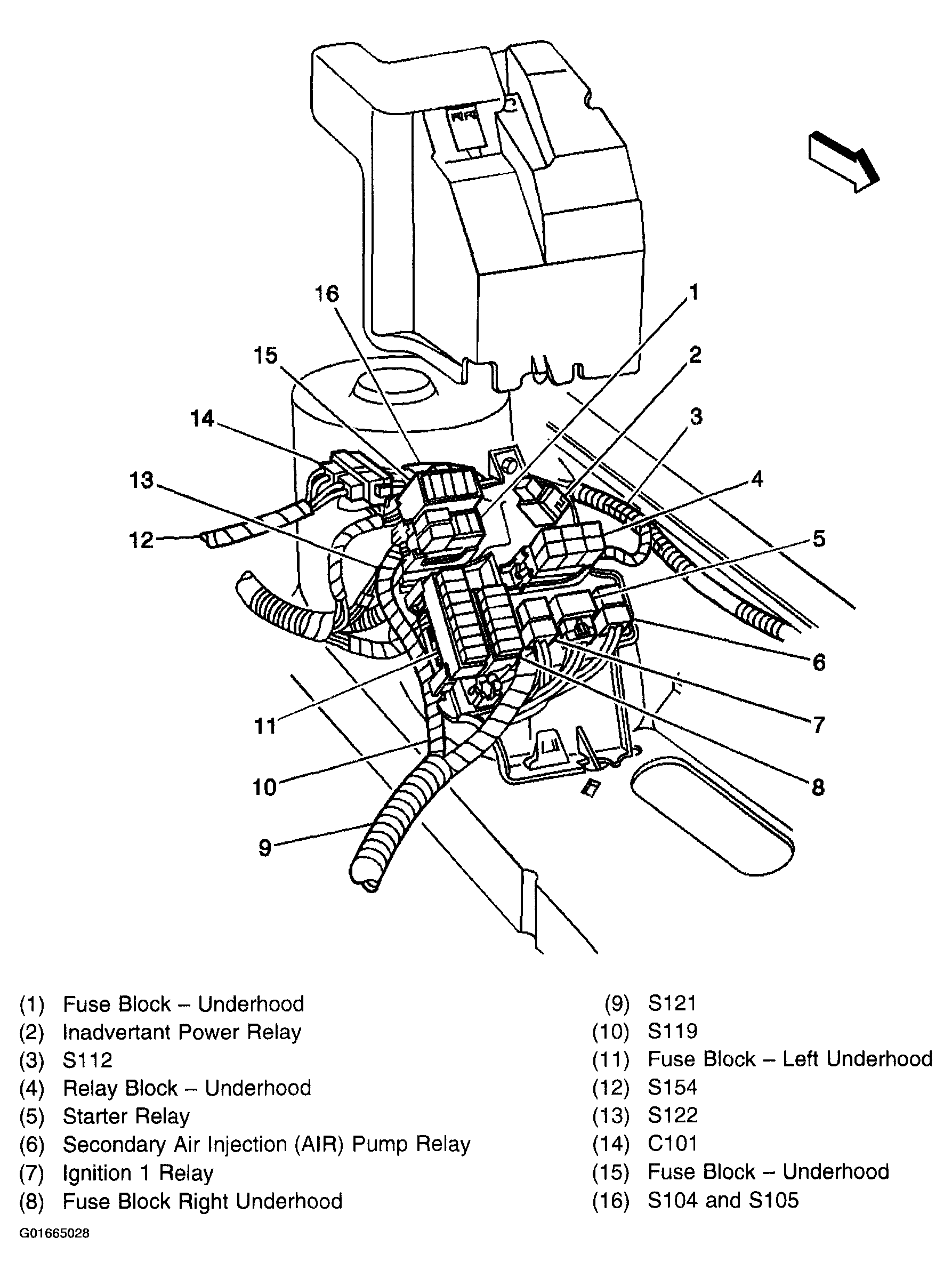

Fig 1: Engine Compartment, on the Left Side
G01665028Courtesy of GENERAL MOTORS CORP.

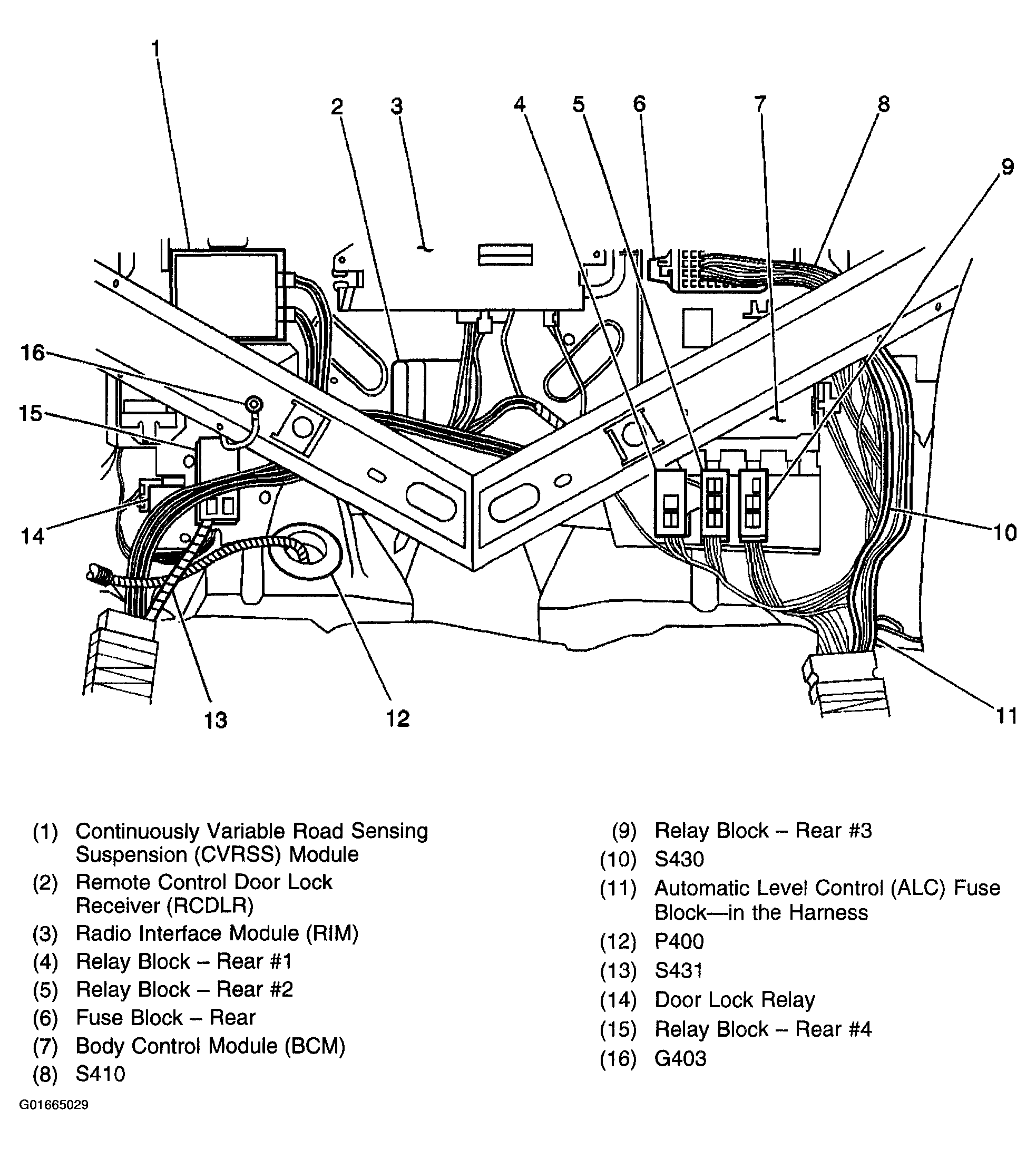

Fig 2: Passenger Compartment, Behind the Rear Seat
G01665029Courtesy of GENERAL MOTORS CORP.
