Body Control Module Schematics

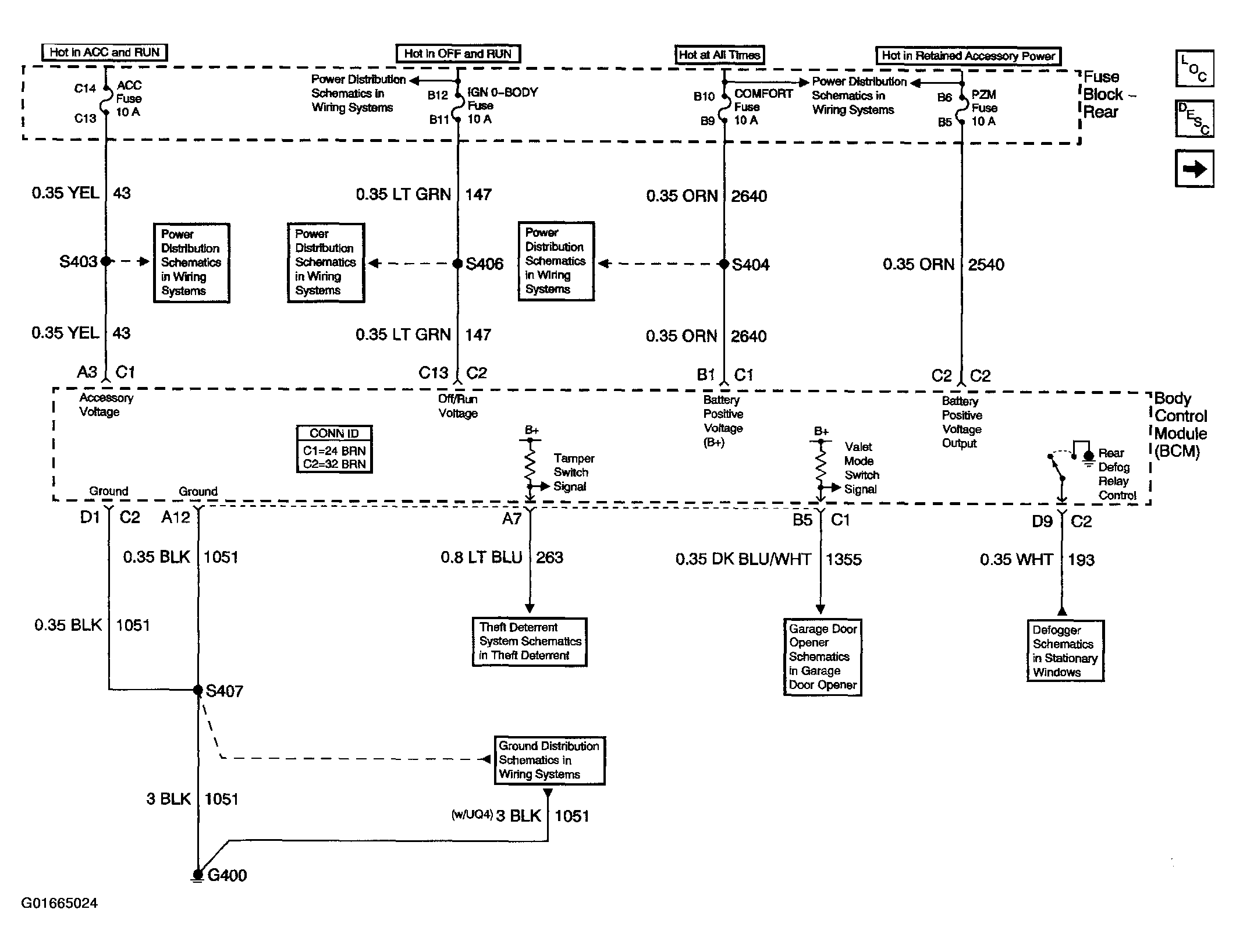

Fig 1: Body Control Module Schematics (Power and Ground Circuits)

Courtesy of GENERAL MOTORS CORP.

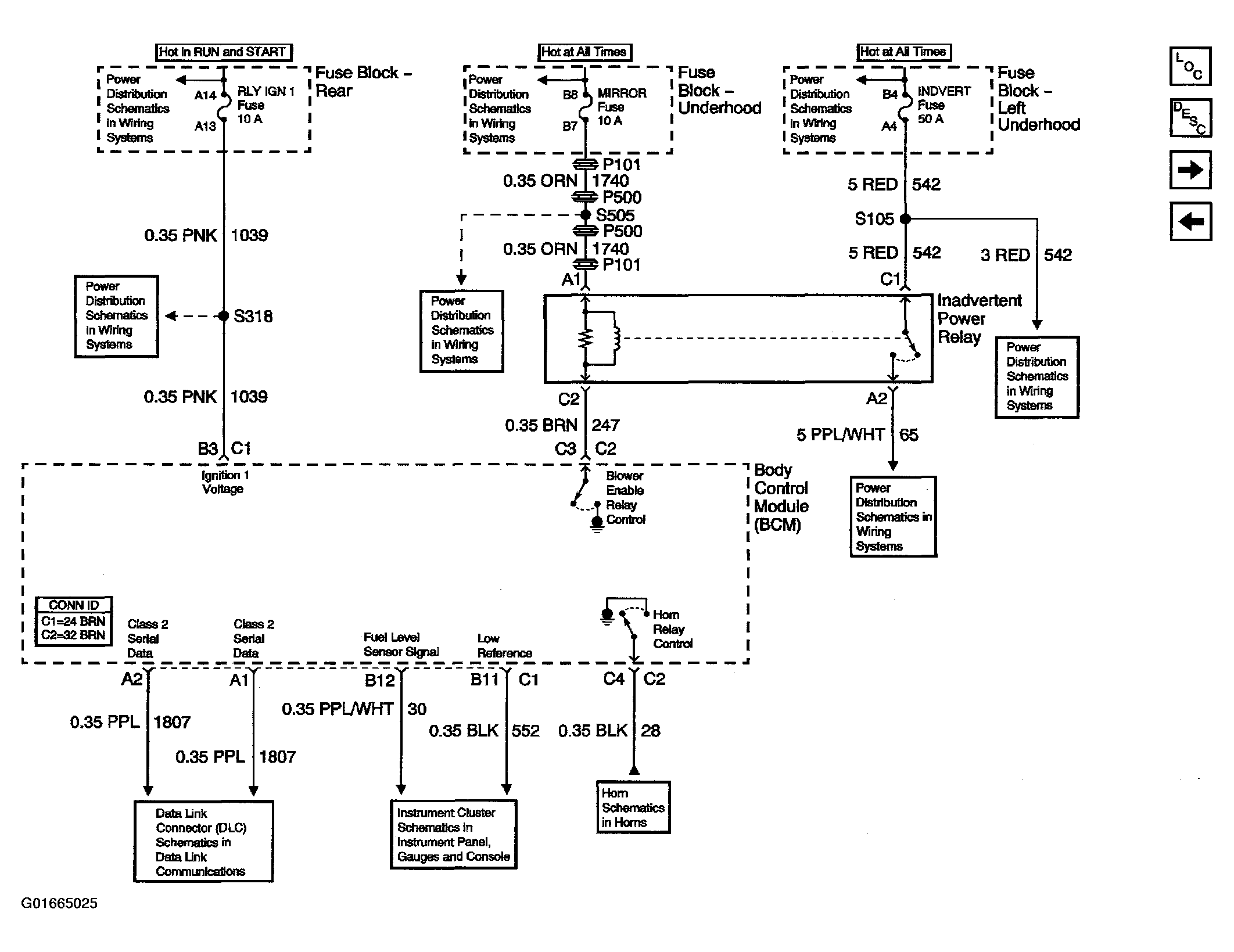

Fig 2: Body Control Module Schematics (Body Control Module Inputs and Outputs (1 of 3))

Courtesy of GENERAL MOTORS CORP.

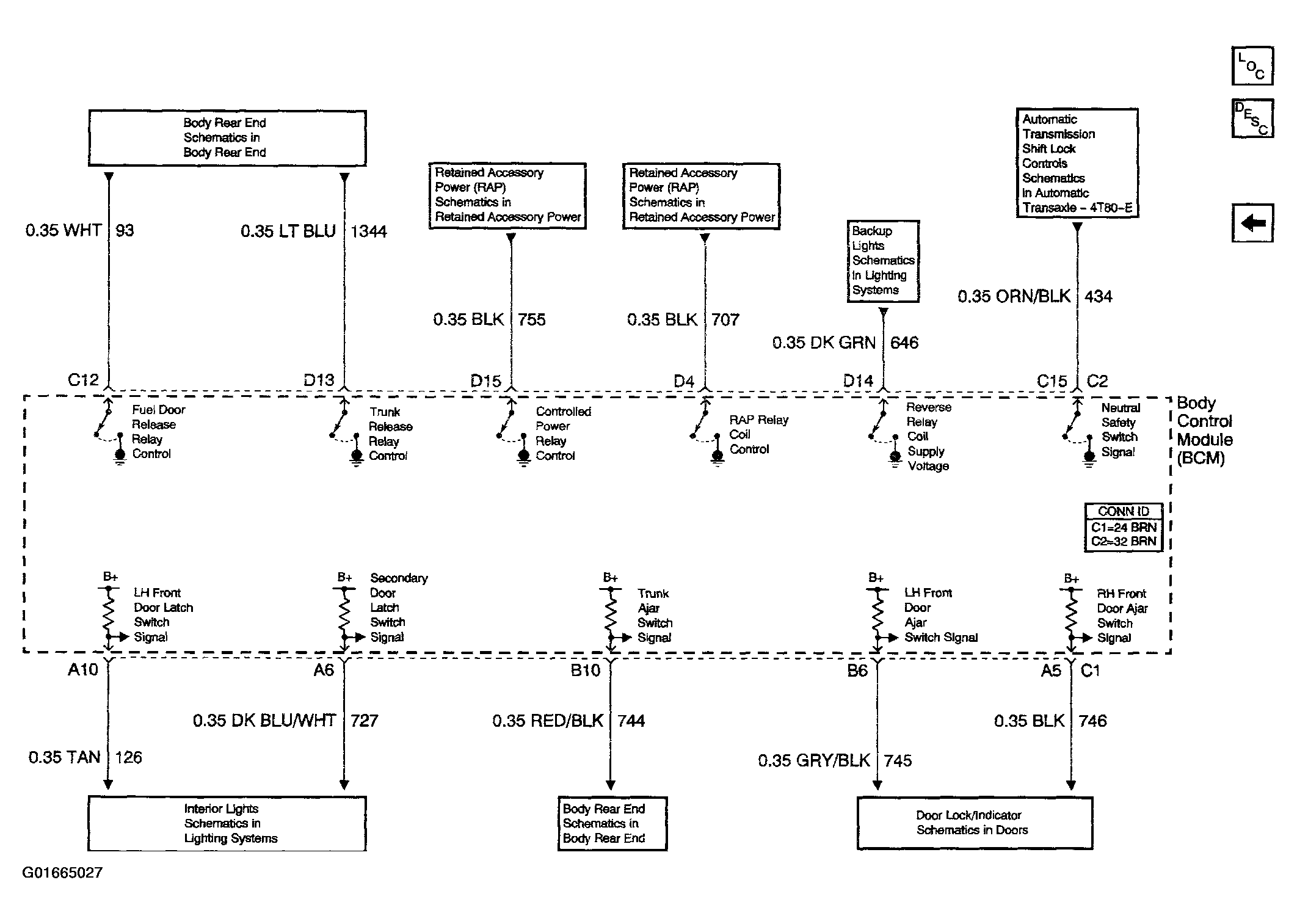

Fig 3: Body Control Module Schematics (Body Control Module Inputs and Outputs (2 of 3))

Courtesy of GENERAL MOTORS CORP.

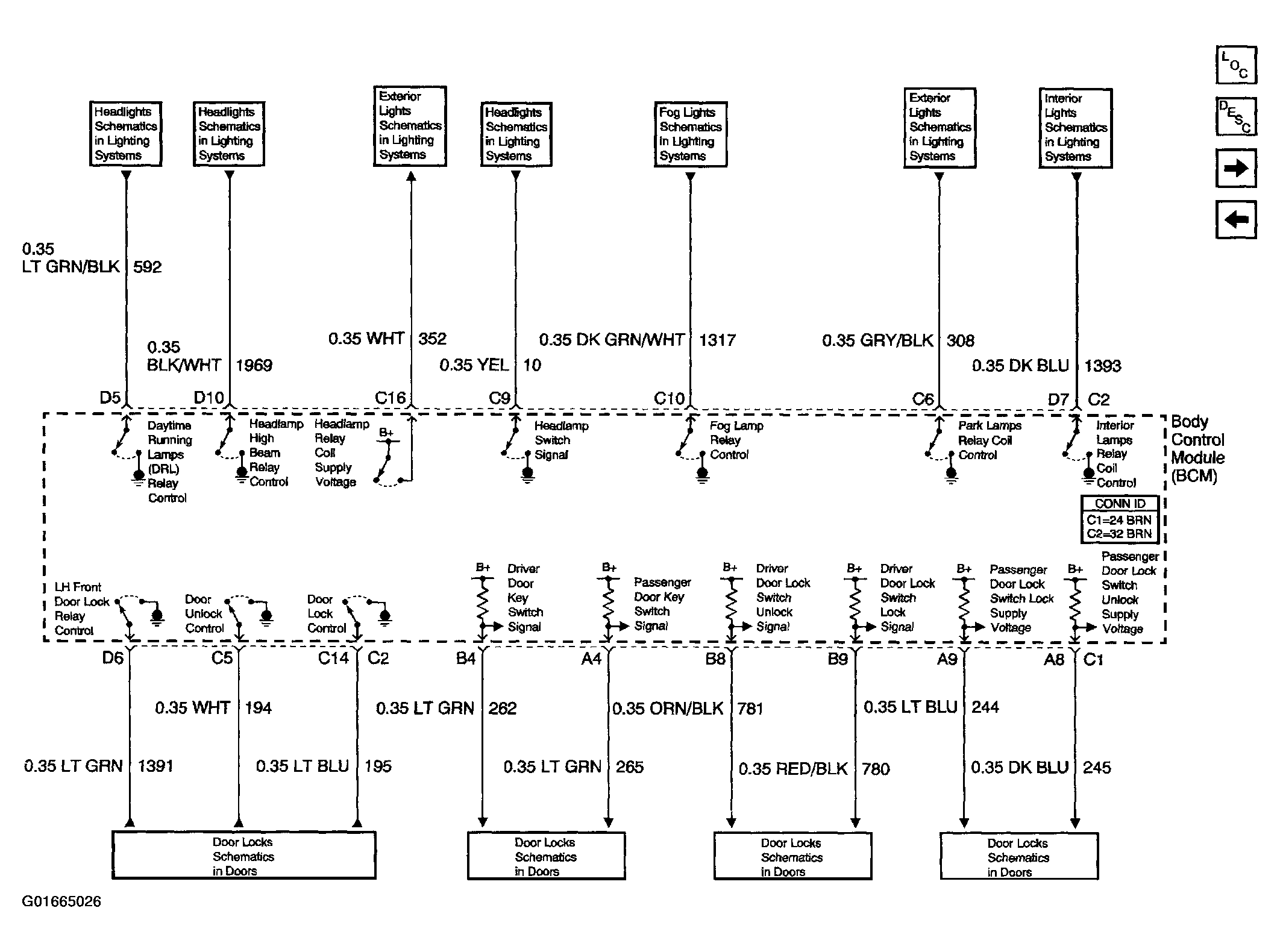

Fig 4: Body Control Module Schematics (Body Control Module Inputs and Outputs (3 of 3))

Courtesy of GENERAL MOTORS CORP.
