Wiper/Washer System Component Views

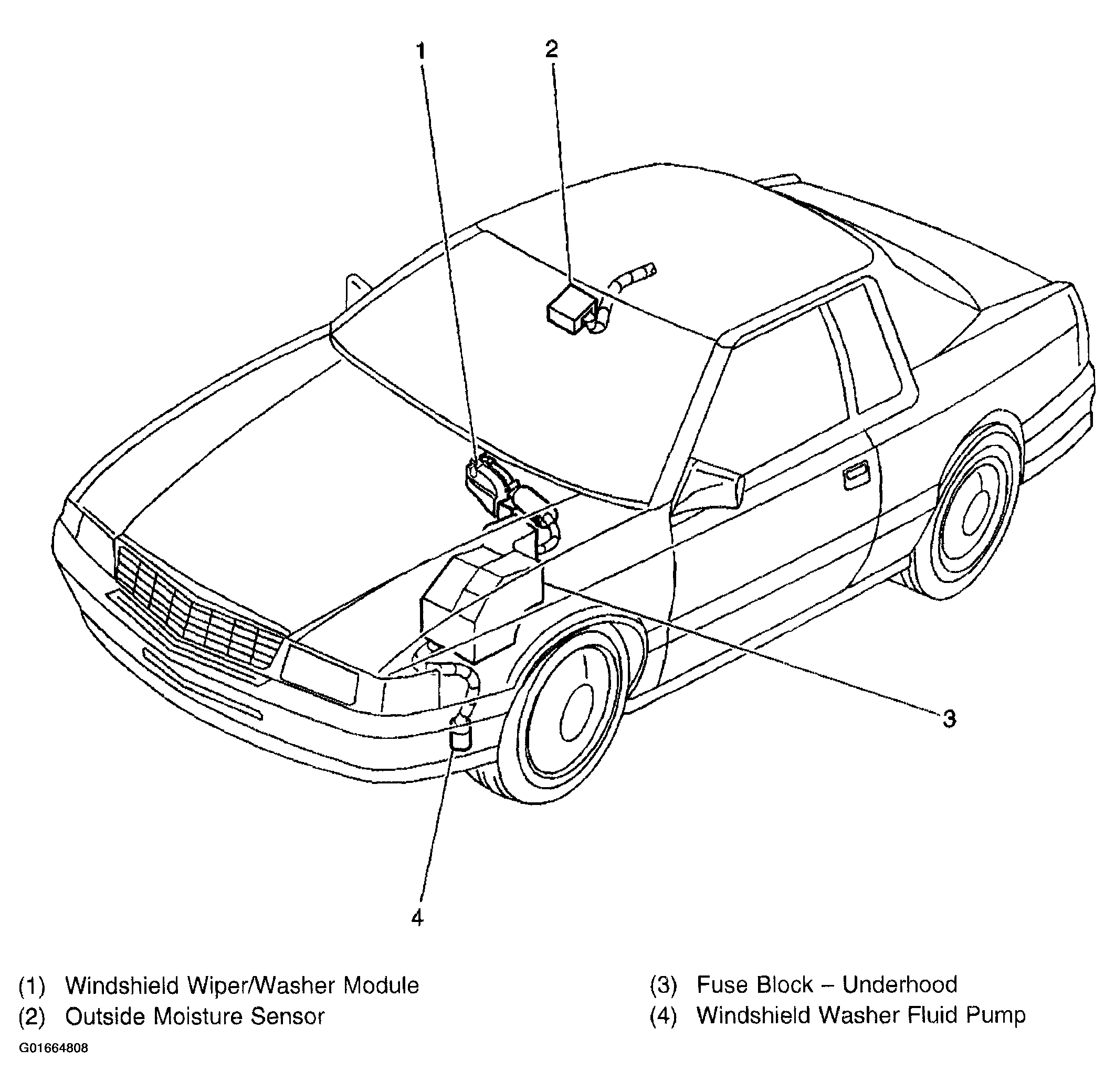

Fig 1: Wiper/Washer System Component View
G01664808Courtesy of GENERAL MOTORS CORP.

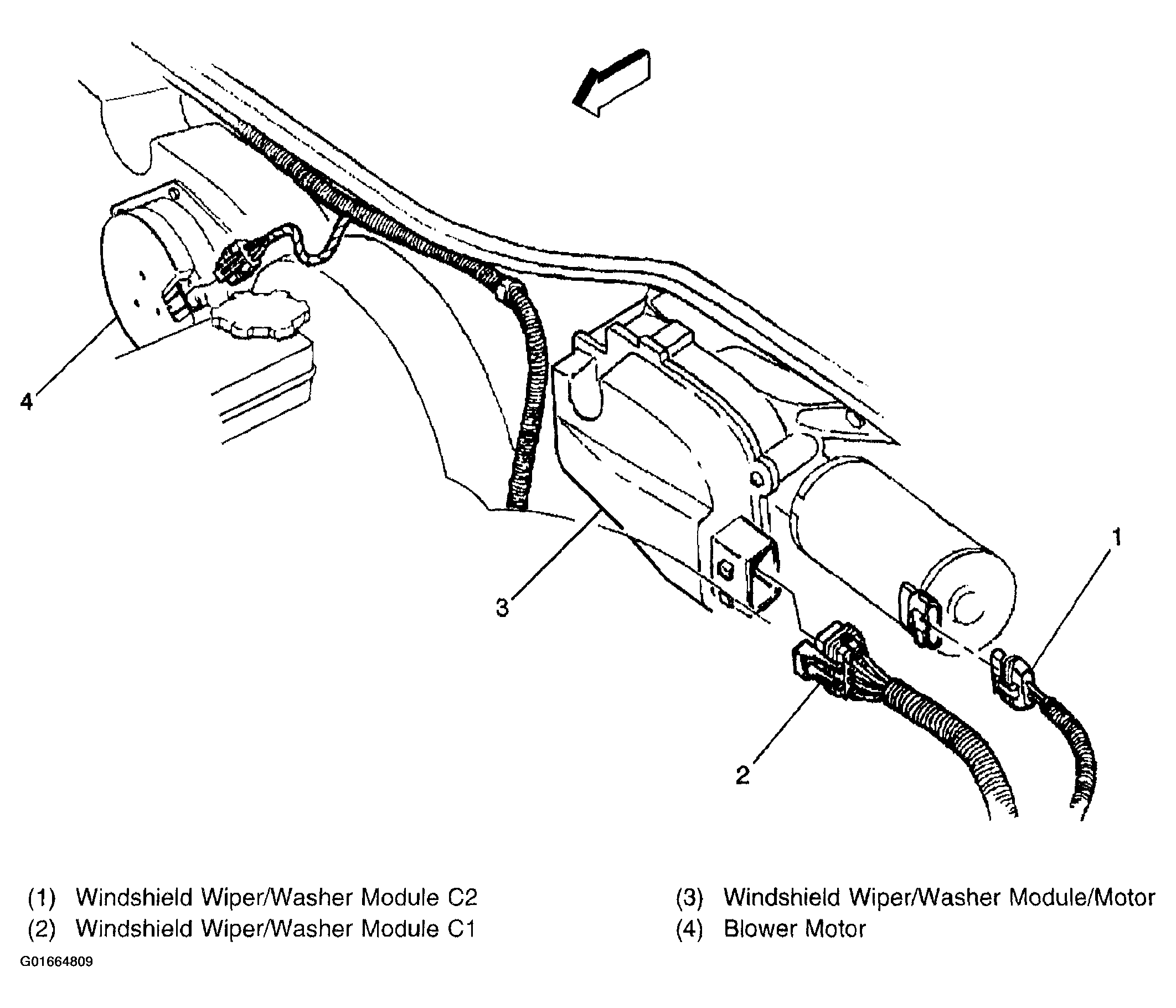

Fig 2: Engine Compartment, at Rear Component View
G01664809Courtesy of GENERAL MOTORS CORP.

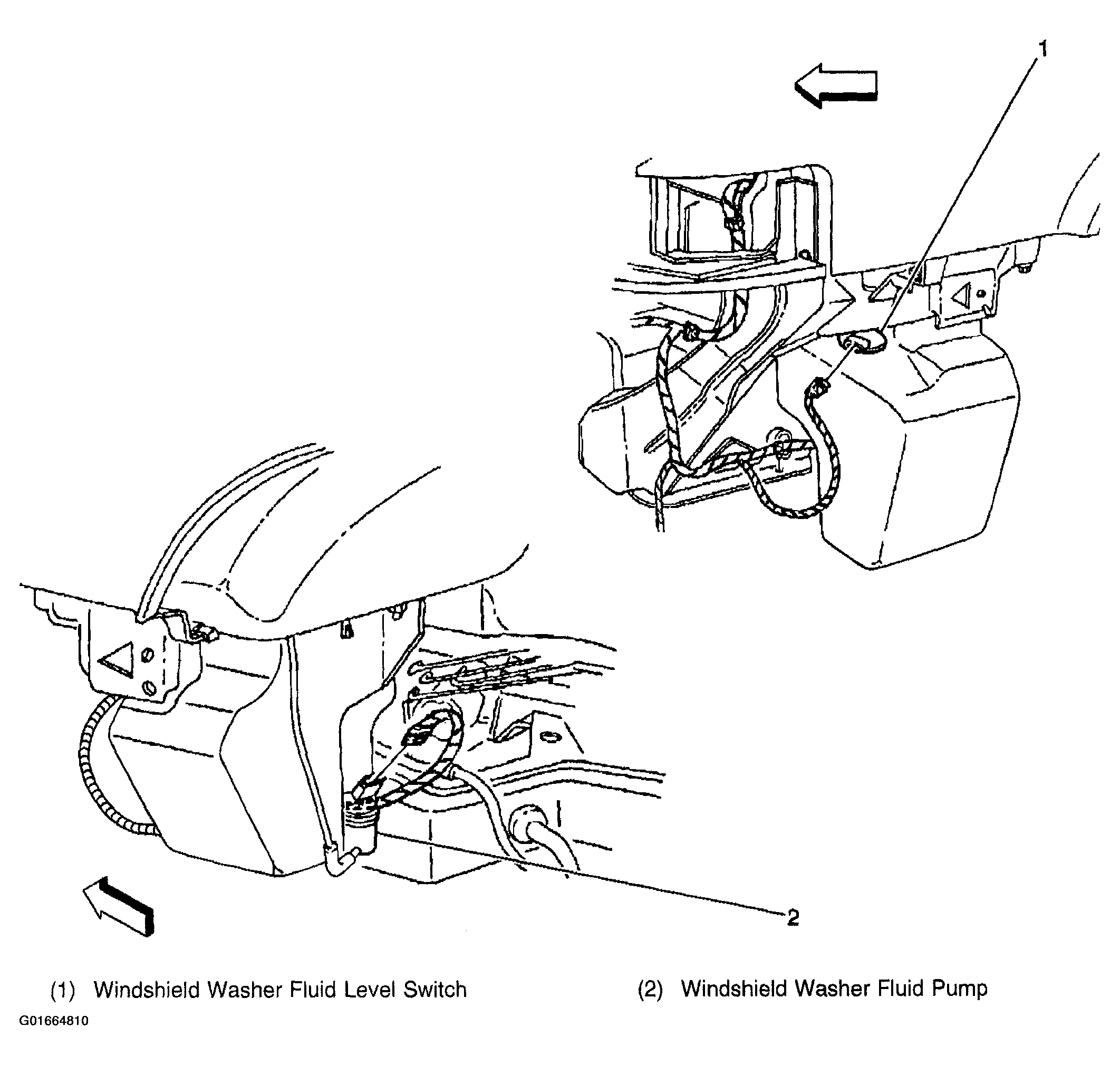

Fig 3: Left Front of Vehicle, Behind Frond Fascia Component View
G01664810Courtesy of GENERAL MOTORS CORP.

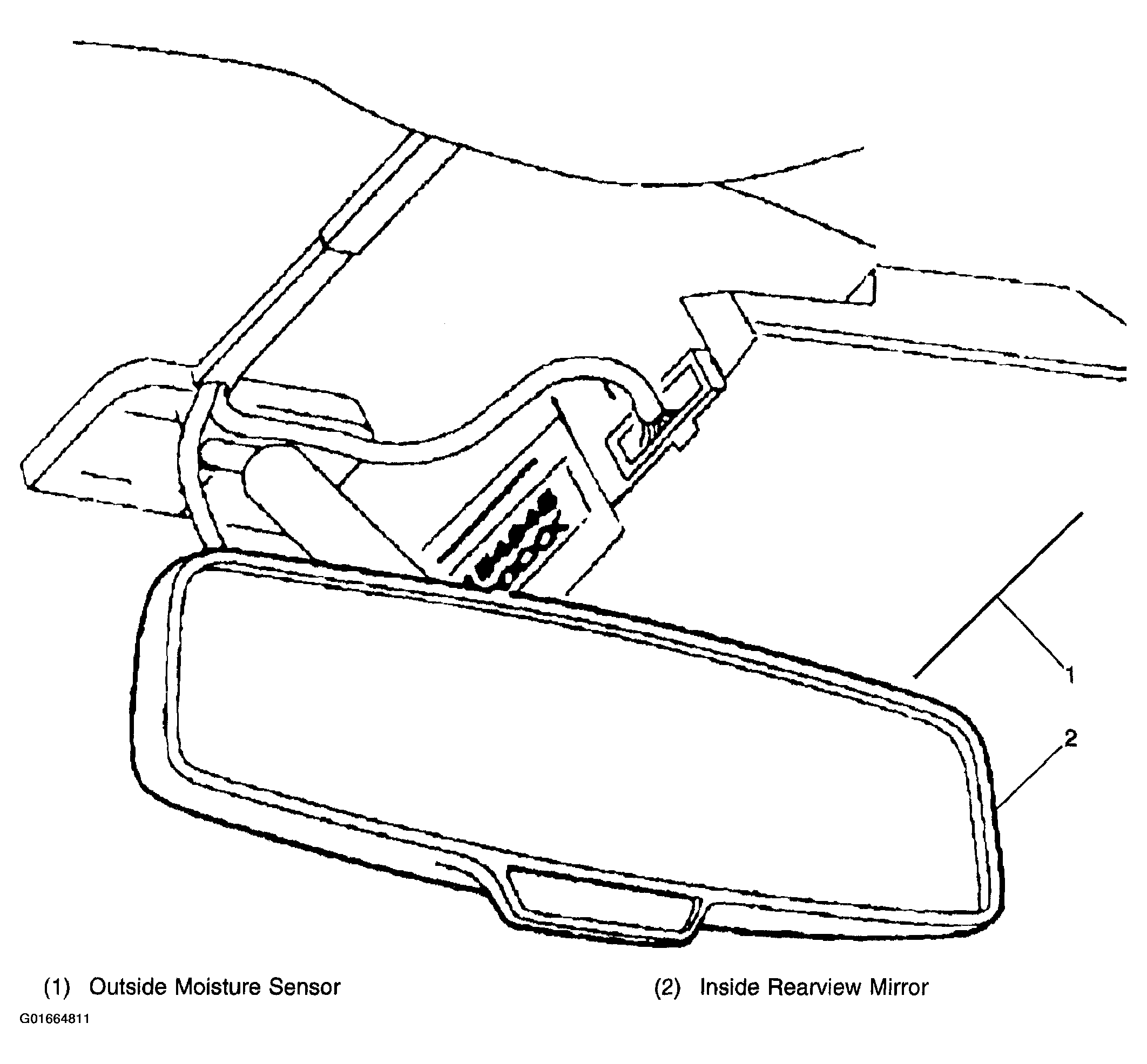

Fig 4: Windshield, Top Center Component View
G01664811Courtesy of GENERAL MOTORS CORP.

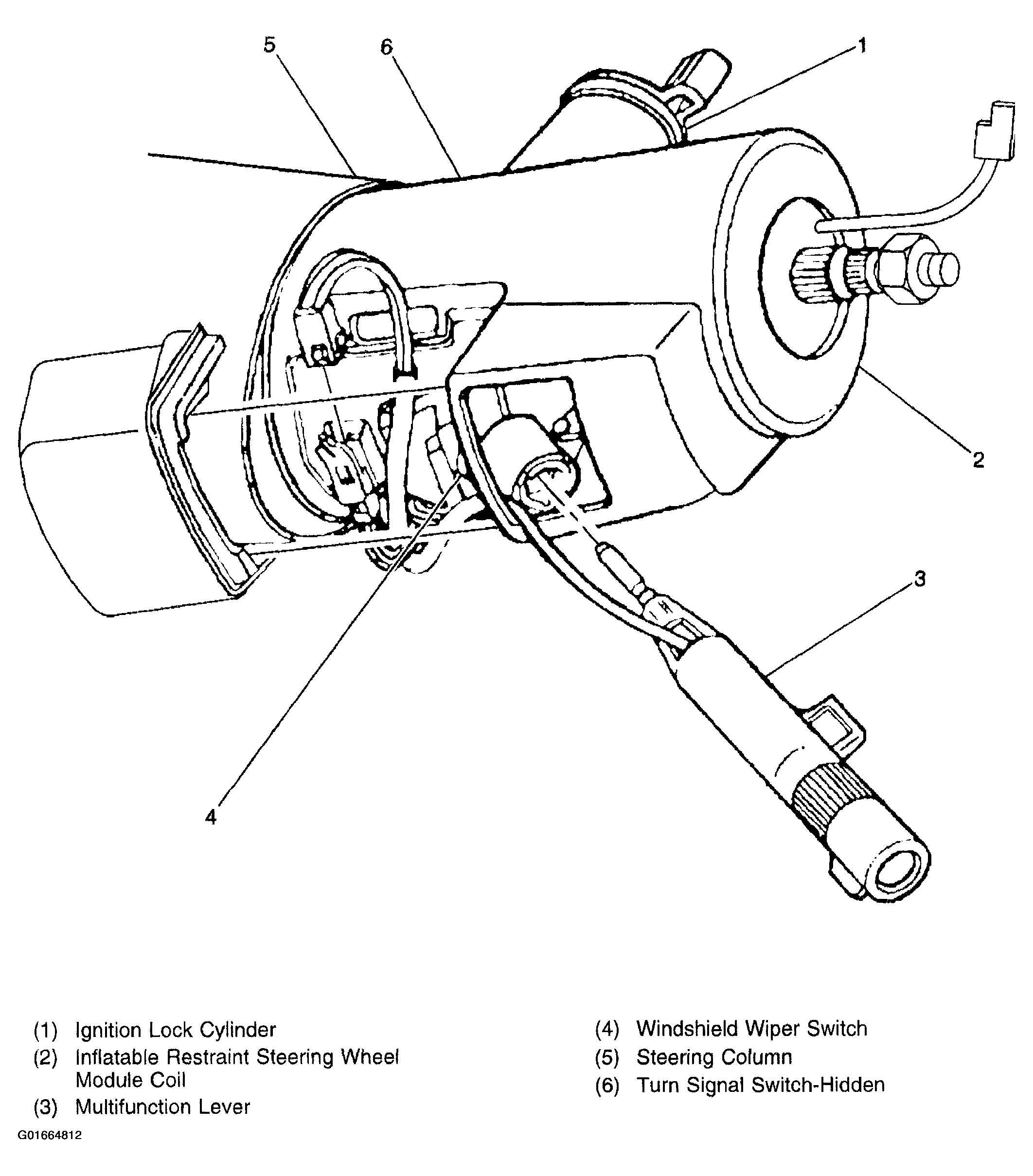

Fig 5: Passenger Compartment, in Steering Column Component View
G01664812Courtesy of GENERAL MOTORS CORP.
