Wiper/Washer System Connector End Views

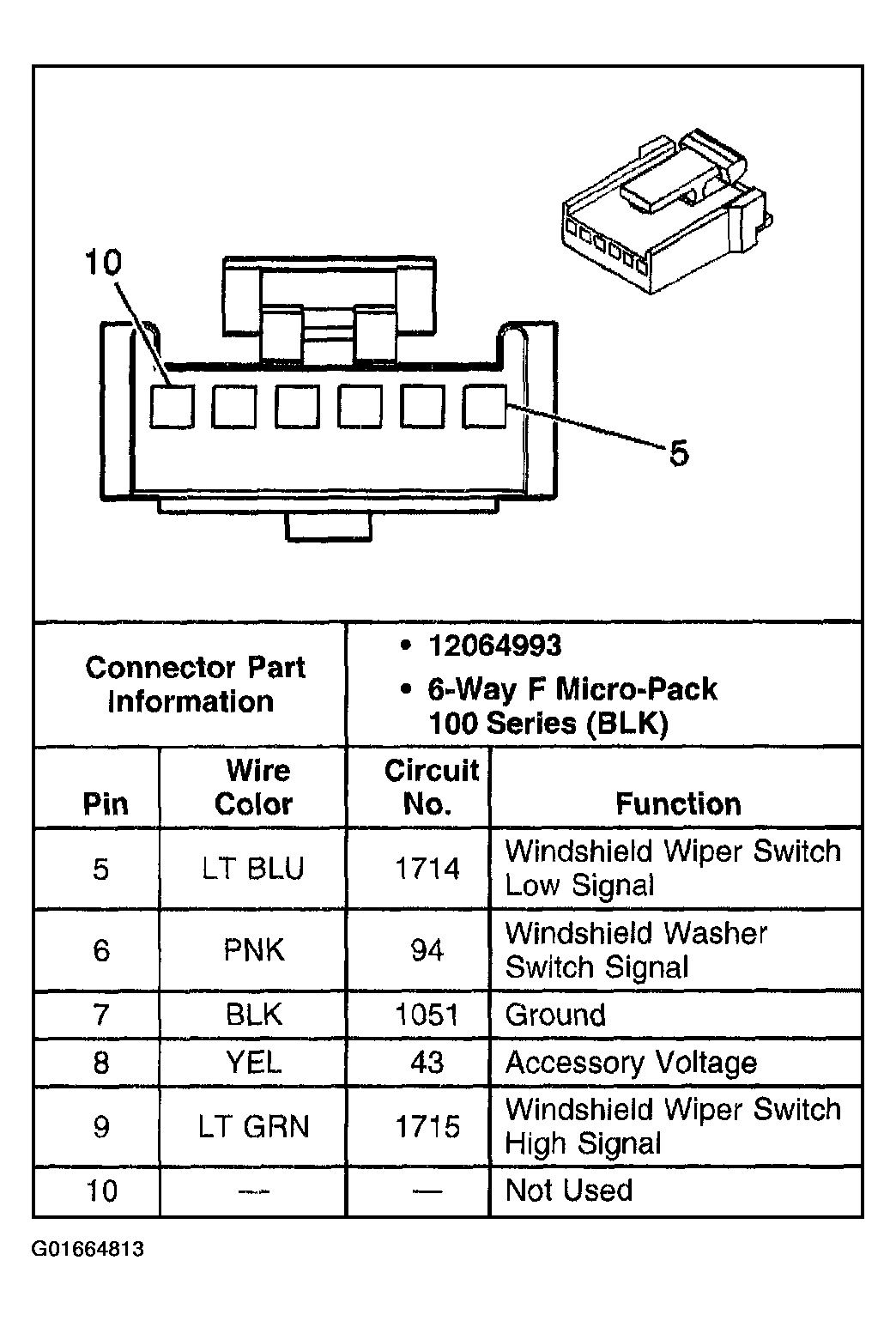

Fig 1: Outside Moisture Sensor Connector End View
G01664813Courtesy of GENERAL MOTORS CORP.

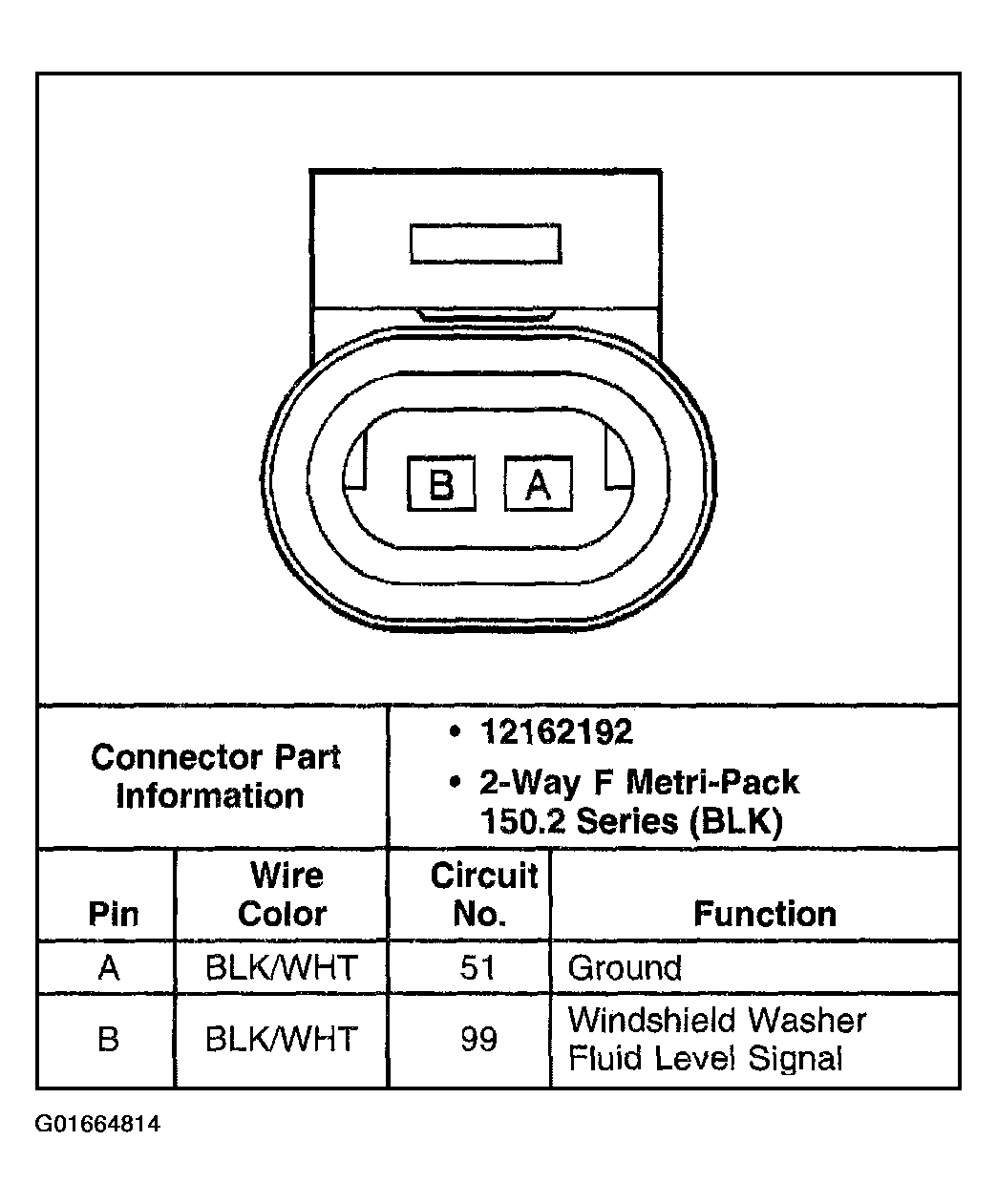

Fig 2: Windshield Washer Fluid Level Switch Connector End View
G01664814Courtesy of GENERAL MOTORS CORP.

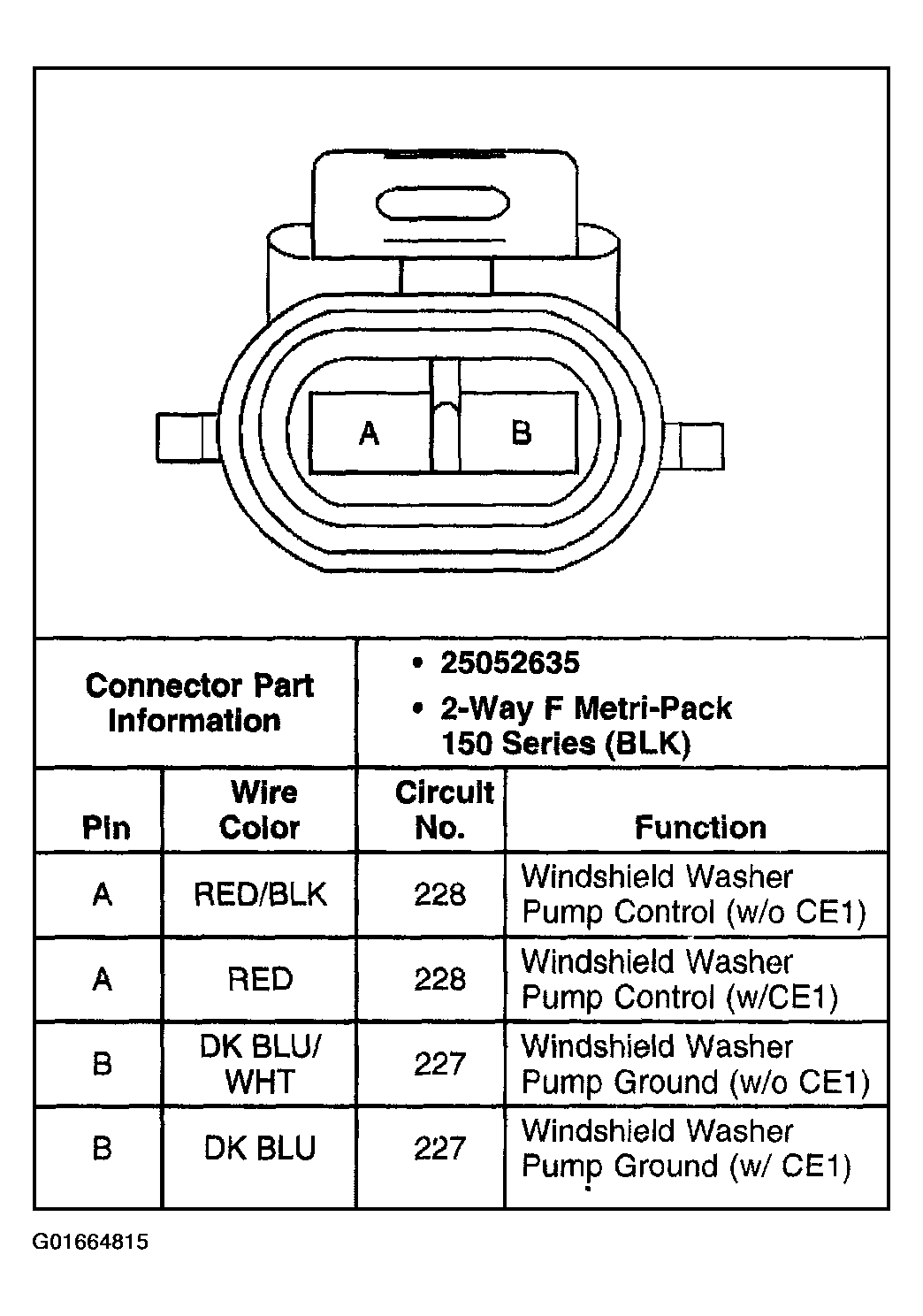

Fig 3: Windshield Washer Fluid Pump Connector End View
G01664815Courtesy of GENERAL MOTORS CORP.

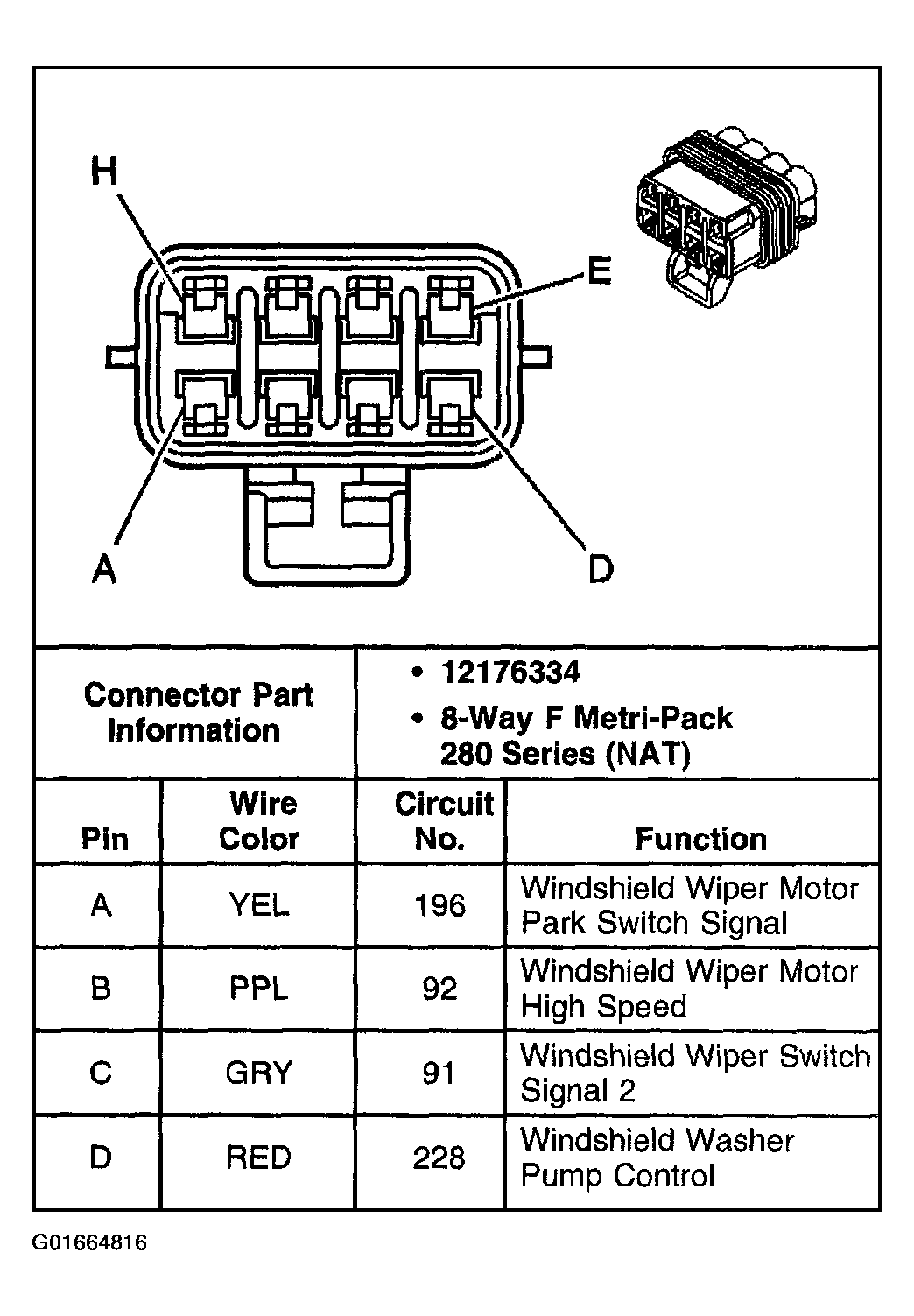

Fig 4: Windshield Wiper/Washer Module C1 (w/CE1) Connector End View (1 of 2)
G01664816Courtesy of GENERAL MOTORS CORP.

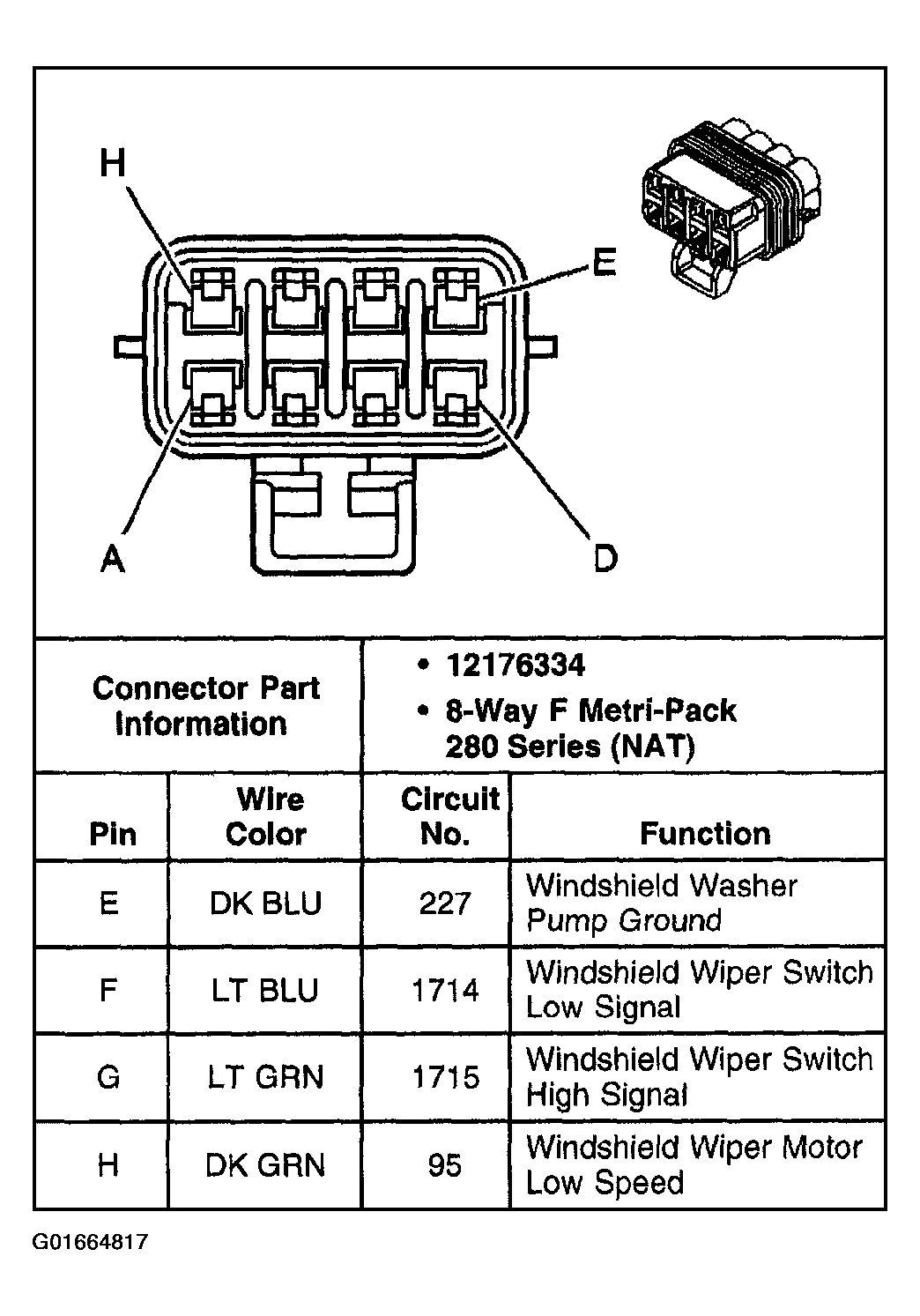

Fig 5: Windshield Wiper/Washer Module C1 (w/CE1) Connector End View (2 of 2)
G01664817Courtesy of GENERAL MOTORS CORP.

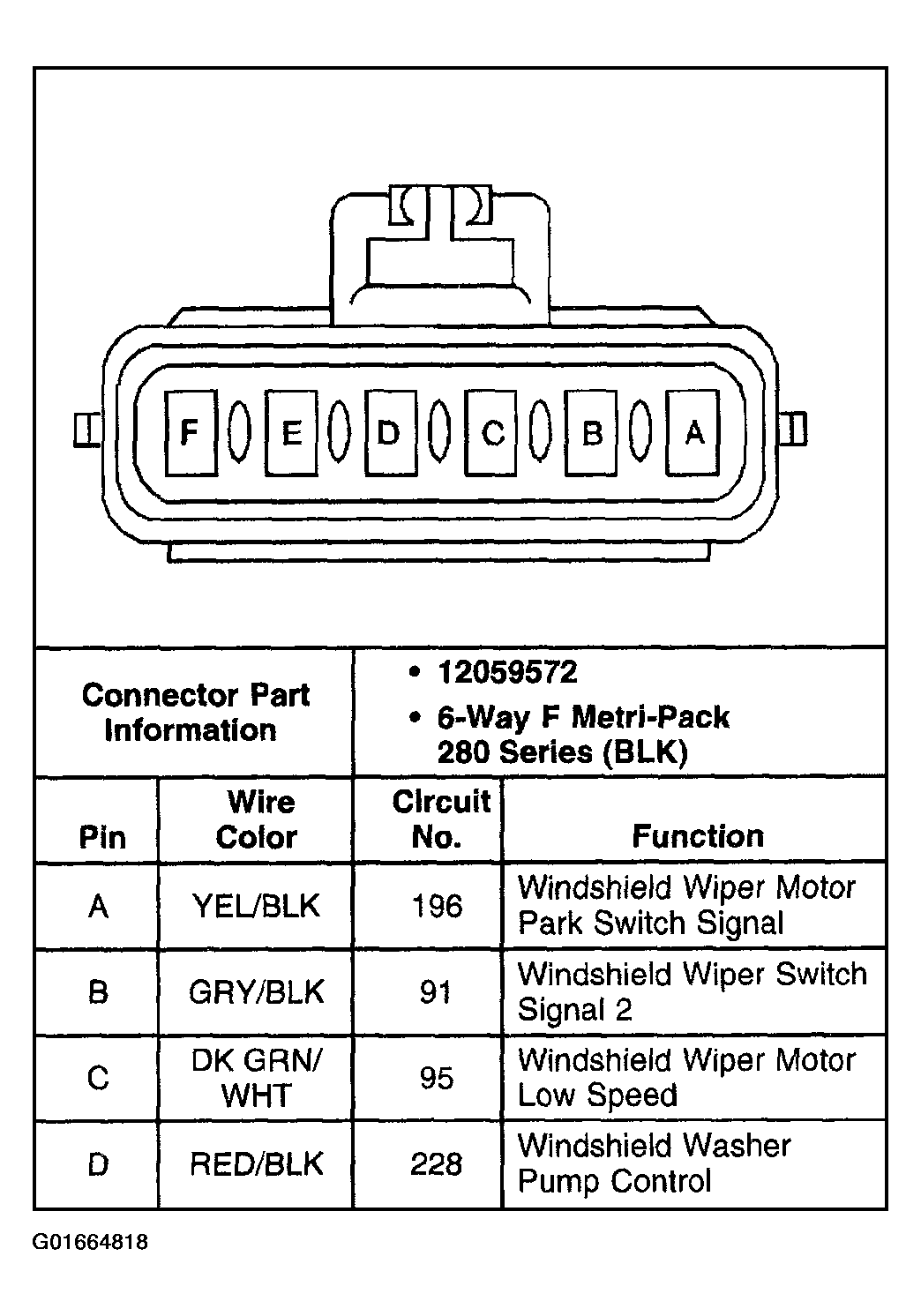

Fig 6: Windshield Wiper/Washer Module C1 (w/o CE1) Connector End View (1 of 2)
G01664818Courtesy of GENERAL MOTORS CORP.

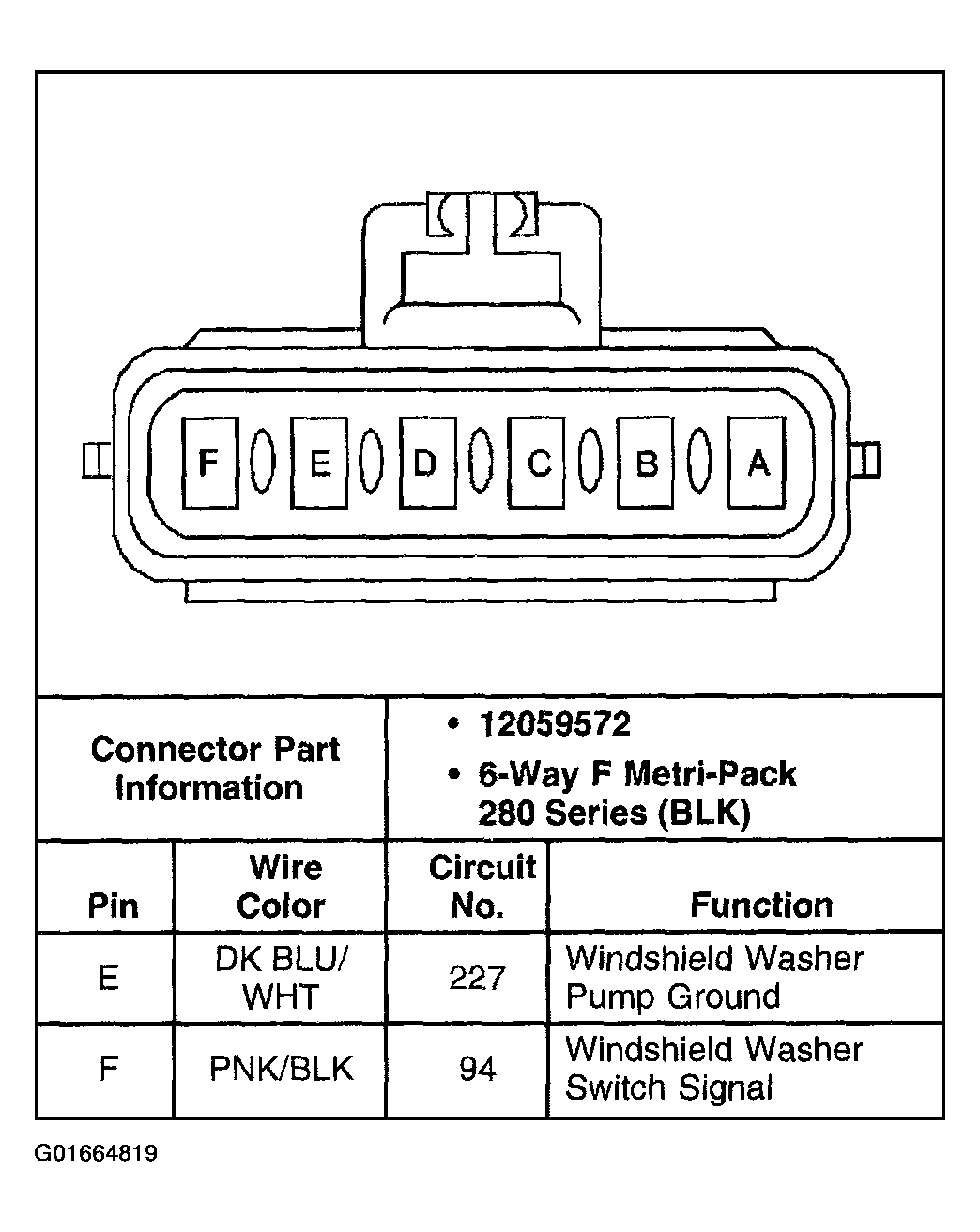

Fig 7: Windshield Wiper/Washer Module C1 (w/o CE1) Connector End View (2 of 2)
G01664819Courtesy of GENERAL MOTORS CORP.
Fig 8: Windshield Wiper/Washer Module C2 Connector End View
G01664820Courtesy of GENERAL MOTORS CORP.
