Power Door Systems Component Views

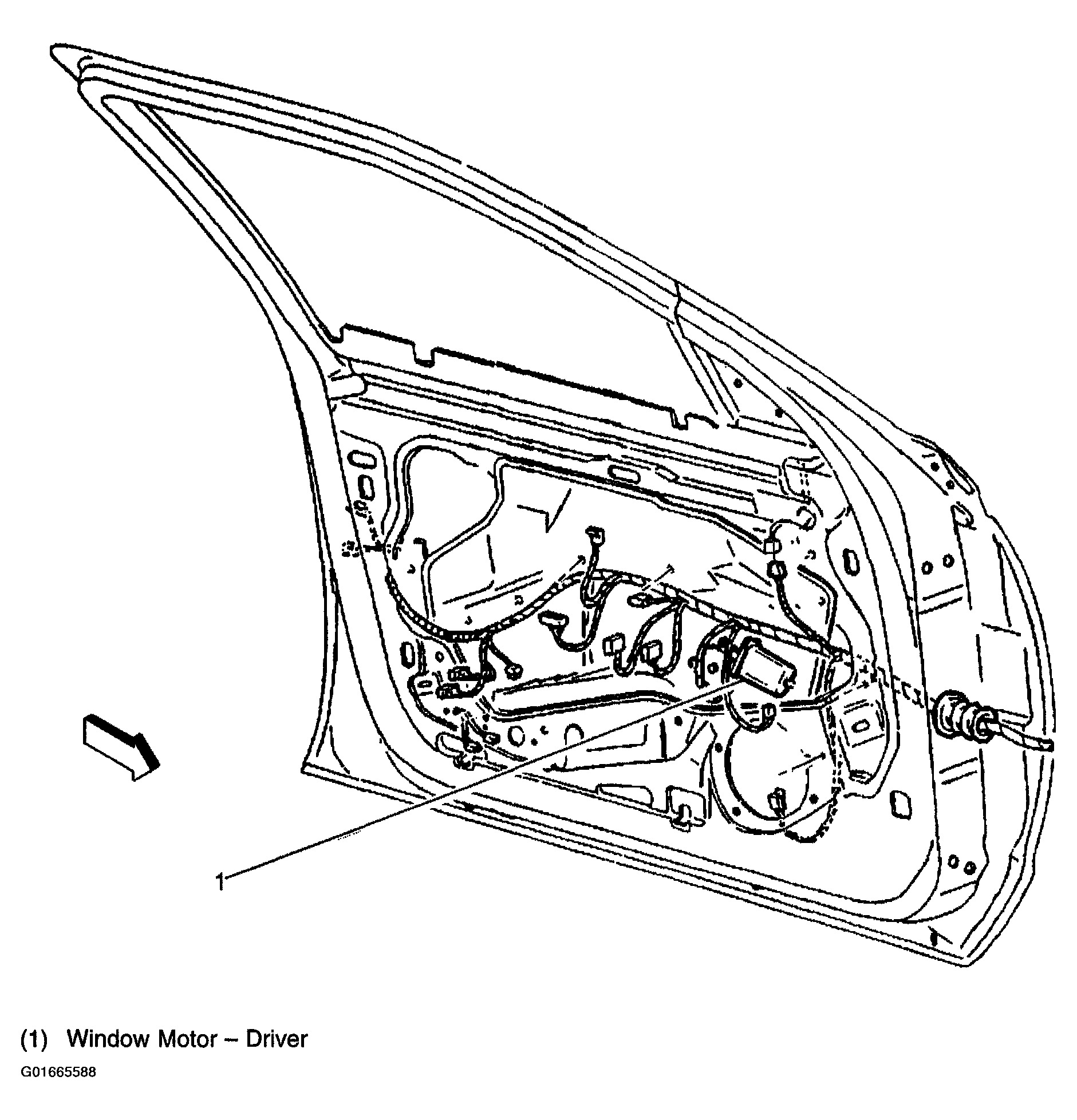

Fig 1: Driver Door

Courtesy of GENERAL MOTORS CORP.

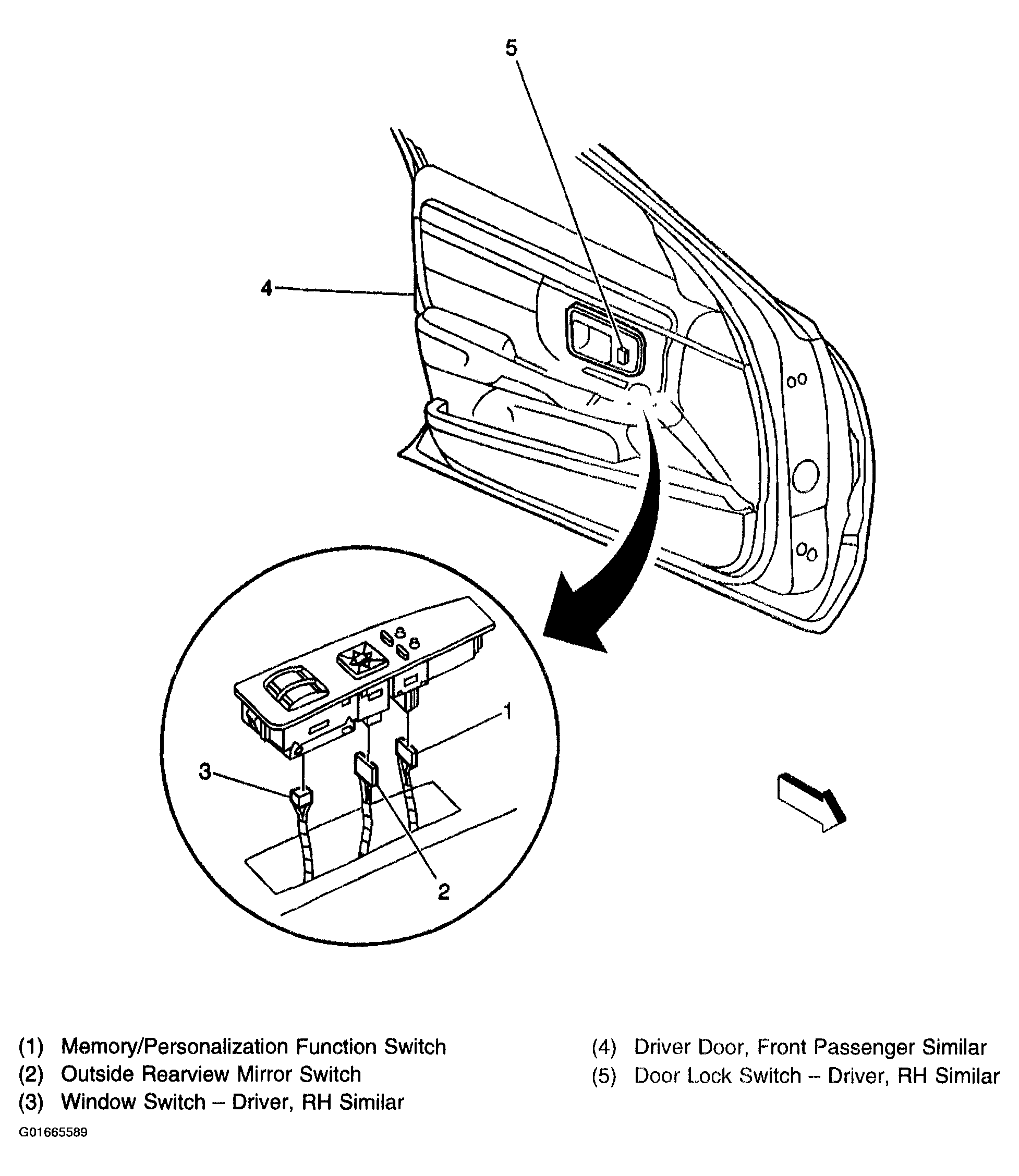

Fig 2: Driver Door Inside Panel

Courtesy of GENERAL MOTORS CORP.

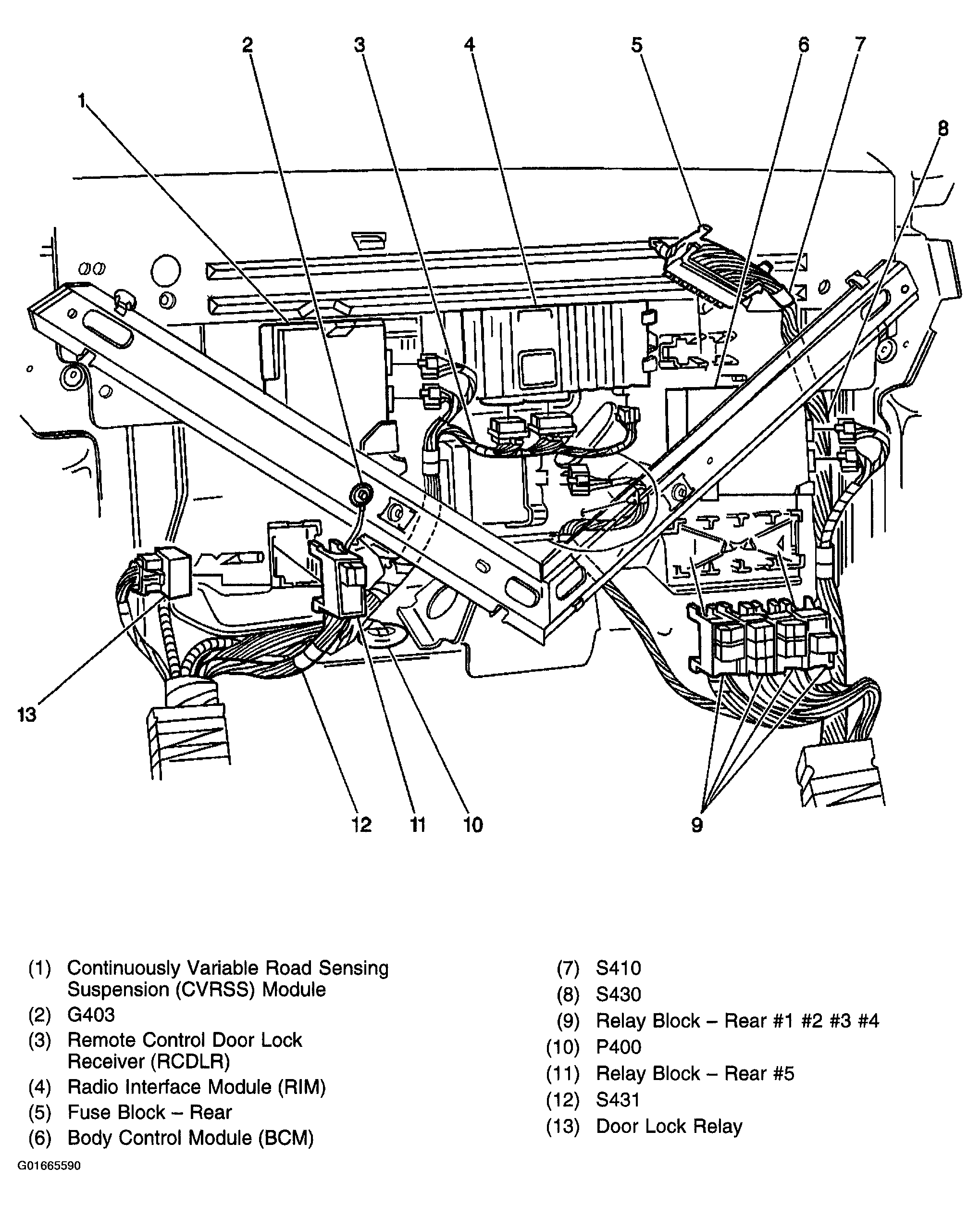

Fig 3: Passenger Compartment, Behind The Rear Seat

Courtesy of GENERAL MOTORS CORP.

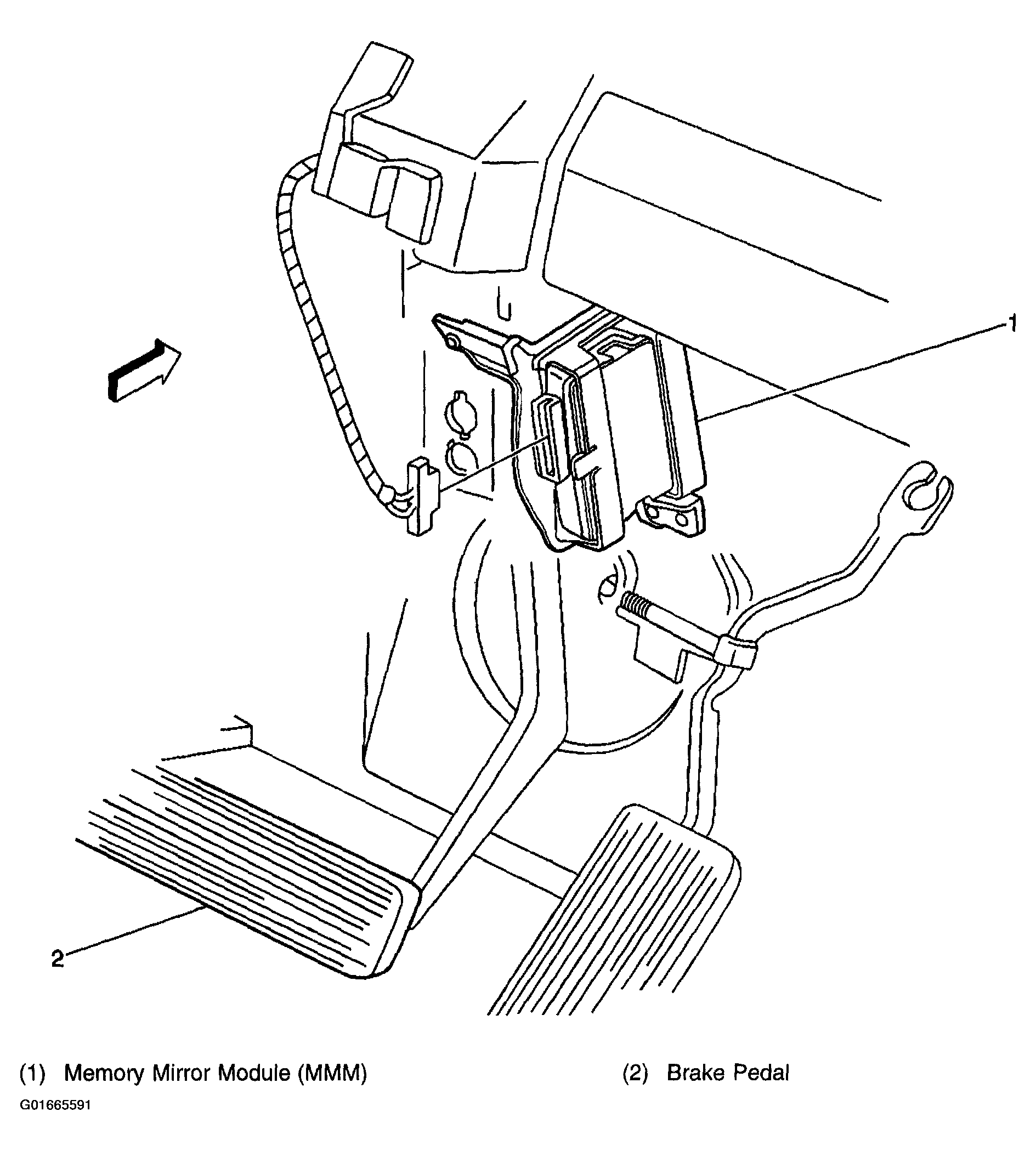

Fig 4: Passenger Compartment, Under The Left Side Of The IPC

Courtesy of GENERAL MOTORS CORP.

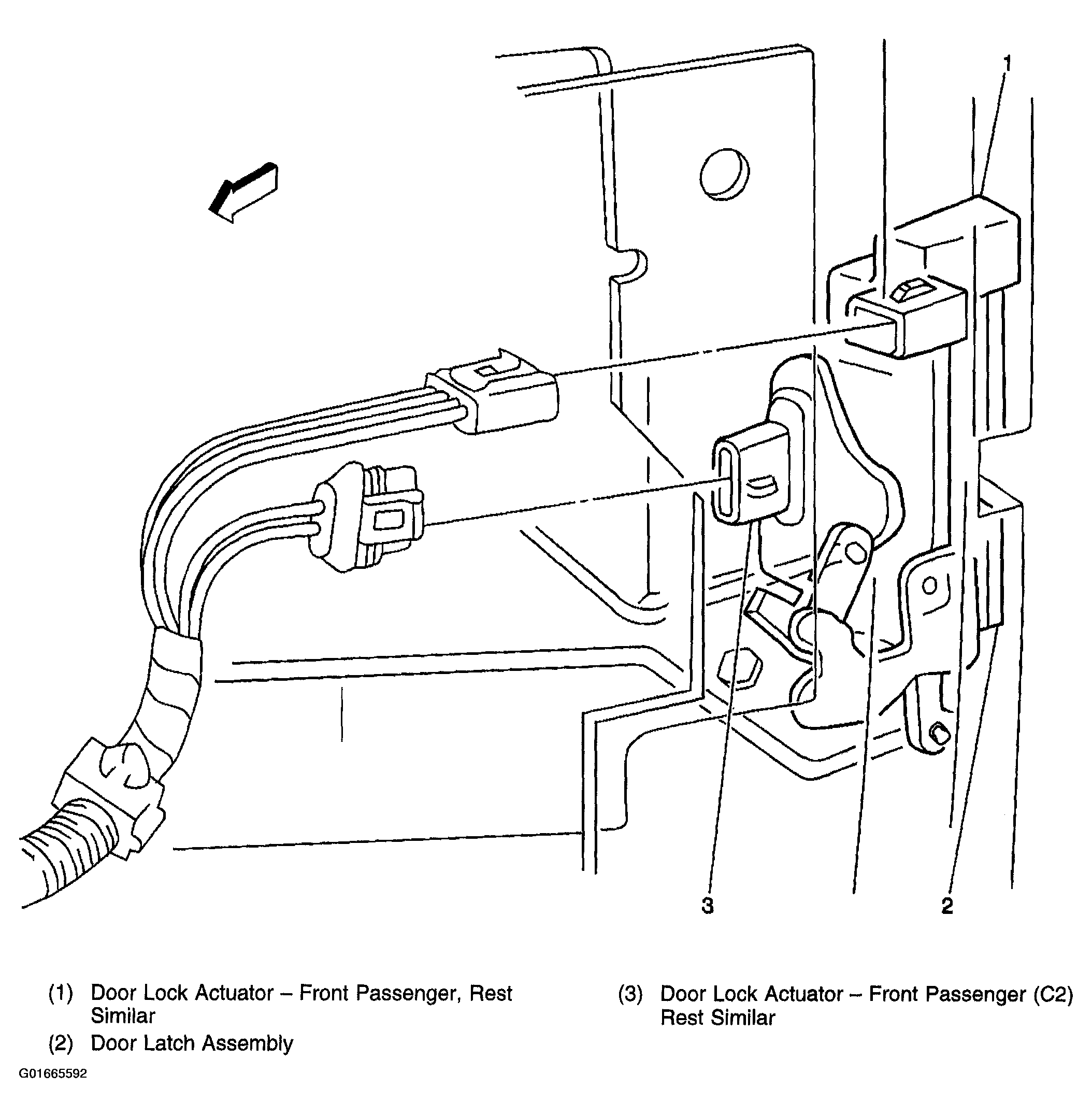

Fig 5: Rear Of The Passenger Door

Courtesy of GENERAL MOTORS CORP.

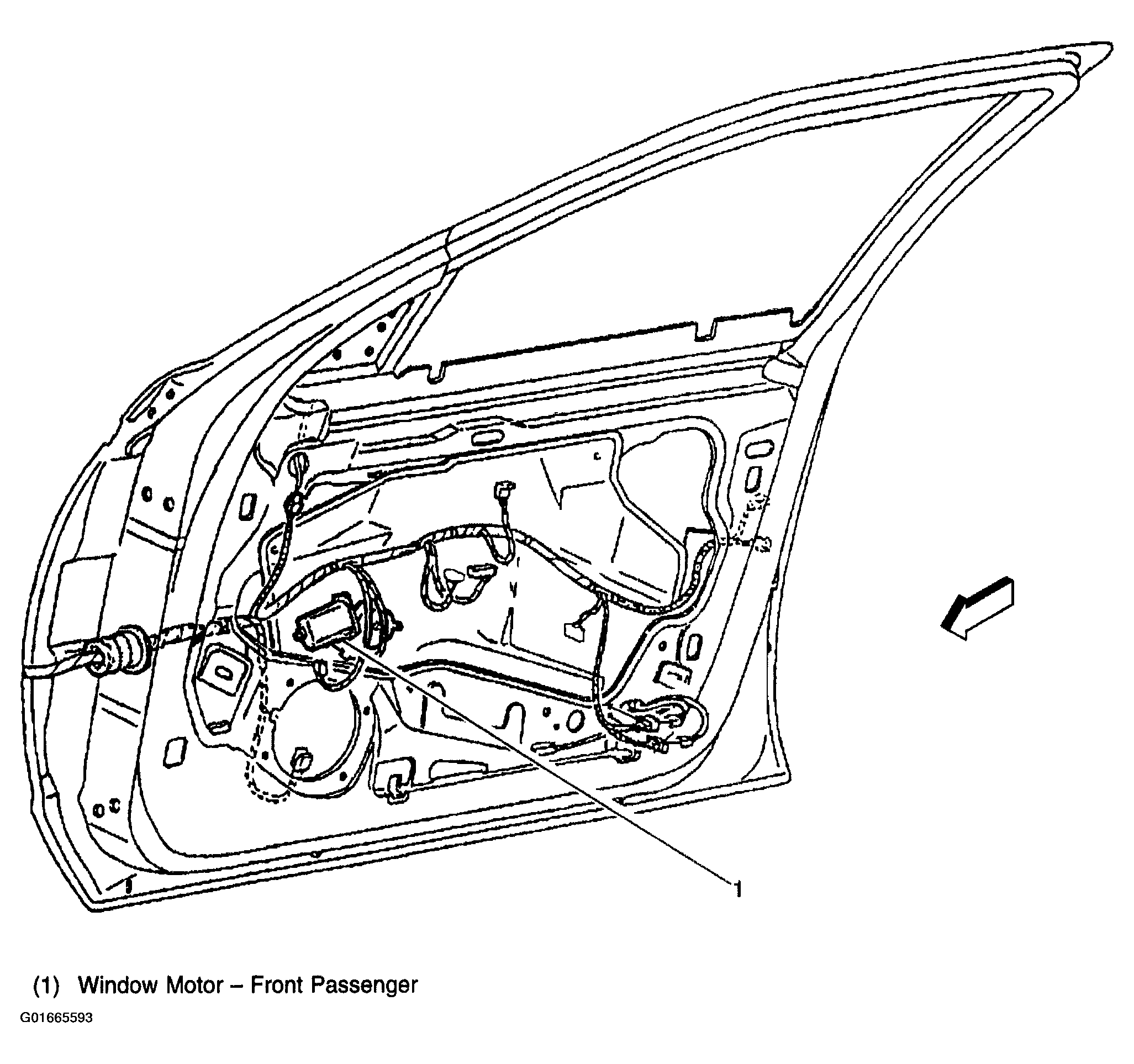

Fig 6: Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

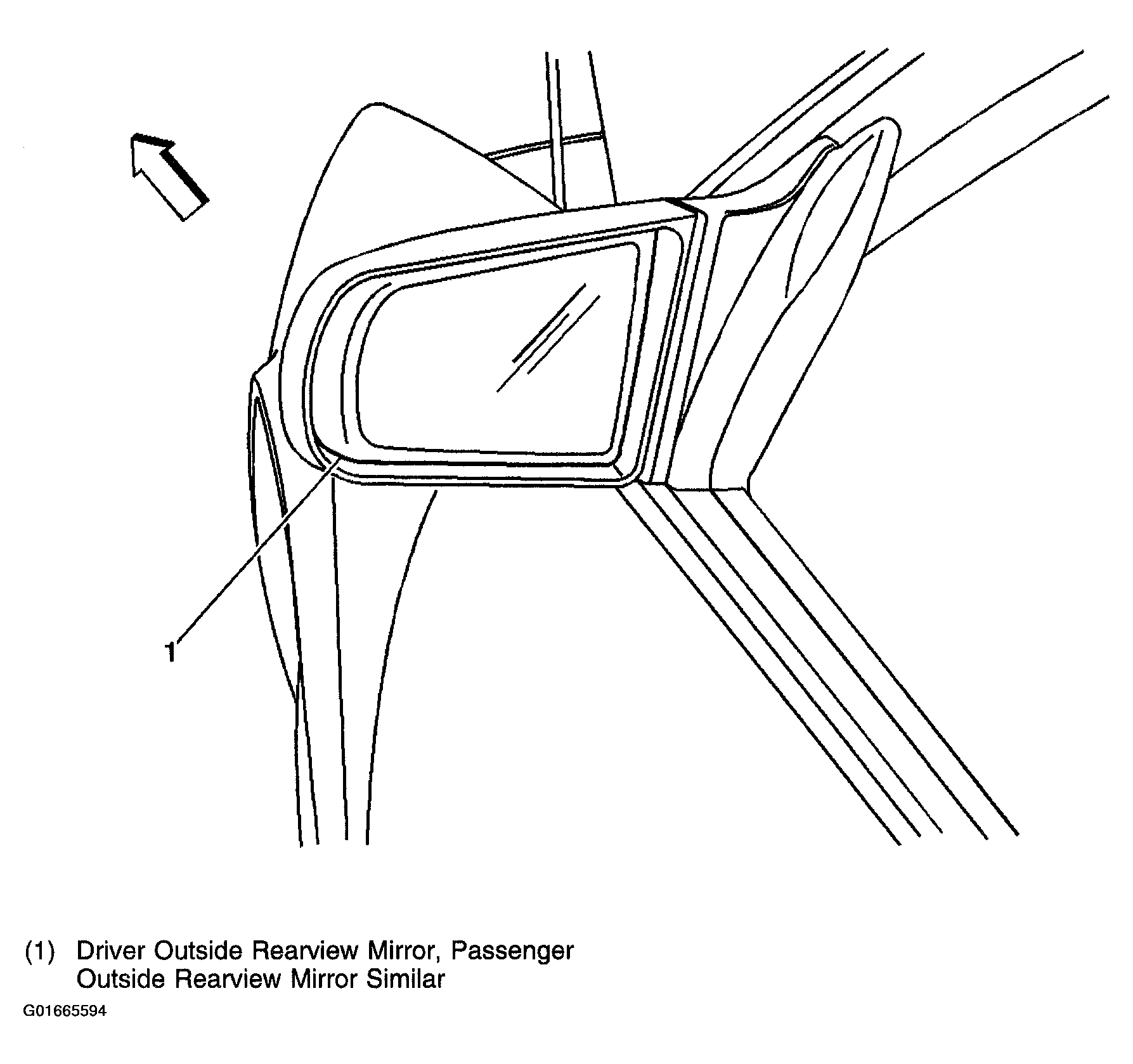

Fig 7: Outside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.
