Automatic Level Control (ALC) Fuse Block Connector End View

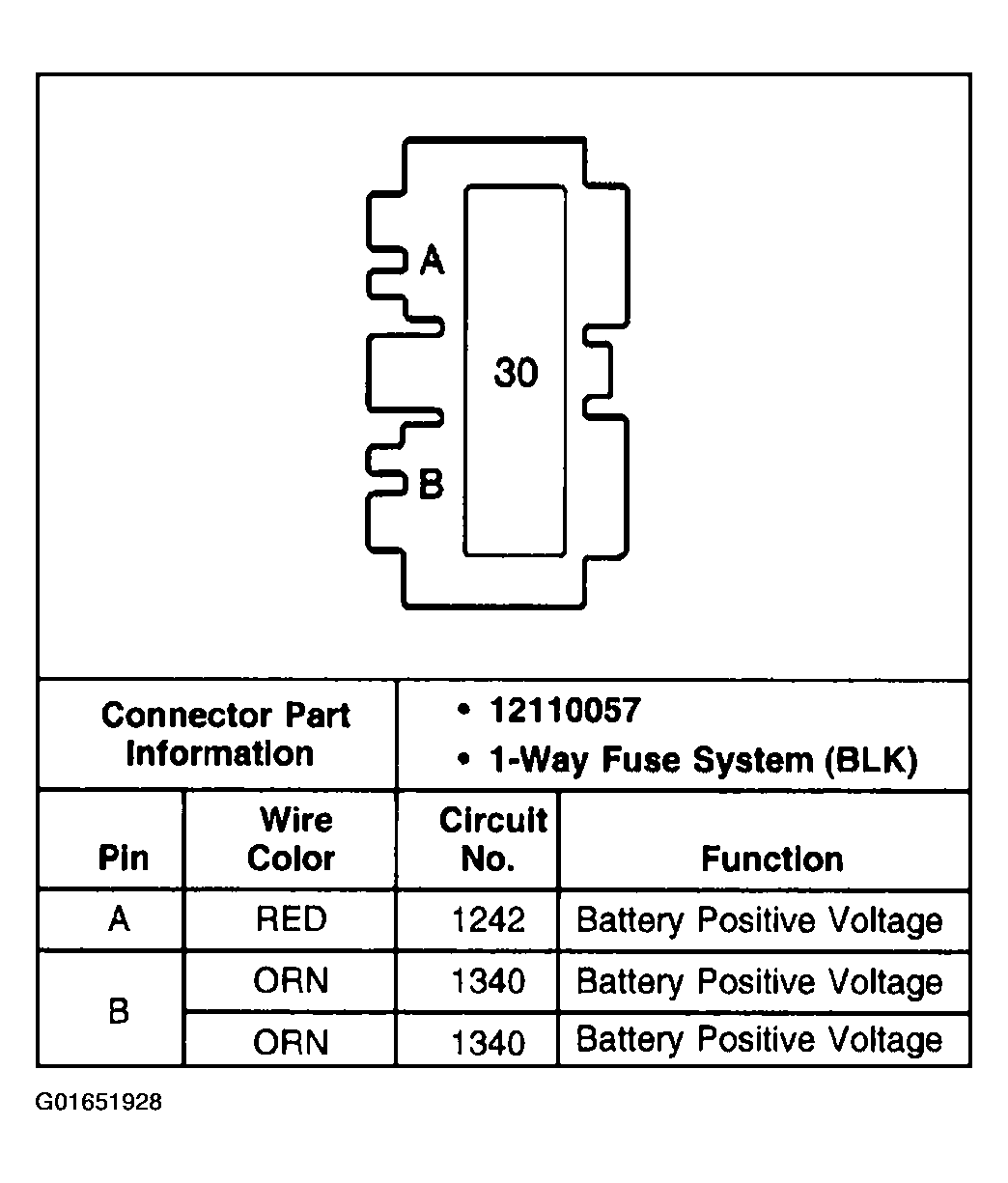

Fig 1: Automatic Level Control (ALC) Fuse Block
G01651928Courtesy of GENERAL MOTORS CORP.
