Memory Seat Module (MSM) Connector End View C2 (2 Of 2)

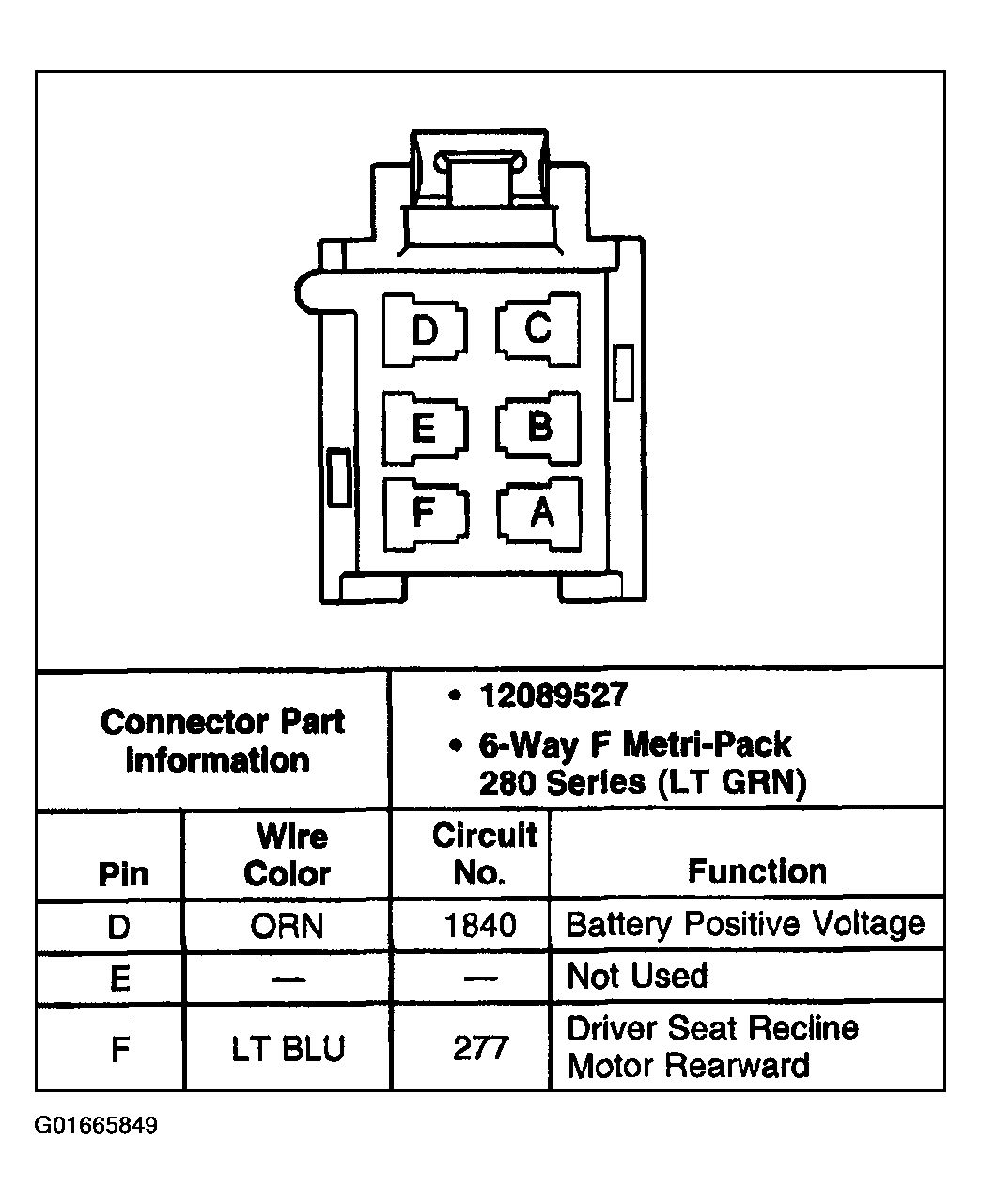

Fig 1: Memory Seat Module (MSM) C2 (2 Of 2)
G01665849Courtesy of GENERAL MOTORS CORP.
