Radio Interface Module (RIM) Connector End View C2

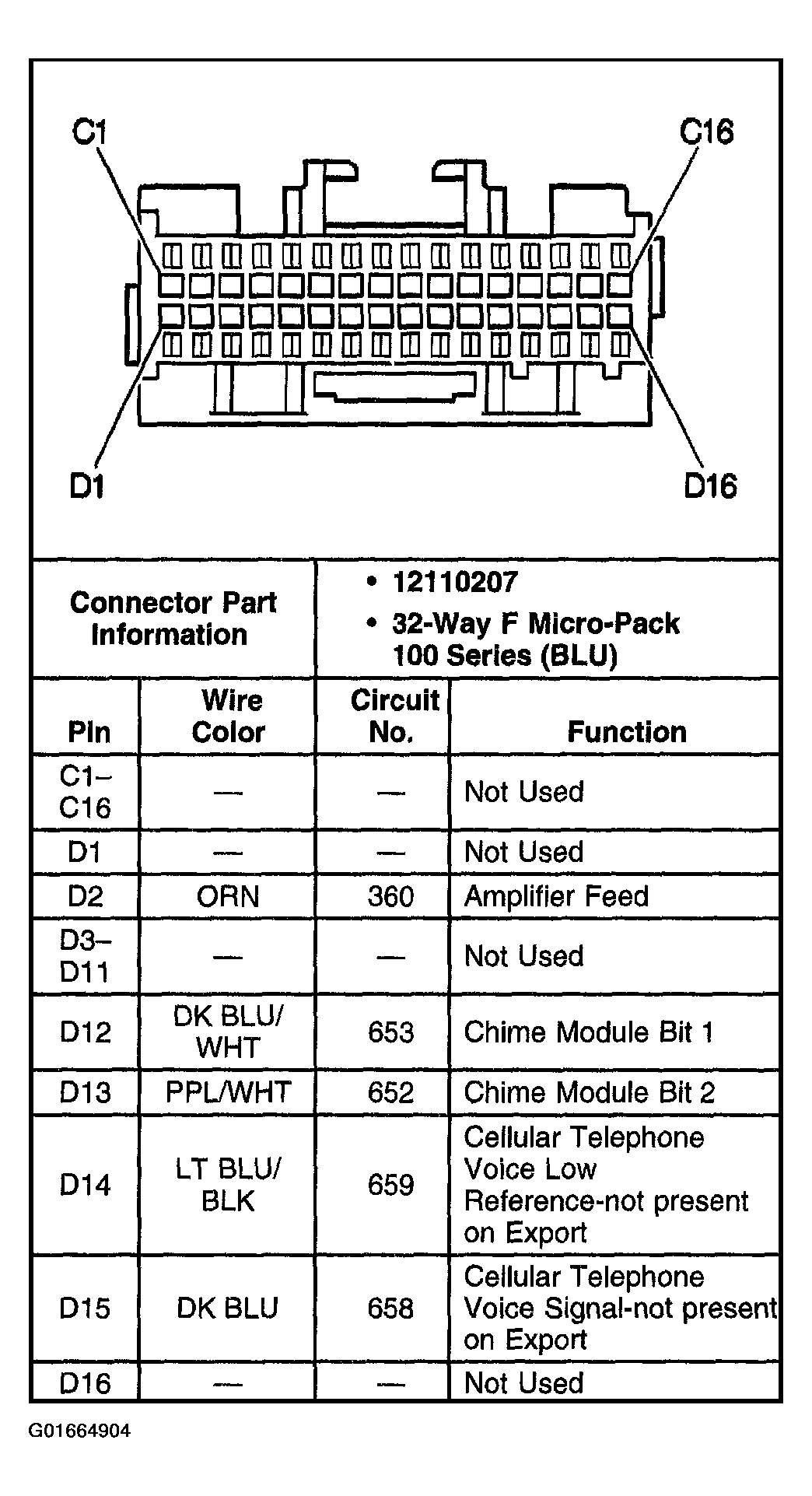

Fig 1: Radio Interface Module (RIM) C2
G01664904Courtesy of GENERAL MOTORS CORP.
