Retained Accessory Power (RAP) Component Views

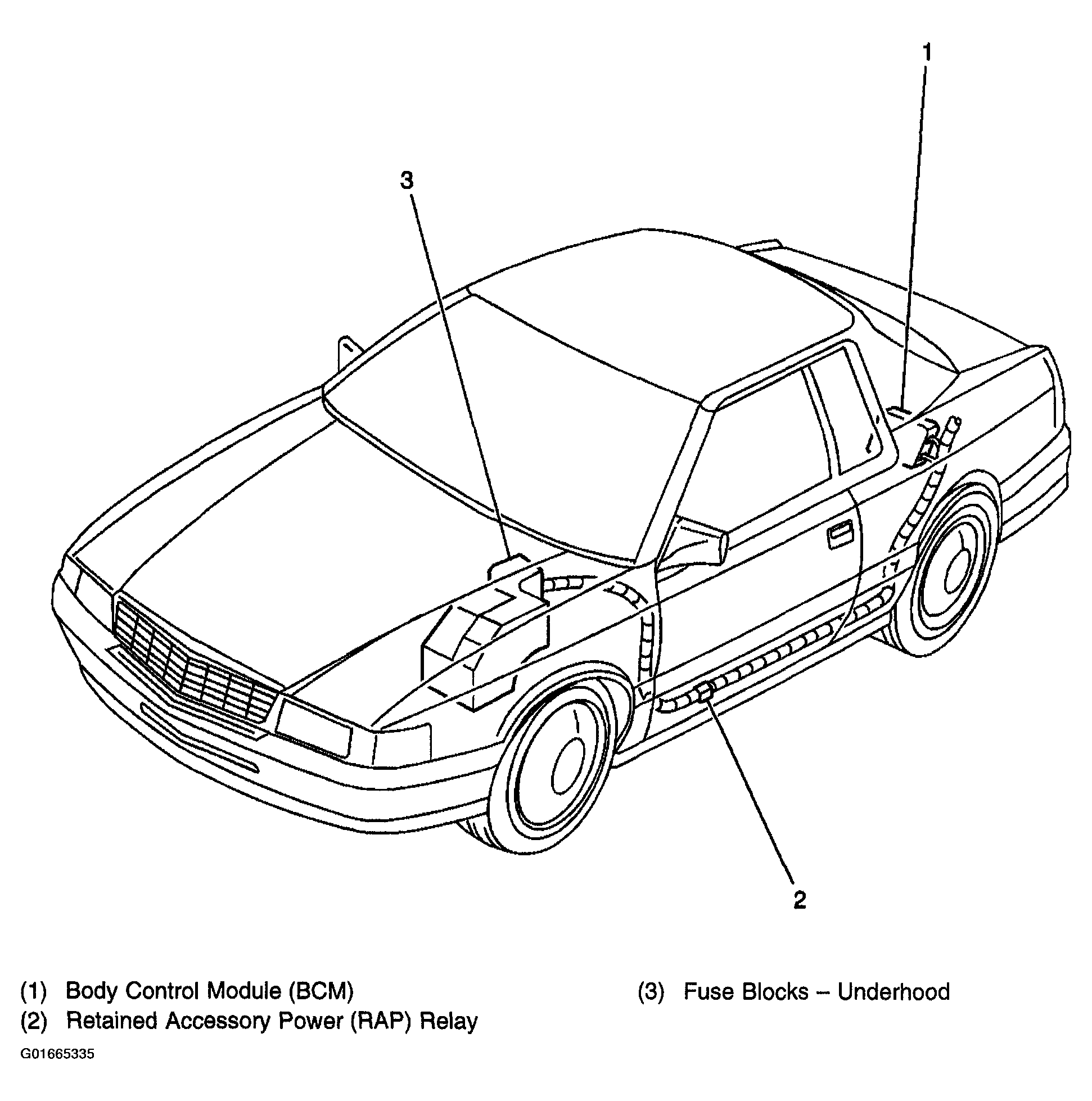

Fig 1: RAP System Component Locator View
G01665335Courtesy of GENERAL MOTORS CORP.

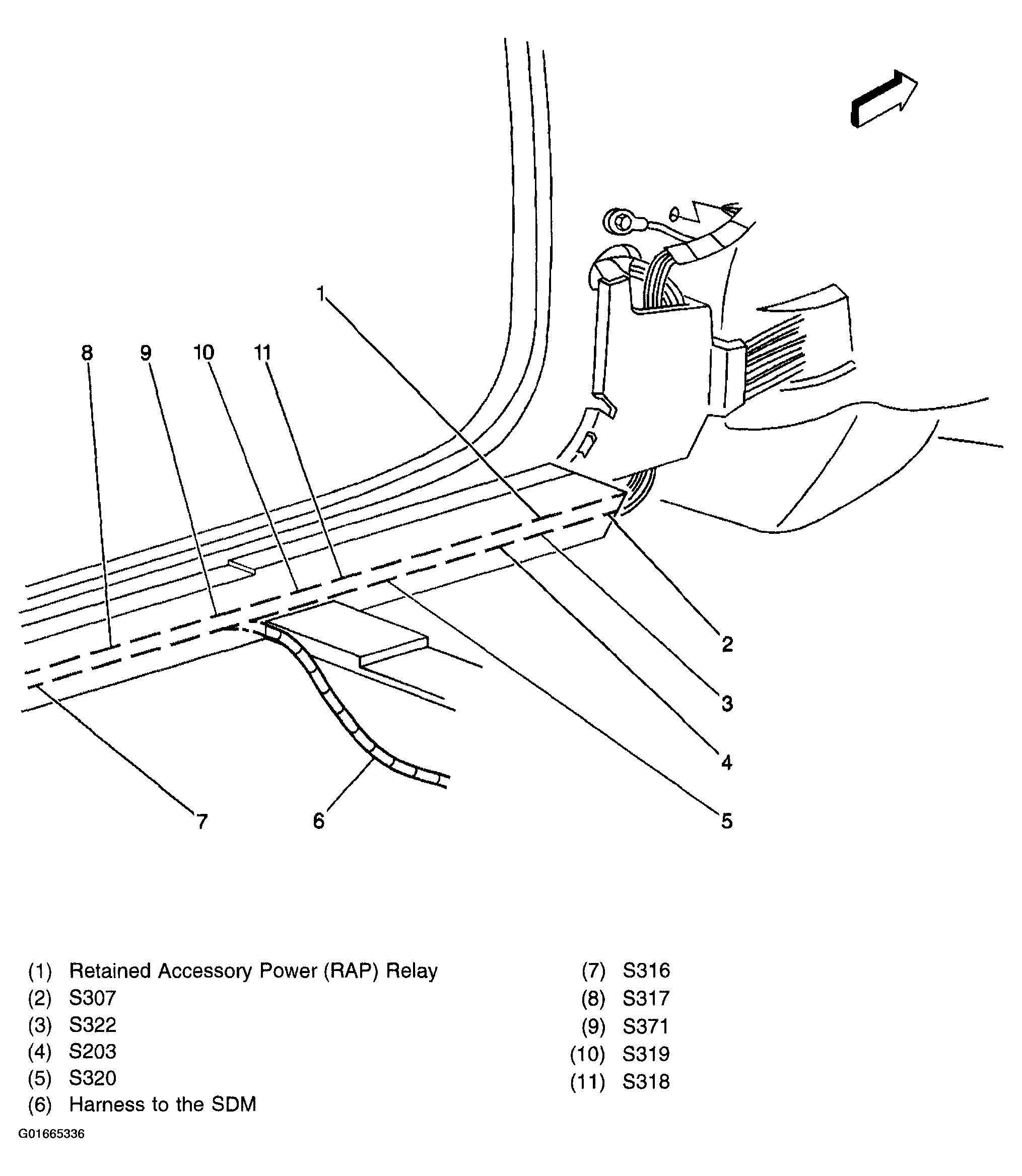

Fig 2: Passenger Compartment, Behind the Lower Left Front Trim
G01665336Courtesy of GENERAL MOTORS CORP.
