Removal Procedure
CAUTION:
Refer to SIR CAUTION
in Cautions and Notices.
- Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
- Remove the inflatable restraint steering wheel module. Refer to AIR BAG MODULES in SIR.
- Remove the steering wheel control switch pack retaining screws.
- Note the routing of the electrical harness.
- Remove the electrical harness from the harness clips.
- Disconnect the electrical connector.

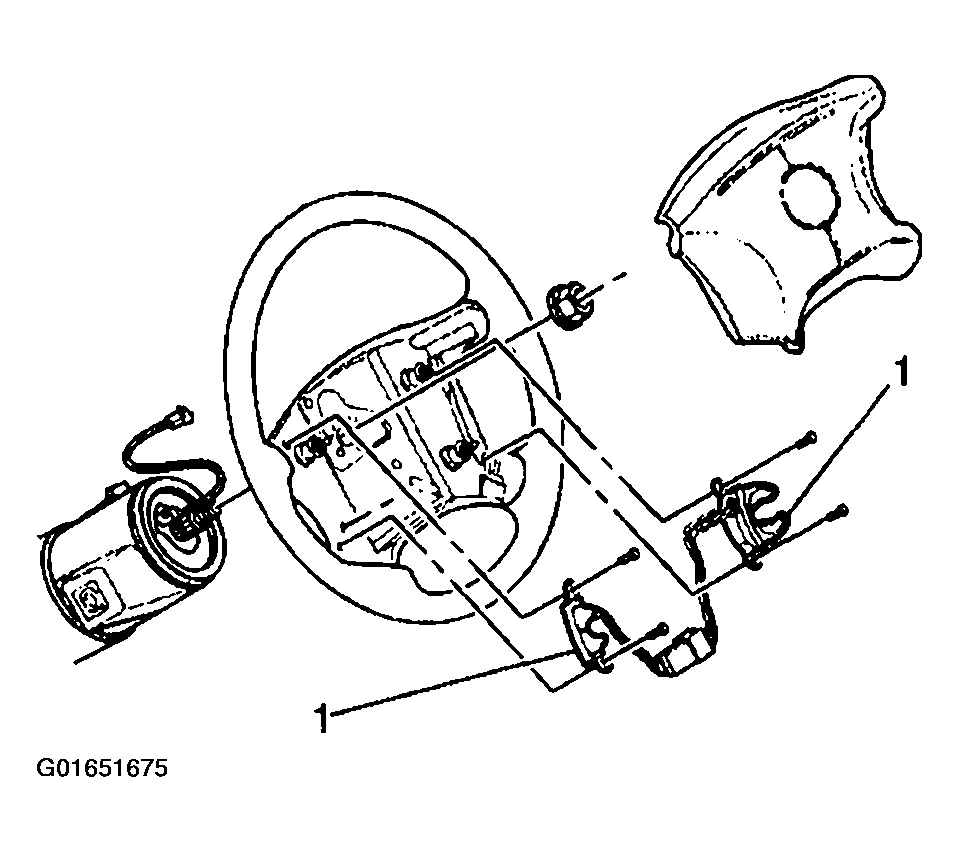

- Remove the steering wheel control switch pack (1).
