Installation Procedure

  1. Slide the BCM onto the bracket.

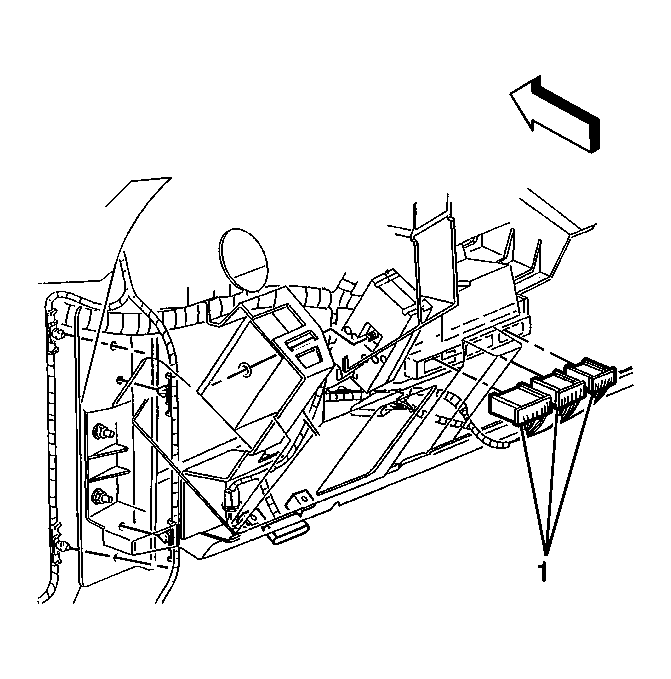

    Fig 1: BCM Harness Connectors
    GM387553Courtesy of GENERAL MOTORS CORP.
  2. Connect all the connectors (1) except the brown connector.
  3. Connect the brown connector.

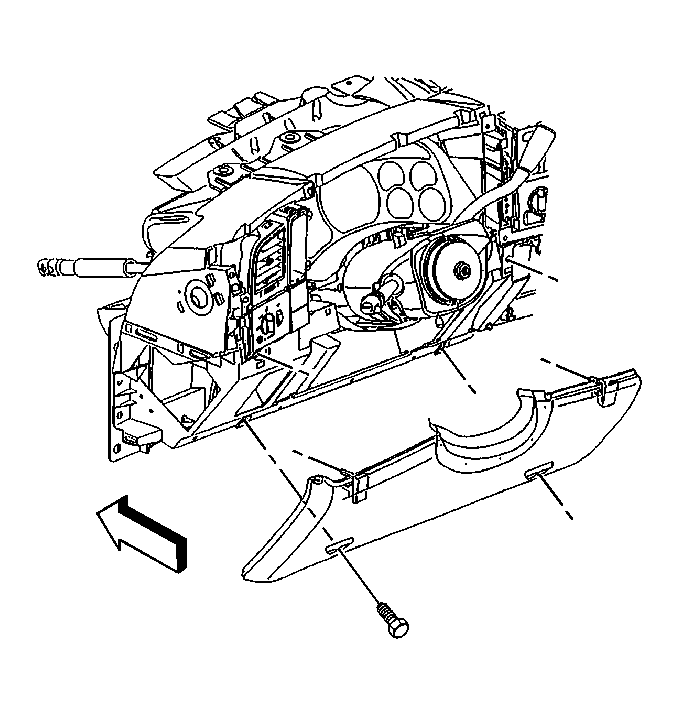

    4. Fig 2: View Of Knee Bolster
    GM348714Courtesy of GENERAL MOTORS CORP.
  4. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .
  5. Connect the negative battery cable(s).
  6. Reprogram the BCM. Refer to Body Control Module (BCM) Programming/RPO Configuration .
