Data Link Communications Connector End Views

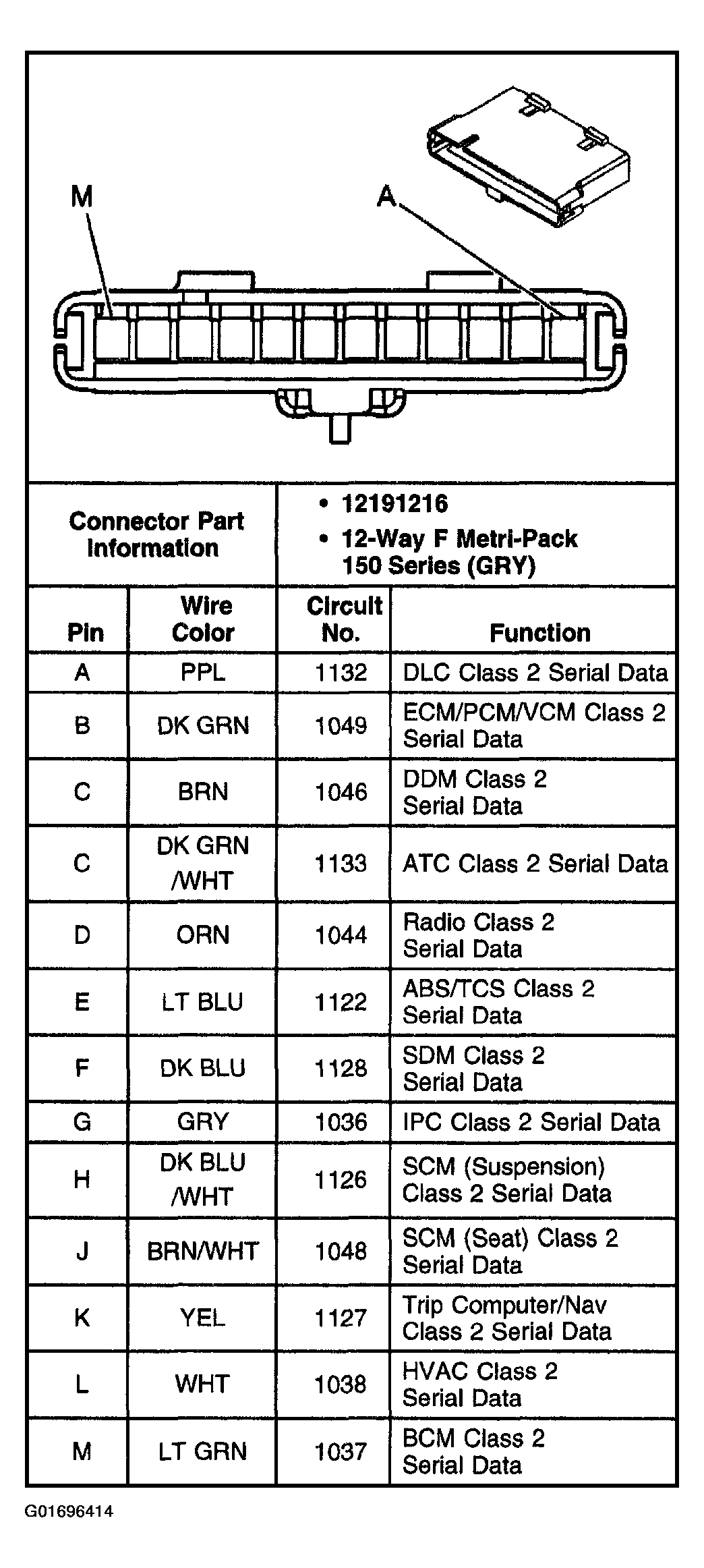

Fig 1: Splice Pack SP205
G01696414Courtesy of GENERAL MOTORS CORP.

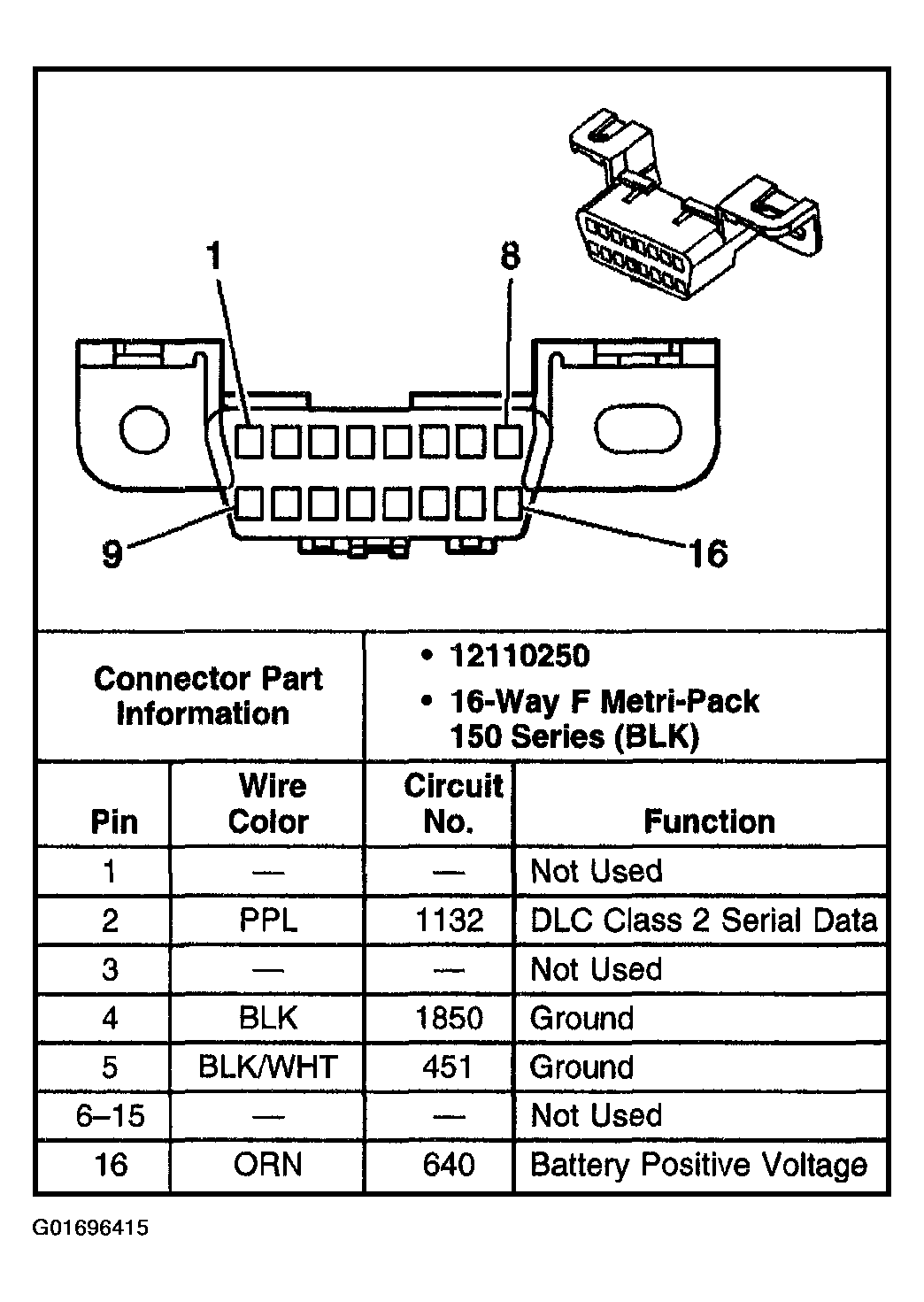

Fig 2: Data Link Connector (DLC)
G01696415Courtesy of GENERAL MOTORS CORP.
