Installation Procedure

  1. Install the radio antenna module. Refer to Radio Antenna Module Replacement .
  2. Install the control module to the roof.

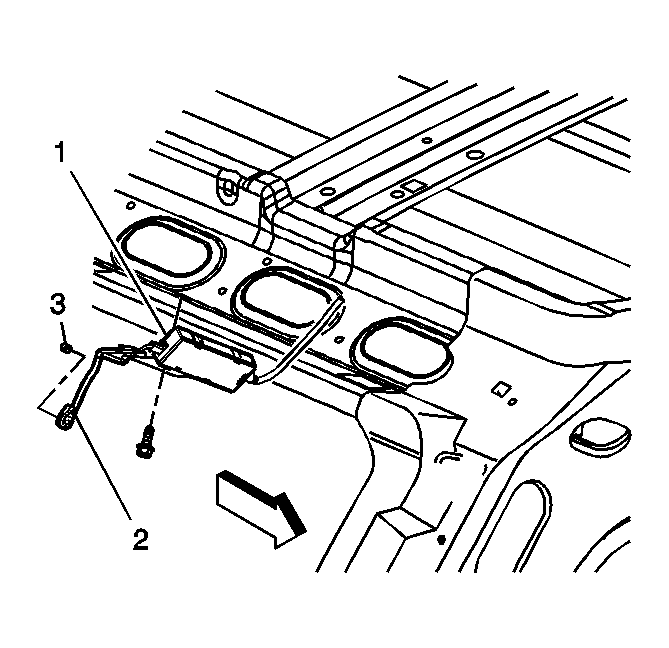

    3. Fig 1: Installing Radio Control Module & Electrical Connector
    GM741403Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the module retaining bolt.

    Tighten:  Tighten the retaining bolt to 9 N.m (80 lb in).

  4. Connect the antenna cable to the module.
  5. Connect the wire harness (2) to the rear quarter glass panel.
  6. Install the rear of the headliner. Refer to HEADLINER REPLACEMENT .
