Lighting Systems Component Views

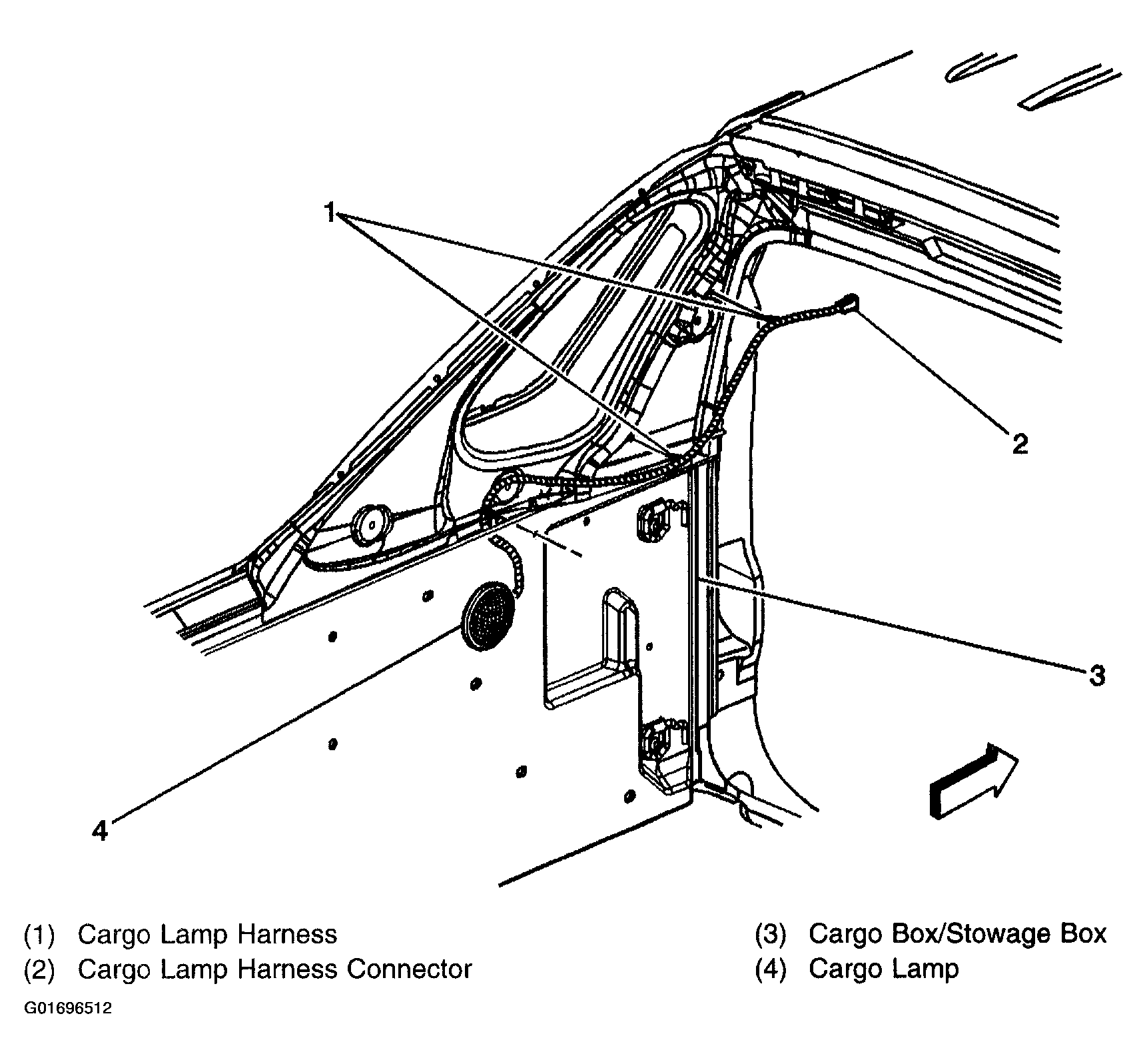

Fig 1: Cargo Lamps (Avalanche/Escalade EXT)

G01696512

Courtesy of GENERAL MOTORS CORP.

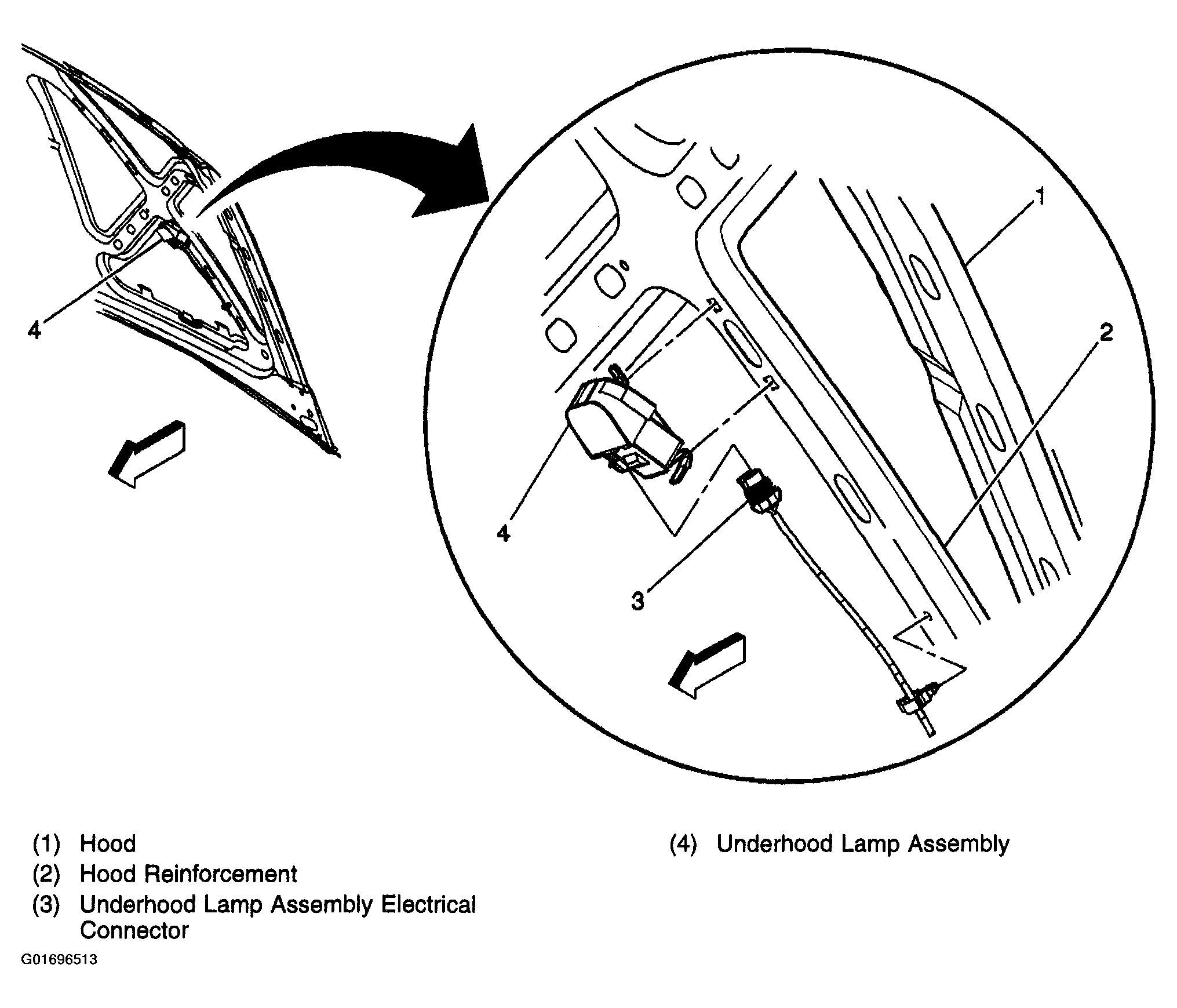

Fig 2: Underhood Lamp Assembly

G01696513

Courtesy of GENERAL MOTORS CORP.

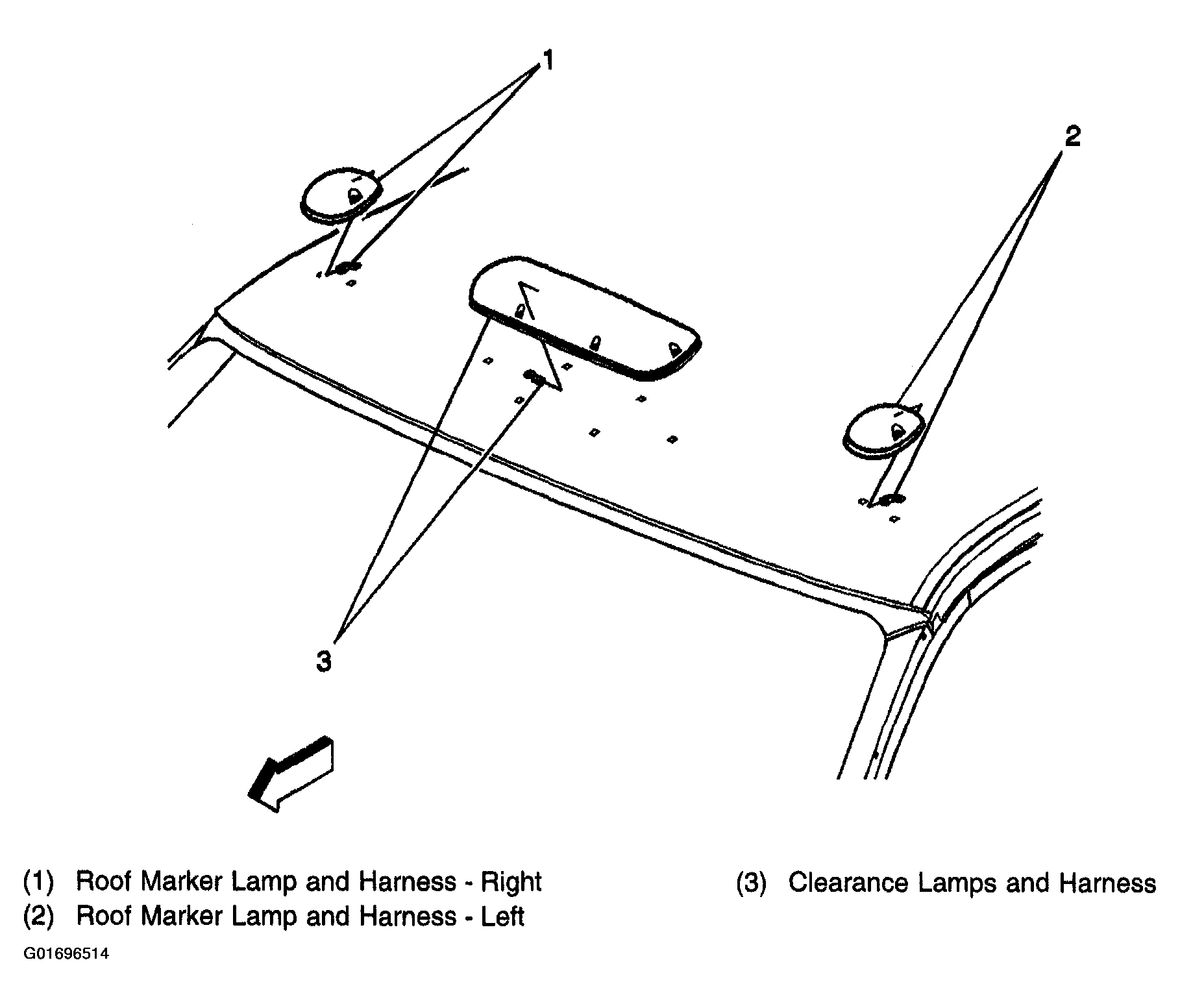

Fig 3: Roof Marker & Clearance Lamps

G01696514

Courtesy of GENERAL MOTORS CORP.

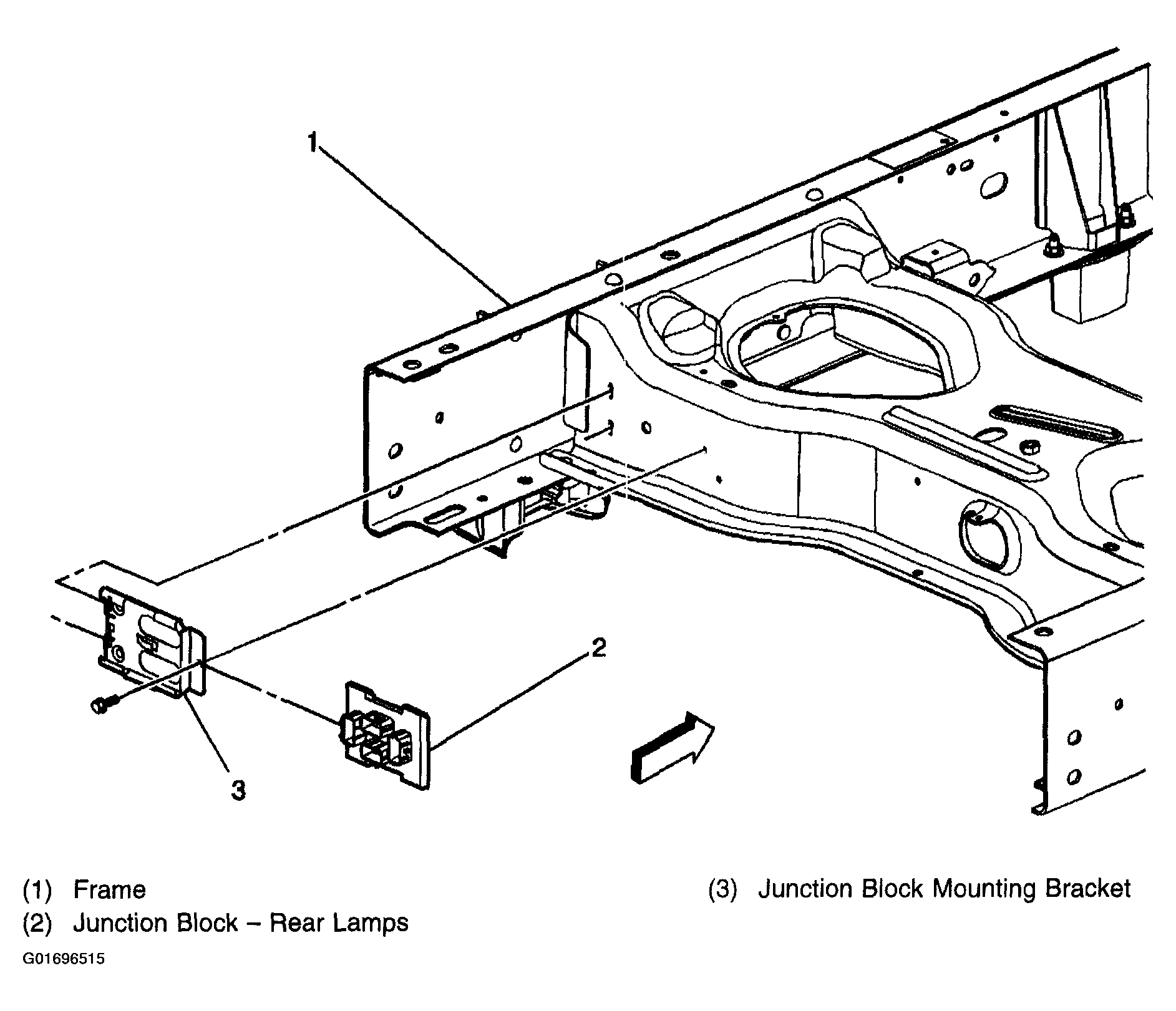

Fig 4: Junction Block - Rear Lamps

G01696515

Courtesy of GENERAL MOTORS CORP.

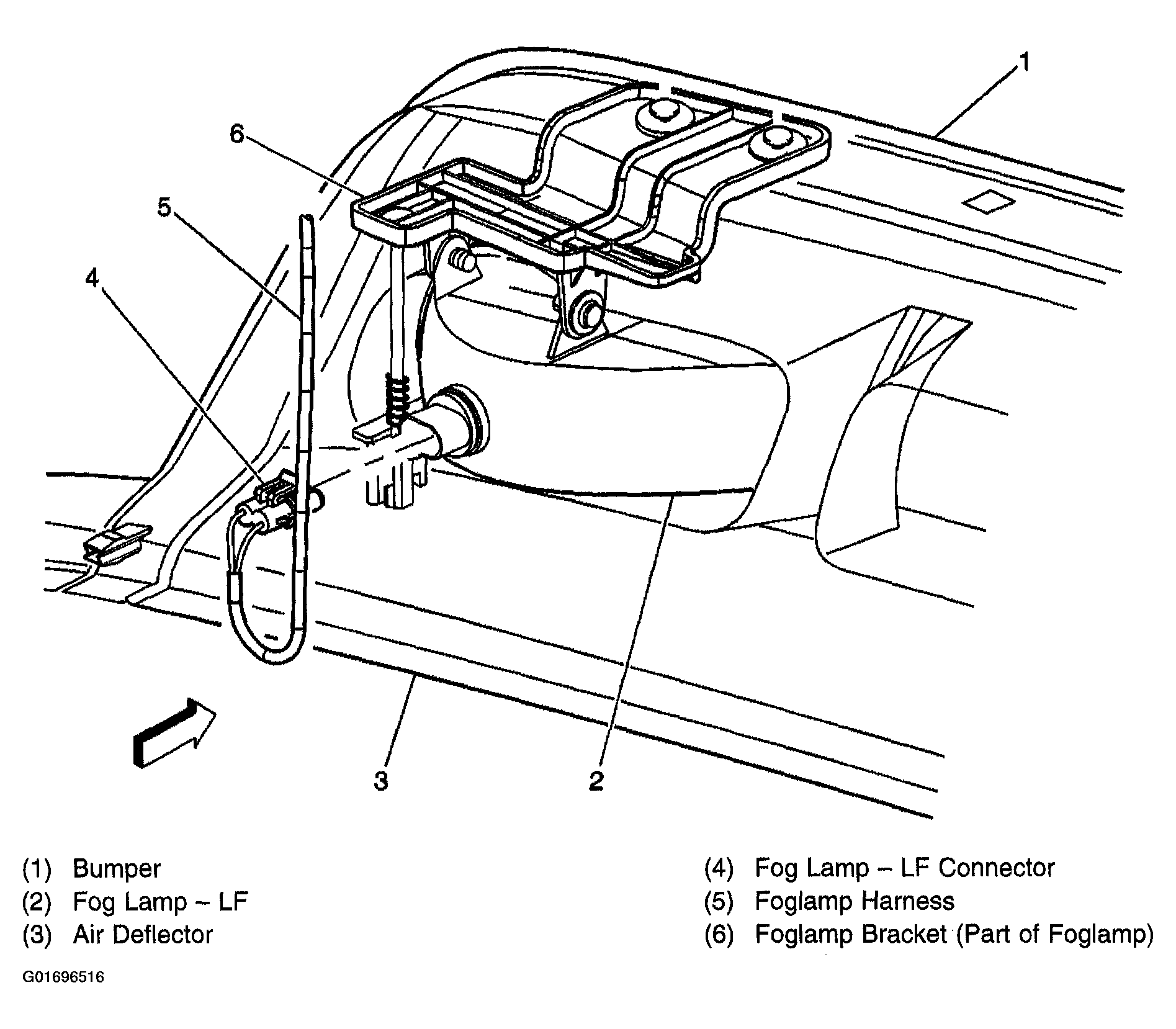

Fig 5: Left Foglamp (RH Similar)

G01696516

Courtesy of GENERAL MOTORS CORP.

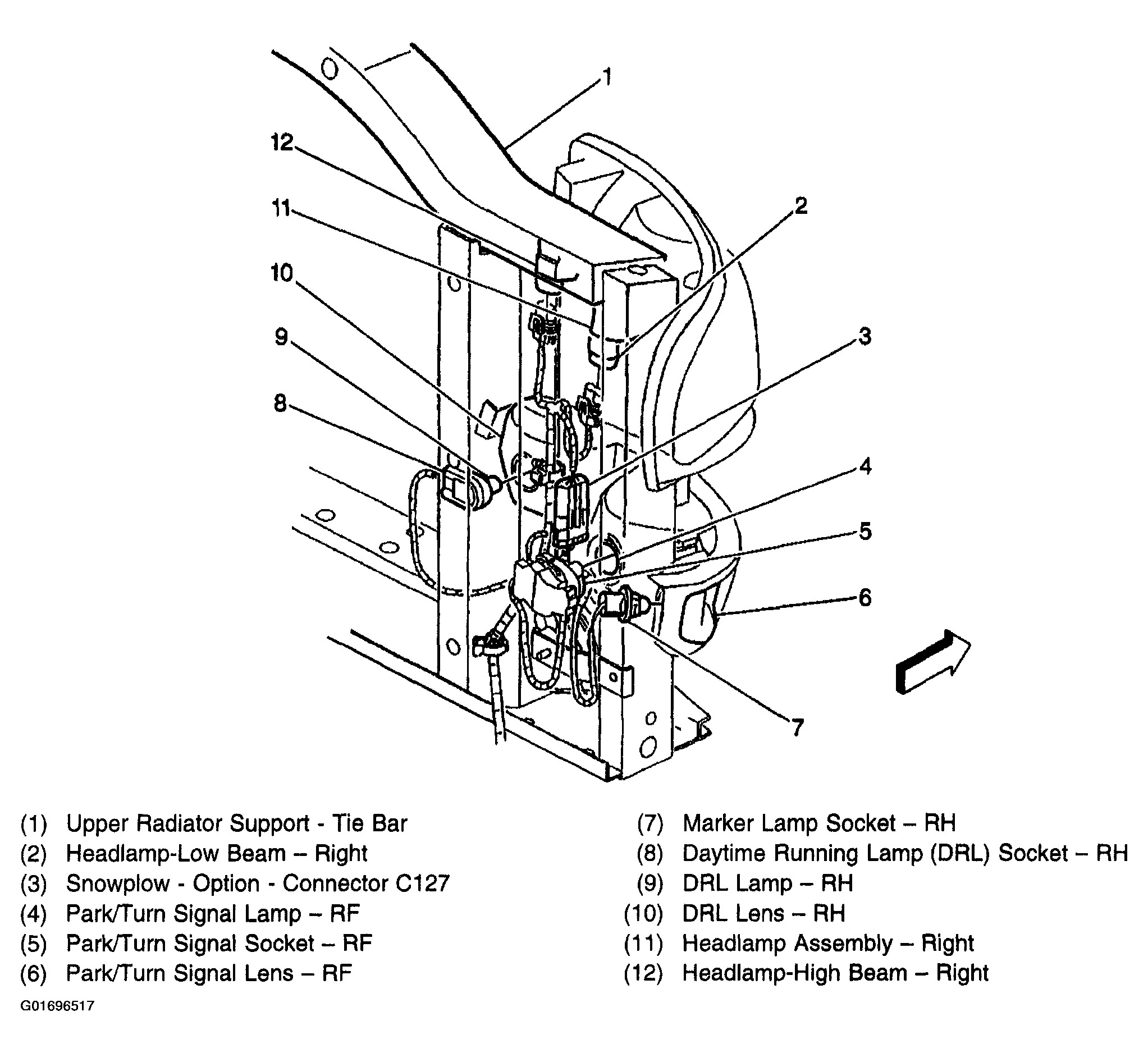

Fig 6: RH Front Of Vehicle

G01696517

Courtesy of GENERAL MOTORS CORP.

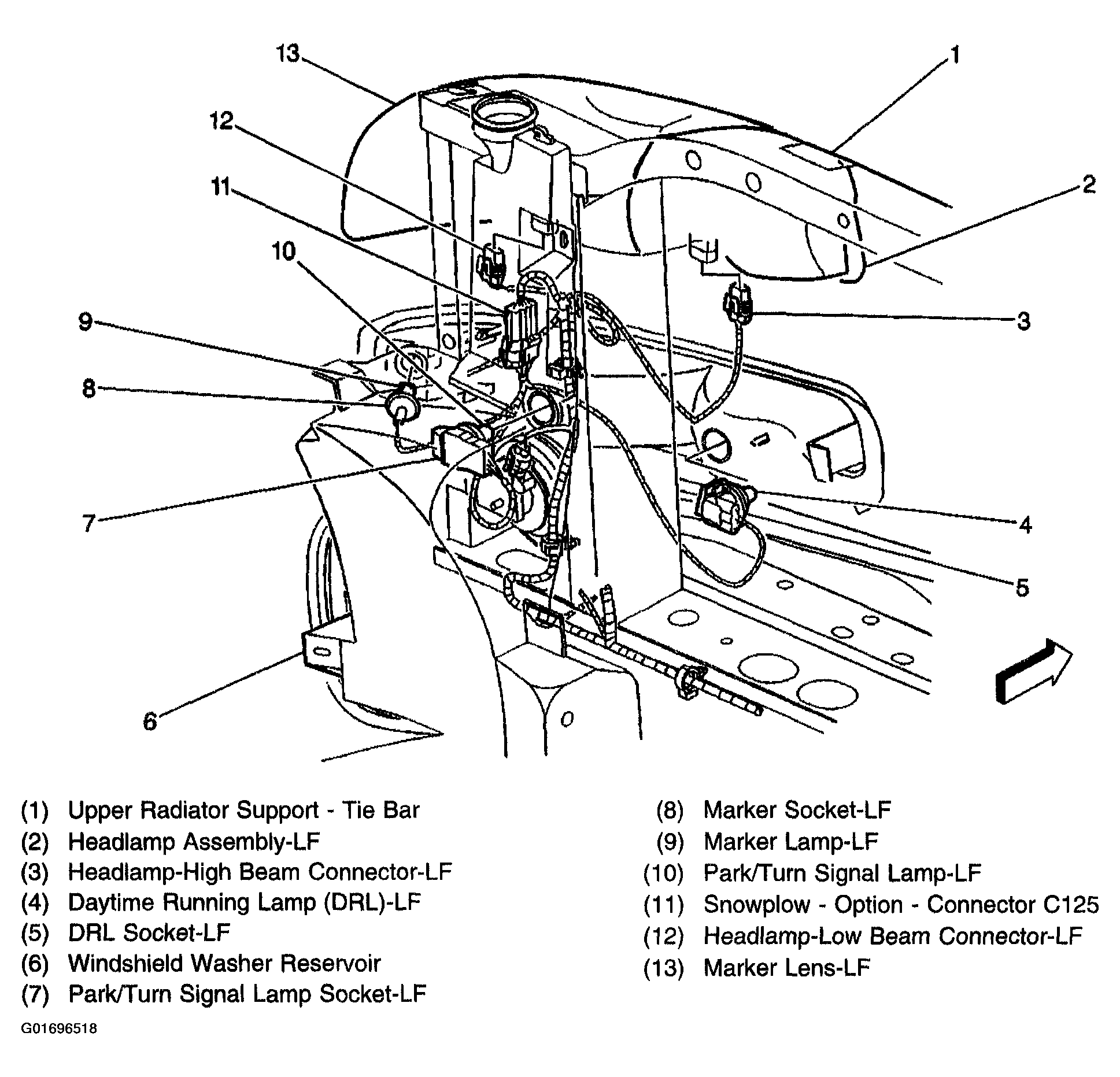

Fig 7: LH Front Of Vehicle

G01696518

Courtesy of GENERAL MOTORS CORP.

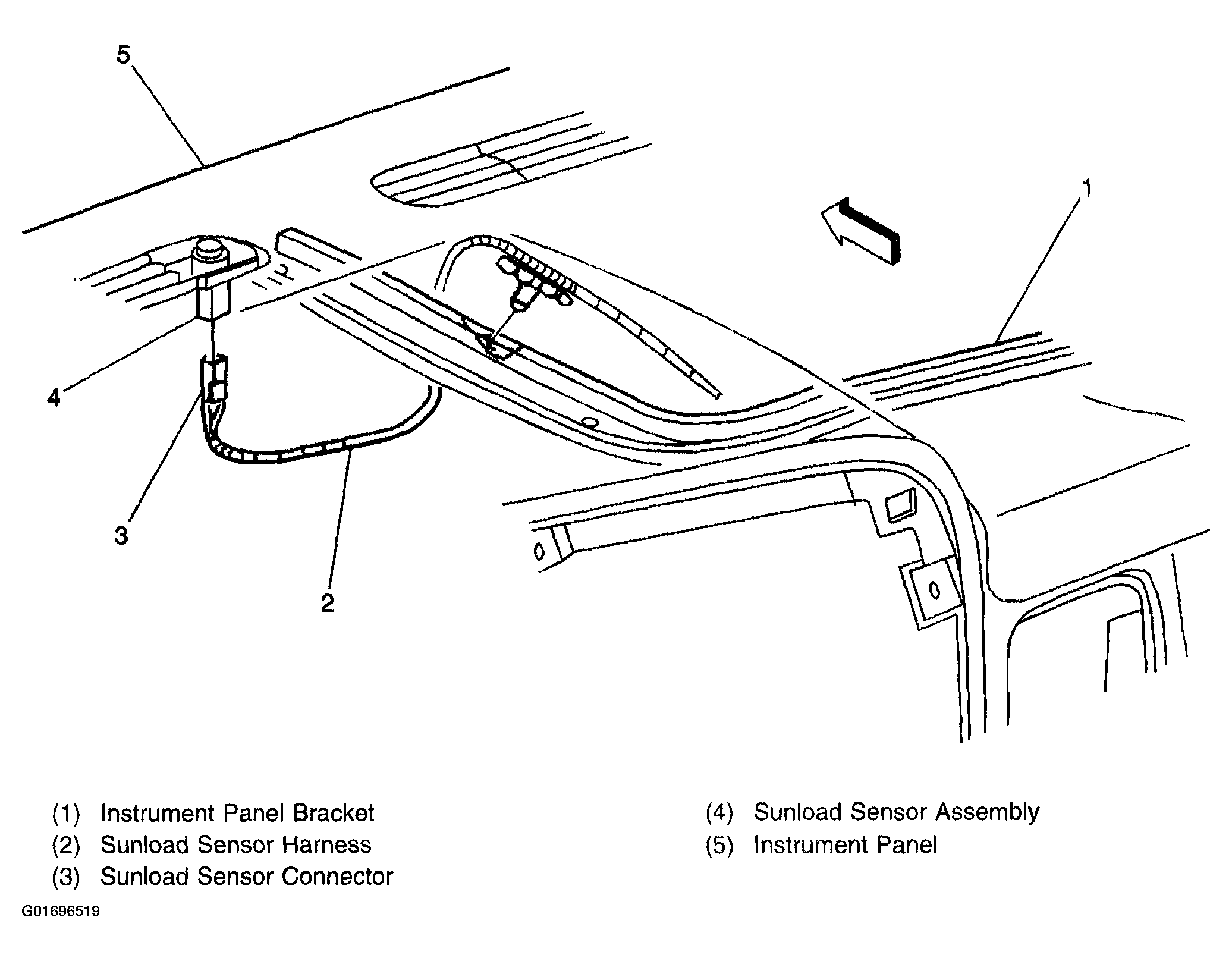

Fig 8: Sunload Sensor Assembly

G01696519

Courtesy of GENERAL MOTORS CORP.

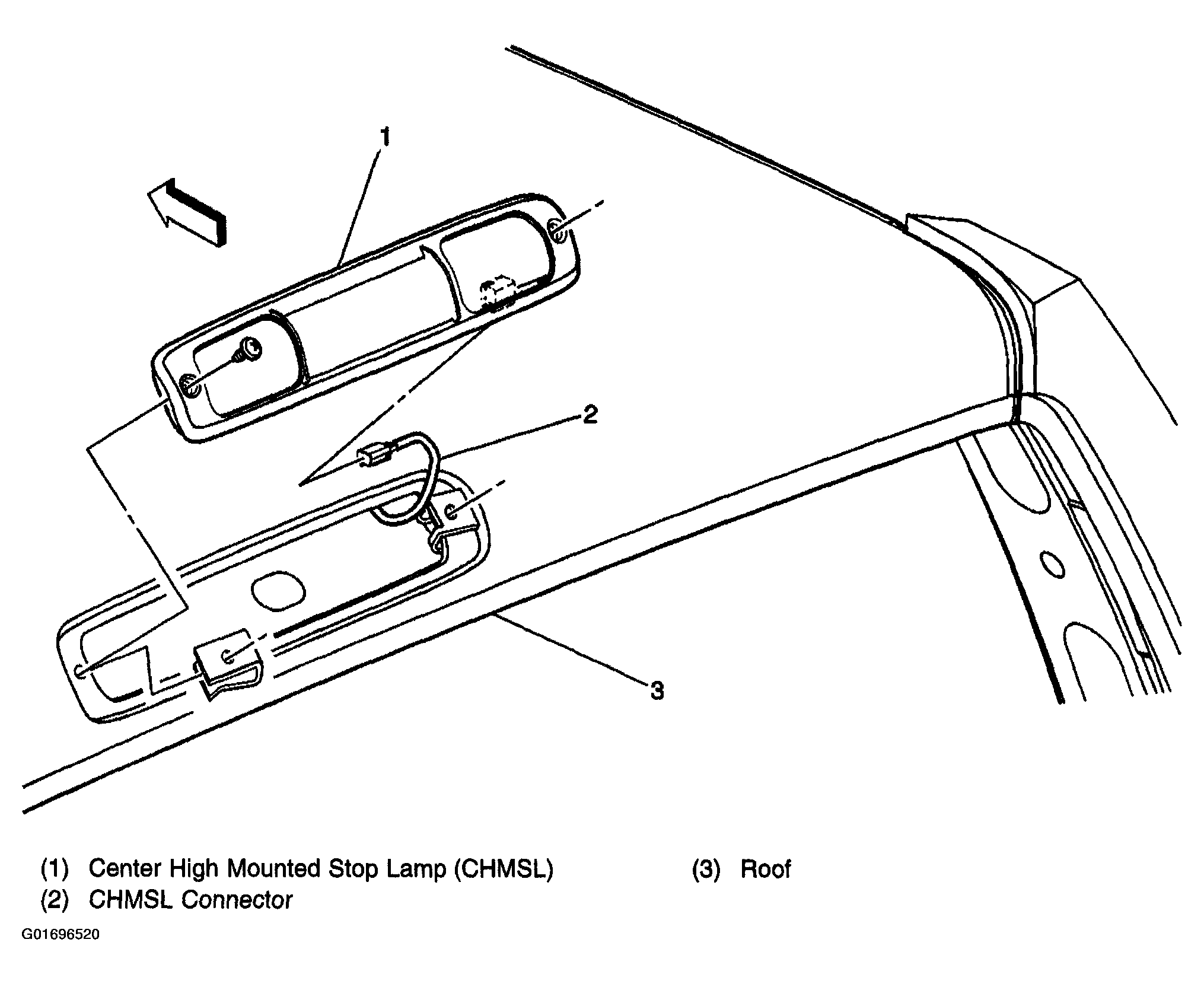

Fig 9: Center High Mounted Stop Lamp (CHMSL)

G01696520

Courtesy of GENERAL MOTORS CORP.

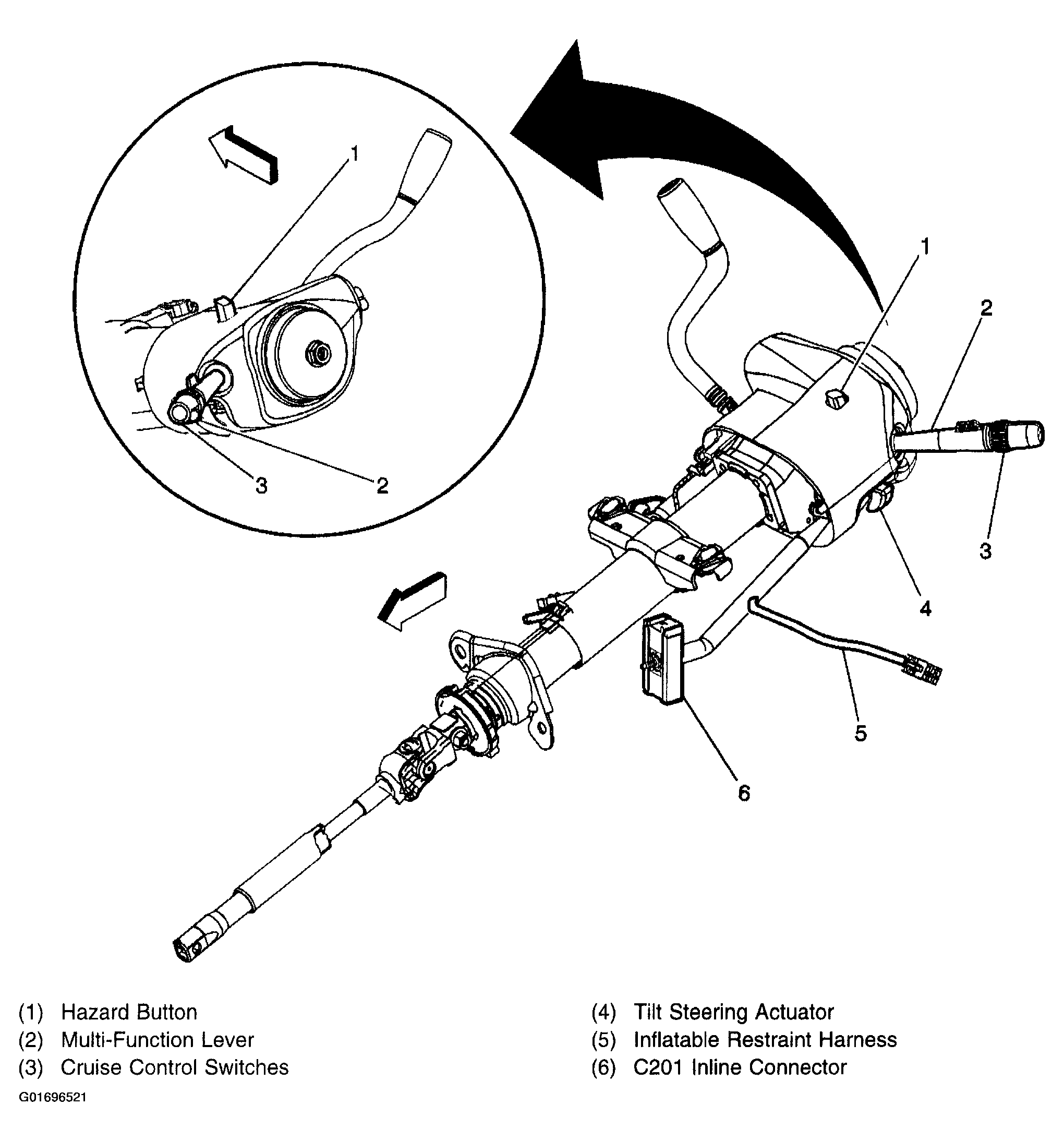

Fig 10: Steering Column

G01696521

Courtesy of GENERAL MOTORS CORP.

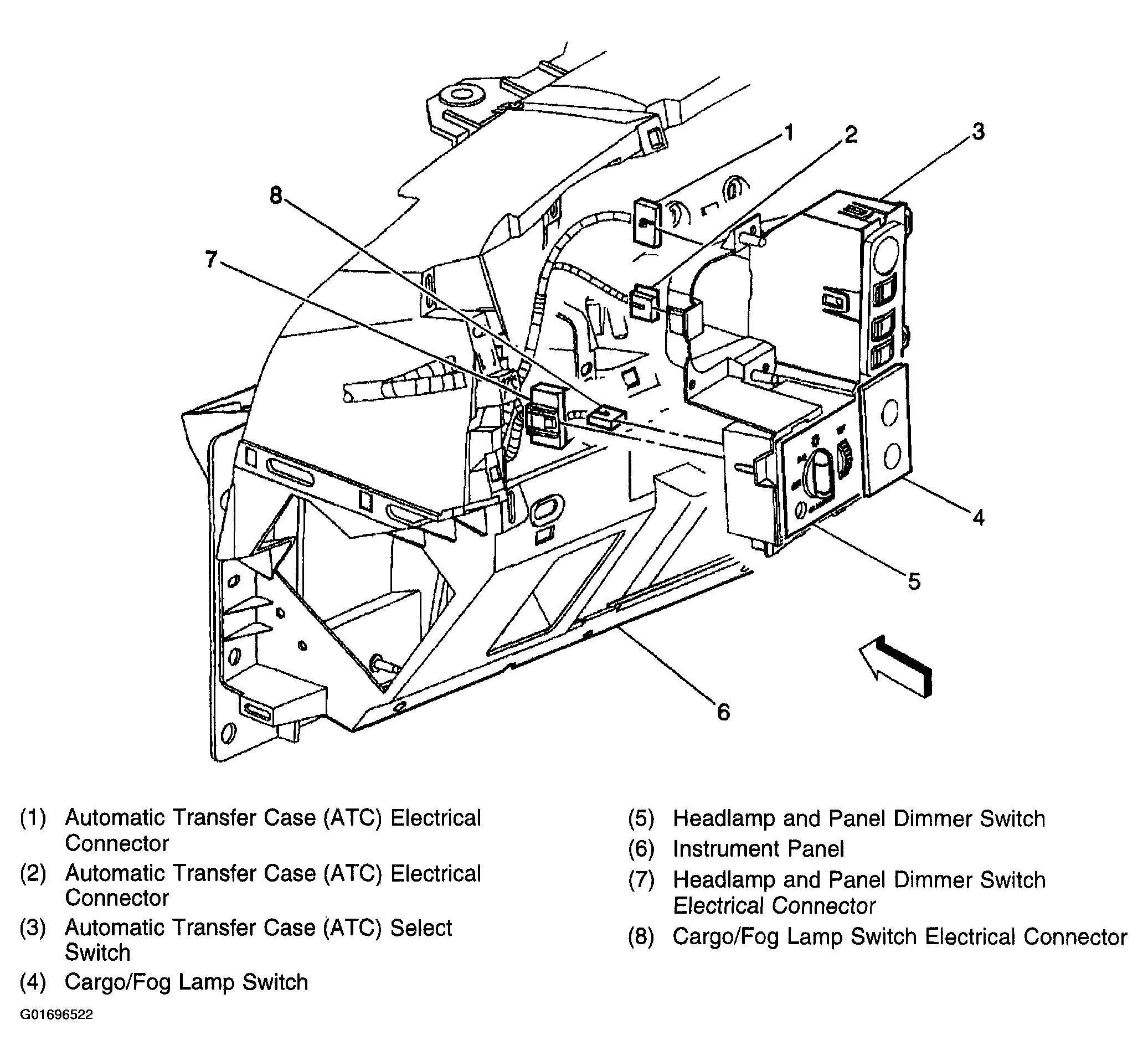

Fig 11: Instrument Panel Switches - LH

G01696522

Courtesy of GENERAL MOTORS CORP.

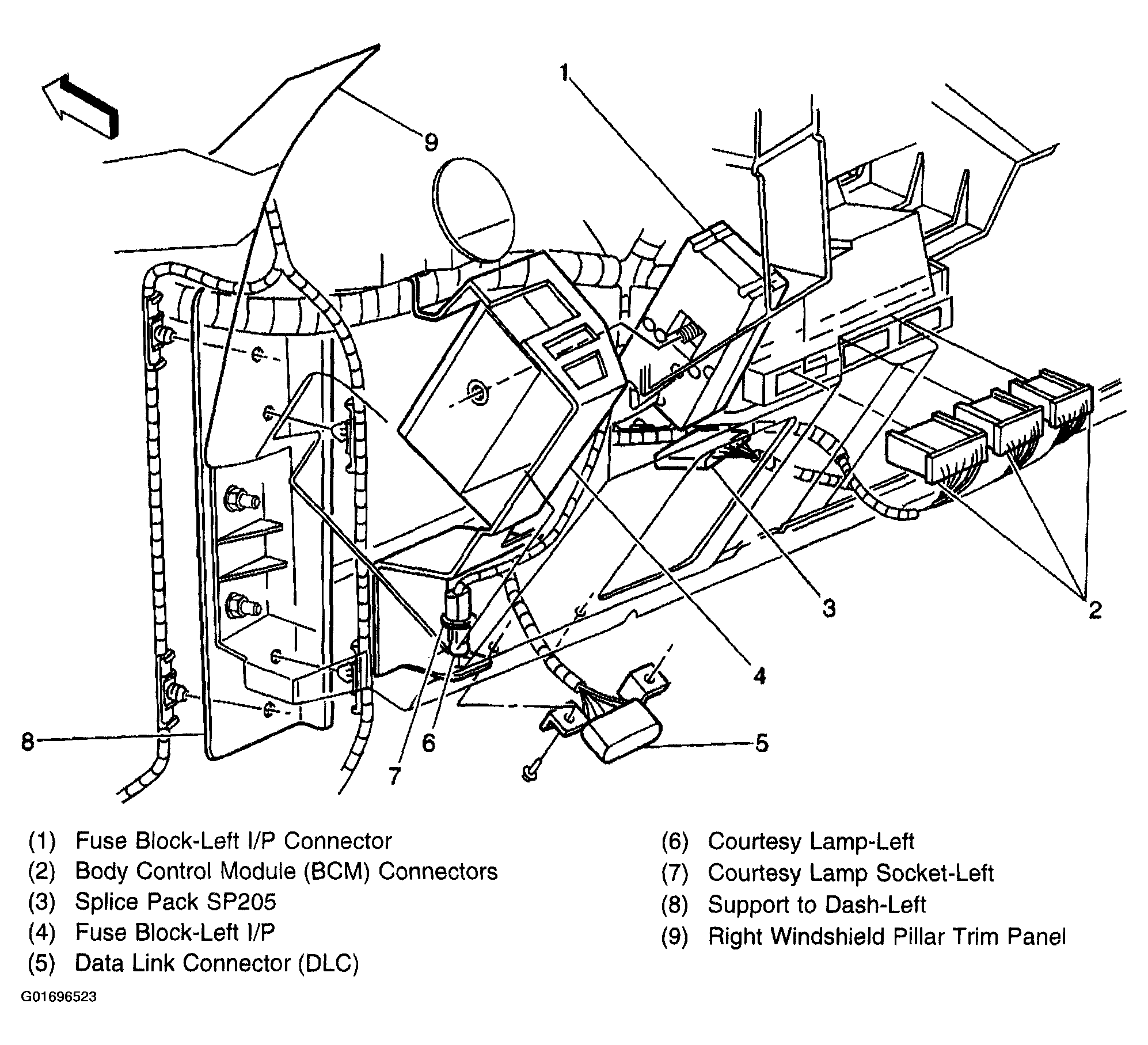

Fig 12: Left Hand Lower Dash

G01696523

Courtesy of GENERAL MOTORS CORP.

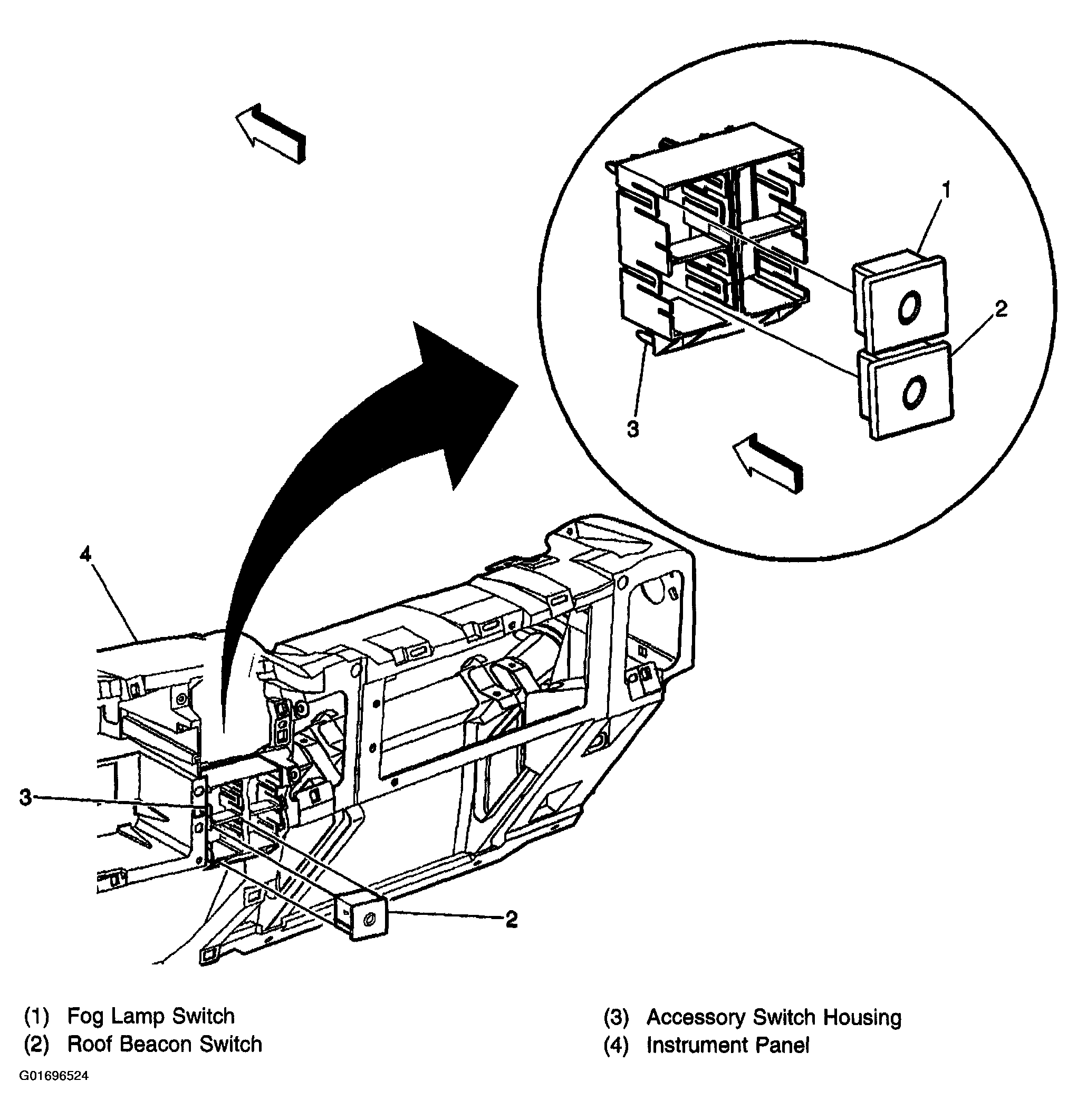

Fig 13: Accessory Switch Housing

G01696524

Courtesy of GENERAL MOTORS CORP.

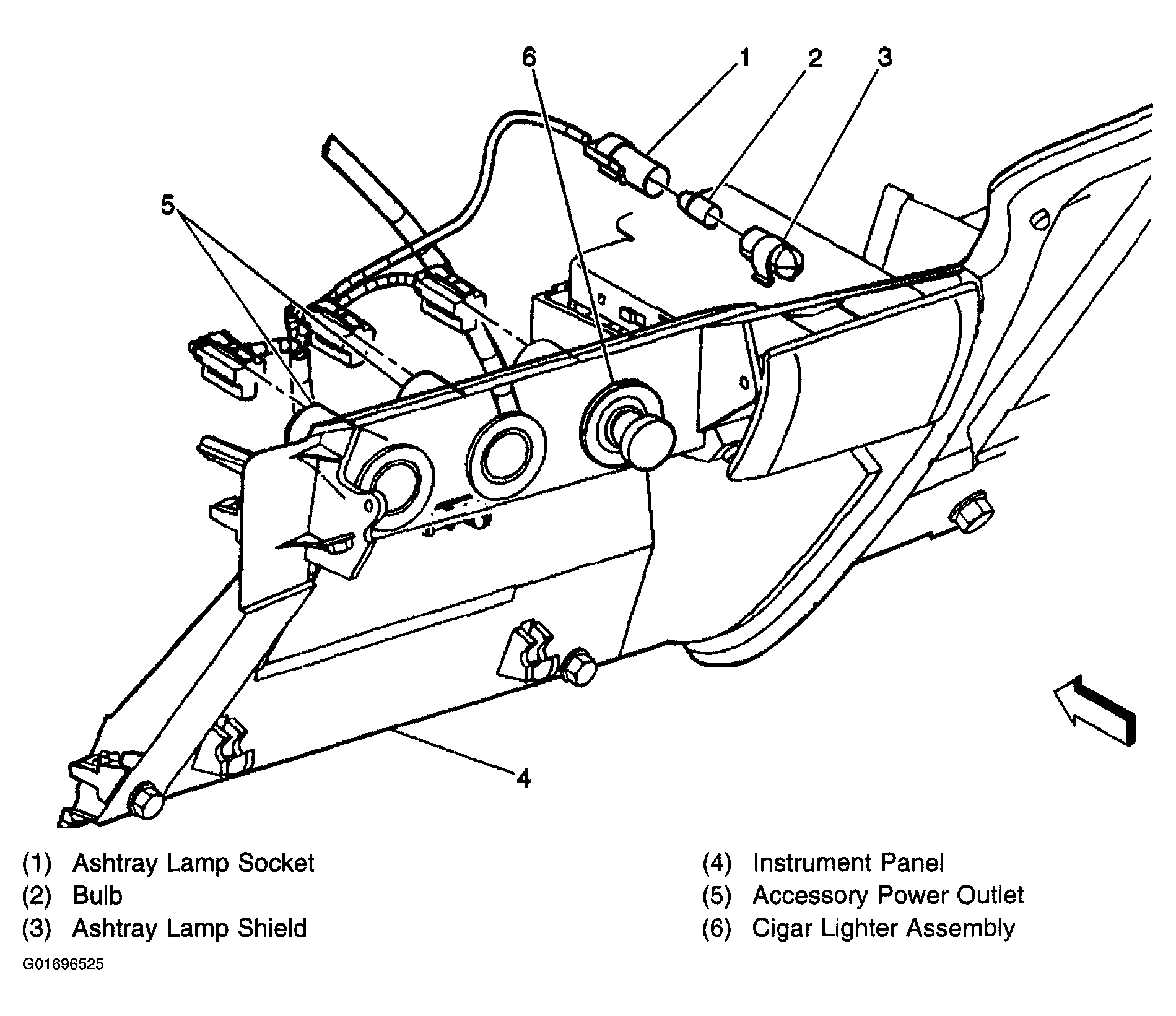

Fig 14: Accessory Power Outlets

G01696525

Courtesy of GENERAL MOTORS CORP.

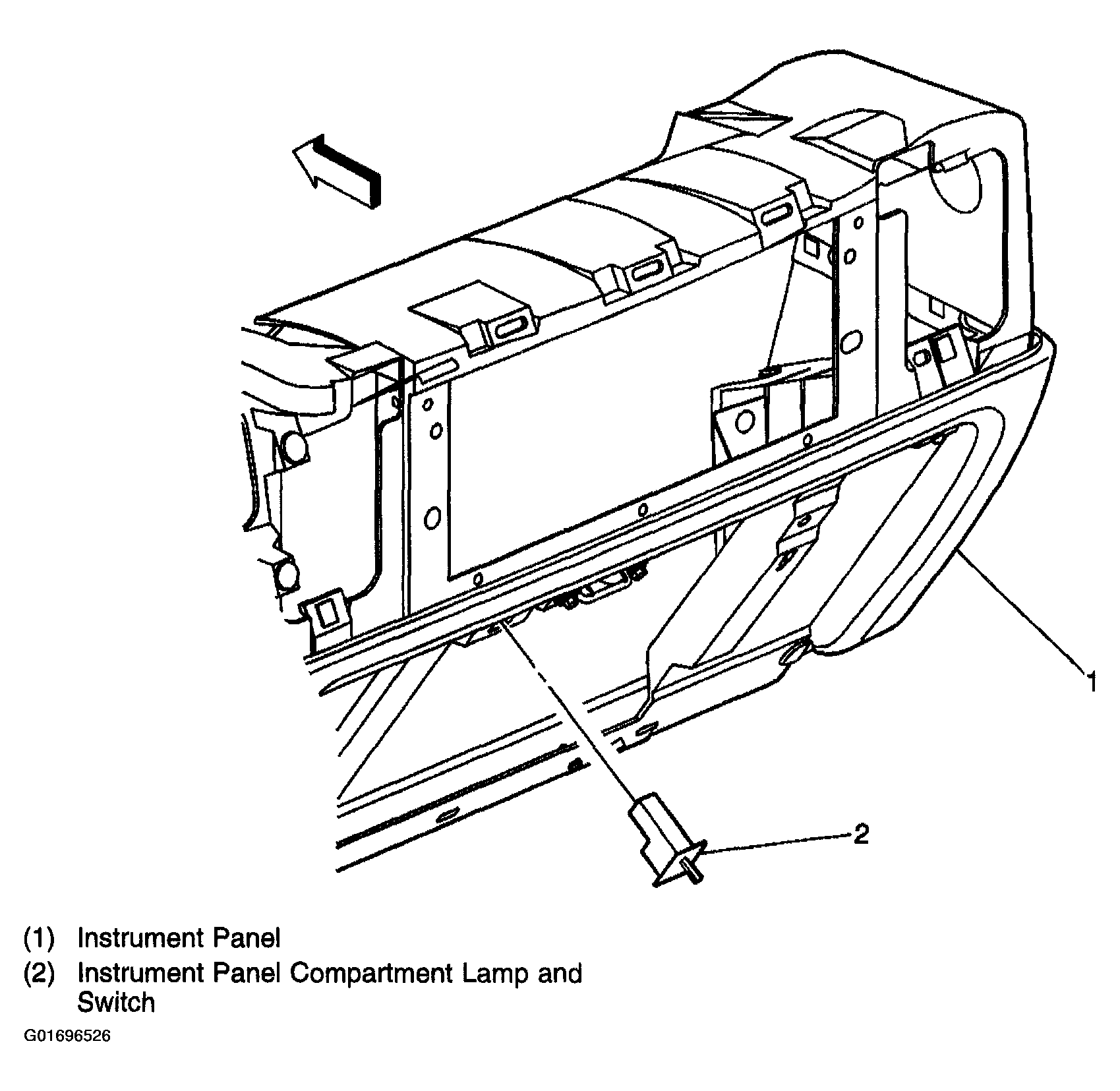

Fig 15: Instrument Panel Compartment Lamp

G01696526

Courtesy of GENERAL MOTORS CORP.

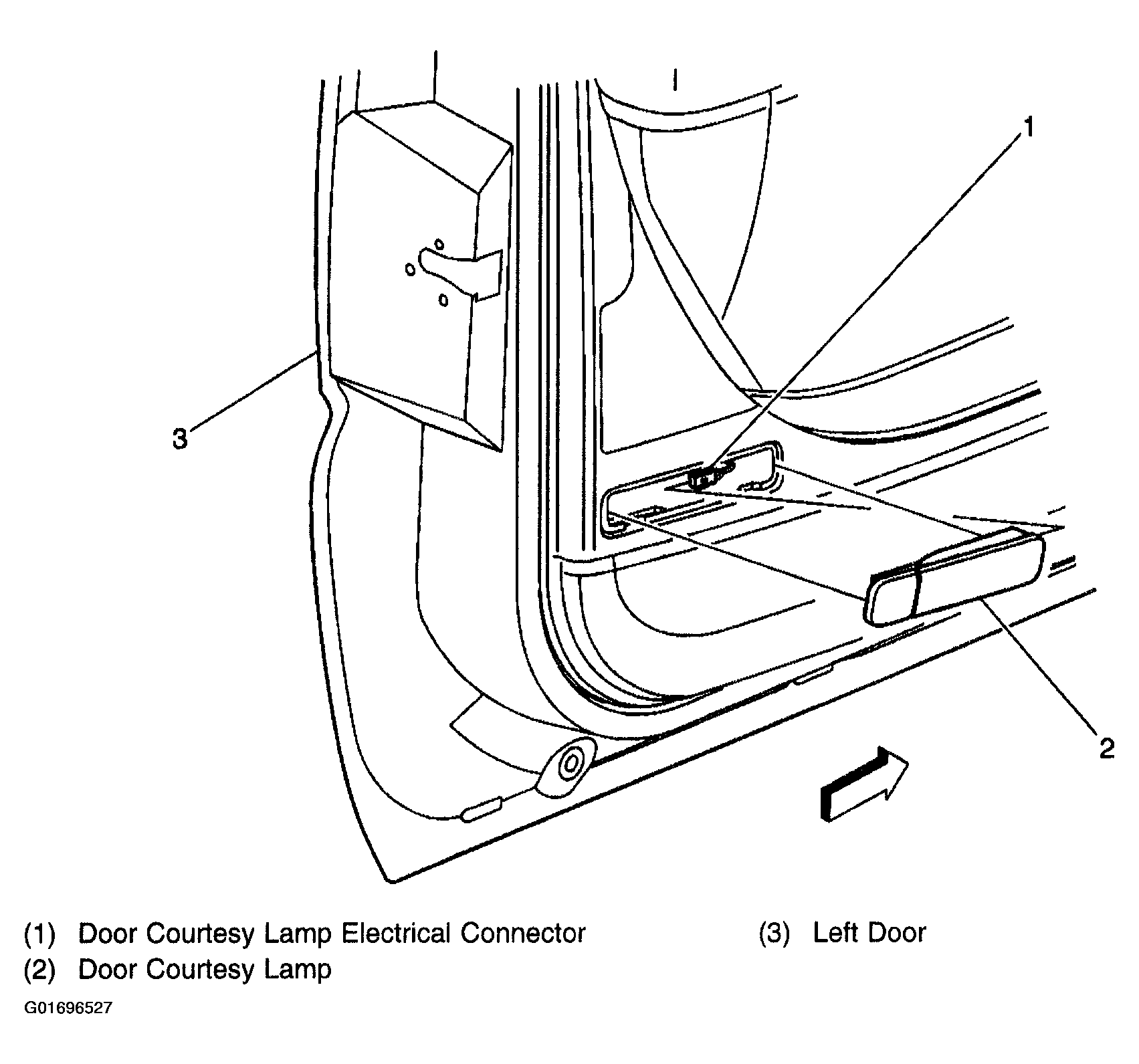

Fig 16: Left Door Courtesy Lamp (RH Similar)

G01696527

Courtesy of GENERAL MOTORS CORP.

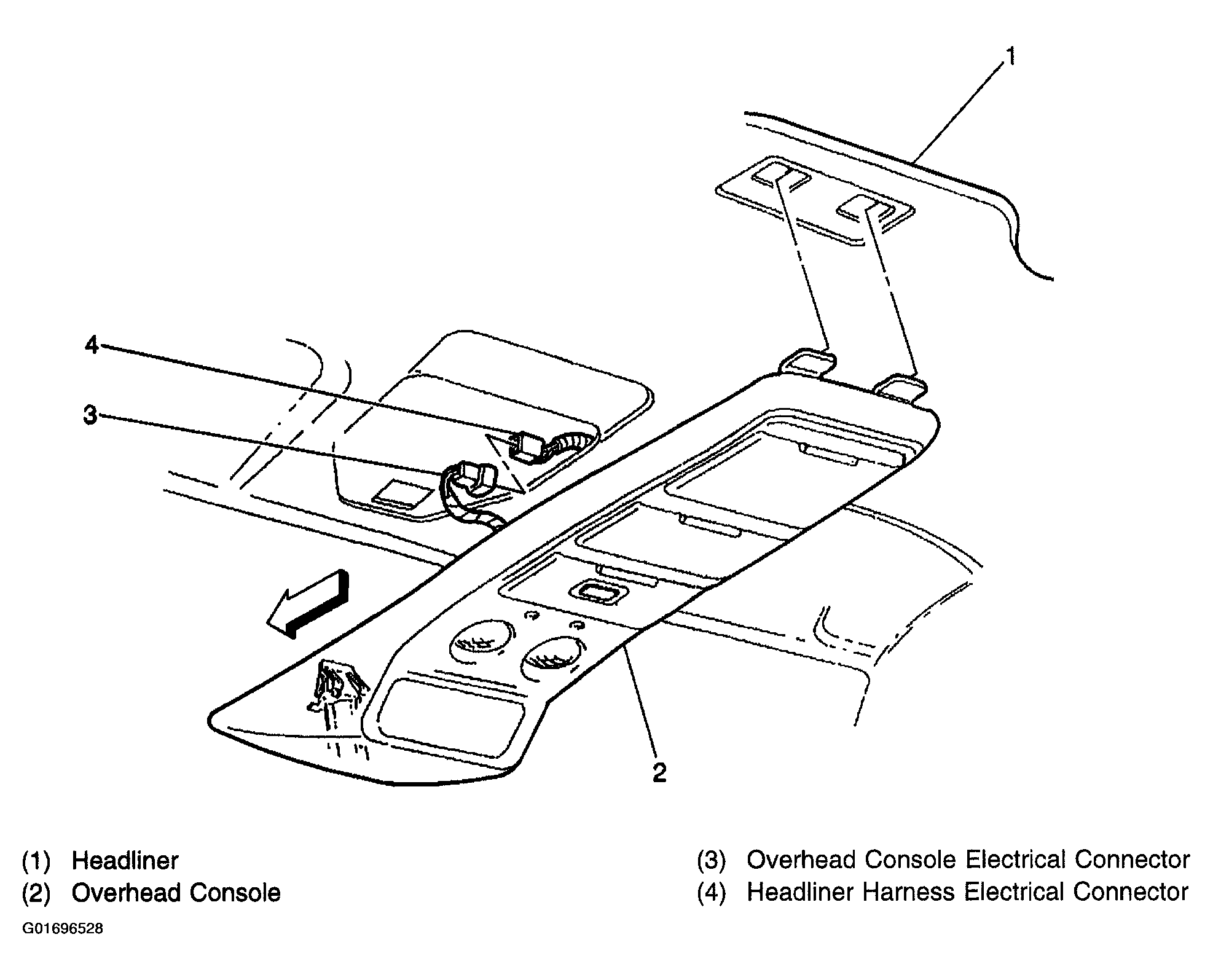

Fig 17: Overhead Console

G01696528

Courtesy of GENERAL MOTORS CORP.

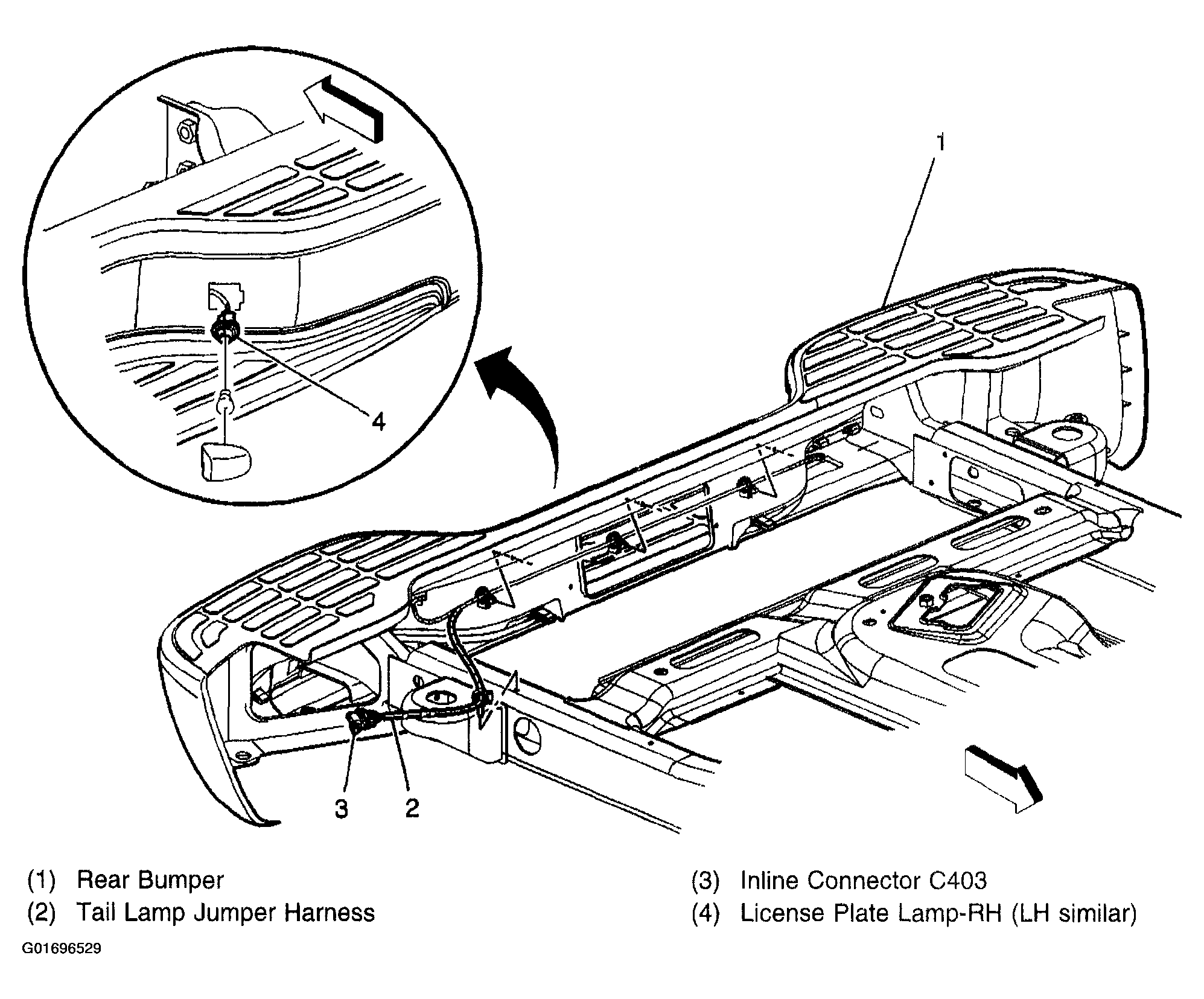

Fig 18: License Plate Lamp (Utilities)

G01696529

Courtesy of GENERAL MOTORS CORP.

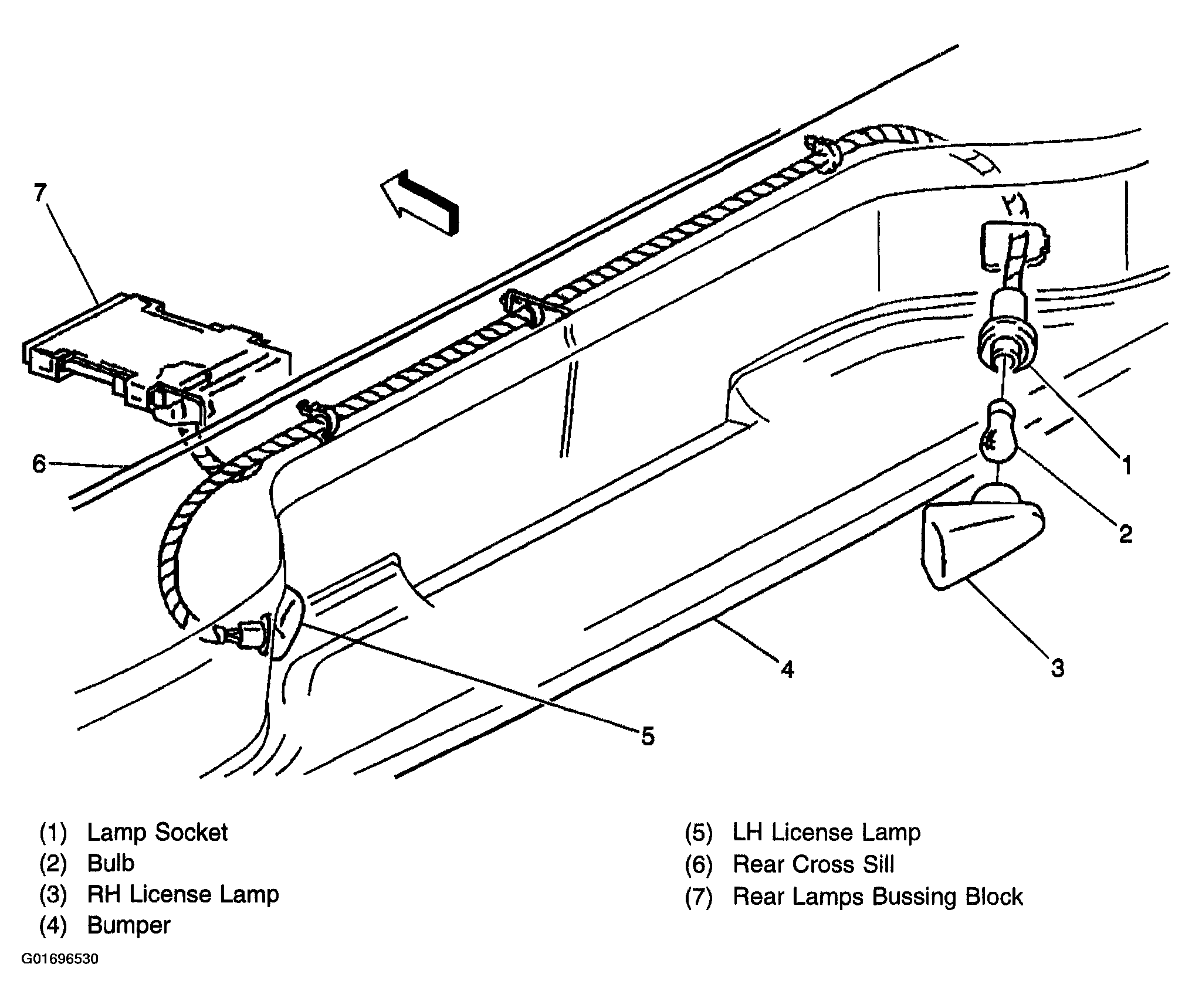

Fig 19: License Lamps

G01696530

Courtesy of GENERAL MOTORS CORP.

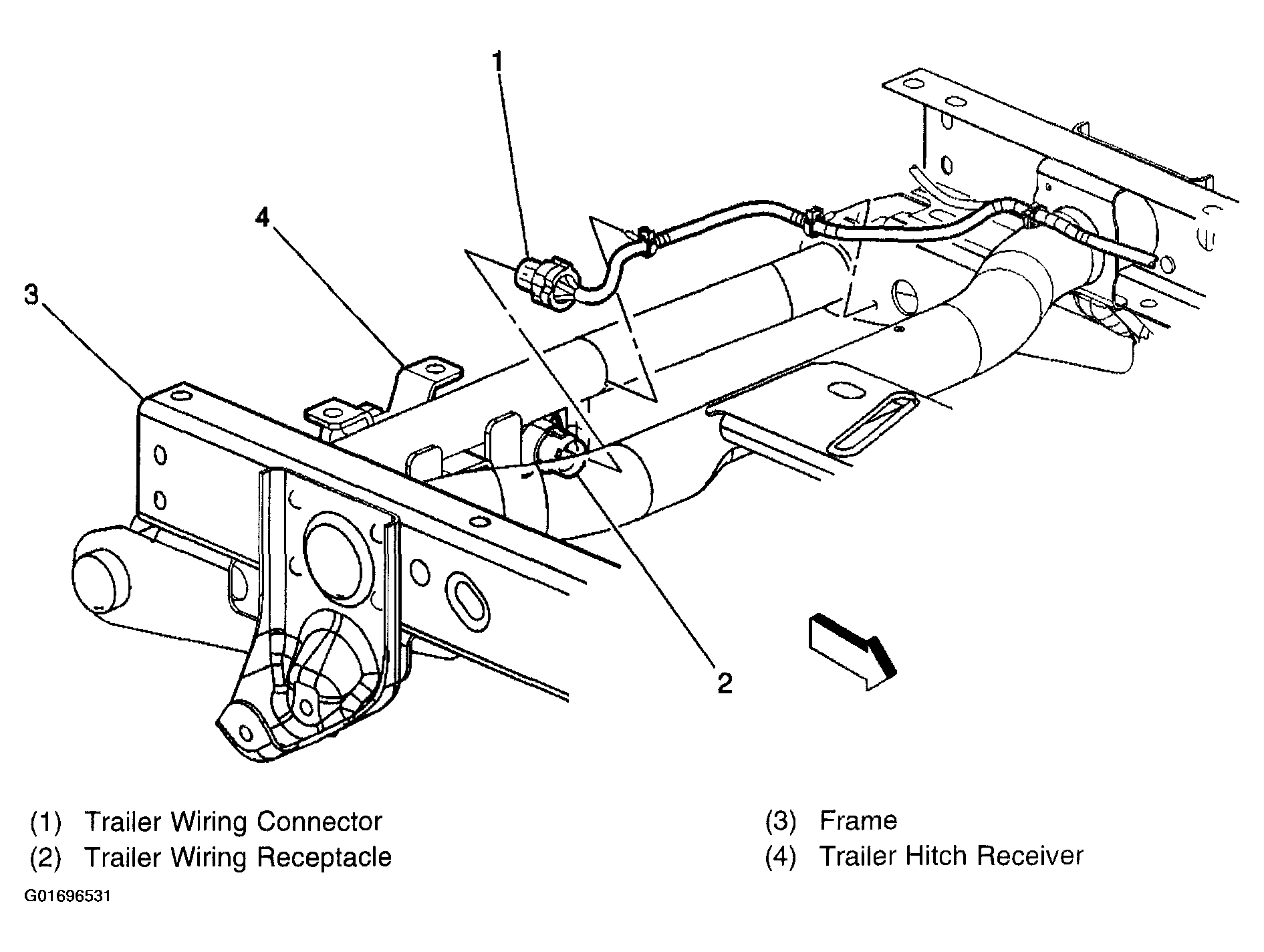

Fig 20: Trailer Wiring Connector, Heavy Duty

G01696531

Courtesy of GENERAL MOTORS CORP.
