Installation Procedure

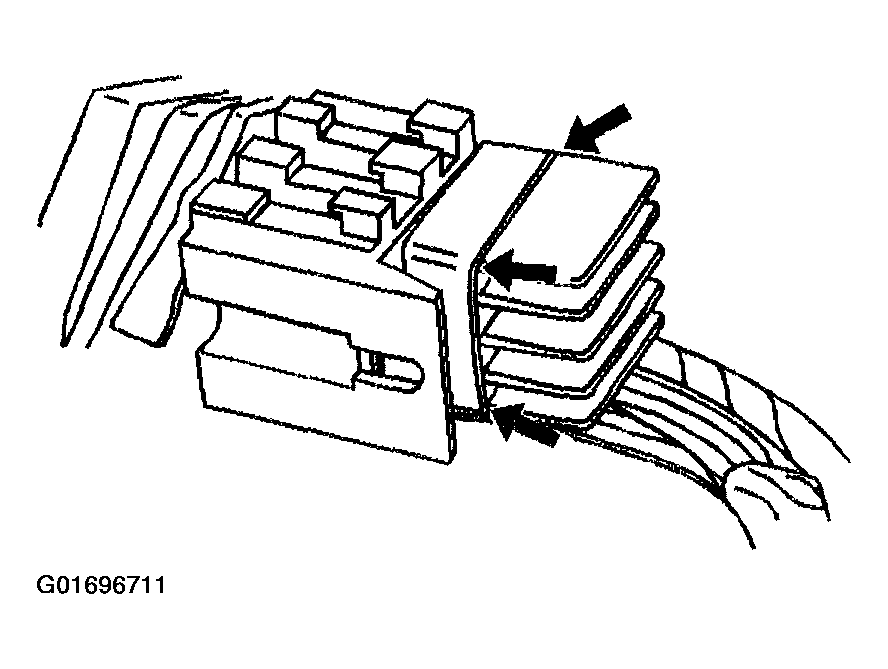

Fig 1: Lamp Control Module

Courtesy of GENERAL MOTORS CORP.

Install the lamp module to the connector until fully seated.
Important: Do not tape past the line where the cooling fins begin. Taping around the fins will result in the module overheating.
Install a new electrical tape around the module in order to secure the module to the IP wire harness.
Connect all the electrical connectors.

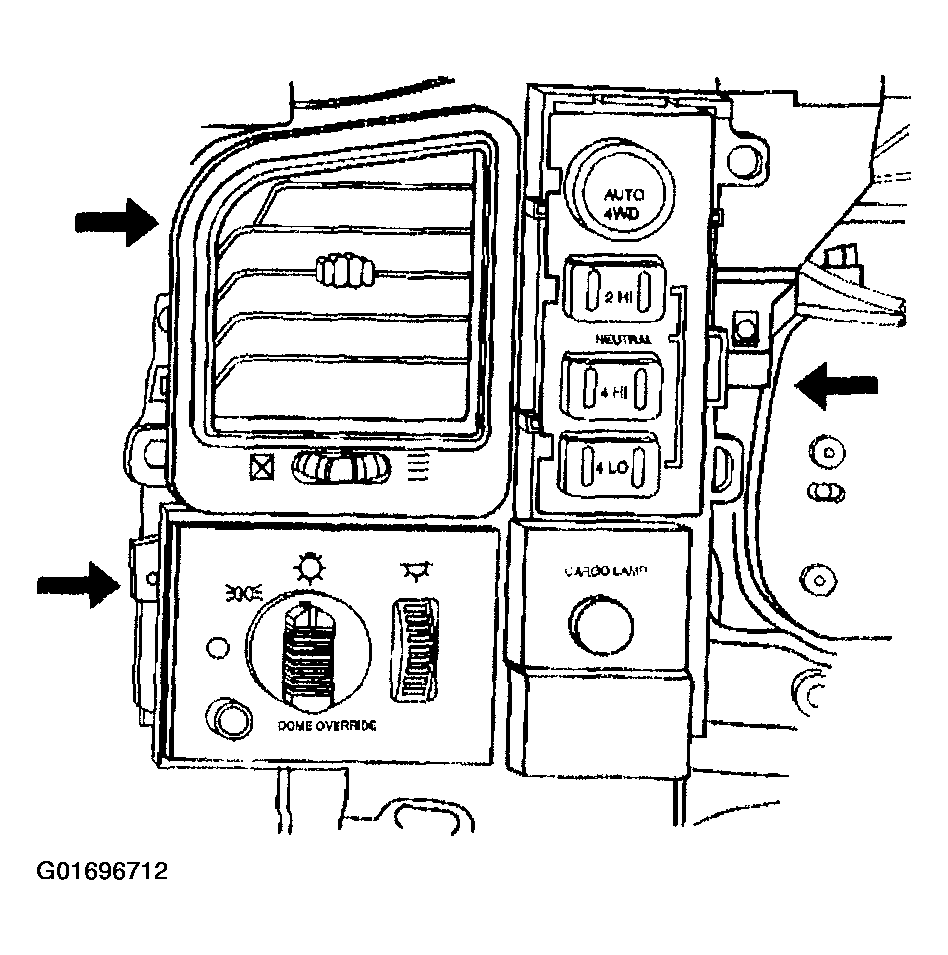

Fig 2: Locating Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Install the head lamp switch/4WD shift button housing to the IP so that the retainers are fully seated.
Install the IP trim bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER .
