Wiper/Washer System Component Views

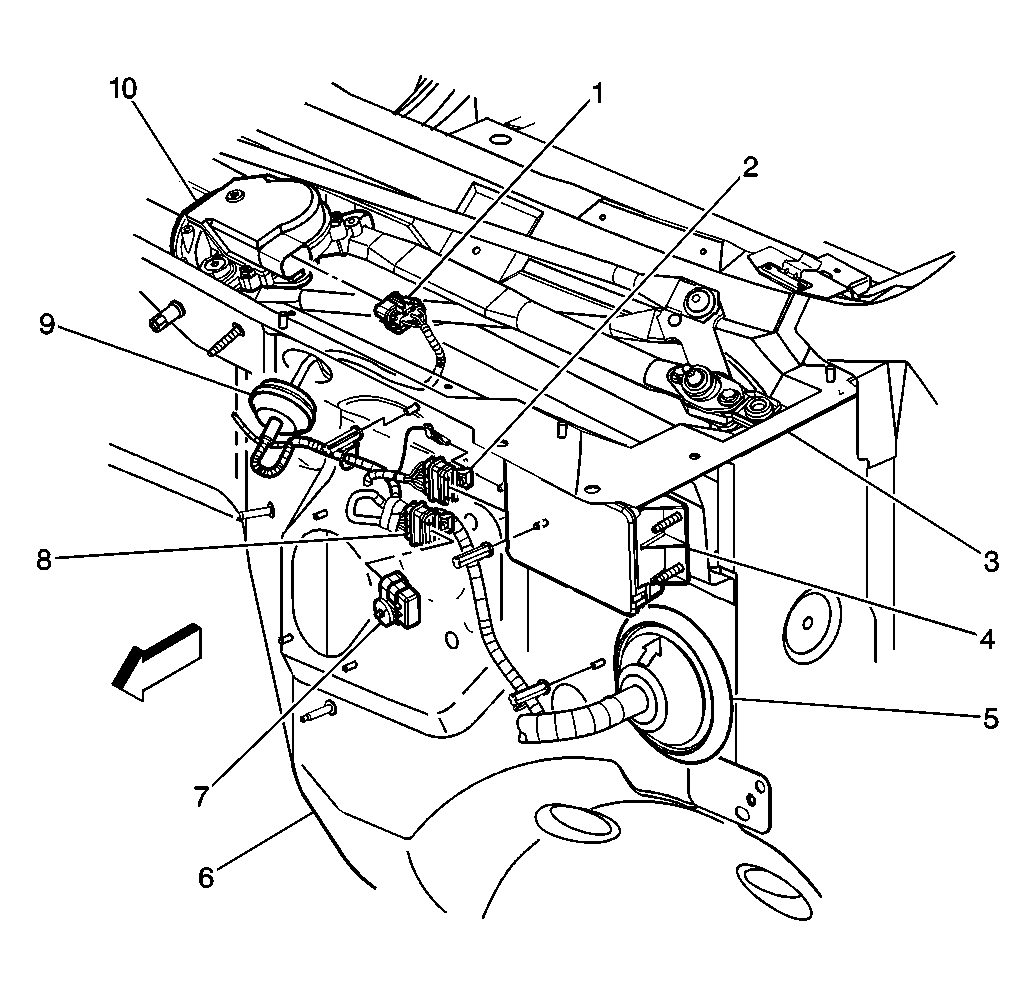

Fig 1: Left Rear Underhood Component View - Front of Dash

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor Module Electrical Connector
2	Cruise Control Module (CCM) Connector
3	Plenum Panel
4	Cruise Control Module
5	P100
6	Dash Panel
7	Cap For Connector, Without Cruise Control
8	Cruise Control Module (CCM) Connector
9	Harness Pass Through
10	Windshield Wiper Motor Module

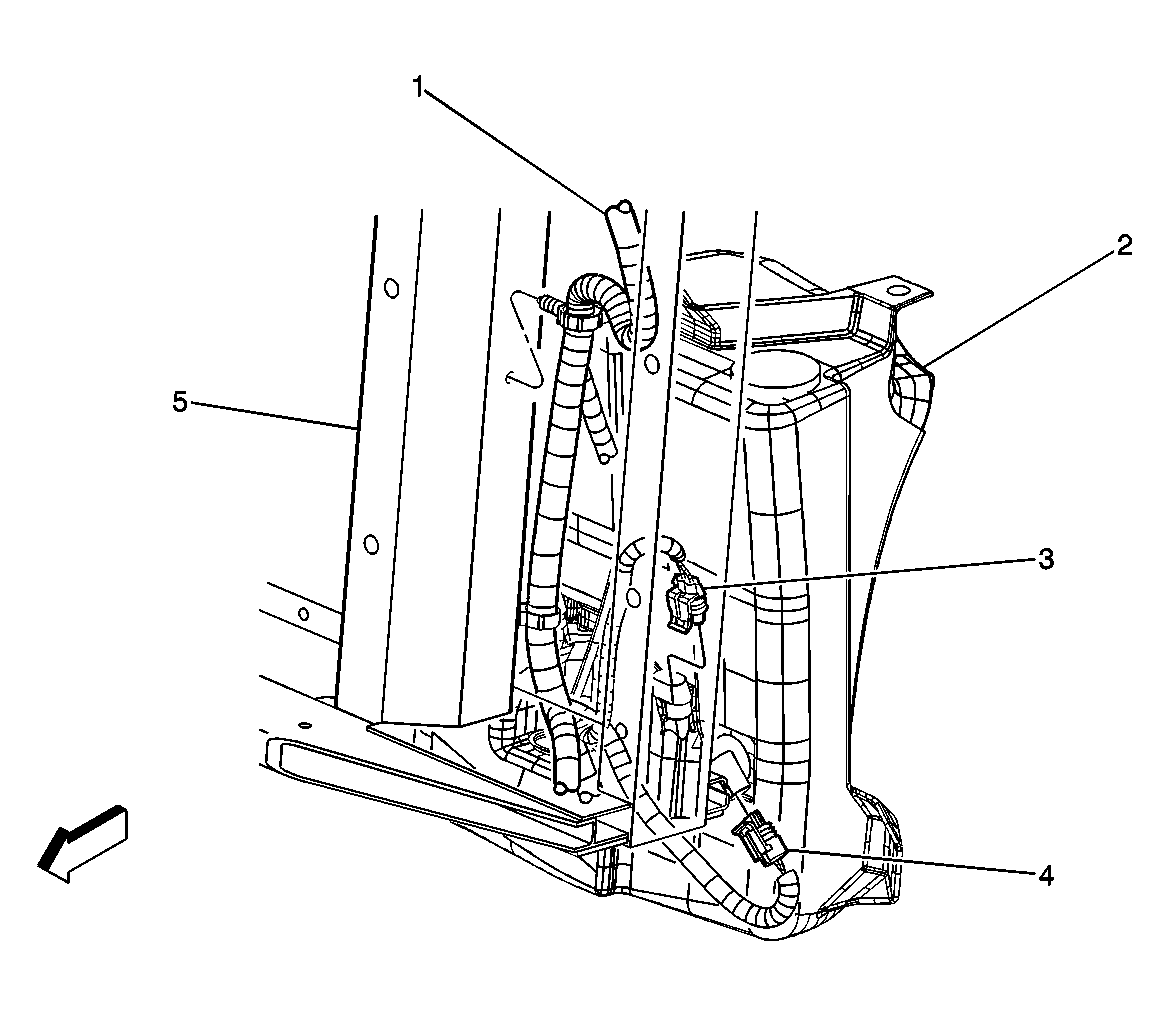

Fig 2: LF Corner of the Vehicle Components - Wiper/Washer

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Forward Lamp Harness
2	Windshield Washer Reservoir
3	Windshield Washer Fluid Pump Connector
4	Washer Fluid Level Sensor Connector
5	Radiator Support

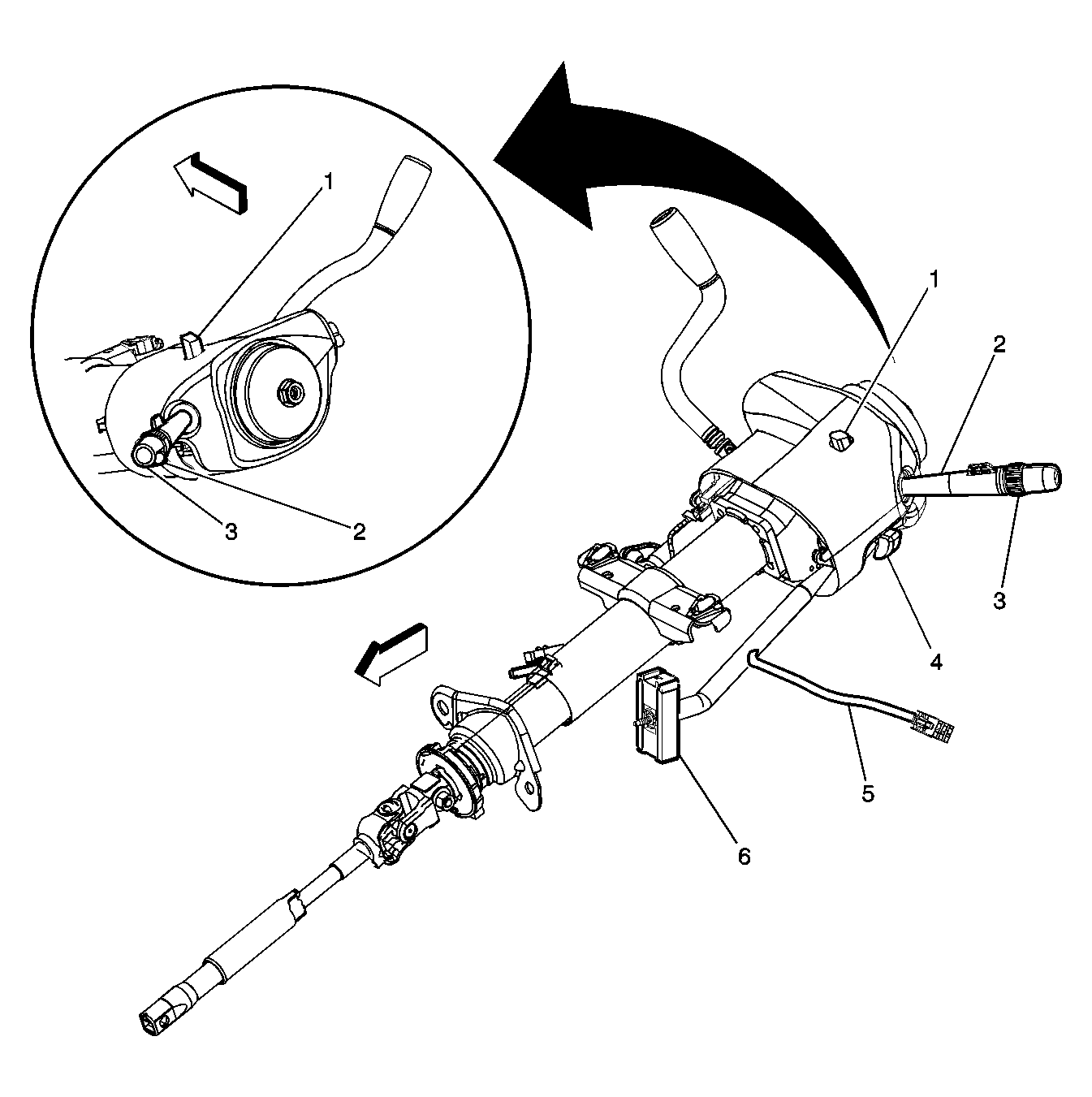

Fig 3: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hazard Button
2	High Beams/Cruise/Wiper/Washer
3	Cruise Control Switches
4	Tilt Steering Actuator
5	Inflatable Restraint Harness
6	C201 Inline Connector

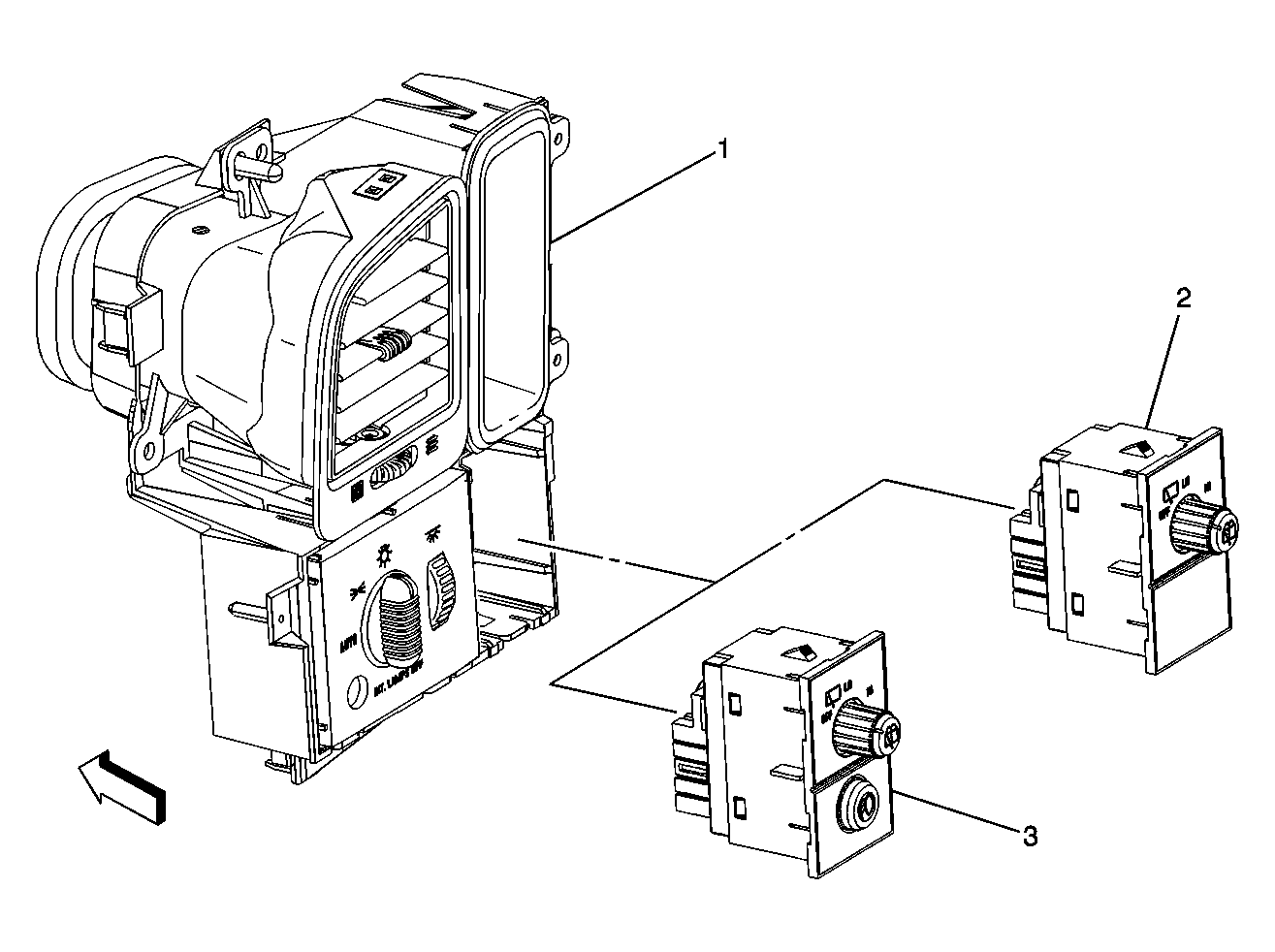

Fig 4: Rear Window Wiper Switch Component View

Courtesy of GENERAL MOTORS CORP.

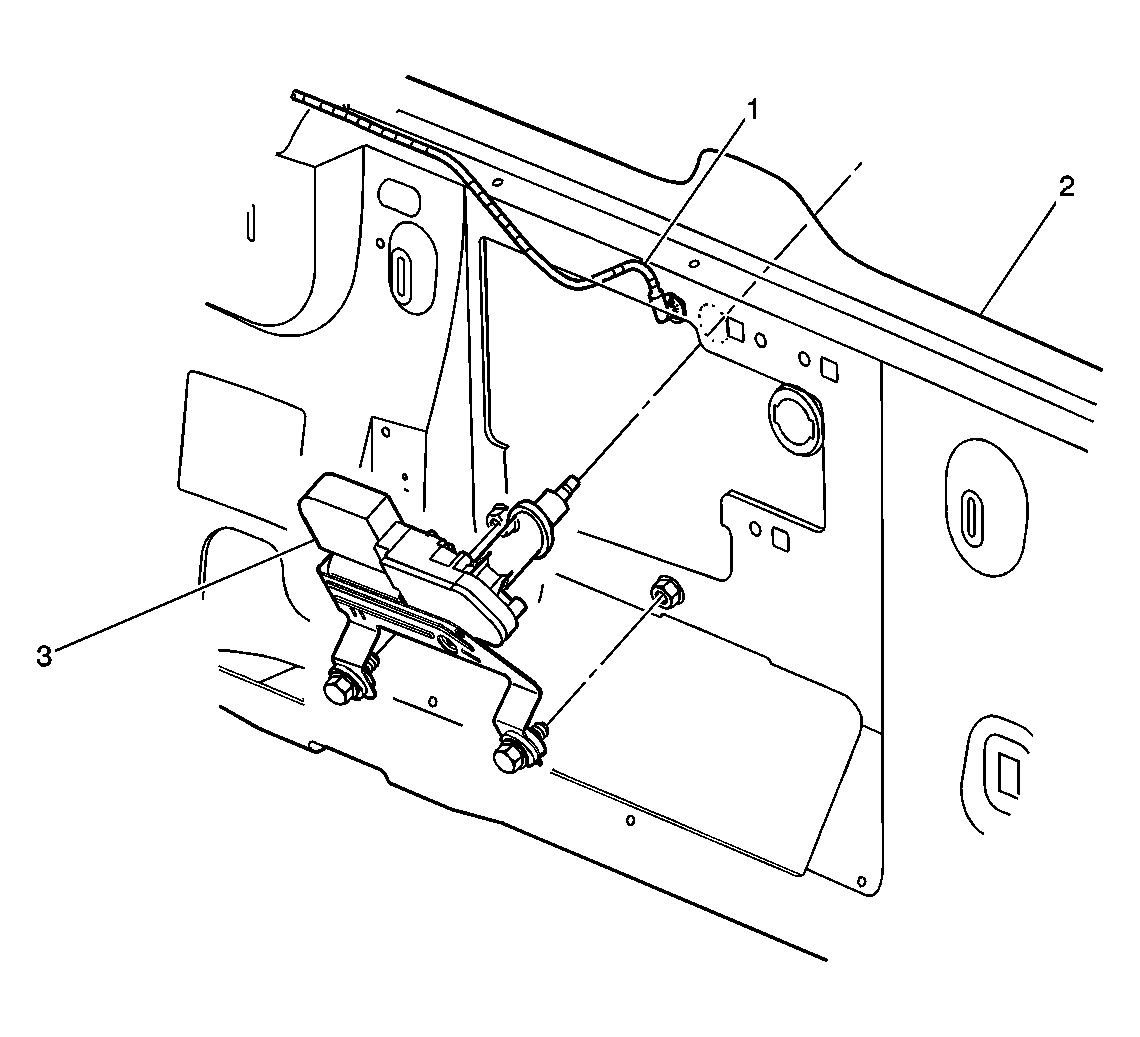

Fig 5: Rear Window Wiper Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Liftgate Harness
2	Liftgate
3	Window Wiper Module-Rear
