Wiper/Washer System Connector End Views

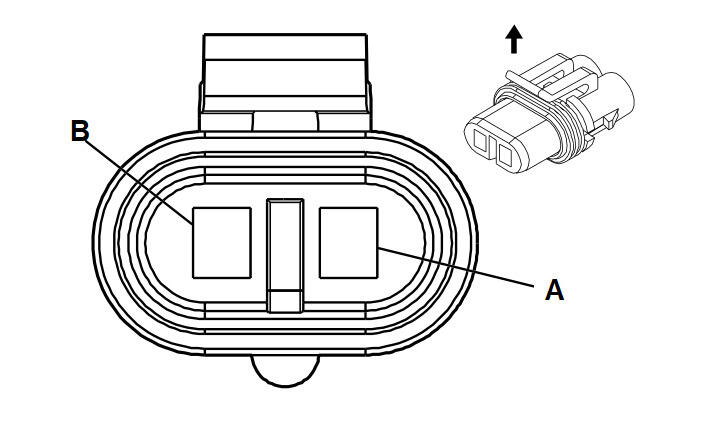

Windshield Washer Fluid Level Sensor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	174	Low Washer Fluid Indicator Signal
B	BLK	150	Ground

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Control
B	BLK	150	Ground

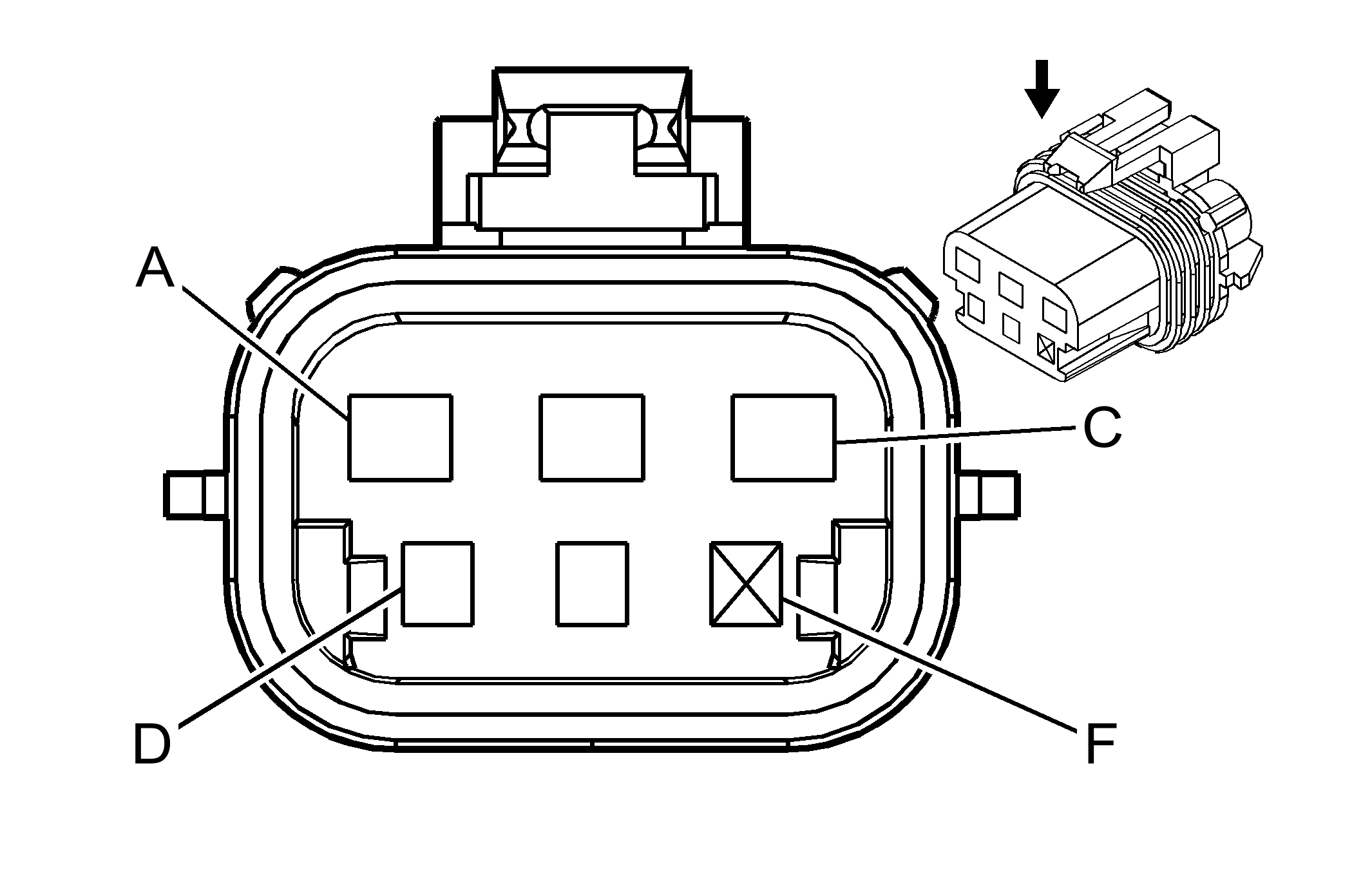

Windshield Wiper Motor Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12129126 5-Way F METRI PAC 150 280 Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	550	Ground
B	YEL	143	Accessory Voltage
C	PPL	92	Windshield Wiper Motor High Speed
D	DK GRN	113	Windshield Wiper Switch On Signal
E	GRY	112	Windshield Wiper Switch Low/Pulse Signal

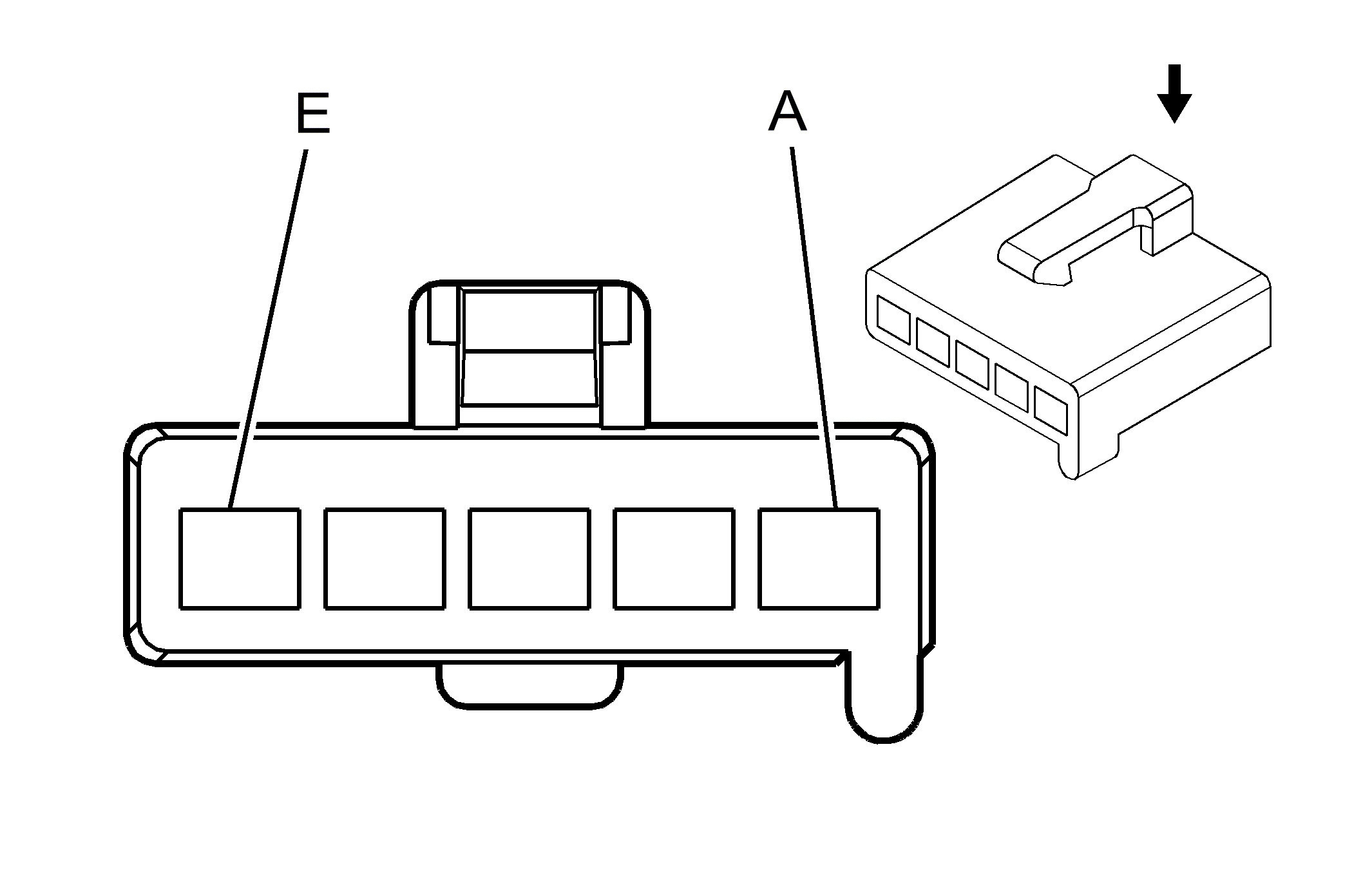

Window Wiper Module Connector End View - Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041429 5-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	PNK/BLK	1303	RAP [X] Fuse Supply Voltage
B	ORN	2040	Battery Positive Voltage
C	GRY	391	Rear Window Wiper Switch Signal
D	DK GRN	392	Rear Window Washer Pump Control
E	BLK	1450	Ground

Window Washer Pump Connector End View - Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12020599 2-Way F Metri-Pack-280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	150	Ground
B	DK GRN/ WHT	266	Rear Window Washer Pump Supply Voltage

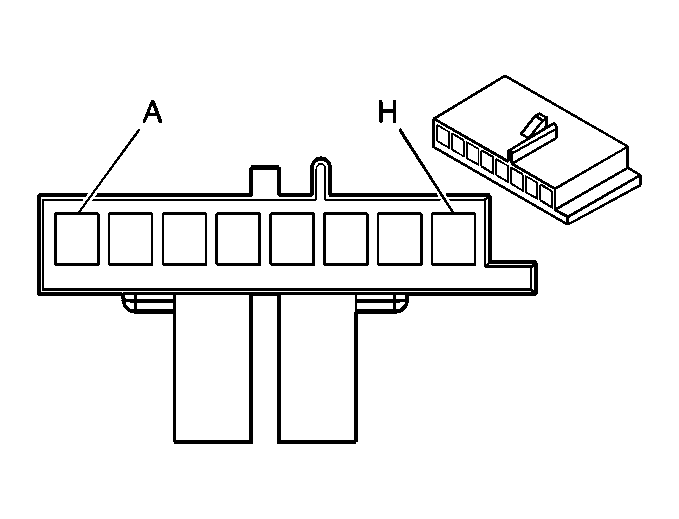

Rear Wiper/Washer Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12177010 8-Way F Metri-Pack 150 Series (BLU)
Pin	Wire Color	Circuit No.	Function
A	BLK	1850	Ground
B	PPL	34	Front Fog Lamps Supply Voltage
C	ORN	192	Front Fog Lamp Switch Signal
D	GRY	8	Instrument Panel Lamp Supply Voltage
E	GRY	391	Rear Window Wiper Switch Signal
F	YEL	43	Accessory Voltage
G	DK GRN/ WHT	266	Rear Window Washer Pump Supply Voltage
H	DK GRN	392	Rear Window Washer Pump Control
