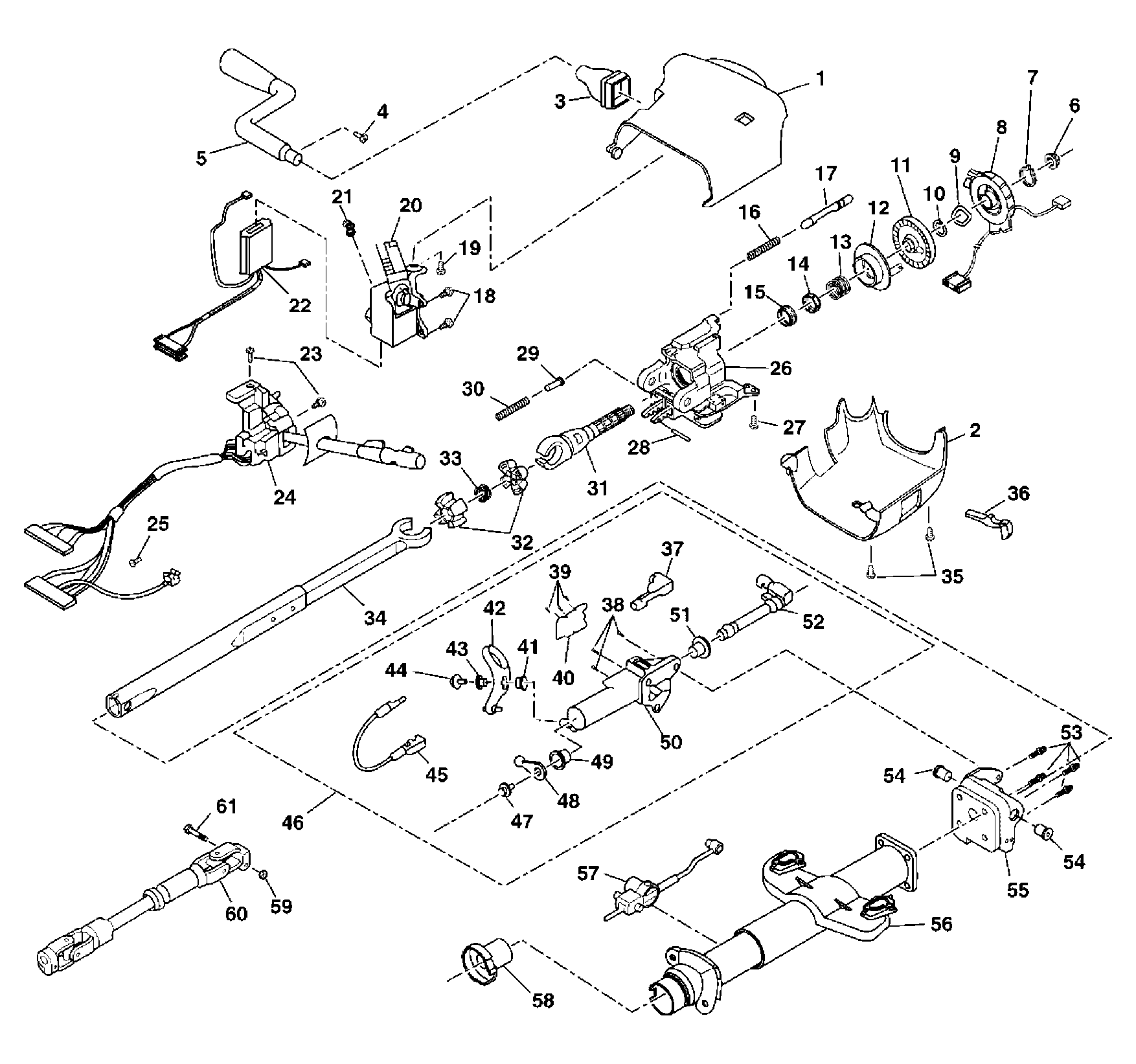

| 1 |
Upper Trim Cover |
| 2 |
Lower Trim Cover |
| 3 |
Shift Lever Seal |
| 4 |
Shift Lever Screw |
| 5 |
Shift Lever |
| 6 |
Flanged Prevailing Torque Nut |
| 7 |
Retaining Ring |
| 8 |
Inflatable Restraint Steering Wheel Module Coil |
| 9 |
Wave Washer |
| 10 |
Bearing Retainer |
| 11 |
Shaft Lock Shield Assembly |
| 12 |
Turn Signal Cancel Cam Assembly |
| 13 |
Upper Bearing Spring |
| 14 |
Upper Bearing Inner Race Seat |
| 15 |
Inner Race |
| 16 |
Lock Bolt Spring |
| 17 |
Lock Bolt |
| 18 |
Pan Head Tapping screw |
| 19 |
TORX® Head Screw |
| 20 |
Ignition Lock Cylinder Case Assembly |
| 21 |
Pan Head Tapping Screw |
| 22 |
Ignition and Key Alarm Switch Assembly |
| 23 |
Pan Head Tapping Screw |
| 24 |
Turn Signal and Multifunction Switch Assembly |
| 25 |
Axial Position Assurance Connector |
| 26 |
Steering Column Tilt Head Assembly |
| 27 |
TORX® Head Screw |
| 28 |
Release Lever Pin |
| 29 |
Spring Guide |
| 30 |
Tilt Spring |
| 31 |
Race and Upper Shaft Assembly |
| 32 |
Centering Sphere |
| 33 |
Joint Preload Spring |
| 34 |
Lower Steering Shaft Assembly |
| 35 |
Pan Head Tapping Screw |
| 36 |
Tilt Lever Assembly |
| 37 |
Park Lock Position Switch Assembly |
| 38 |
Flat Head 6-Lobed Soc Tap Screw |
| 39 |
Oval Head Soc Tap Screw |
| 40 |
Shift Lever Gate |
| 41 |
Cam Bushing |
| 42 |
Cable Shift Cam Assembly |
| 43 |
Cam Bushing |
| 44 |
Hexagon Flange Head Bolt |
| 45 |
Park Lock Cable System |
| 46 |
Linear Shift Assembly |
| 47 |
Hexagon Flange Head Bolt |
| 48 |
Ball and Actuator Assembly |
| 49 |
Actuator Bushing |
| 50 |
Gear Shift Lever Assembly Support Bracket |
| 51 |
Actuator Bushing |
| 52 |
Shift Actuator Shaft |
| 53 |
TORX® Head Screw |
| 54 |
Pivot Pin |
| 54 |
Pivot Pin |
| 55 |
Steering Column Support Assembly |
| 56 |
Steering Column Jacket Assembly |
| 57 |
Automatic Transmission Shift Lock Control |
| 58 |
Adapter and Bearing Assembly |
| 59 |
Hexagon Head Nut |
| 60 |
Intermediate Shaft |
| 61 |
Bolt and Retainer Assembly |
