Installation Procedure

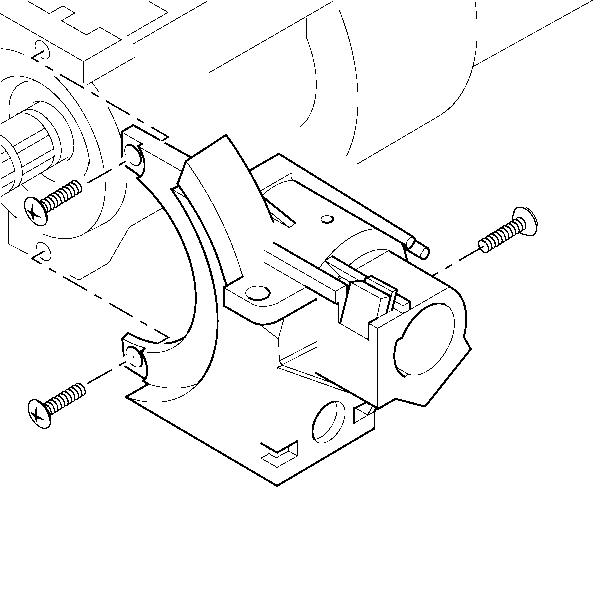

Fig 1: View Of Lock Cylinder Housing TORX Screws

Courtesy of GENERAL MOTORS CORP.

Install 3 TORX® screws into the lock cylinder housing.
Tighten: Tighten the TORX® screws to 7N.m(62 lb in).
Install the turn signal cancel cam. Refer to Turn Signal Cancel Cam and Bearing Thrust Washer - Assemble - Off Vehicle .
Install the park lock cable into the lock cylinder housing.
Install the ignition switch. Refer to Ignition and Key Alarm Switch Assembly - Assemble - Off Vehicle .
Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.
