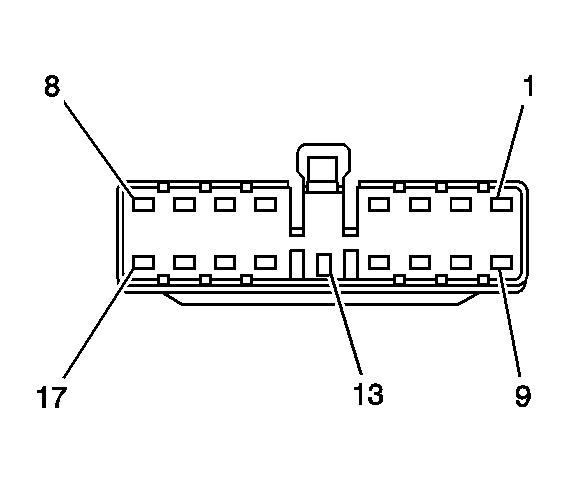

Memory Seat Module Connector End View - C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		172500-1 17 Way M Series II (NAT)
Pin	Wire Color	Circuit No.	Function
1	WHT	570B	5 Volt Reference
2	DK GRN	286	Driver Seat Front Vertical Motor Up Control
3	LT GRN	276	Driver Seat Recline Motor Forward Control
4	-	-	Not Used
5	LT BLU	277	Driver Seat Recline Motor Rearward Control
6	LT BLU	283	Driver Seat Rear Vertical Motor Down Control
7	LT GRN	284	Driver Seat Horizontal Motor Rearward Control
8	BLK/WHT	570	Drivers Seat Recline Motor Position Sensor Signal
9	BLK	570A	Drivers Seat Recline Motor Position Sensor Ground
10	BLK	950	Low Reference
11	YEL	282	Driver Seat Rear Vertical Motor Up Control
12	TAN	285	Driver Seat Horizontal Motor Forward Control
13	DK BLU	287	Driver Seat Front Vertical Motor Down Control
14	ORN	940	5 Volt Reference
15	DK GRN	569	Horizontal Seat Motor Position Sensor Signal
16	TAN	568	Rear Vertical Seat Motor Position Sensor Signal
17	BRN/WHT	557	Front Vertical Seat Motor Position Sensor Signal
