Engine Block-Left Side View

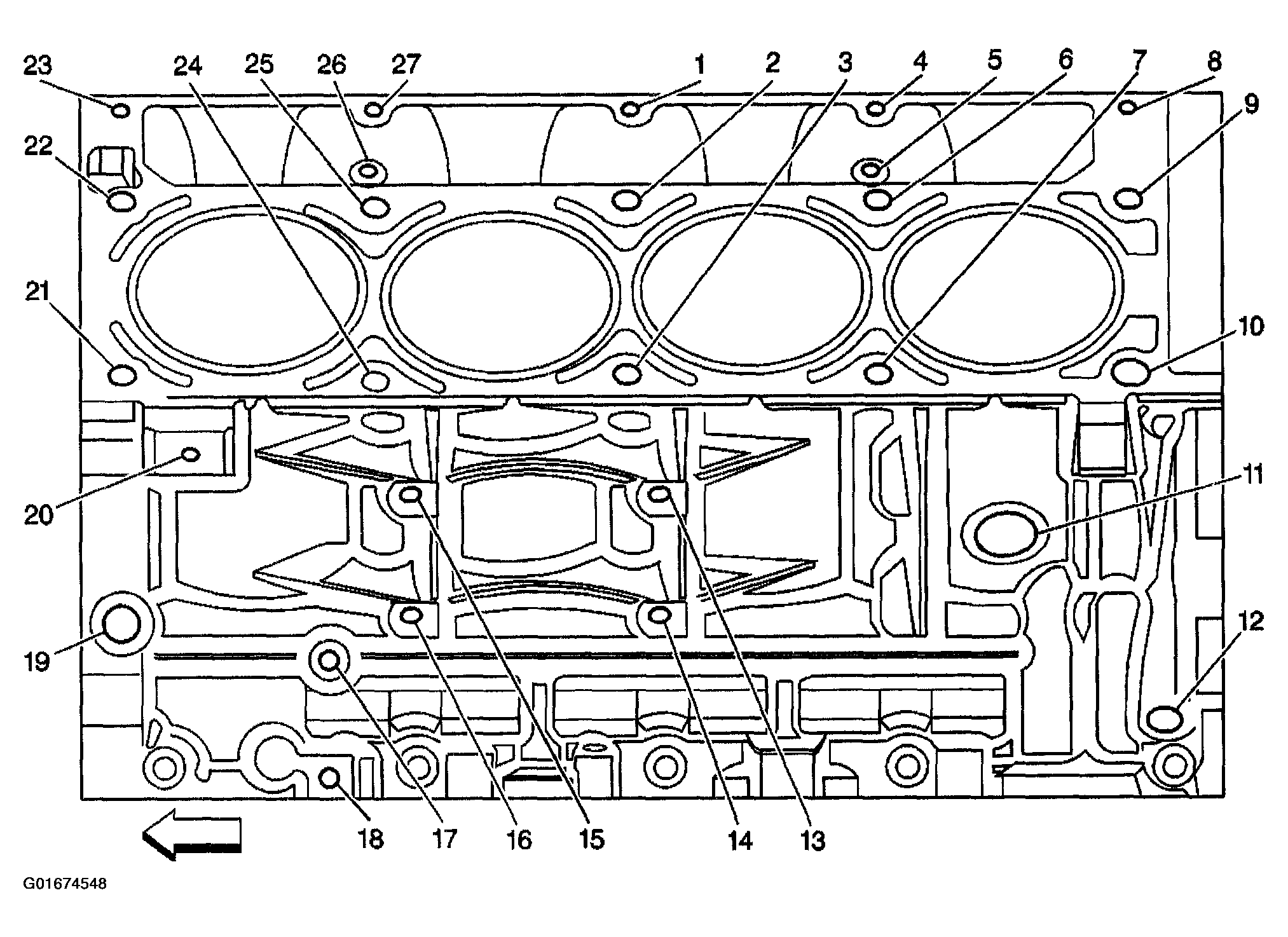

Fig 1: Engine Block - Left Side View
G01674548Courtesy of GENERAL MOTORS CORP.

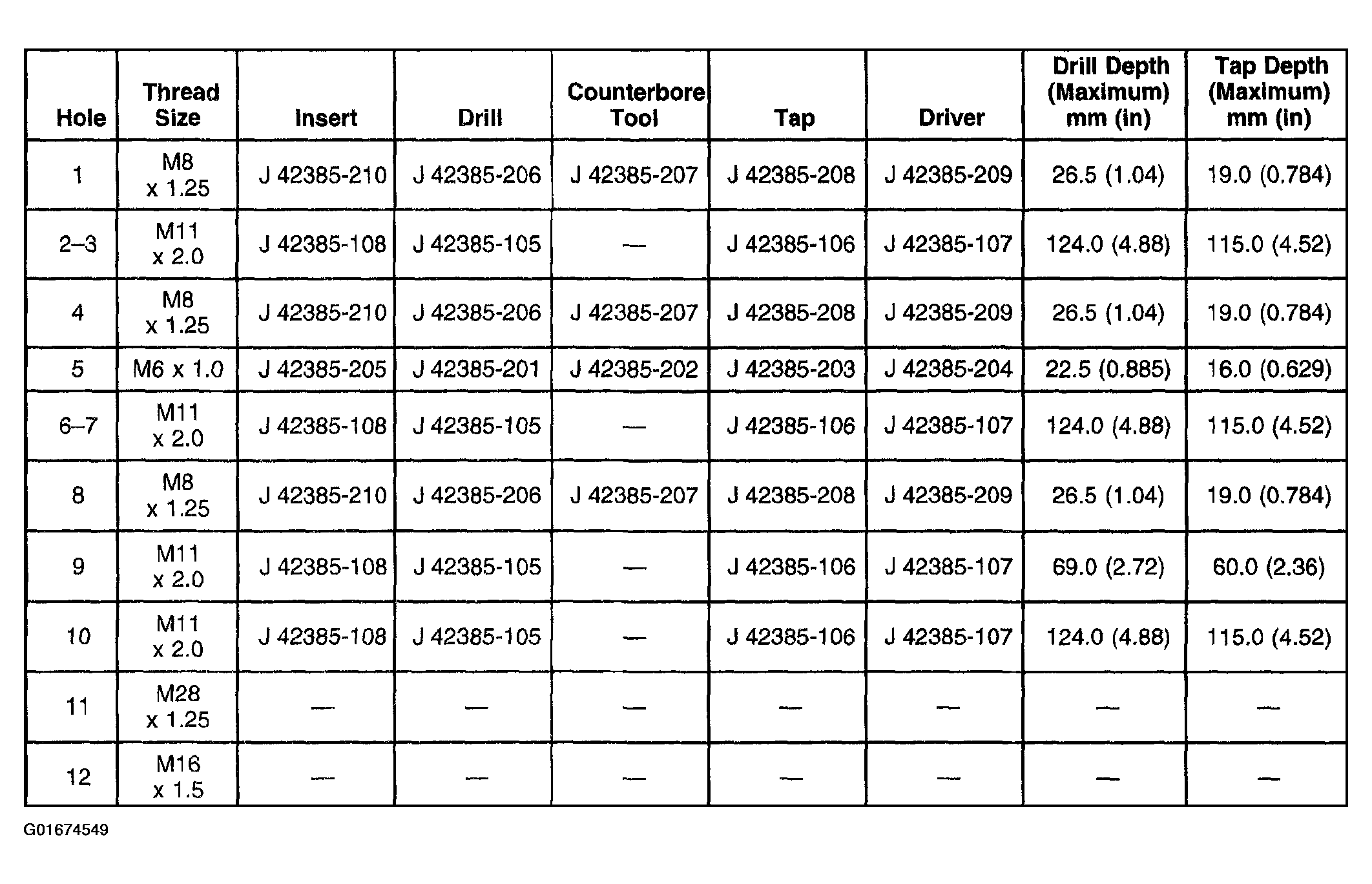

Fig 2: Engine Block - Left Side View Hole Thread Sizes (1 Of 2)
G01674549Courtesy of GENERAL MOTORS CORP.

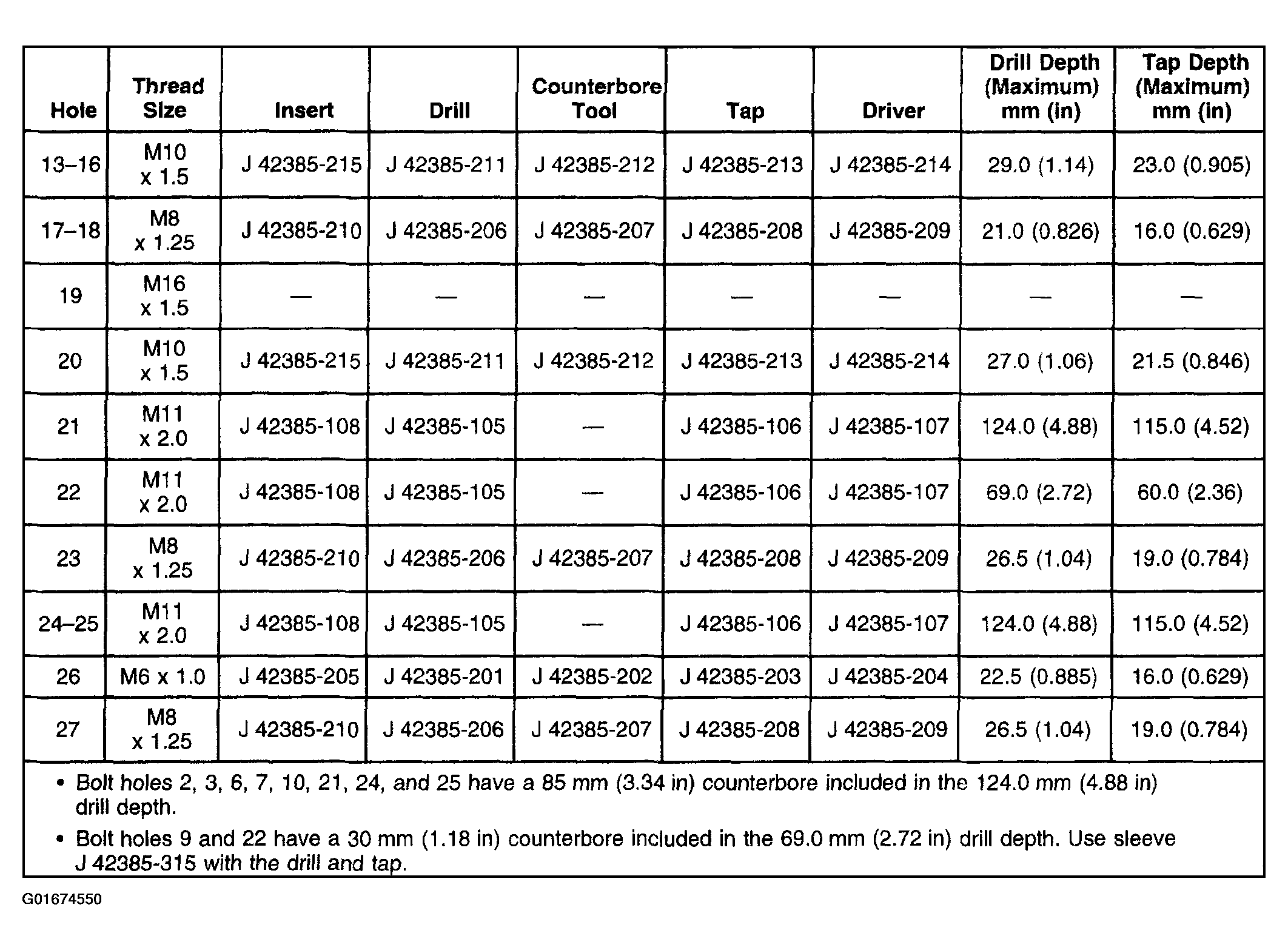

Fig 3: Engine Block - Left Side View Hole Thread Sizes (2 Of 2)
G01674550Courtesy of GENERAL MOTORS CORP.
