Engine Block-Right Side View

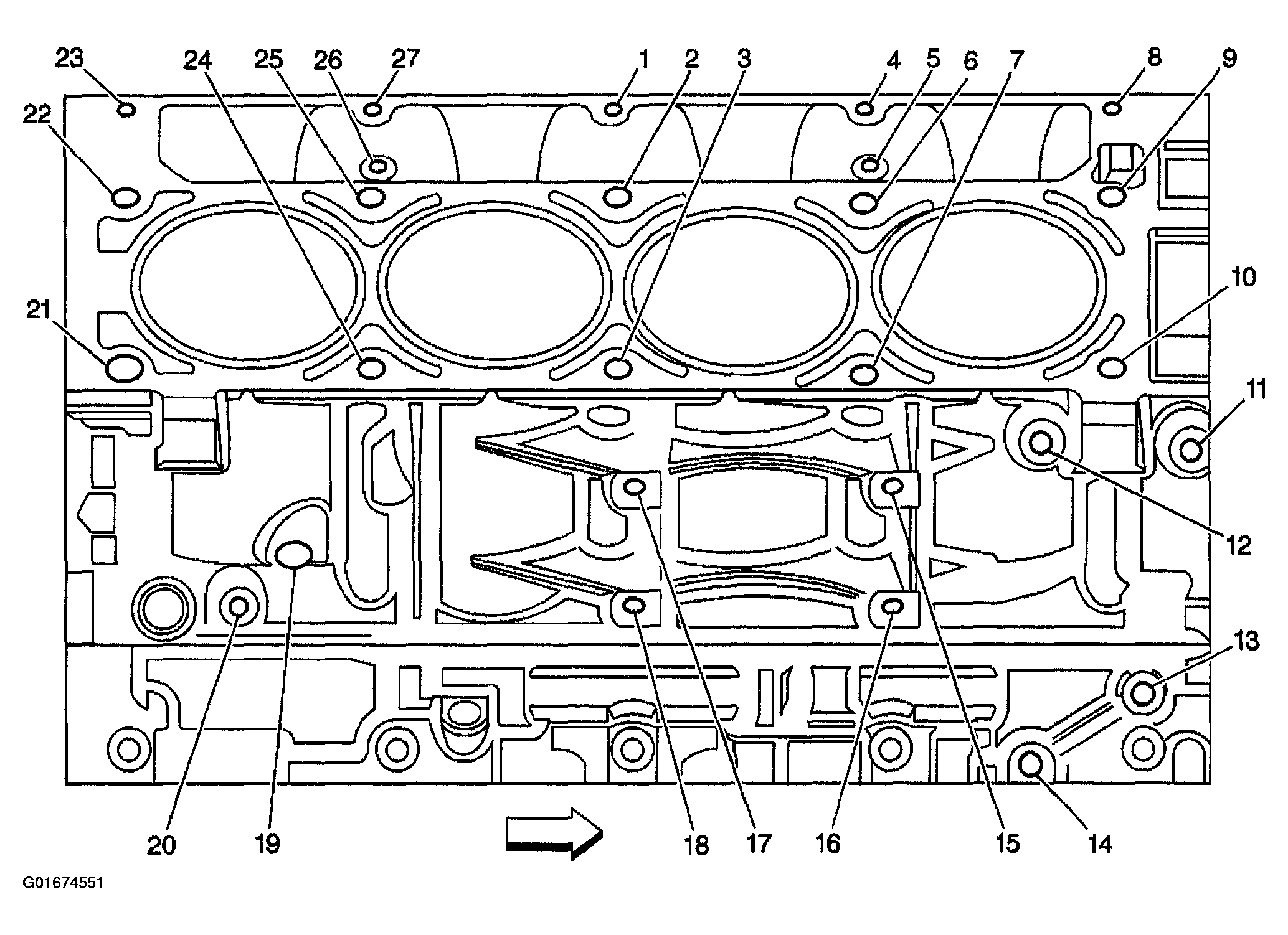

Fig 1: Engine Block - Right Side View
G01674551Courtesy of GENERAL MOTORS CORP.

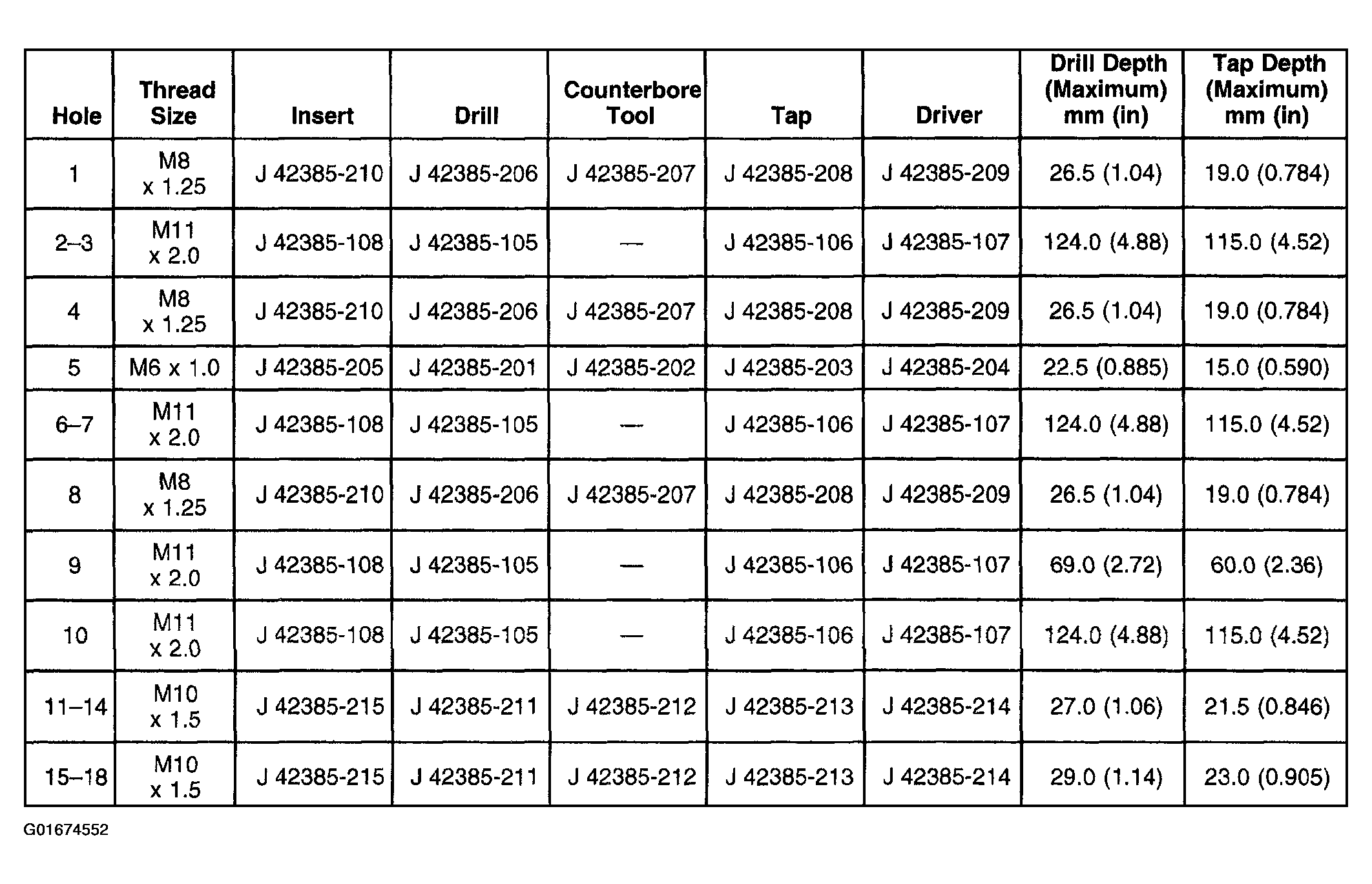

Fig 2: Engine Block - Right Side View Hole Thread Sizes (1 Of 2)
G01674552Courtesy of GENERAL MOTORS CORP.
Fig 3: Engine Block - Right Side View Hole Thread Sizes (2 Of 2)
G01674553Courtesy of GENERAL MOTORS CORP.
