Identifying CKP Sensor Connector End View

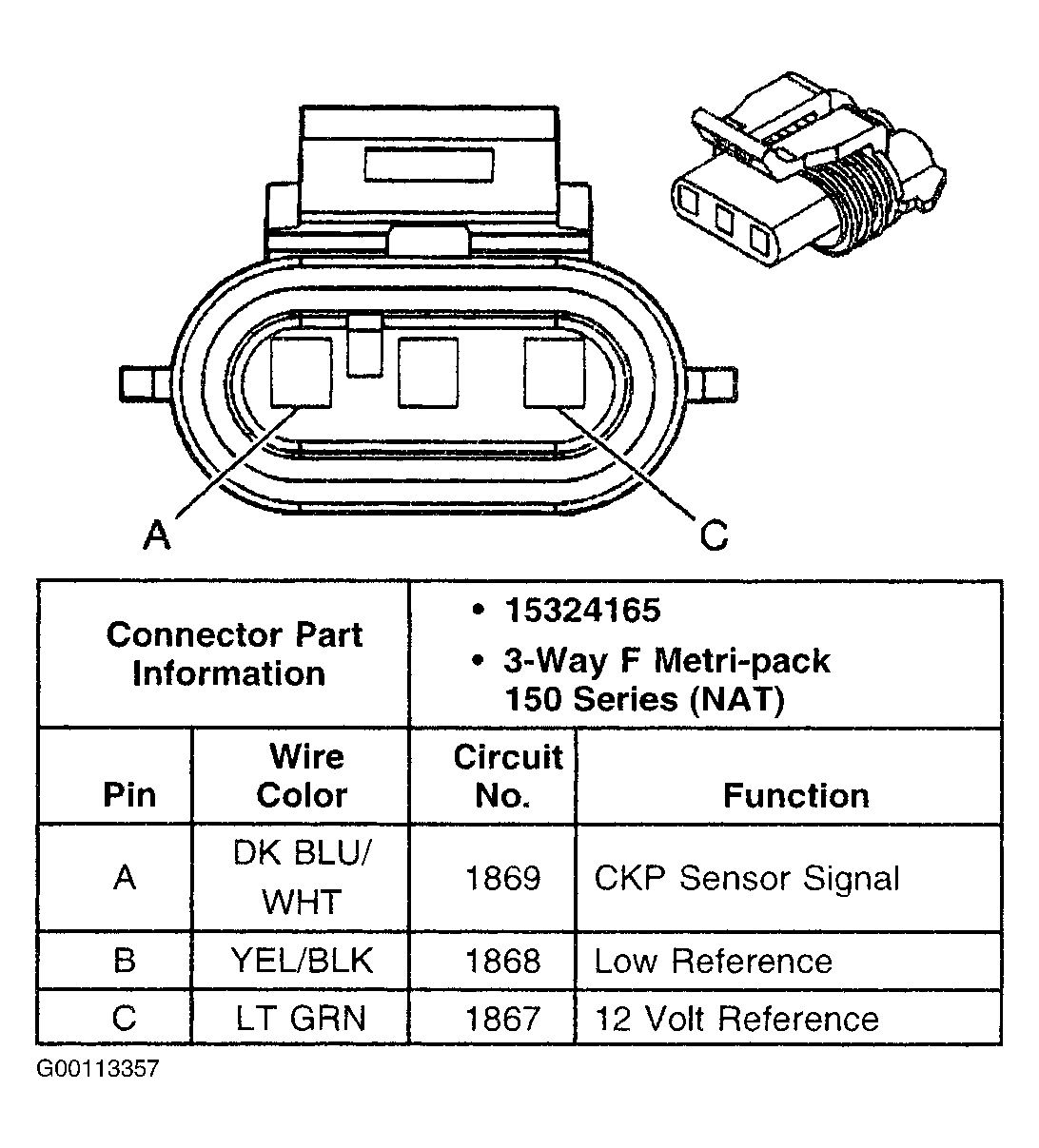

Fig 1: Identifying CKP Sensor Connector End View
G00113357Courtesy of GENERAL MOTORS CORP.

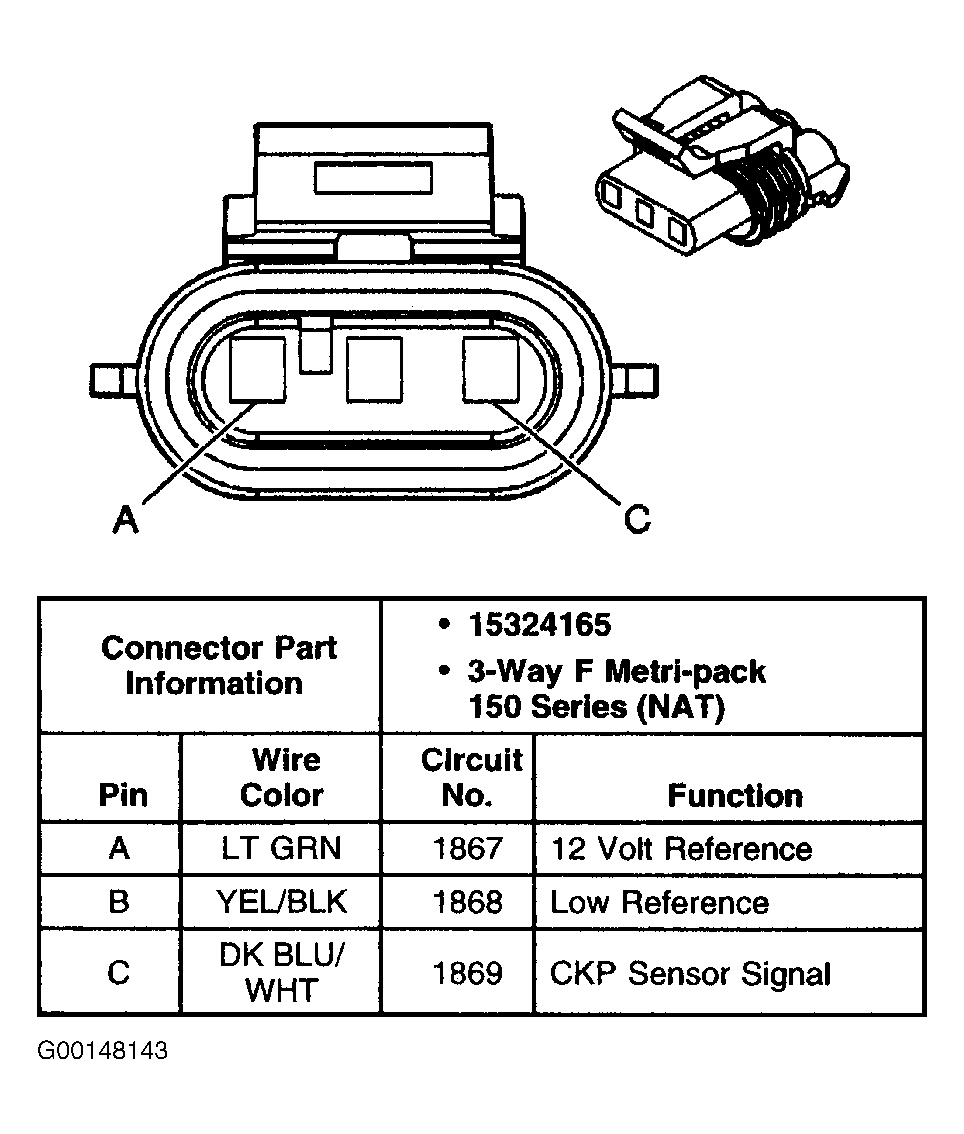

Fig 1: Identifying CKP Sensor Connector End View
G00148143Courtesy of GENERAL MOTORS CORP.
