Identifying HO2S Bank 2, Sensor 1 Connector End View (Delphi)

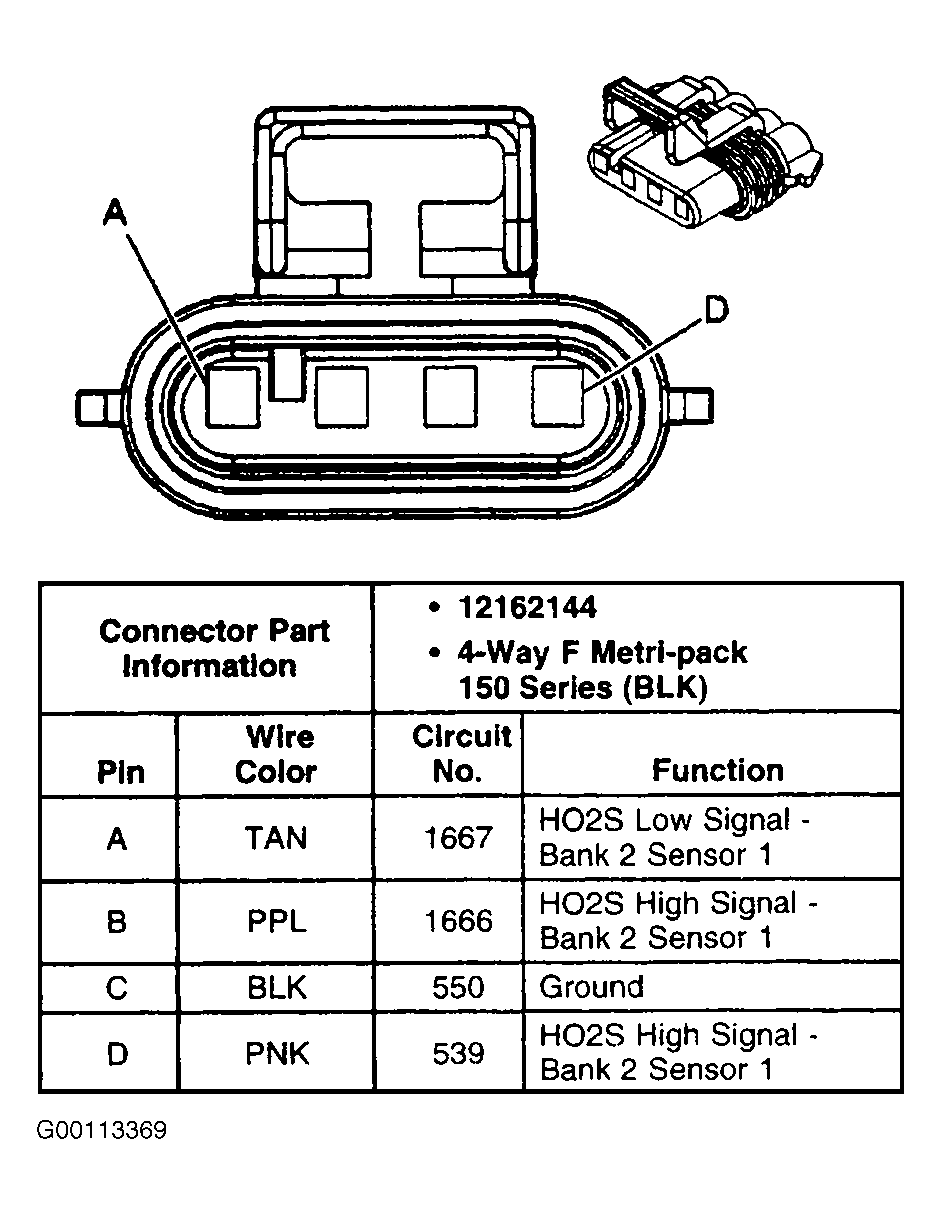

Fig 1: Identifying HO2S Bank 2, Sensor 1 Connector End View (Delphi)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
