Identifying TAC Module Connector End View C1 (3500 HD)

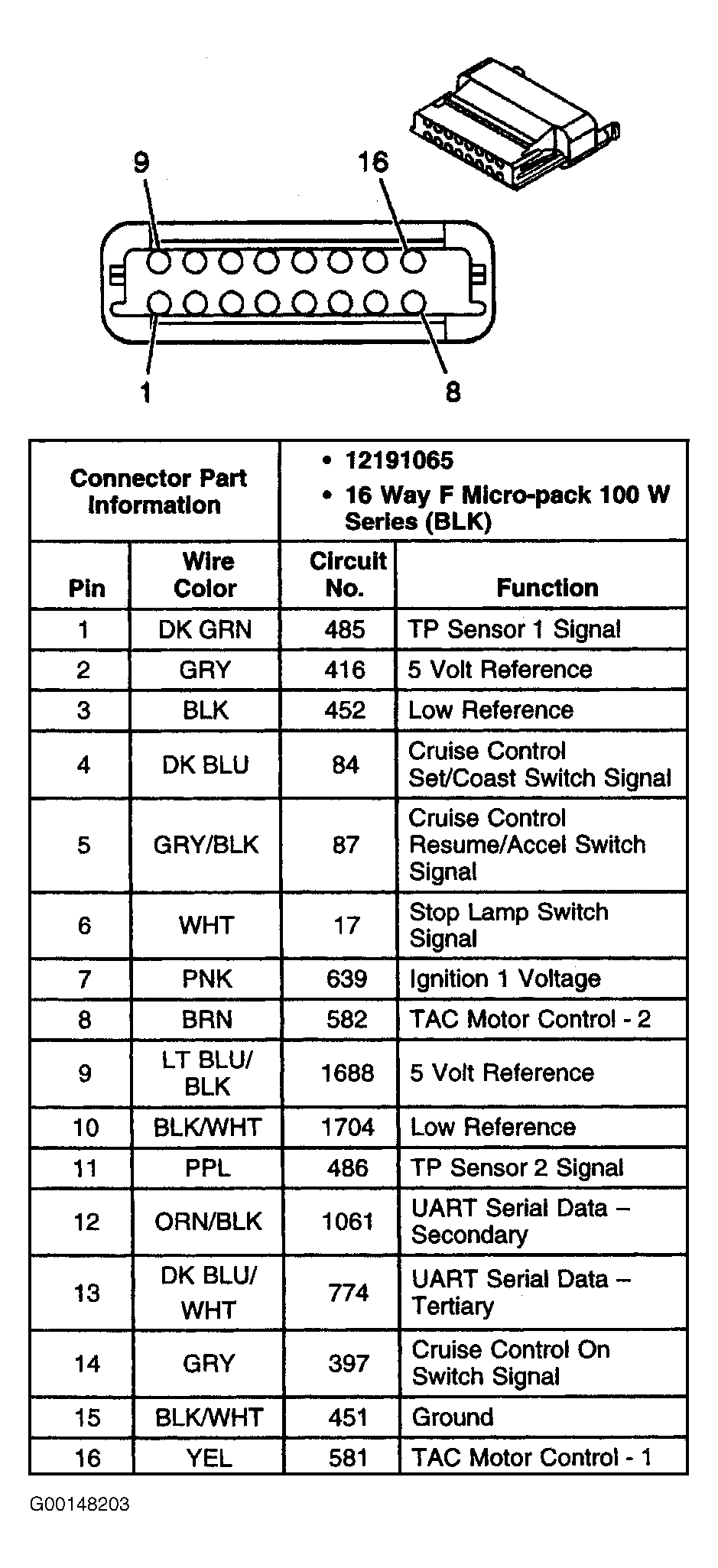

Fig 1: Identifying TAC Module Connector End View C1 (3500 HD)
G00148203Courtesy of GENERAL MOTORS CORP.
