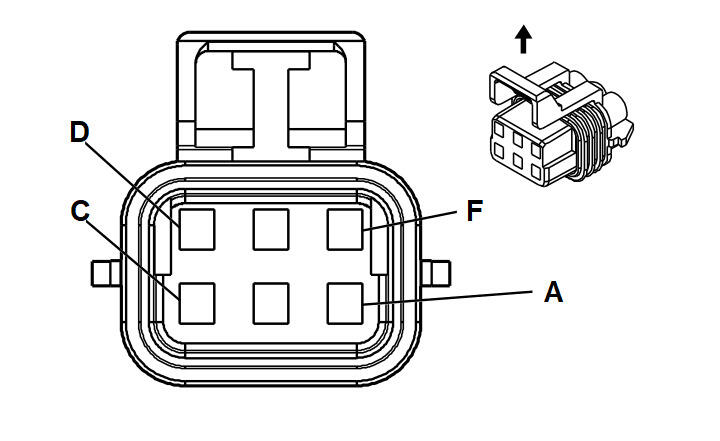

Transfer Case Connector End View - C2 (Encoder Motor)

Transfer Case Connector End View - C2 (Encoder Motor)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052848 6-Way F Metri-Pack 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK/WHT	1554	Encoder Signal Ground
B	DK BLU/ WHT	1557	Channel A Encoder - Signal
C	RED/WHT	1556	Channel C Encoder - Signal
D	YEL/BLK	1558	Channel B Encoder - Signal
E	LT GRN/ BLK	431	8 Volt Reference
F	BRN/WHT	1555	Channel P Encoder - Signal
