Steering Controls Component Views

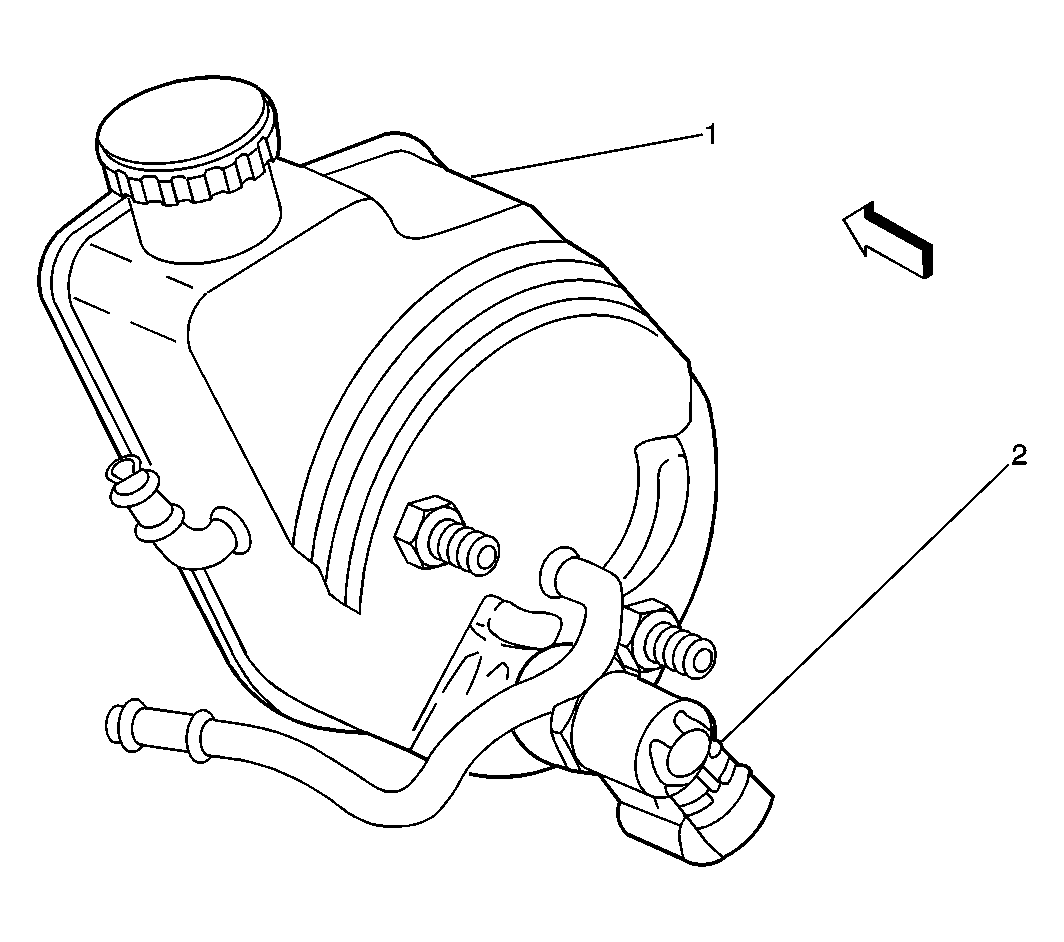

Fig 1: Electronic Variable Orifice (EVO) Solenoid Connector
GM629302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Steering Pump
2 Electronic Variable Orifice (EVO) Solenoid

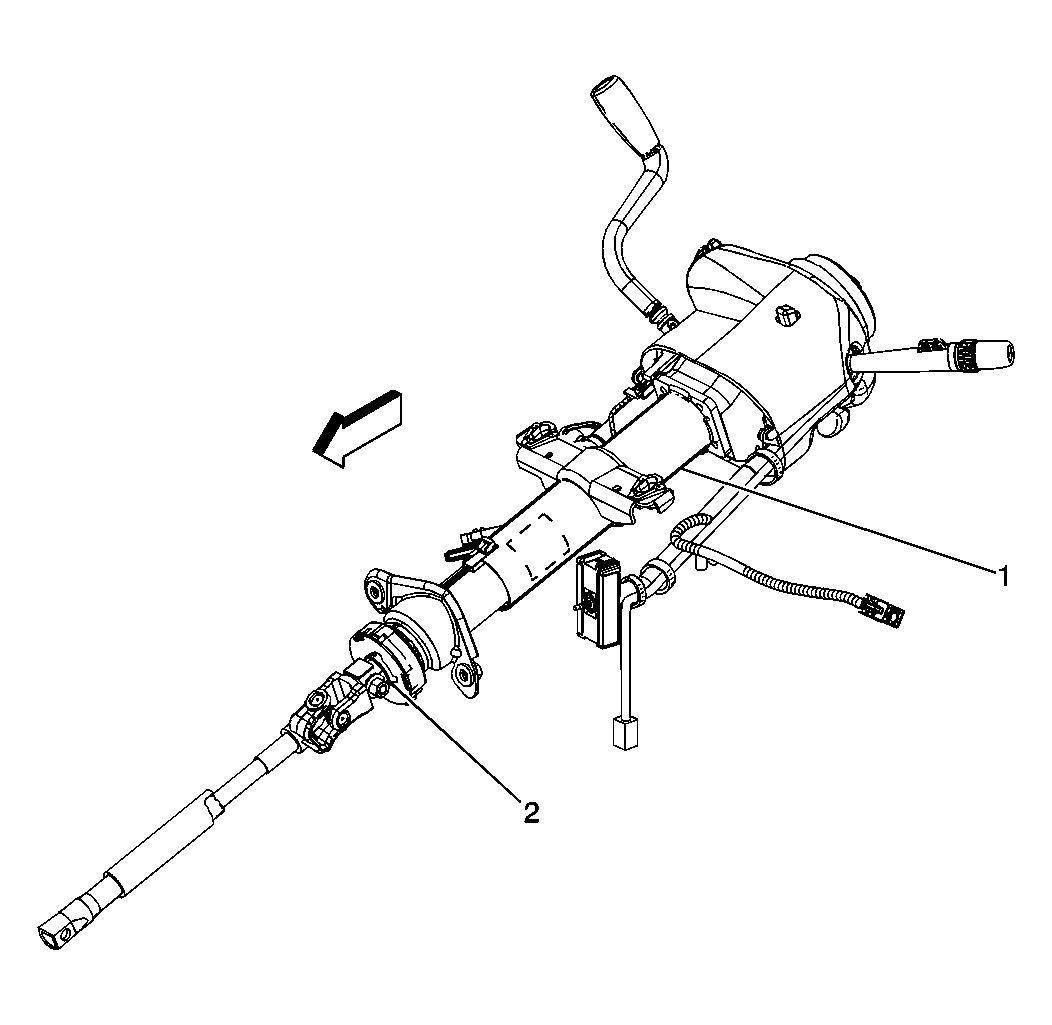

Fig 2: Steering Column Components (RTD)
GM623103Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Column
2 Steering Wheel Speed/Position Sensor
