Steering Controls Schematics

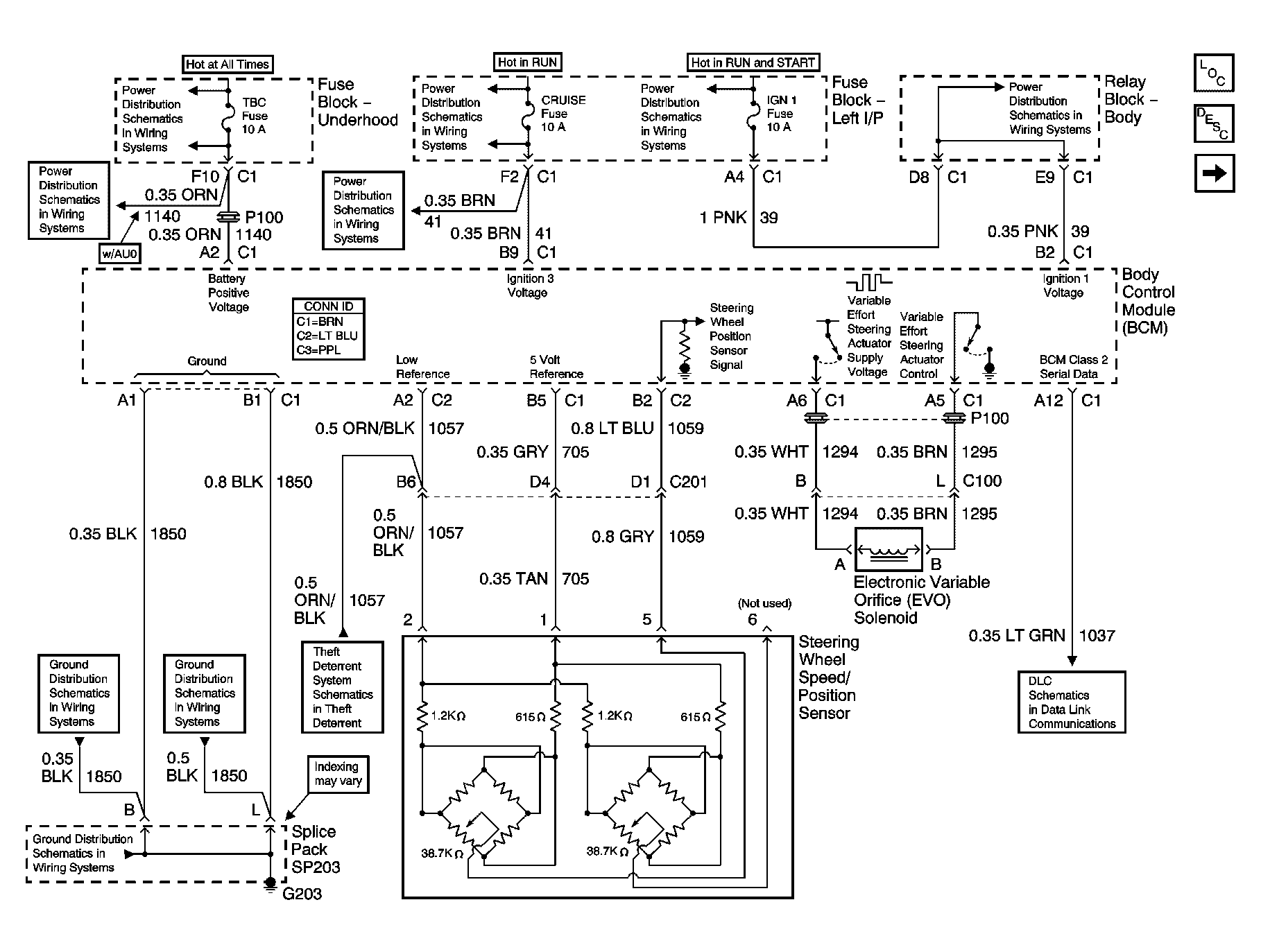

Fig 1: Steering Controls Schematics (w/o RTD)
GM744567Courtesy of GENERAL MOTORS CORP.

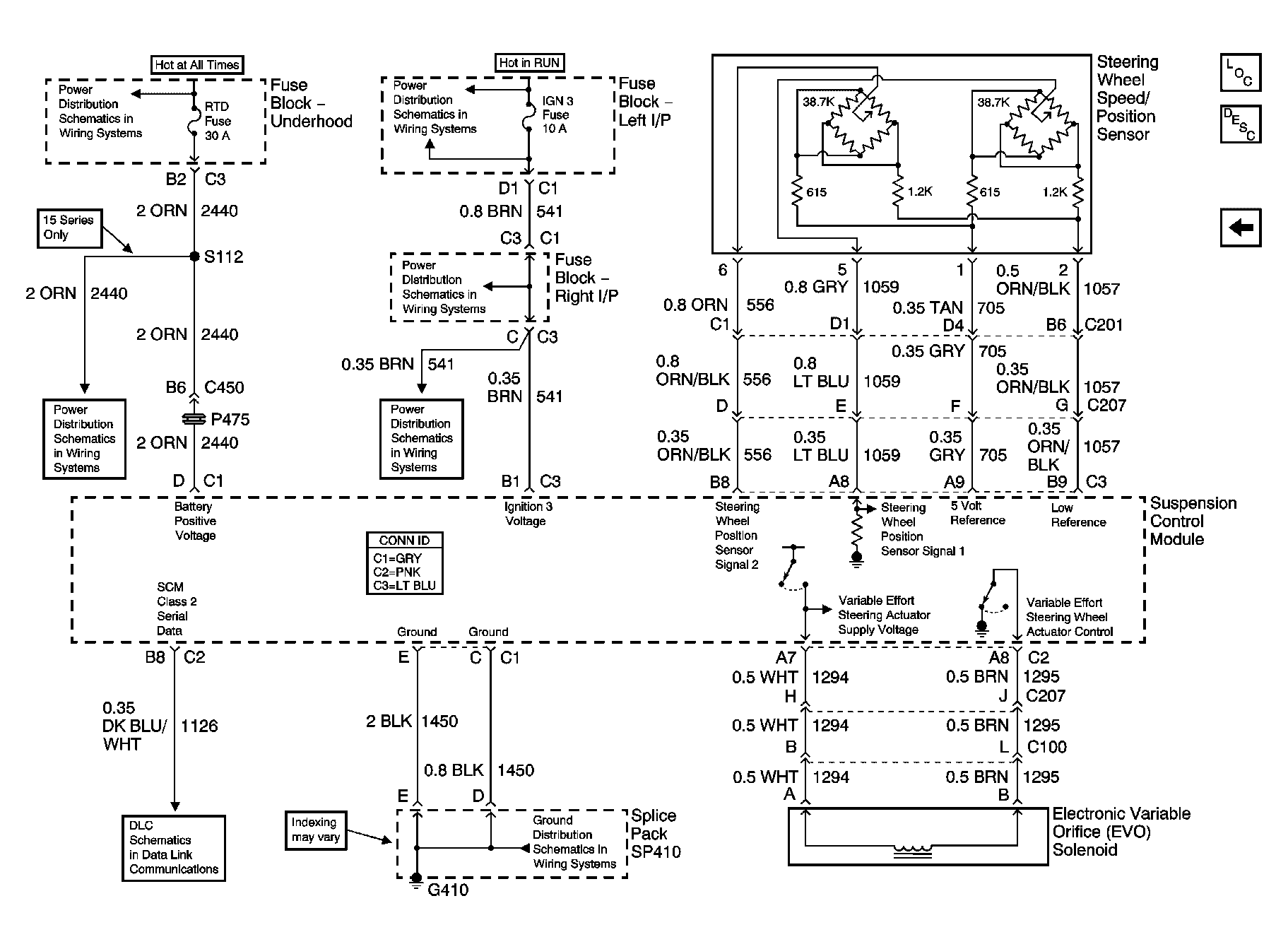

Fig 2: Steering Controls Schematics (w/ RTD)
GM773221Courtesy of GENERAL MOTORS CORP.
