Installation Procedure
Courtesy of GENERAL MOTORS CORP.

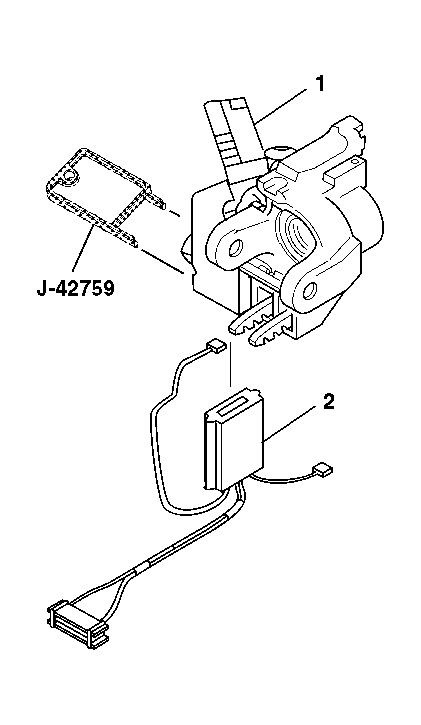

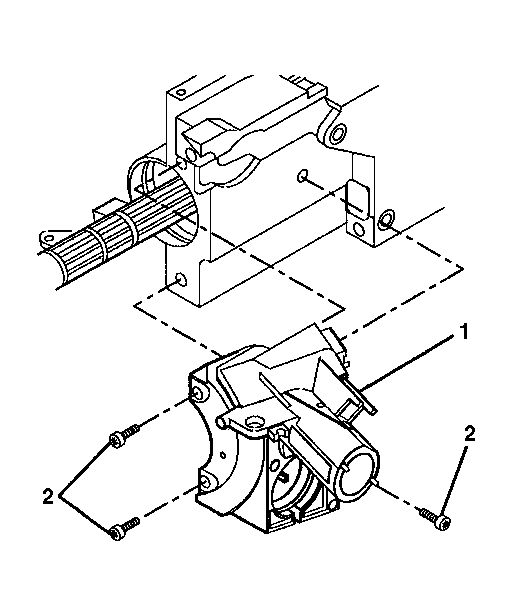

- Install the electronic lock module (1) to the steering column housing.
- Install the electronic lock module (1) mounting screws (2).
Courtesy of GENERAL MOTORS CORP.
- Install the ignition switch (2) to the electronic lock module (2).
- Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
Courtesy of GENERAL MOTORS CORP.

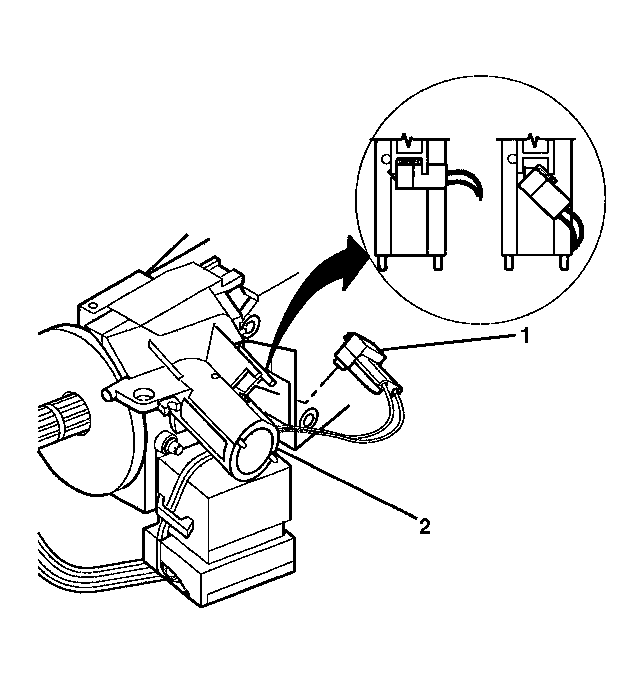

- Connect the passlock electrical connector from the lock module
- Rotate the key alarm switch connector (1)to the electronic lock module.
Courtesy of GENERAL MOTORS CORP.

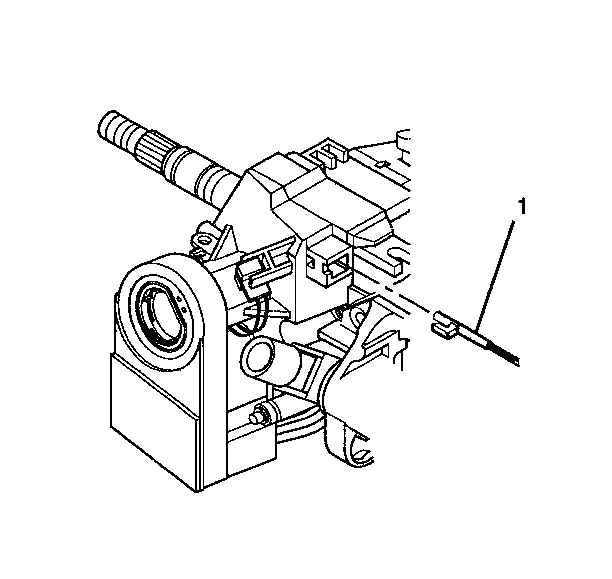

- Install park lock cable (1) to the electronic lock module.
Courtesy of GENERAL MOTORS CORP.

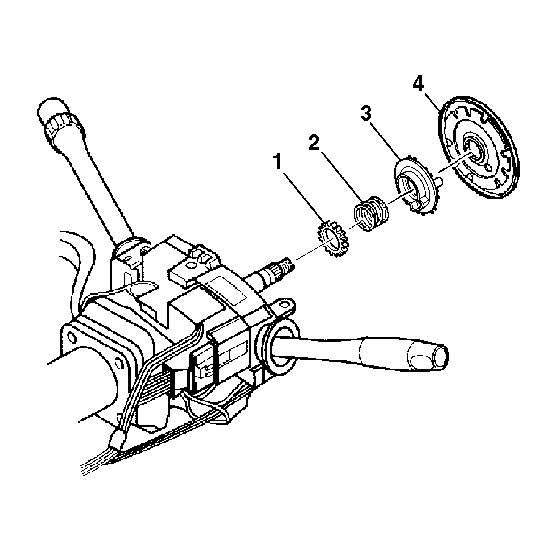

- Install the following parts to the steering shaft:
- The turn signal cancel cam (3)
- The shaft lock shield (4)
Courtesy of GENERAL MOTORS CORP.

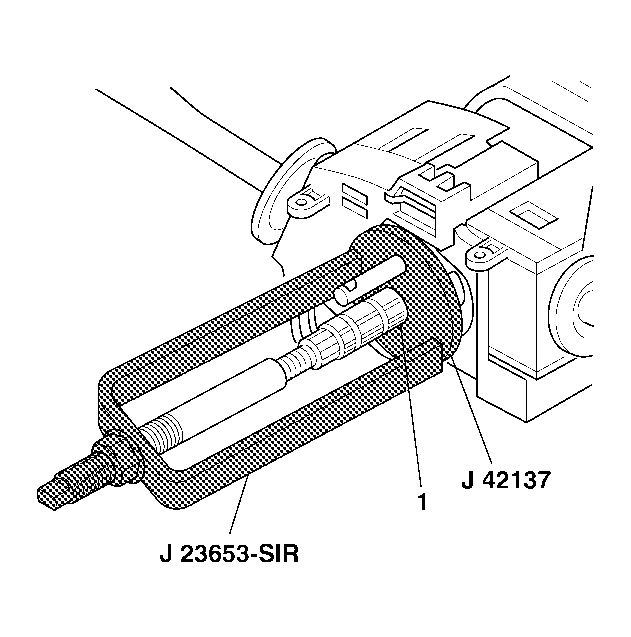

- Install the
J 23653-SIR
and J 42137
to the steering shaft and compress the shaft lock shield.
- Install the lock shield retainer to the steering column shaft.
- Remove the
J 23653-SIR
and J 42137
from the steering shaft.
- Install the SIR coil. Refer to SIR COIL ASSEMBLY
.
- Enable the SIR system. Refer to ACTIVATING SYSTEM
in SIR.
