Body Control System Schematics

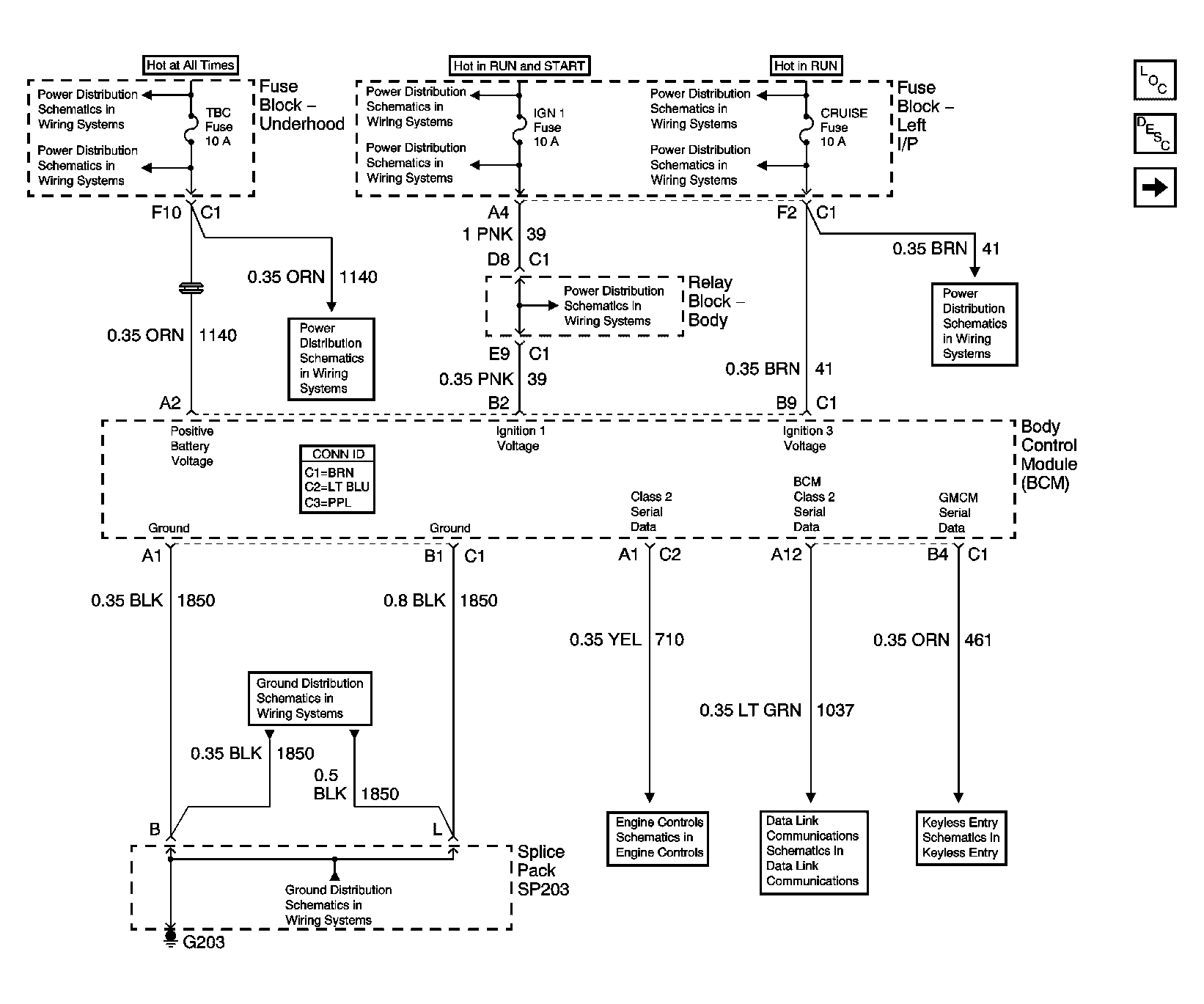

Fig 1: BCM Power, Ground and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

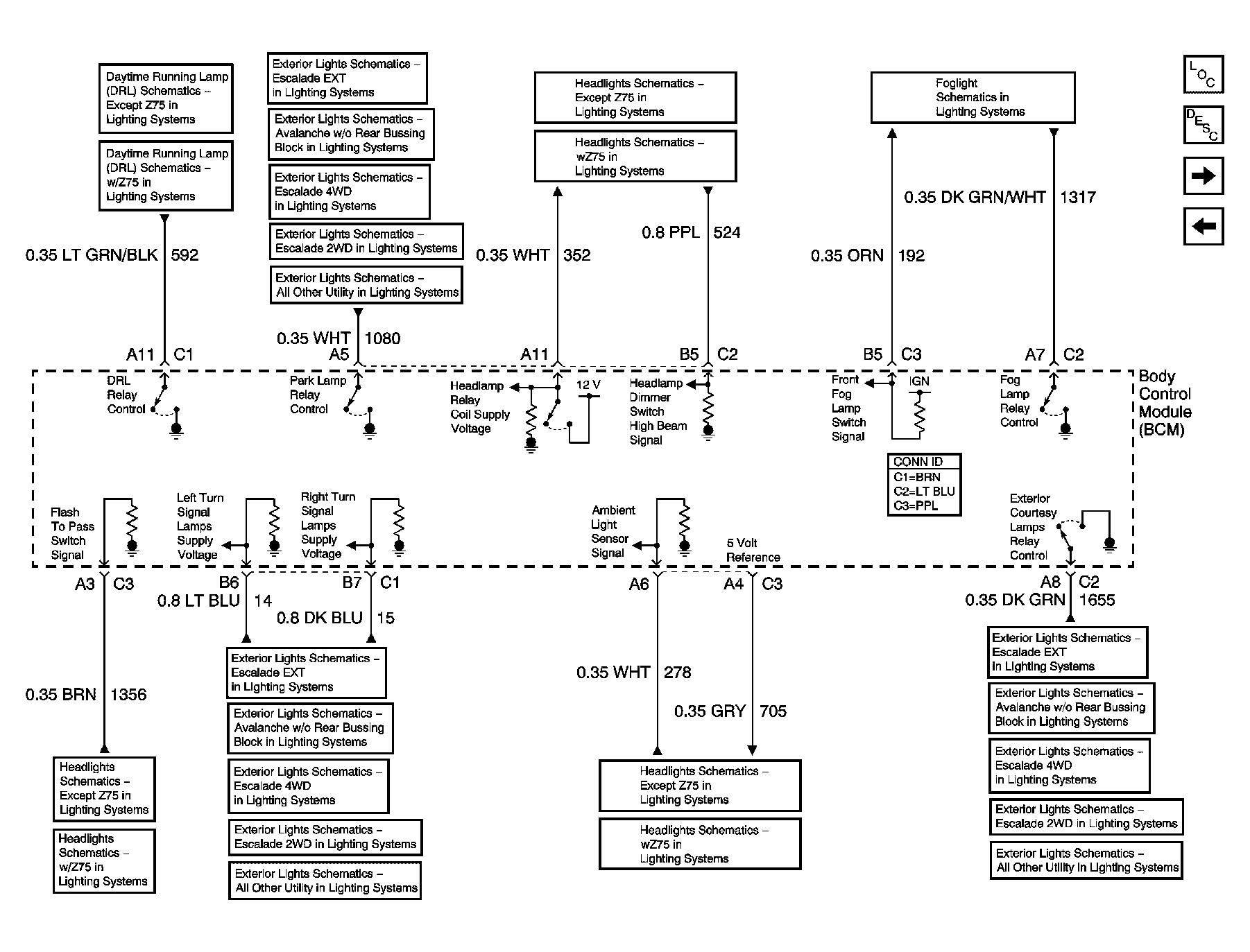

Fig 2: BCM Exterior Lighting Systems References Schematic

Courtesy of GENERAL MOTORS CORP.

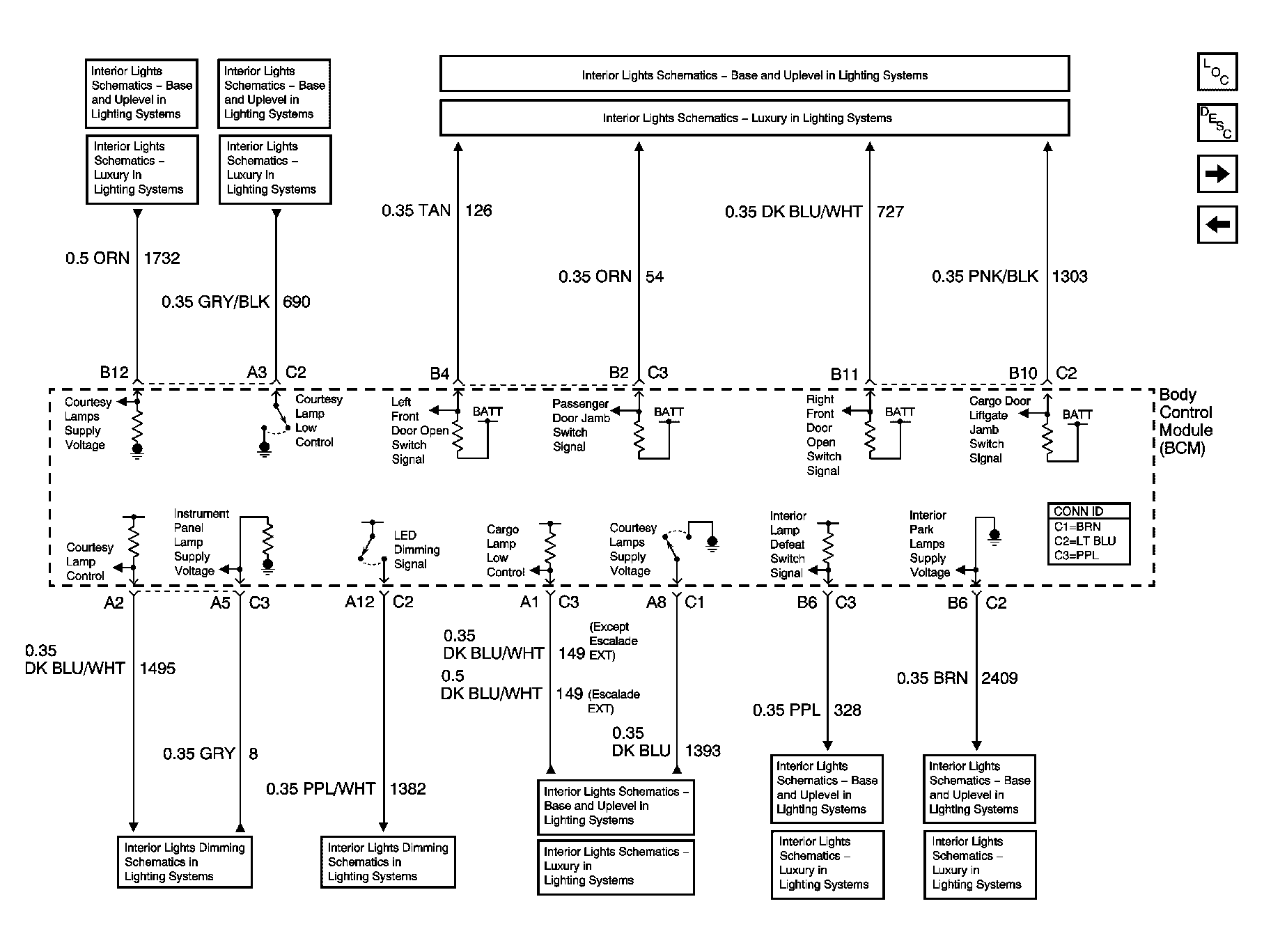

Fig 3: BCM Interior Lighting Systems References Schematic

Courtesy of GENERAL MOTORS CORP.

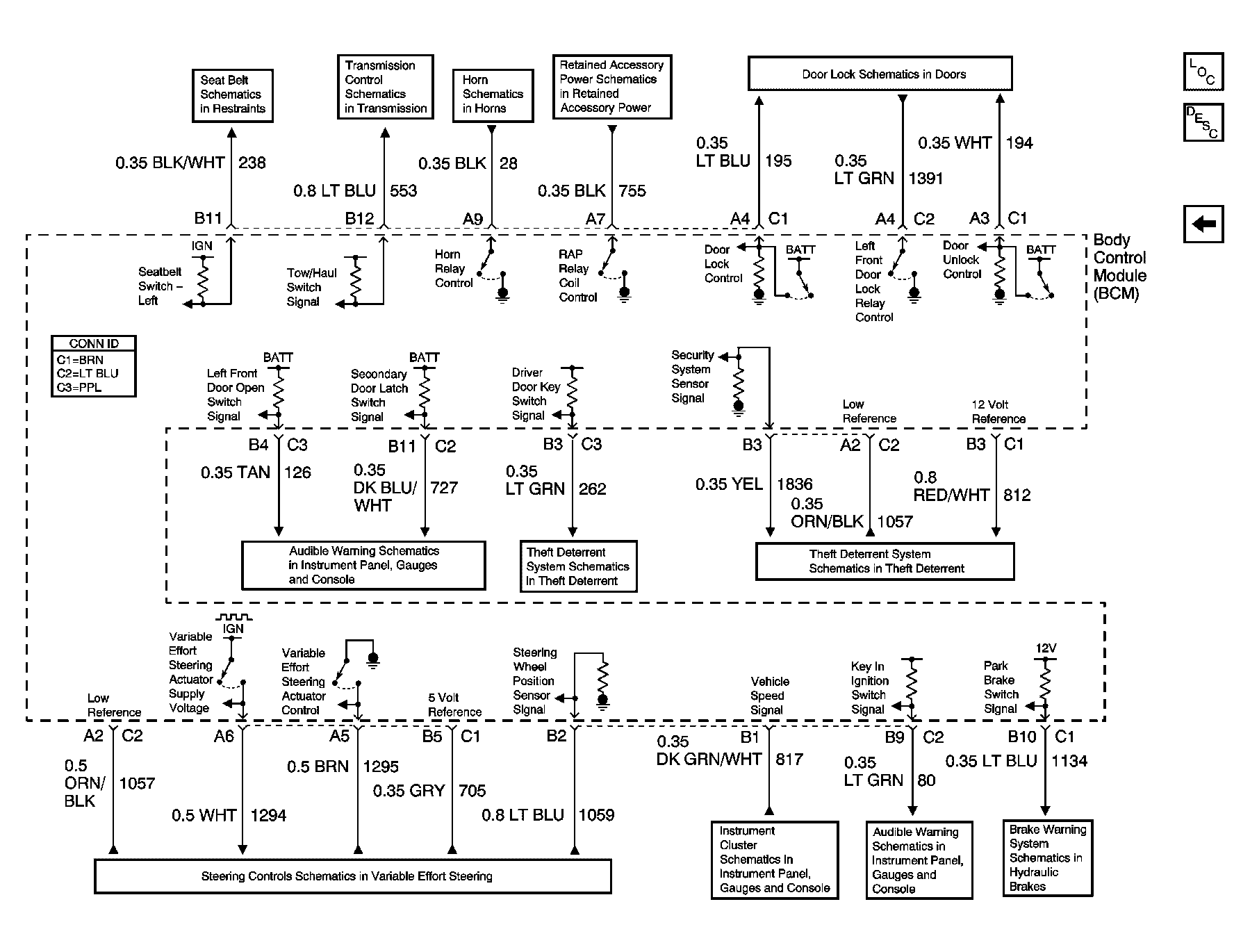

Fig 4: BCM Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
