Installation Procedure

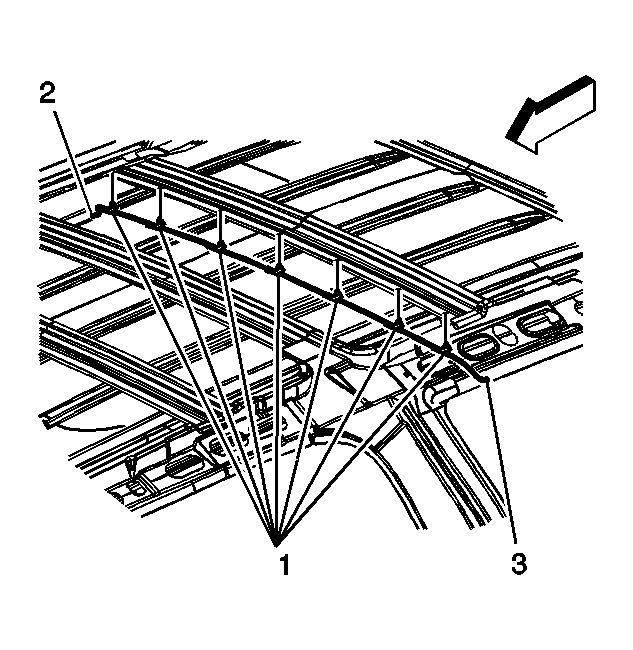

    Fig 1: Radio Antenna Module Cable (Between Both Modules)
    GM798115Courtesy of GENERAL MOTORS CORP.
  1. Install the cable to the roof cross member by pushing in the retainer clips (1).
  2. Connect the cable connector to the radio antenna module (2).
  3. Connect the cable connector to the radio control module (3).
  4. Install the headliner. Refer to HEADLINER REPLACEMENT .
