Installation Procedure

Connect the electrical connector.

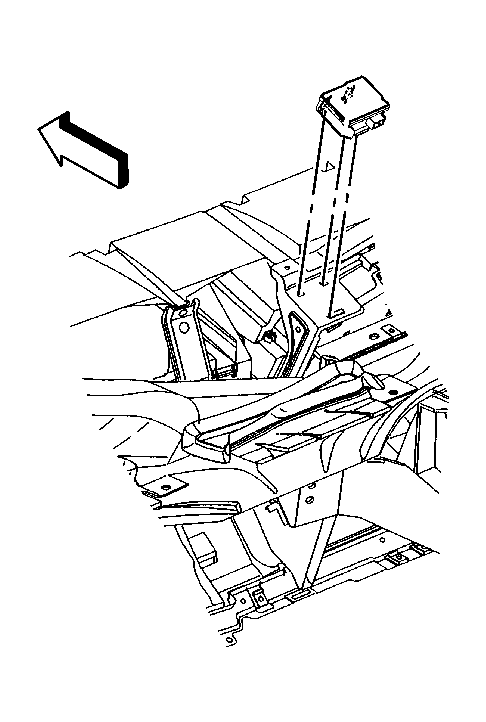

Fig 1: Remote Control Door Lock Receiver
Courtesy of GENERAL MOTORS CORP.
Install the module starting with the large tang-tilt. Snap the 2 lock arms into the square holes.
Install the instrument panel (IP) top cover. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P UPPER) .
Program the transmitter. Refer to Transmitter Programming .
