Stationary Windows Connector End Views

Air Temperature Sensor - Outside Connector End View

GM684793Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052642
  • 2-Way F Metri-Pack 150 Series Sealed (LT GRN)
Pin Wire Color Circuit No. Function
A DK GRN/
WHT		 636 Outside Air Temperature Sensor Signal -Z75
B BLK/WHT 1704 Low Reference & Z75

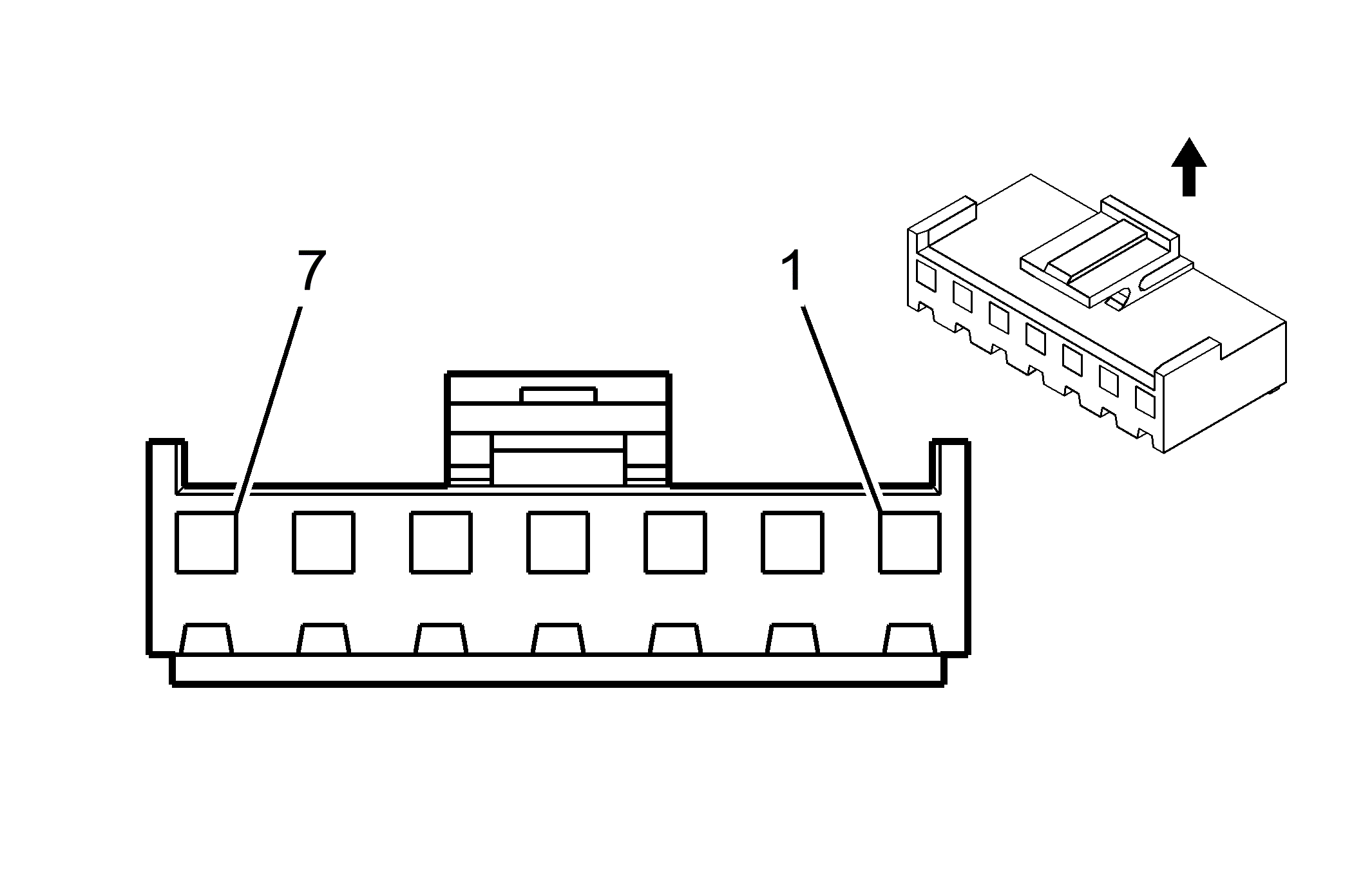

Inside Rearview Mirror Connector End View

GM153632Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12124782
  • 7-Way (BLK)
Pin Wire Color Circuit No. Function
1 PNK 39 Ignition 1 Voltage
2 BLK 1850 Ground
3 LT GRN 1324 Backup Lamp Supply Voltage
4 GRY 1690 Automatic Day/Night Mirror Signal
5 PNK 1691 Automatic Day/Night Mirror Low Reference
6 DK GRN/
WHT		 636 Outside Air Temperature Sensor Signal
7 BLK/WHT 1704 Low Reference
Rear Window Defogger Grid - Liftgate Connector End View

GM365953Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092133
  • 1-Way F Metri-Pack 630 Series Self Lock (BLK)
Pin Wire Color Circuit No. Function
A PPL 1093 Rear Defog Element Supply Voltage
A BLK 1250 Ground

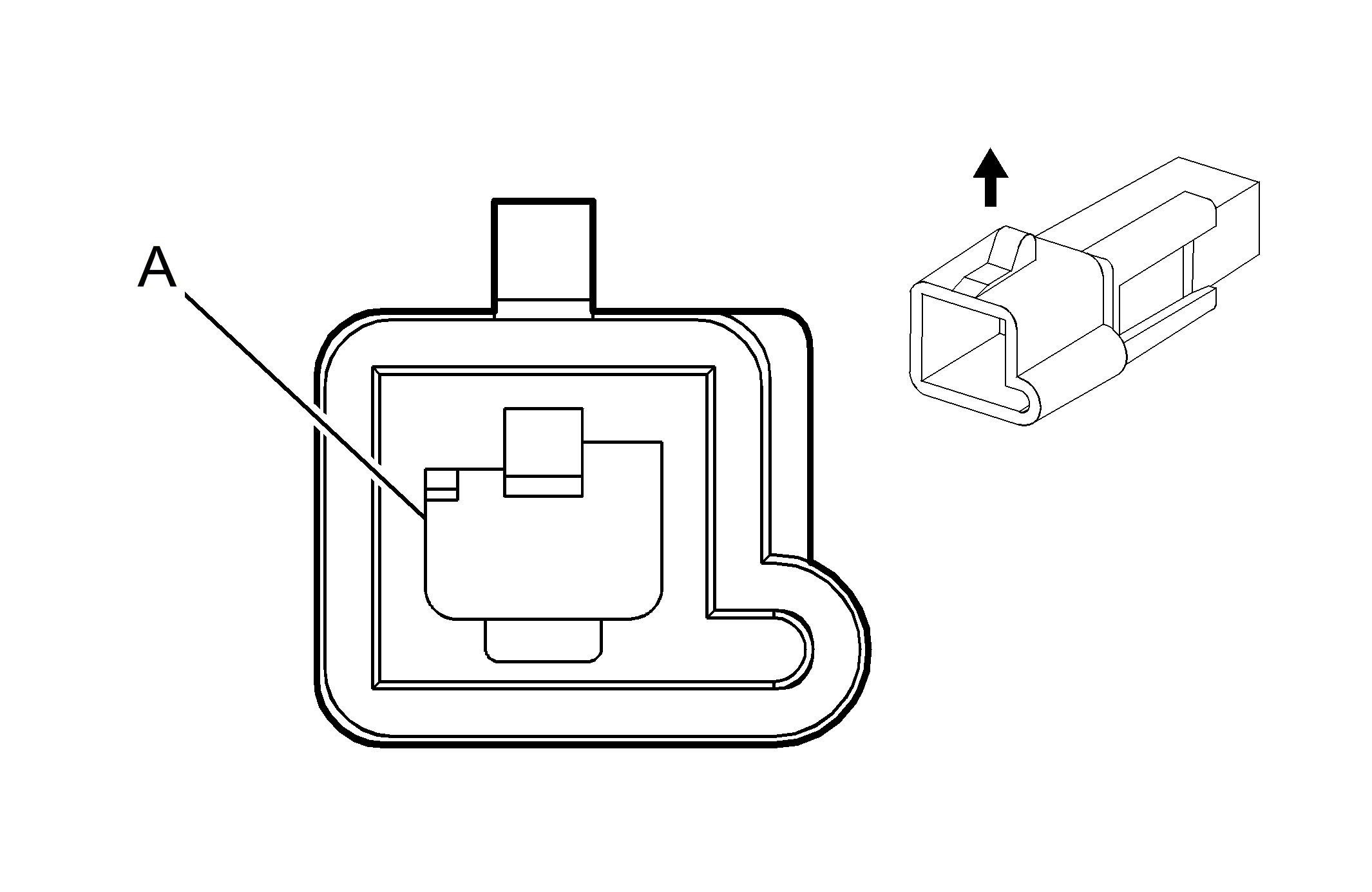

Rear Window Defogger Grid - C1, LH - Cargo Door Connector End View

GM696943Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065652
  • 1-Way M Metri-Pack 480 (BLK)
Pin Wire Color Circuit No. Function
A PPL 1093 Rear Defog Element Supply Voltage
Rear Window Defogger Grid - C1, RH - Cargo Door Connector End View

GM696943Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065652
  • 1-Way M Metri-Pack 480 (BLK)
Pin Wire Color Circuit No. Function
A PPL 1093 Rear Defog Element Supply Voltage
Rear Window Defogger Grid - C2, LH - Cargo Door Connector End View

GM696943Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065652
  • 1-Way M Metri-Pack 480 (BLK)
Pin Wire Color Circuit No. Function
A BLK 1450 Ground
Rear Window Defogger Grid - C2, RH - Cargo Door Connector End View

GM696943Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065652
  • 1-Way M Metri-Pack 480 (BLK)
Pin Wire Color Circuit No. Function
A BLK 1450 Ground
