Installation Procedure
- Connect the harness connector to the traction control switch.

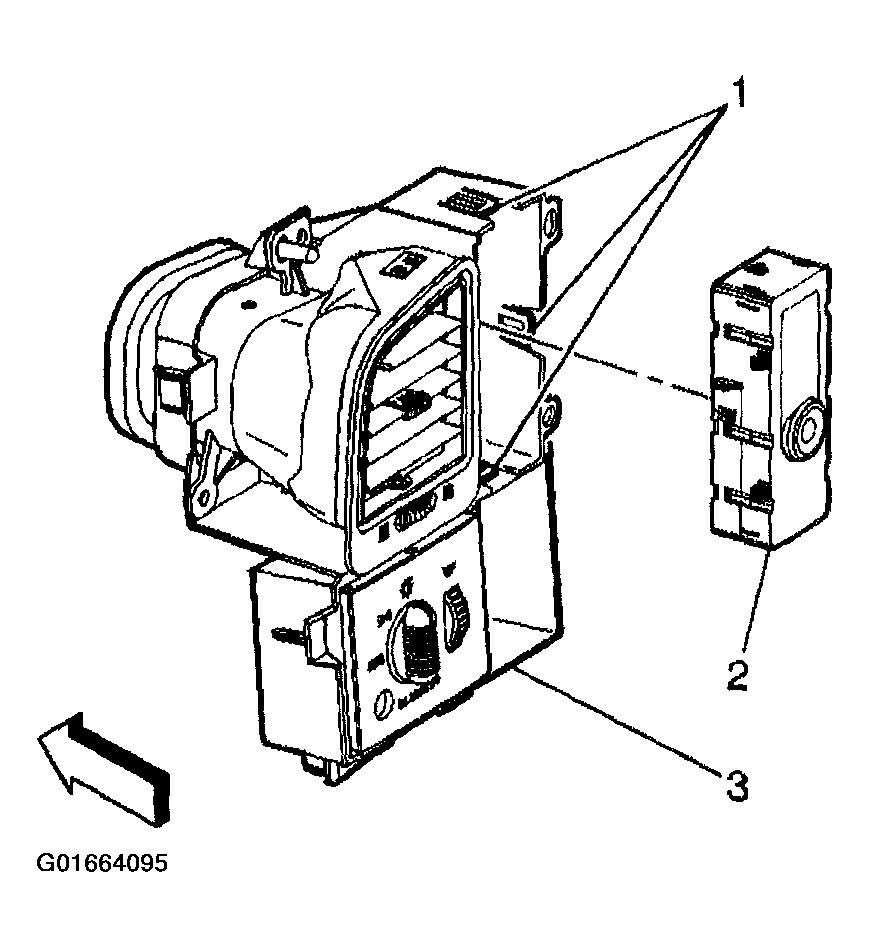

- Install the traction control switch (2) into the Instrument Panel (IP) assembly (3), making sure that all of the switch retaining tabs (1) are engaged.
- Install Instrument Panel (IP) bezel. Refer to BEZEL REPLACEMENT - IP CLUSTER
in Instrument Panel, Gauges and Console.
Courtesy of GENERAL MOTORS CORP.
