Fuel Pump/Sender Connector End View - Primary

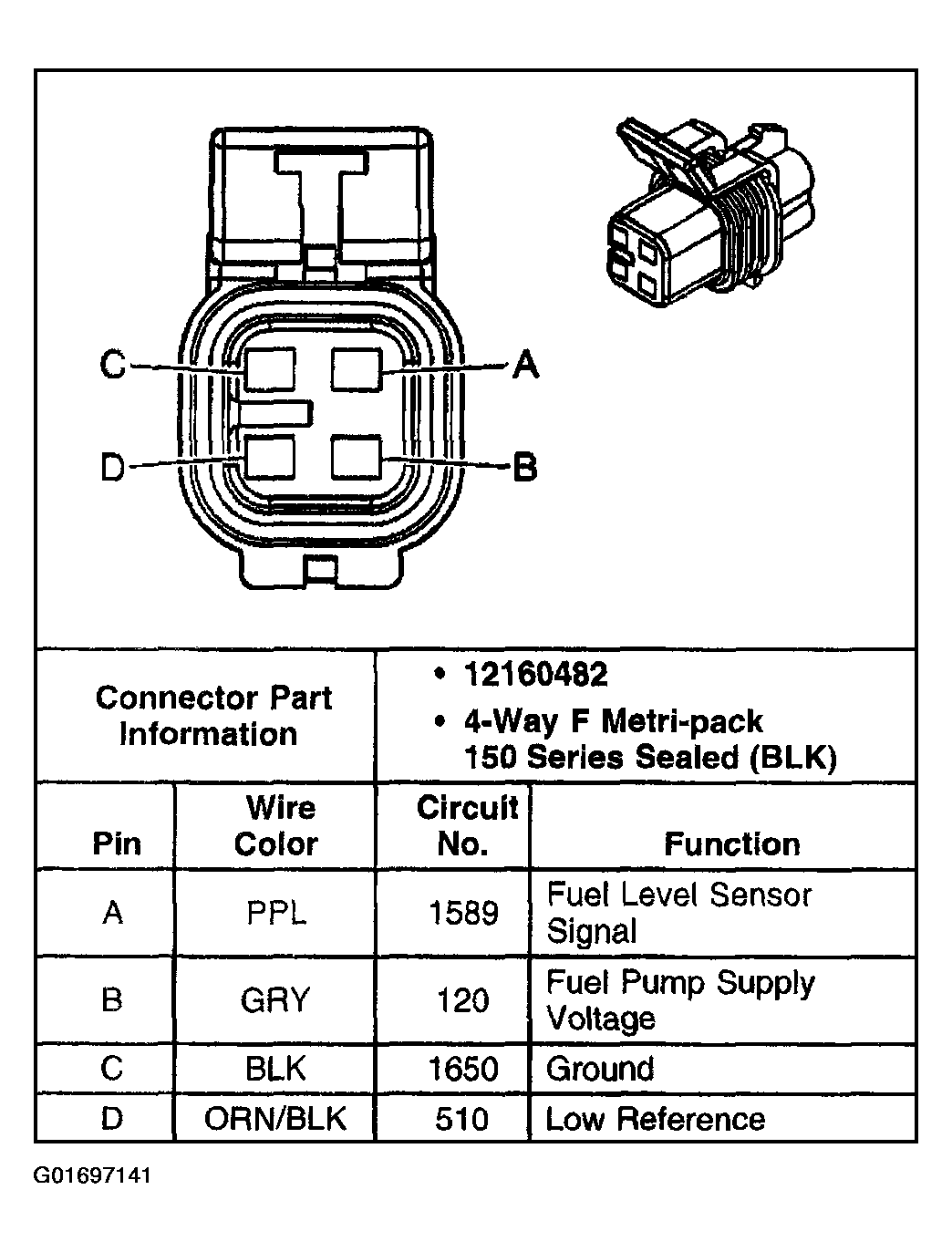

Fig 1: Fuel Pump/Sender Connector End View - Primary
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
