Automatic Transmission Shift Lock Control Schematics
WARNING:
This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

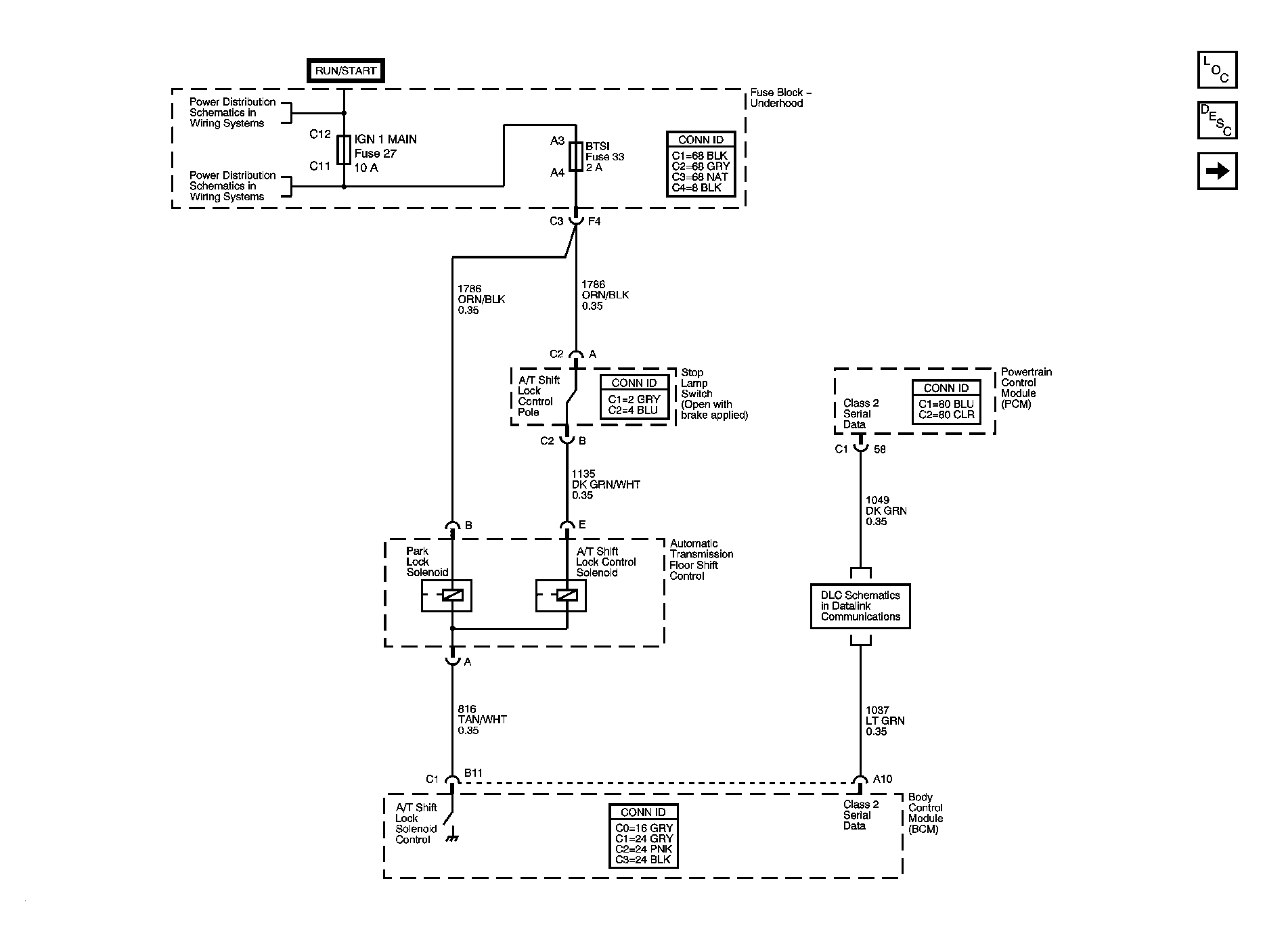

Fig 1: Pontiac Schematic
Courtesy of GENERAL MOTORS CORP.

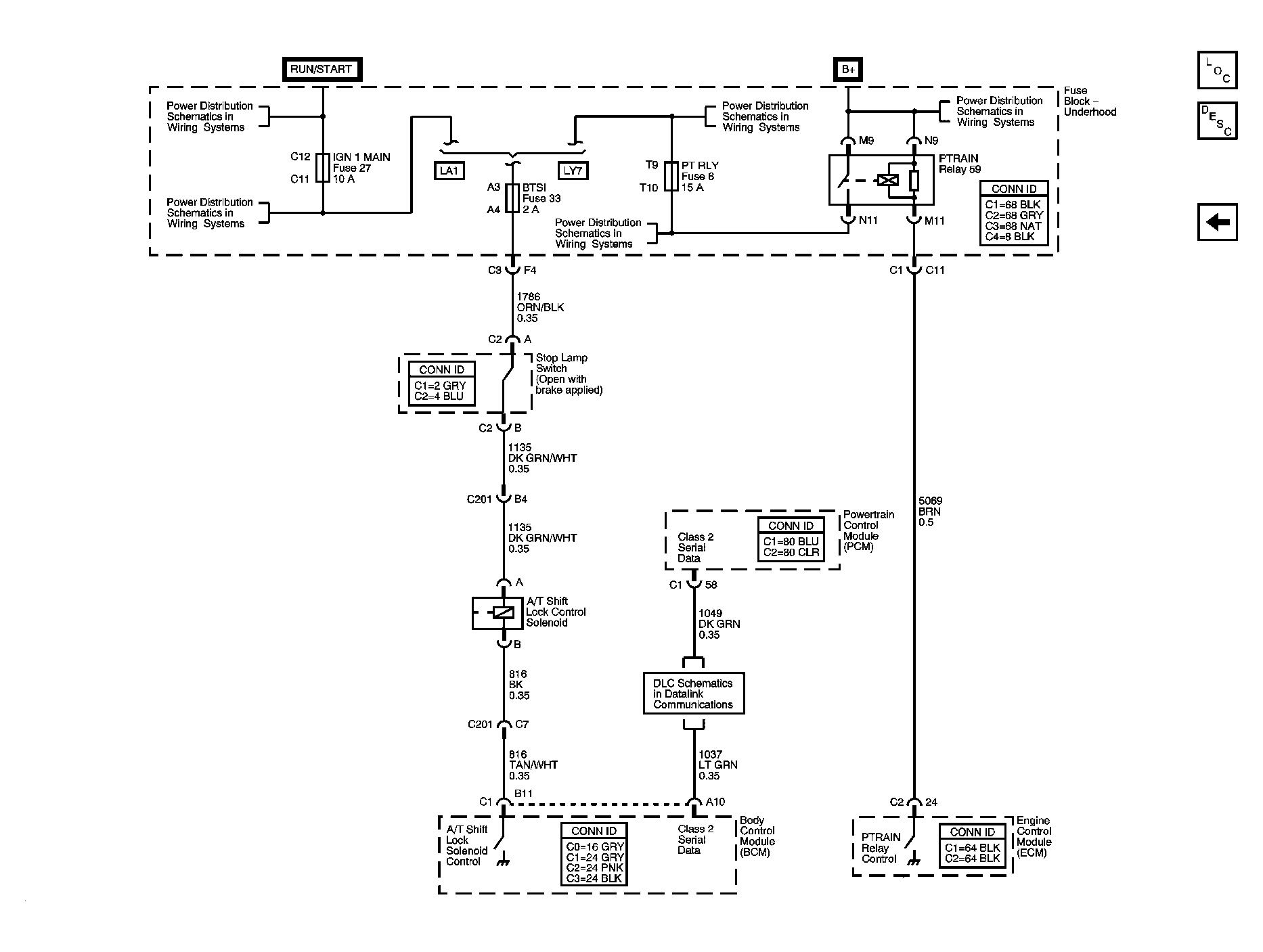

Fig 2: Buick Schematic
Courtesy of GENERAL MOTORS CORP.
