Radio/Audio System Description and Operation: Notes

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The Entertainment System on this vehicle is configured with a radio, antenna, and speakers. An audio amplifier is optional with radio UIC.

The following list shows the radios available for this vehicle:

Base Radio (UN6) - AM/FM Stereo and Cassette
Base Radio (U1C) - AM/FM stereo and CD
Base Radio (UP3) - AM/FM Stereo, CD and EQ

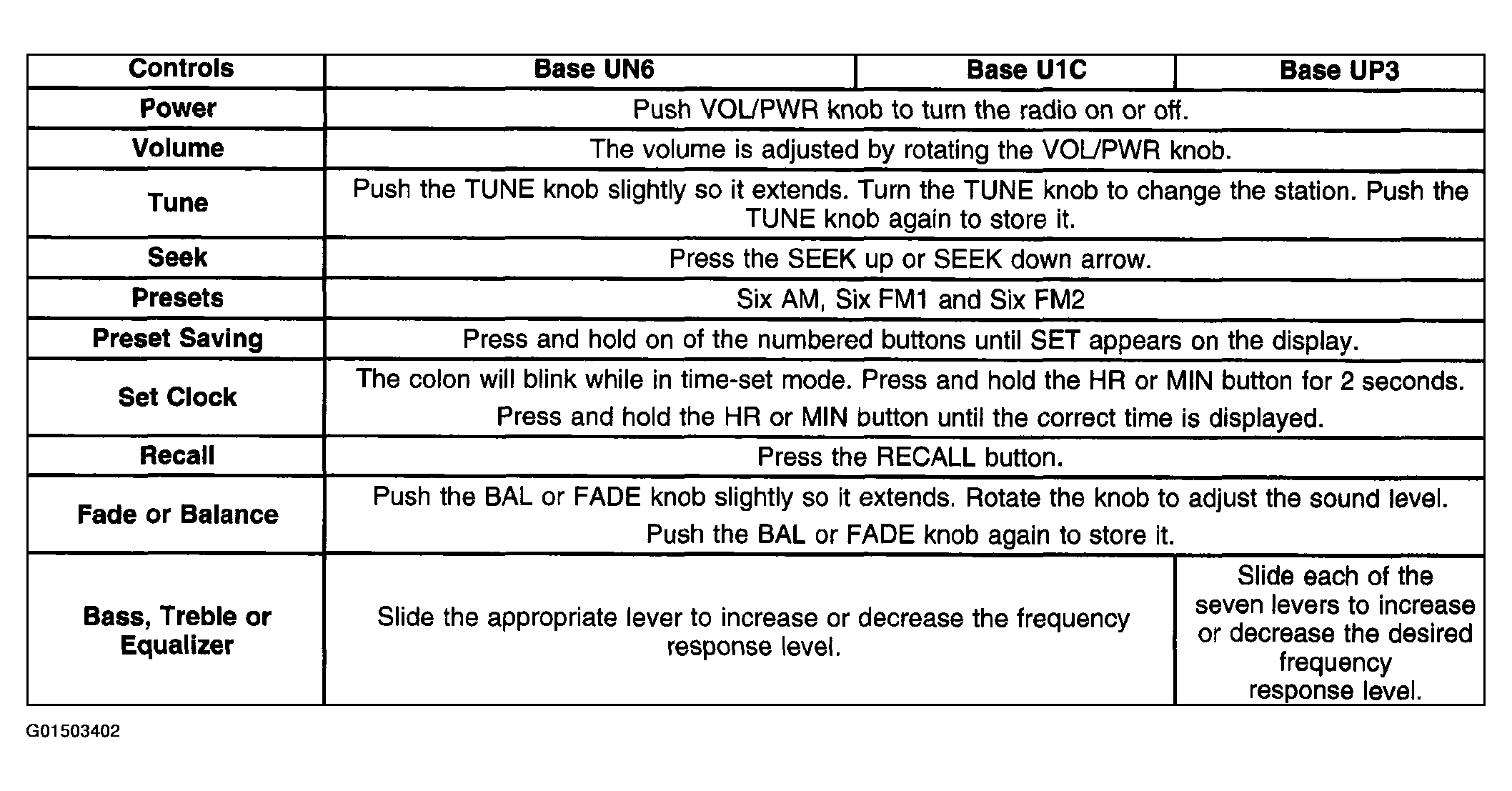

Fig 1: Radio Features Table
Courtesy of GENERAL MOTORS CORP.

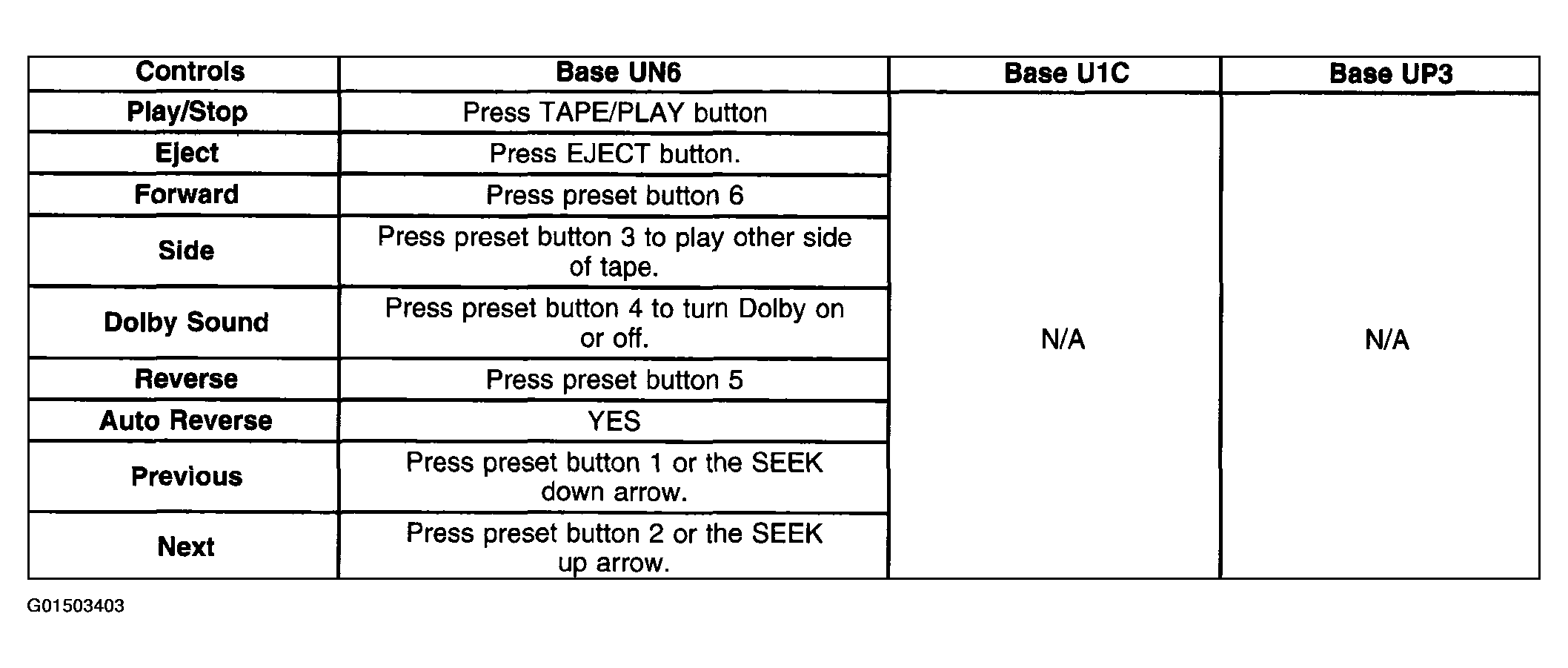

Fig 2: Cassette Features Table
Courtesy of GENERAL MOTORS CORP.

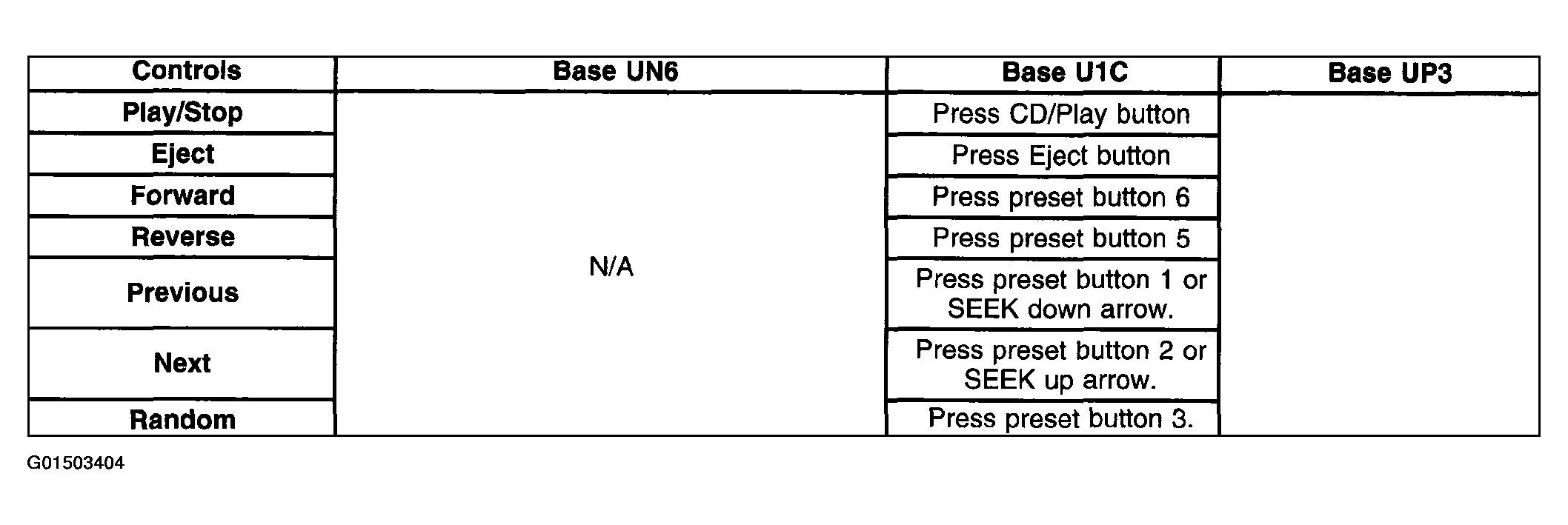

Fig 3: Compact Disc Features Table
Courtesy of GENERAL MOTORS CORP.

Each item in the list below represents topics covered in detail below:

AM/FM Reception
Antenna
Audio Amplifier
Steering Wheel Controls
Theft Deterrent
Tape/CD Player Error Messages
