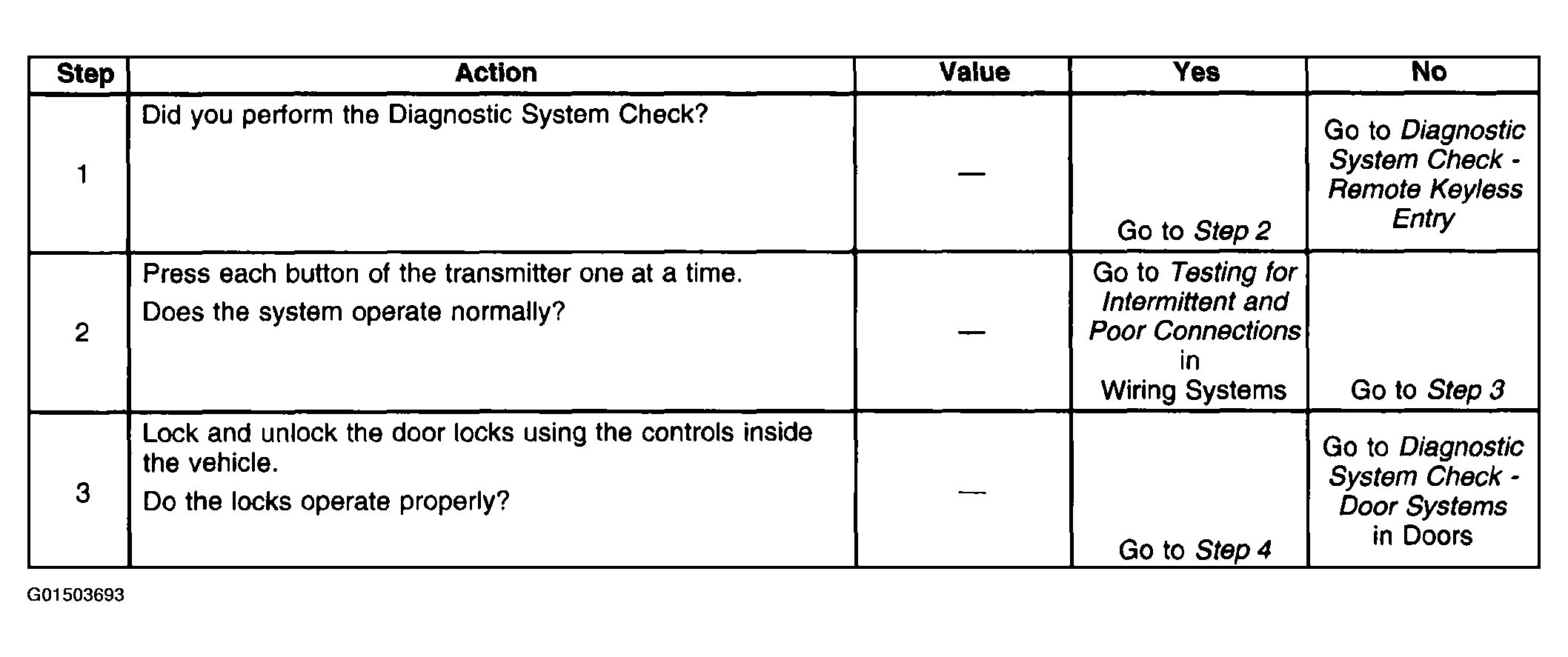

Fig 1: Keyless Entry System Inoperative Diagnostic Table (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

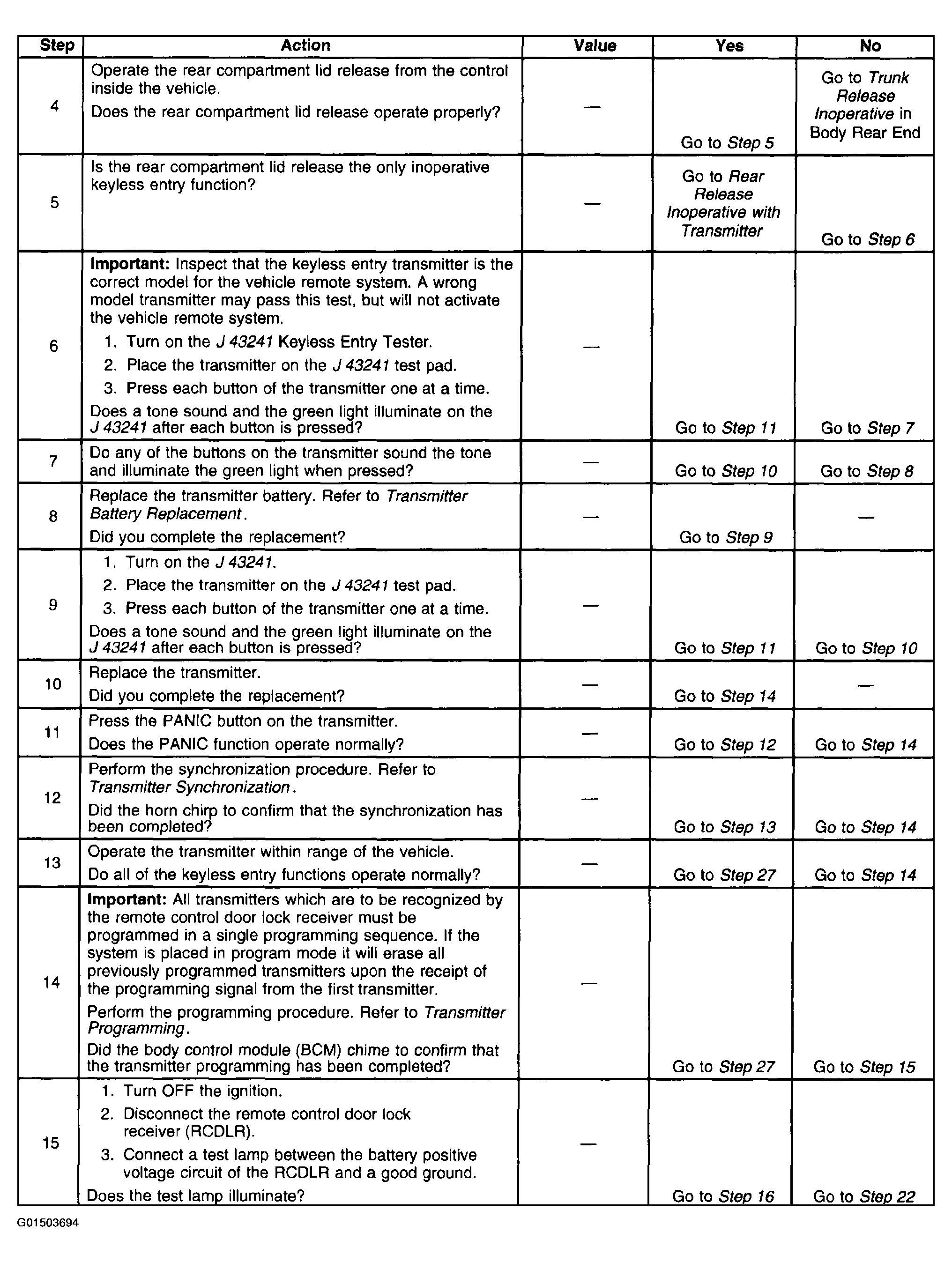

Fig 2: Keyless Entry System Inoperative Diagnostic Table (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

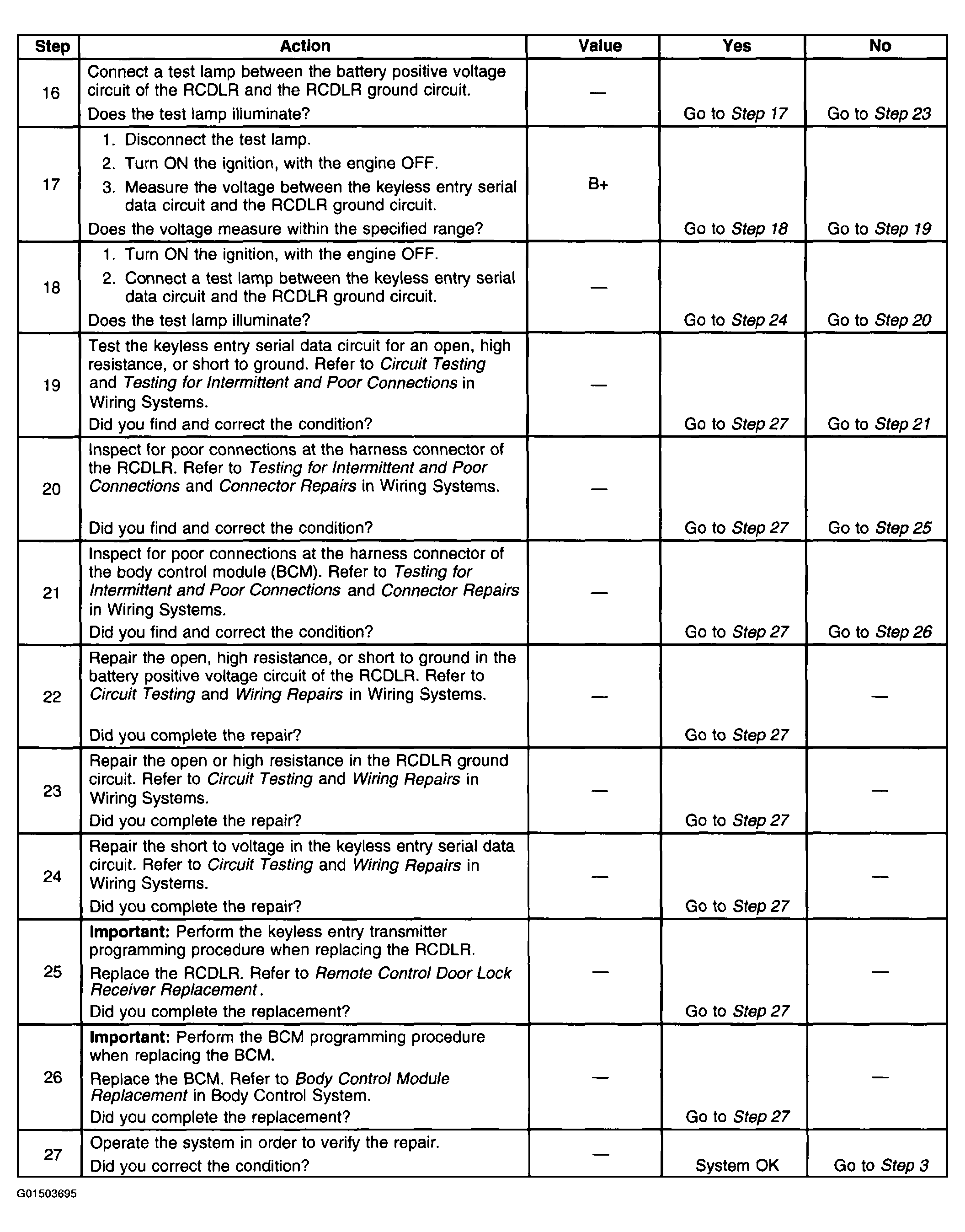

Fig 3: Keyless Entry System Inoperative Diagnostic Table (3 Of 3)
