WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

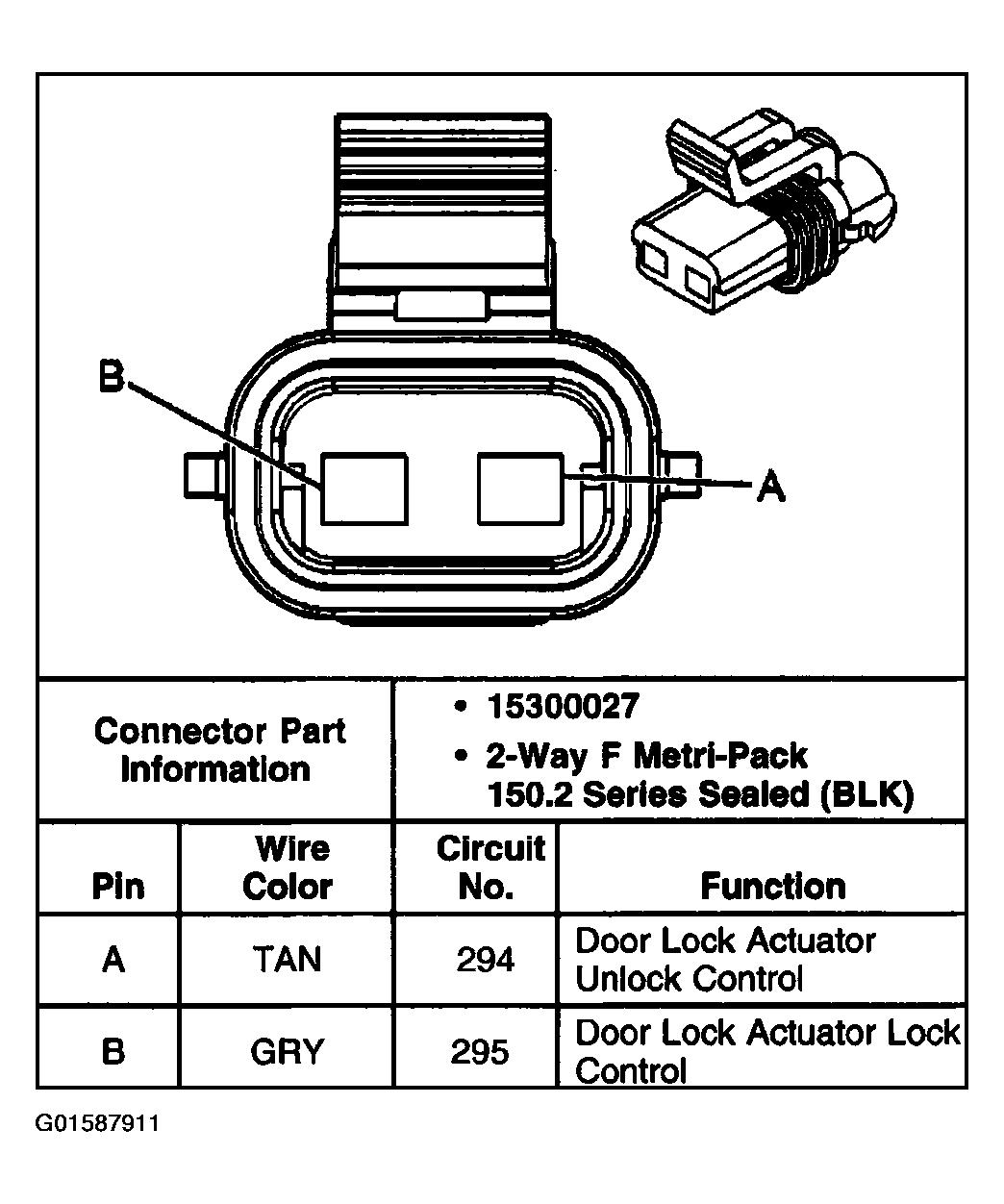

Fig 1: Door Lock - Driver, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.

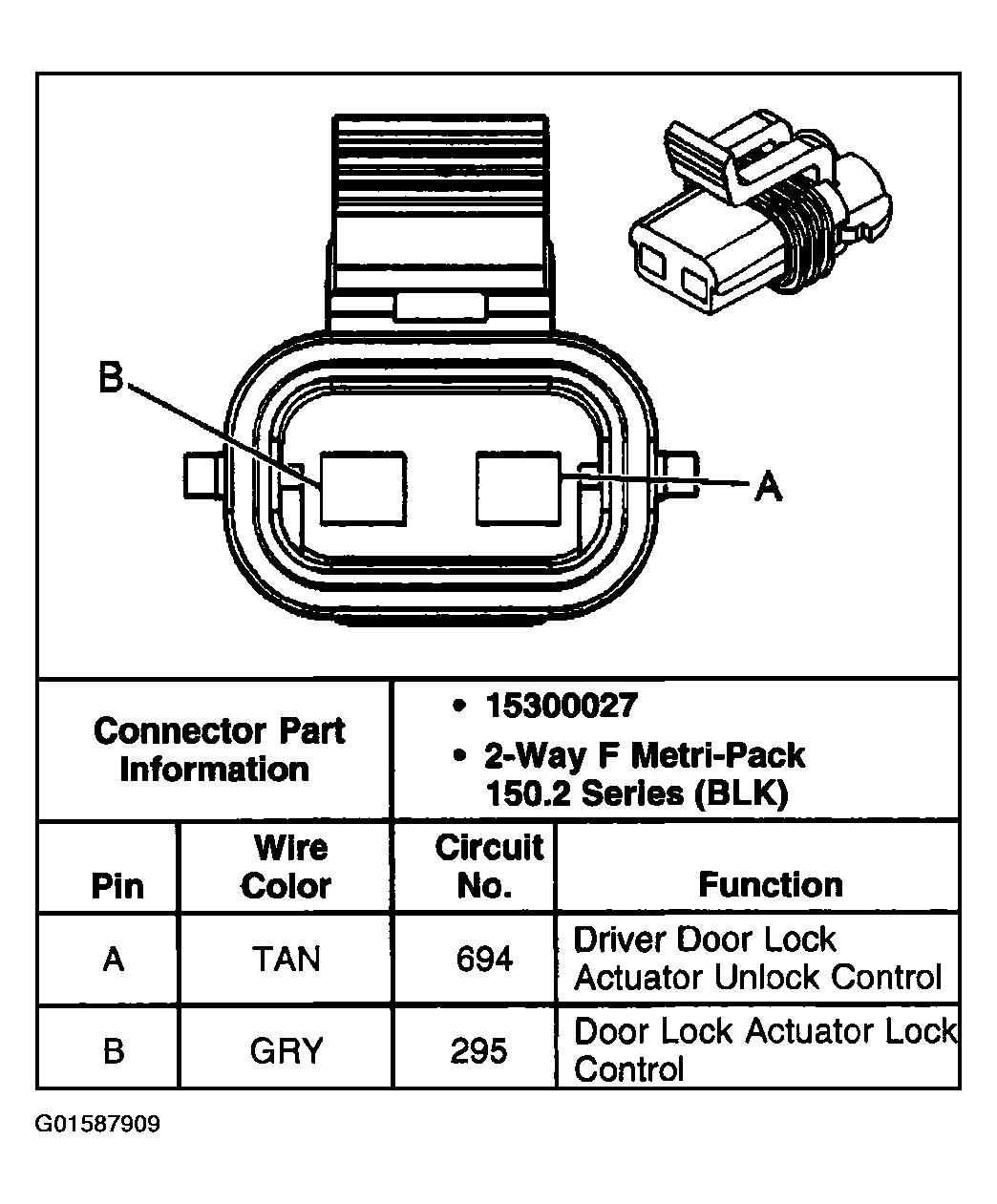

Fig 2: Door Lock - Driver, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 3: Door Lock - Front Passenger, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 4: Door Lock - Front Passenger, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Door Lock - LR, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 6: Door Lock - LR, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 7: Door Lock - RR, C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 8: Door Lock - RR, C2 Connector End View
Courtesy of GENERAL MOTORS CORP.

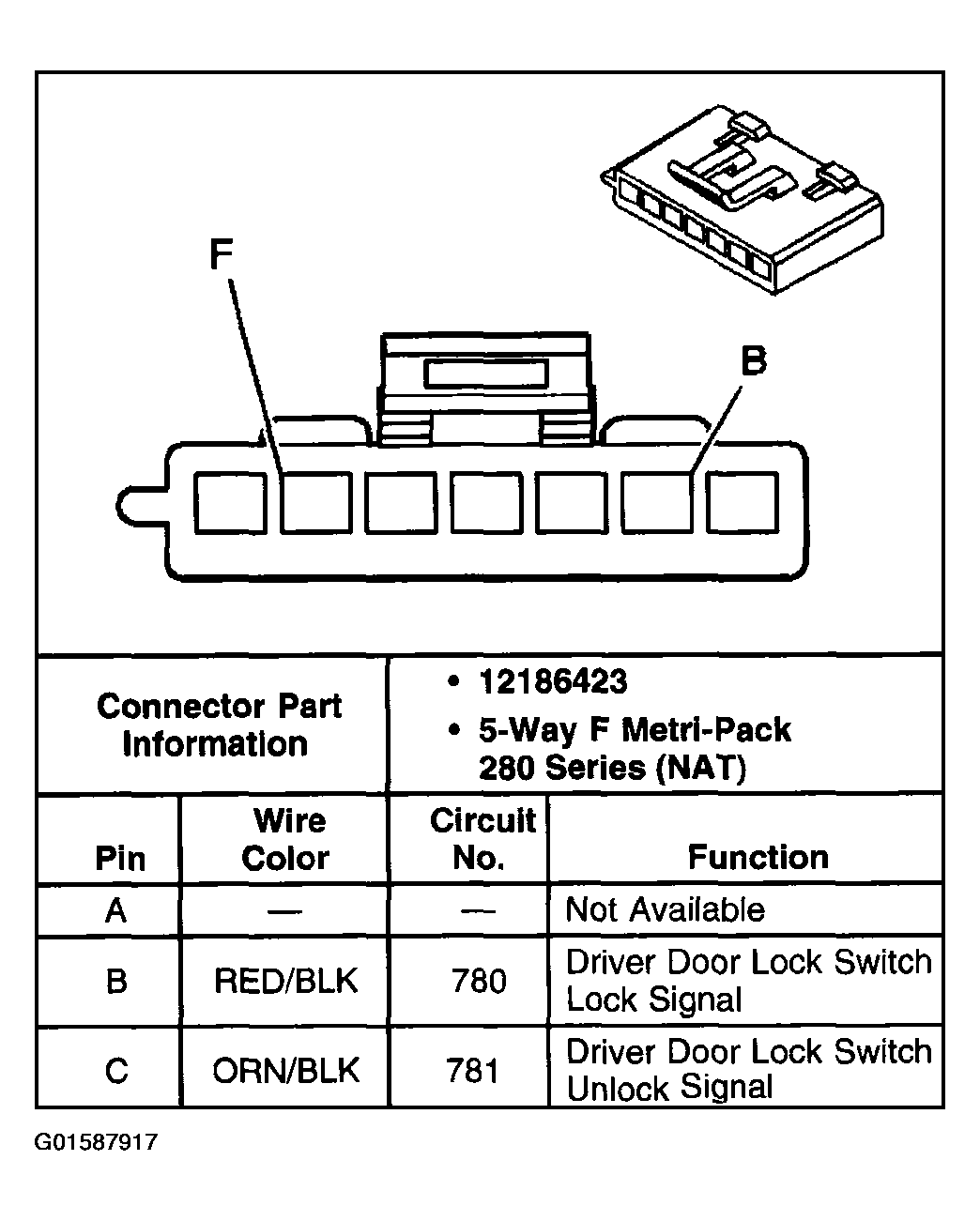

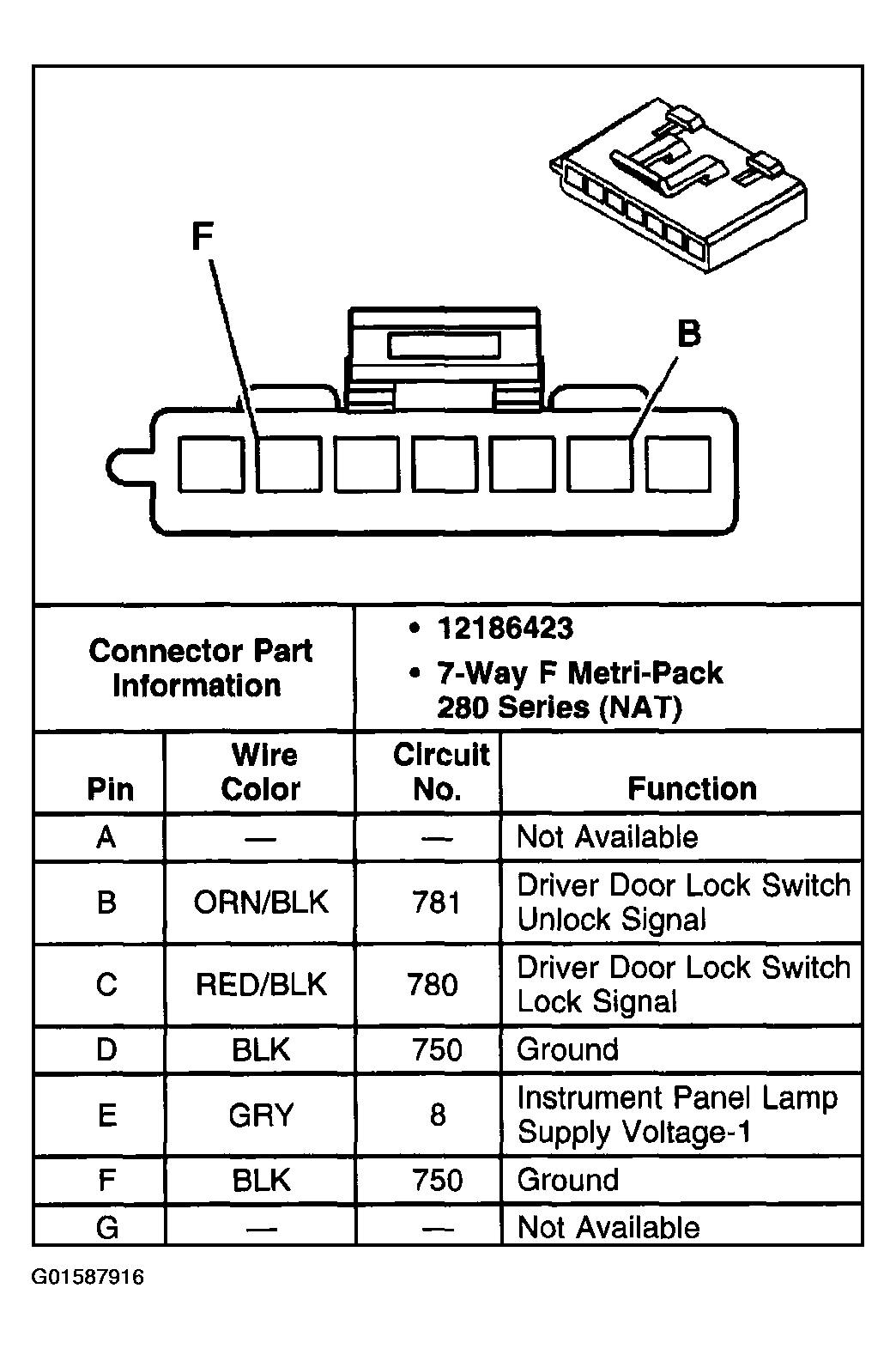

Fig 9: Door Lock Switch - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.
Fig 10: Door Lock Switch - Front Passenger Connector End View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Door Lock Switch - Front Passenger Connector End View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

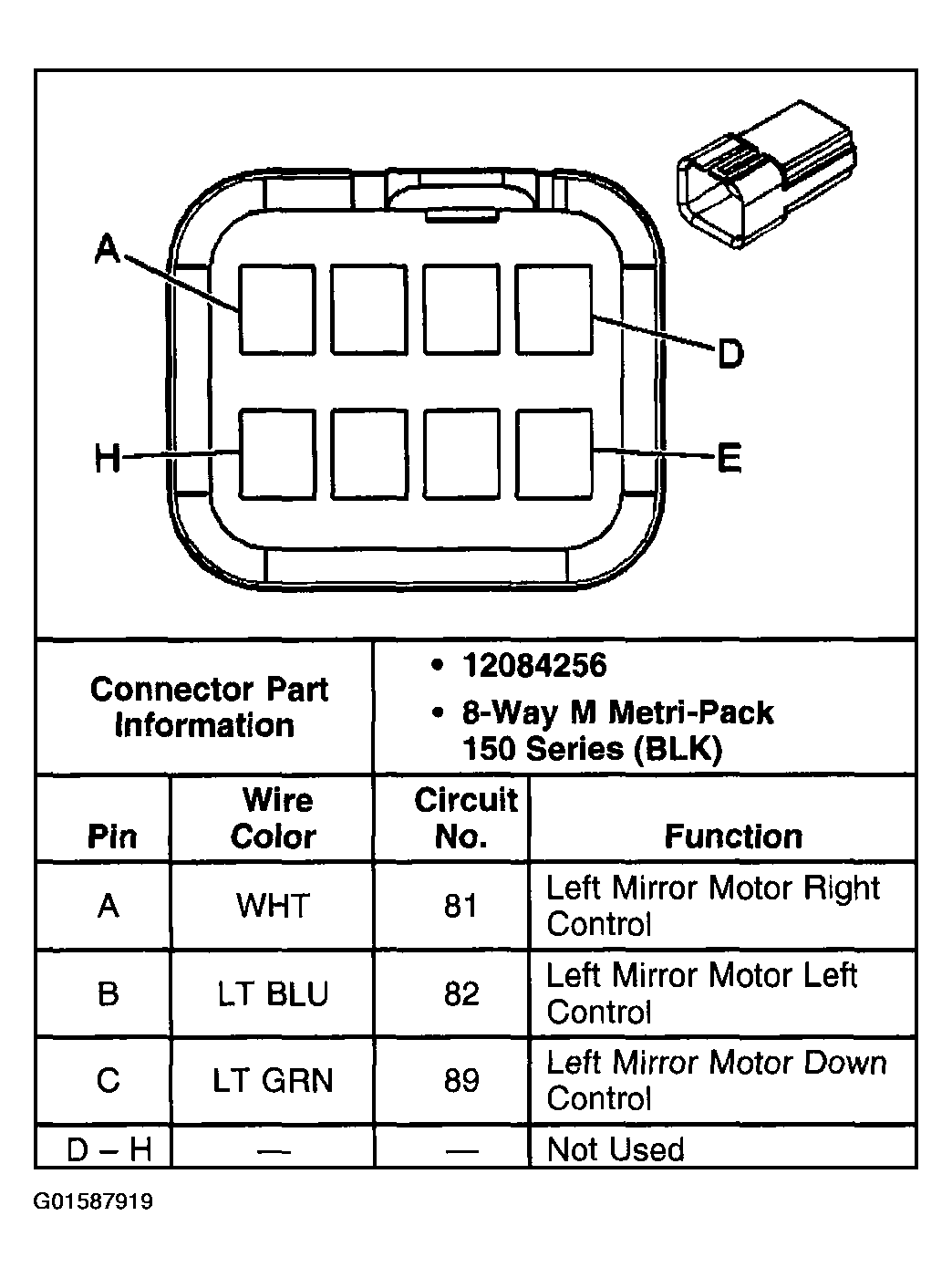

Fig 12: Outside Rearview Mirror - Driver Connector End View
Courtesy of GENERAL MOTORS CORP.

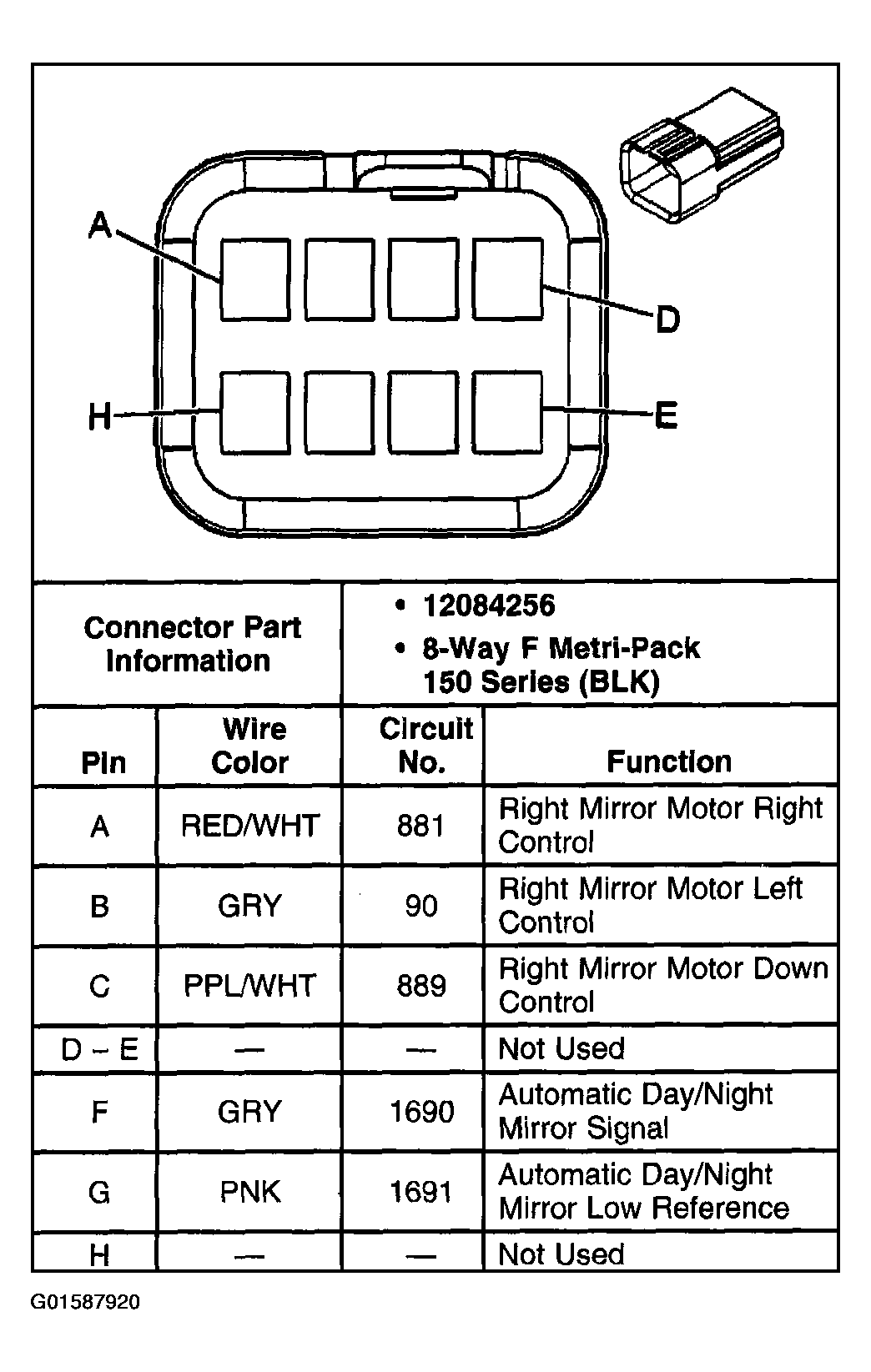

Fig 13: Outside Rearview Mirror - Passenger Connector End View
Courtesy of GENERAL MOTORS CORP.

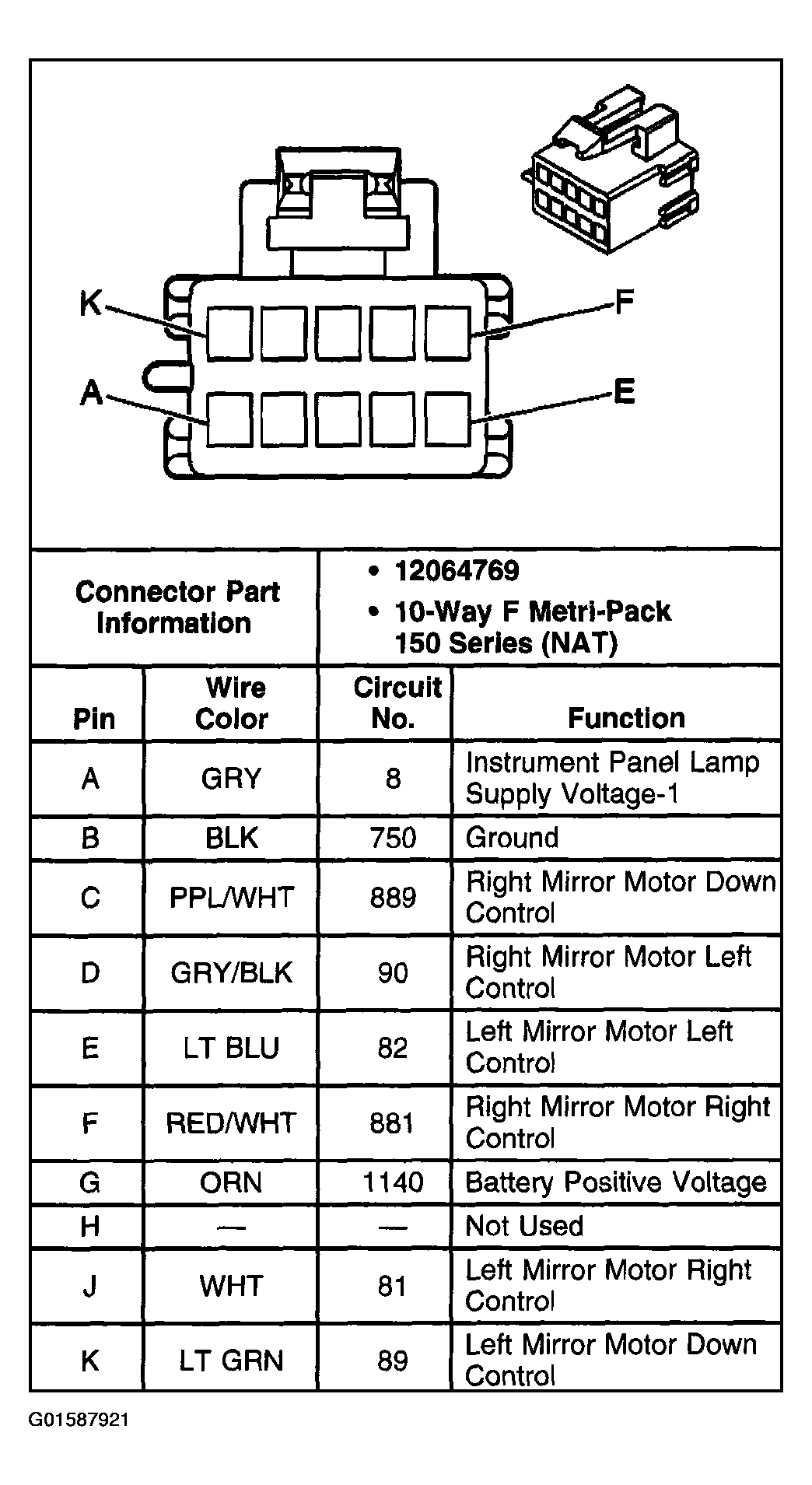

Fig 14: Outside Rearview Mirror Switch Connector End View
