Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Locate the opening in the retaining guide block (1).

Install the inside handle rod to the retaining guide block (1), push inward to secure the rod.

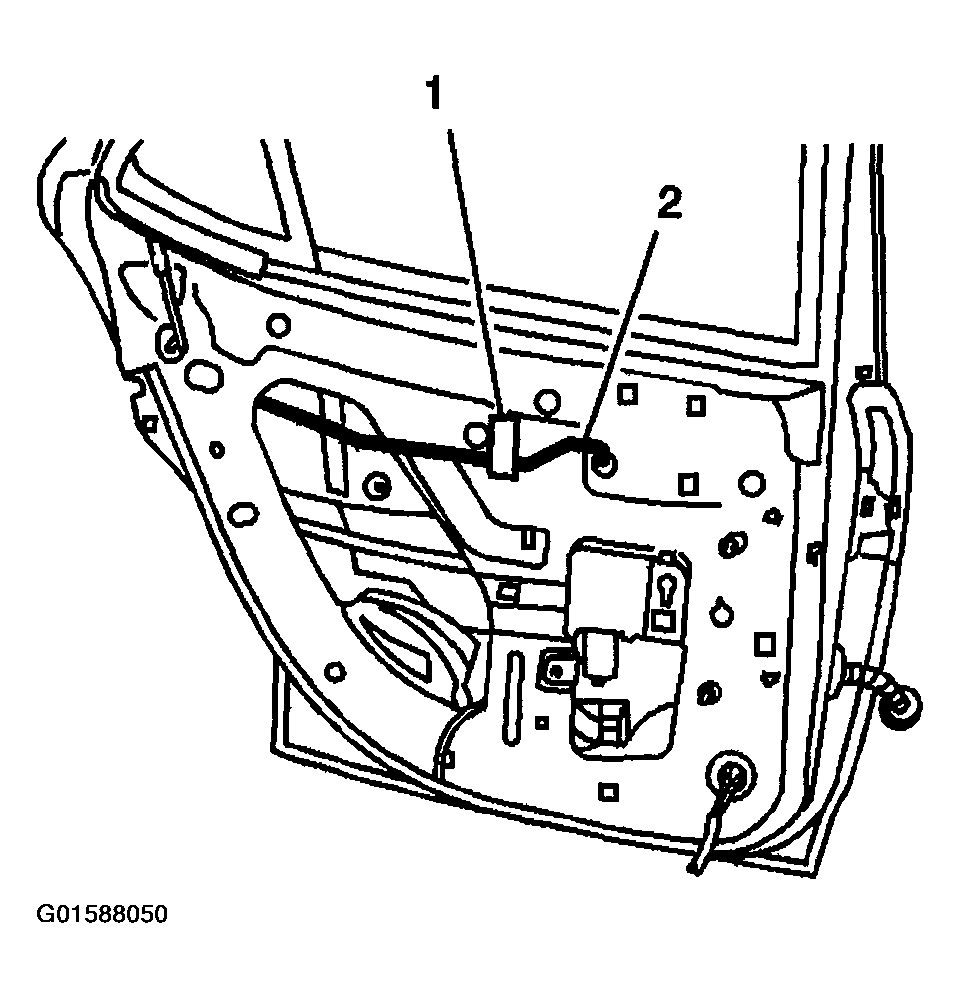

Fig 1: Installing Handle Lock Rod Guide Block

Courtesy of GENERAL MOTORS CORP.

Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR or Install the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR .
