Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the switches into the mounting plate.

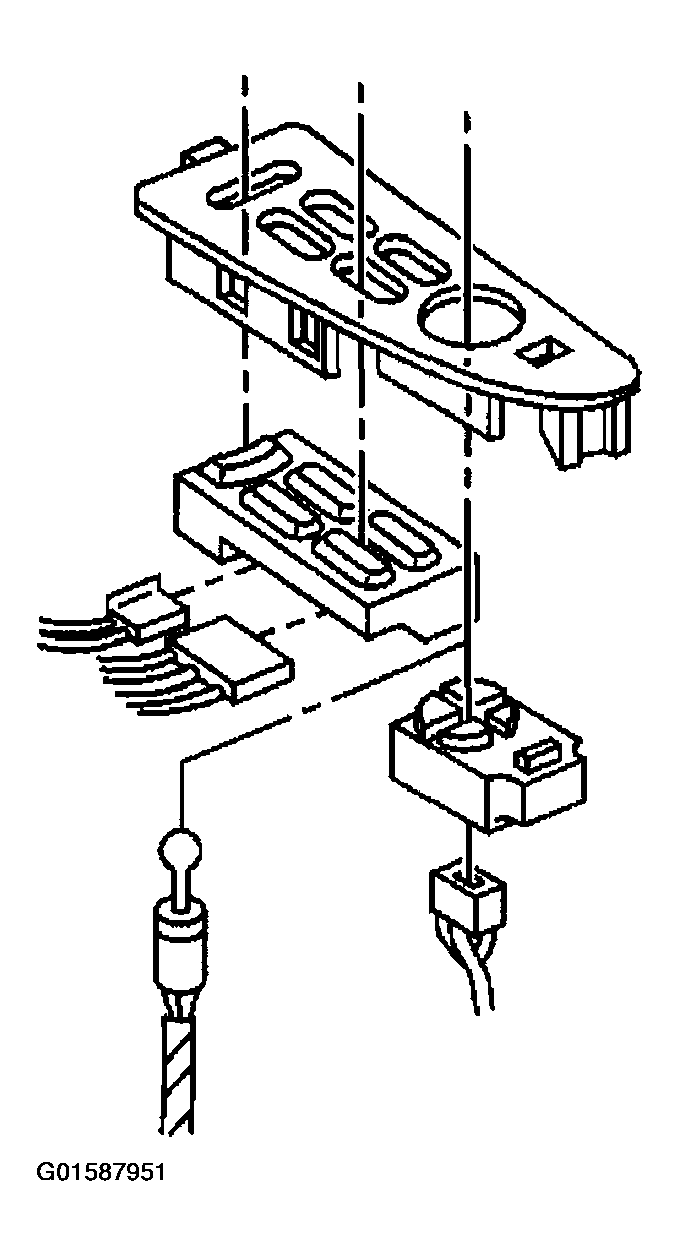

Fig 1: Installing Switches Into Mounting Plate

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors.

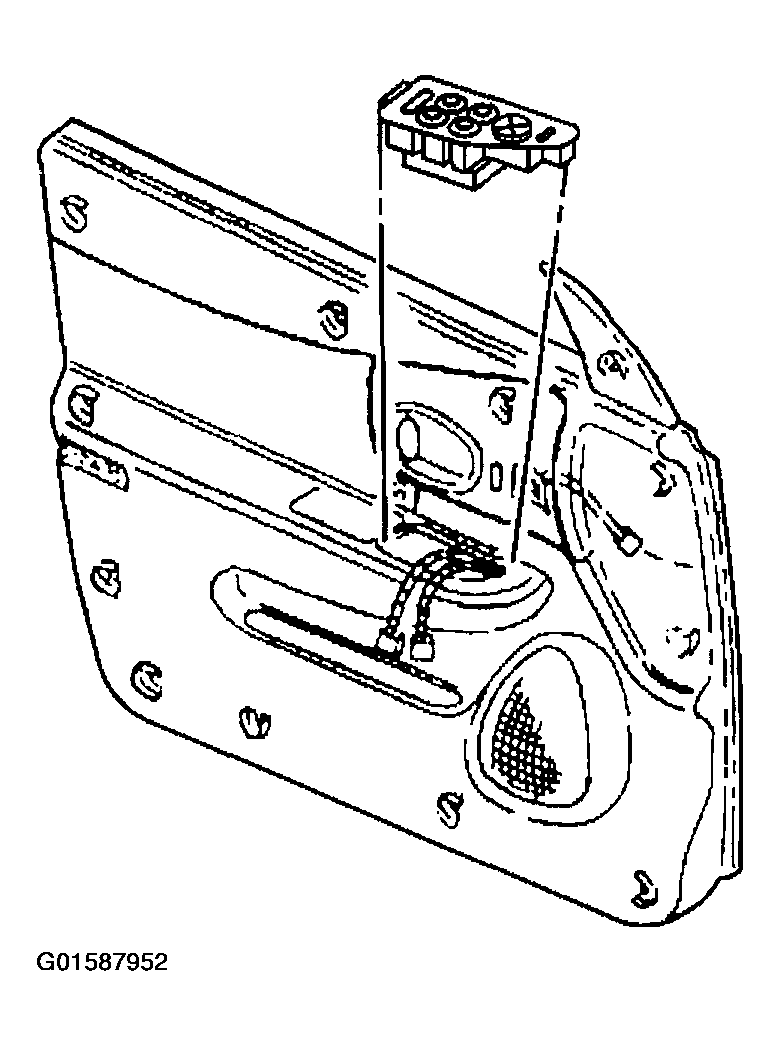

Fig 2: Connecting Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Insert the mounting plate tab into the trim panel and press down on the front end to engage the front retainer.
